High-Performance Outdoor WiFi 6 Connectivity Built for Demanding Deployments

Experience seamless indoor and outdoor networking with the TP-Link EAP625-Outdoor HD, an AX1800 WiFi 6 access point designed to handle high-density environments and challenging weather conditions. Delivering total speeds up to 1.8 Gbps—574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz—the EAP625-Outdoor HD ensures fast, reliable wireless connectivity for modern businesses.

Equipped with WiFi 6 technologies like OFDMA, MU-MIMO, and 1024-QAM, this access point maximizes efficiency and reduces latency, supporting over 1,000 simultaneous clients. Two high-gain external antennas and an advanced high-power amplifier extend coverage while ensuring robust signals, even in expansive outdoor spaces.

The rugged IP67-rated weatherproof housing defends against dust, rain, and harsh environmental conditions, making it ideal for hospitality, campuses, manufacturing facilities, and city-wide WiFi deployments.

Centralized management through TP-Link’s Omada SDN platform offers cloud-based control, zero-touch provisioning, and intelligent monitoring—all accessible from anywhere via web or mobile app.

Deploy the EAP625-Outdoor HD to elevate your wireless network with powerful outdoor coverage, enterprise security, and flexible installation.

What's Included in the Box

• TP-Link EAP625-Outdoor HD AX1800 Access Point

• 2× Detachable Dual-Band Omni Antennas

• Mounting Kit

• Waterproof Kit

• Installation Guide

Main Features

✅ AX1800 WiFi 6 Speeds — Delivers speeds up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for fast, lag-free connectivity.

✅ High-Density Capacity — Supports over 1,000+ concurrent clients, perfect for busy venues and large-scale deployments.

✅ Extended Outdoor Coverage — High-power amplifier and detachable antennas ensure strong signals across wide outdoor areas.

✅ Omada SDN Integration — Centralized cloud management with seamless network monitoring, zero-touch provisioning, and remote configuration.

✅ Rugged IP67 Enclosure — Weatherproof design withstands harsh outdoor environments.

✅ Flexible Power Options — Supports 802.3at PoE and passive PoE for easy deployment with minimal cabling.

✅ Enterprise-Grade Security — Advanced protections like WPA3, captive portal, rogue AP detection, and VLAN support.

Detailed Specifications

Wireless Performance

• Wireless Standard: WiFi 6 (802.11ax)

• Dual Band:

  • 2.4 GHz: Up to 574 Mbps

  • 5 GHz: Up to 1201 Mbps

• Technologies:

  • OFDMA

  • MU-MIMO

  • 1024-QAM

• Coverage: Up to 280 m (varies by environment)⁶

• Concurrent Clients: 1,000+³

Hardware

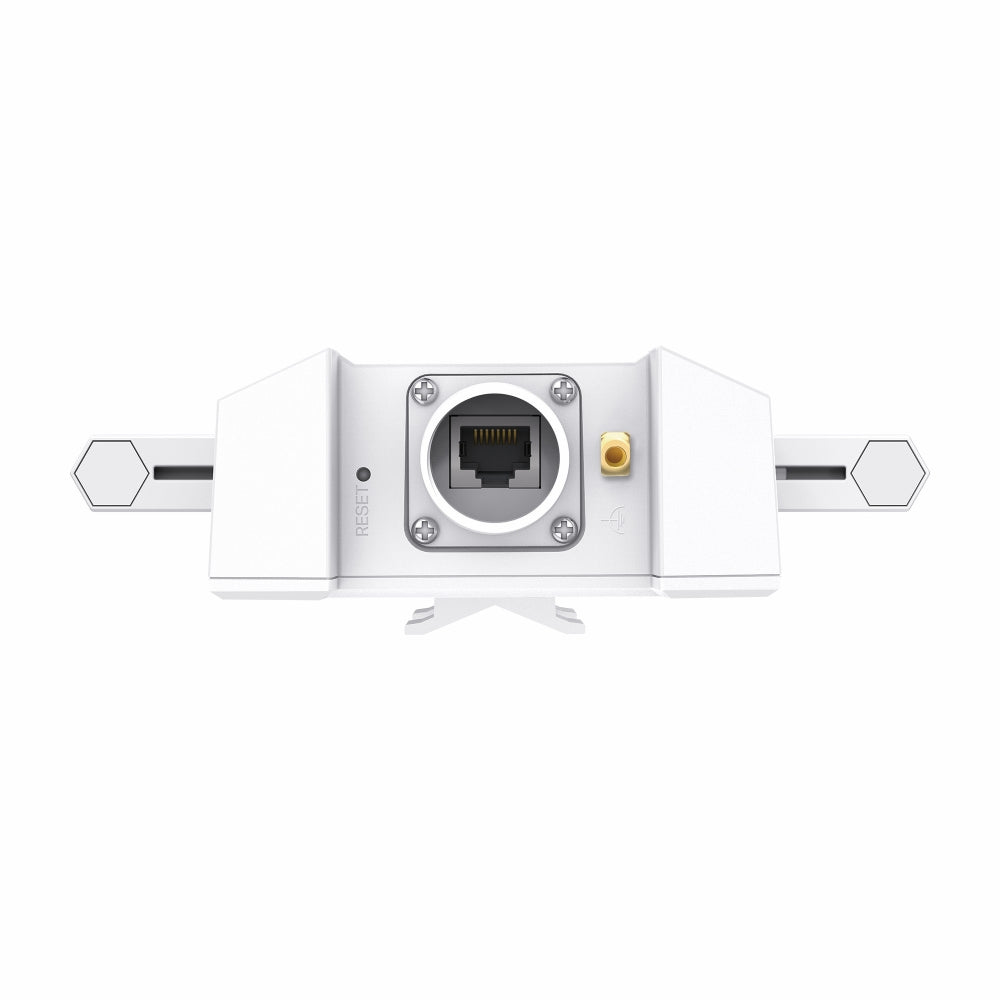

• Interfaces:

  • 1× Gigabit Ethernet Port

• Power Options:

  • 802.3at PoE

  • 48V Passive PoE (PoE adapter not included)

• Max Power Consumption:

  • EU: 12.5 W

  • US: 14.7 W

• Antennas:

  • 2× Detachable Dual-Band Omni Antennas

    • 2.4 GHz: 3.0 dBi

    • 5 GHz: 5.0 dBi

• Enclosure: IP67 Weatherproof

• Dimensions (Excluding antennas): 280.4 × 182.2 × 56.9 mm (11.0 × 7.2 × 2.2 in)

• Mounting: Pole or Wall Mounting (kits included)

Wireless Features

• 16 SSIDs (8 per band)

• Omada Mesh⁴

• Seamless Roaming⁴

• Automatic Channel Assignment

• Load Balancing

• Band Steering

• Beamforming

• Airtime Fairness

• Rate Limiting

• Wireless Scheduling

• Reboot Scheduling

• Wireless Statistics

• RADIUS Accounting

• MAC Authentication

• Static/Dynamic IP

Security

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• Captive Portal Authentication⁴

• 802.1X Support

• Wireless MAC Address Filtering

• Wireless Client Isolation

• Rogue AP Detection

• VLAN

• Access Control

• Up to 4,000 MAC Filters

Management

• Omada SDN Integration:

  • Omada Hardware Controllers (OC300, OC200)

  • Omada Software Controller

  • Omada Cloud-Based Controller

• Cloud Access

• Omada App Support

• SNMP v1/v2c/v3

• SSH

• Web Management (HTTP/HTTPS)

• Local/Remote Syslog

• Email Alerts

• Zero-Touch Provisioning

Environmental

• Operating Temperature: -30 °C to 70 °C (-22 °F to 158 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

manufactures warranty applied

Brand Description

TP-Link Omada delivers high-performance enterprise networking solutions with seamless cloud integration, central management, and advanced security for modern businesses of all sizes.

Practical Use Scenarios

• Outdoor hospitality venues such as resorts, hotels, and pool areas

• Public WiFi hotspots in parks, stadiums, and city centers

• Large campuses or educational facilities

• Outdoor warehouses and logistics hubs

• Industrial environments requiring rugged connectivity

Datasheets / Downloadable Resources

• TP-Link EAP625-Outdoor HD Product Page


Excellence for the Australian and New Zealand Market

The EAP625-Outdoor HD complies with Australian and New Zealand regulations for wireless networking equipment. Sourced through authorized channels, it ensures genuine products, local warranty support, and tailored solutions for ANZ businesses demanding robust outdoor connectivity.

FAQs (Including Product Code EAP625-Outdoor HD)

Q1: What wireless speeds does the EAP625-Outdoor HD (SKU: EAP625-Outdoor HD) deliver?
A1: The EAP625-Outdoor HD provides AX1800 performance with up to 1201 Mbps on 5 GHz and up to 574 Mbps on 2.4 GHz.

Q2: Is the EAP625-Outdoor HD (SKU: EAP625-Outdoor HD) suitable for outdoor installations?
A2: Absolutely! It features an IP67 weatherproof enclosure, making it ideal for outdoor environments.

Q3: How many clients can the EAP625-Outdoor HD (SKU: EAP625-Outdoor HD) support?
A3: It supports over 1,000 simultaneous clients, perfect for high-density deployments.

Q4: Does the EAP625-Outdoor HD (SKU: EAP625-Outdoor HD) support Omada Mesh?
A4: Yes. It integrates seamlessly into Omada Mesh networks for flexible, wireless interconnections.

Q5: What power options does the EAP625-Outdoor HD (SKU: EAP625-Outdoor HD) offer?
A5: It supports both 802.3at PoE and 48V passive PoE for flexible installation.
