Take your network reliability and speed to new heights with the TP-Link ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway, an innovative multi-WAN router that delivers exceptional connectivity and powerful management features for business environments.
Featuring 4G+ Cat6 support with up to 300 Mbps download speeds, this gateway ensures business continuity by seamlessly switching to LTE networks if wired connections fail. With AX3000 Wi-Fi 6 technology delivering blazing wireless performance—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—you get ultra-fast, simultaneous multi-device support.
Perfect for retail stores, small businesses, or remote sites, the ER706W-4G combines enterprise-class VPN capabilities, advanced security features, and deep integration with the Omada SDN platform for centralized cloud management and zero-touch provisioning. Equipped with five high-gain detachable antennas, it guarantees optimal wireless coverage, while intelligent load balancing and robust routing keep your network stable and secure.
Whether used as a primary router or LTE backup solution, the ER706W-4G provides professional-grade performance in a compact, versatile form factor.
What’s Included in the Box
Main Features
-
4G+ Cat6 LTE Connectivity: Ensures network redundancy with speeds up to 300 Mbps download and 50 Mbps upload, ideal for failover scenarios or primary connectivity in remote areas.
-
AX3000 Wi-Fi 6 Performance: Delivers ultra-fast wireless speeds with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for high-density environments.
-
Carrier Aggregation Support: Offers advanced LTE performance with multi-band aggregation, supporting EU and US LTE bands.
-
Gigabit Multi-WAN Ports: Features 1 Gigabit WAN port and 5 Gigabit WAN/LAN ports for flexible network architecture.
-
High-Gain Antennas: Comes with five detachable antennas for superior LTE and Wi-Fi signal coverage.
-
Enterprise-Class VPN: Supports IPSec, OpenVPN, GRE, WireGuard, PPTP, L2TP, and SSL VPNs for secure remote access and inter-branch communication.
-
Omada SDN Integration: Enables cloud-based centralized management, intelligent monitoring, and zero-touch deployment via the Omada app or web platform.
-
Advanced Security Features: Includes DPI, IPS/IDS, DoS protection, IP/MAC/URL filtering, and firewall rules for comprehensive network protection.
-
Silent Operation & Compact Design: Fanless design ensures quiet operation in office environments, while desktop or wall-mount options offer flexible installation.
Detailed Specifications
| Hardware Features |
|
| LTE Connectivity |
Supports 4G+ Cat6 with up to 300 Mbps download and 50 Mbps upload
Dual Nano SIM slots |
| LTE Bands (EU) |
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41
3G: B1/B3/B5/B8 |
| LTE Bands (US) |
LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
LTE-TDD: B41/B48 |
| Carrier Aggregation |
Multiple band combinations supported for enhanced speeds |
| Interfaces |
1 × Gigabit SFP WAN/LAN Port
1 × Gigabit WAN Port
4 × Gigabit WAN/LAN Ports |
| Wi-Fi Technology |
AX3000 Wi-Fi 6
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps |
| Antennas |
3 dual-band detachable Wi-Fi antennas (5.5 dBi @ 5GHz, 4.5 dBi @ 2.4GHz)
2 LTE detachable antennas (4.0 dBi) |
| Flash |
128 MB NAND |
| DRAM |
512 MB DDR4 |
| Fan Quantity |
Fanless |
| LEDs |
SYS, WLAN, SFP, LTE Signal, WAN, LAN indicators |
| Dimensions |
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (excluding antennas) |
| Power Supply |
12VDC / 2A adapter |
| Max Power Consumption |
EU: 15.4 W
US: 17.3 W |
| Protection |
4 kV surge protection |
| Enclosure |

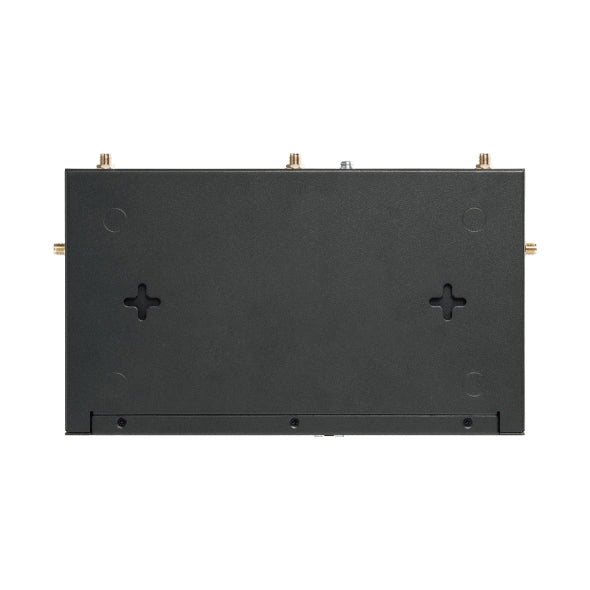

Steel, desktop or wall-mountable |
| Performance |
|
| IPS Throughput |
TCP: 229 Mbps; UDP: 188 Mbps |
| DPI Throughput |
TCP: 933 Mbps; UDP: 927 Mbps |
| GRE Throughput |
Unencrypted: 545.3 Mbps; Encrypted: 282.6 Mbps |
| WireGuard VPN Throughput |
387.7 Mbps |
| Concurrent Sessions |
150,000 |
| New Sessions/sec |
5,100 |
| NAT Throughput (Static IP) |
Upload: 947.1 Mbps; Download: 940.1 Mbps |
| IPsec VPN Throughput |
Up to 670.5 Mbps (ESP-SHA512-AES256) |
| OpenVPN Throughput |
115.5 Mbps |
| L2TP VPN Throughput |
Unencrypted: 990.0 Mbps; Encrypted: 475.0 Mbps |
| PPTP VPN Throughput |
Unencrypted: 1177.9 Mbps; Encrypted: 177.4 Mbps |
| SSL VPN Throughput |
122.5 Mbps |
| Packet Forwarding Rate |
66-byte: ~1.45 million pps; 1518-byte: ~81,275 pps |
| VPN & Security |
|
| VPN Types |
GRE, SSL, IPsec, PPTP, L2TP, OpenVPN, WireGuard |
| VPN Capacity |
100 IPsec tunnels, 55 OpenVPN tunnels, 50 SSL VPN tunnels, 20 WireGuard tunnels |
| Security Features |
DPI, IPS/IDS, DoS/DDoS protection, ARP inspection, ACLs, IP/MAC/URL filtering, SPI firewall, session limits, ALG support |
| Wireless Features |
|
| Mesh Support |
Omada Mesh (when paired with EAPs supporting Mesh) |
| Wireless Optimization |
OFDMA, MU-MIMO, Beamforming, Airtime Fairness, Seamless Roaming |
| Wireless Encryption |
WPA/WPA2/WPA3 Personal and Enterprise |
| SSIDs |
Up to 16 total (8 per radio) |
| Guest Network |
Supported |
| Management & Cloud |
|
| Centralized Management |
Omada Cloud-Based Controller, Hardware Controller (OC200, OC300), Software Controller |
| Omada App |
Supported |
| Zero-Touch Provisioning |
Supported |
| Additional Features |
Automatic device discovery, intelligent monitoring, unified configuration, captive portal management, abnormal event warnings |
| Certifications & Environment |
|
| Certifications |
CE, FCC, RoHS |
| Operating Temp. |
0–40 ℃ (32–104 ℉) |
| Storage Temp. |
-40–70 ℃ (-40–158 ℉) |
| Operating Humidity |
10–90% RH non-condensing |
| Storage Humidity |
5–90% RH non-condensing |
| System Requirements |
Windows 98SE onward, macOS, NetWare, UNIX, Linux |
Warranty Information
The TP-Link ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway comes with TP-Link’s standard manufacturer warranty, providing dependable support and peace of mind. For warranty details specific to Australia and New Zealand, please consult TP-Link’s official channels or your authorized distributor.
About TP-Link
TP-Link is a global networking leader, dedicated to delivering innovative solutions that power connectivity for millions of businesses and consumers. Trusted worldwide, TP-Link offers reliable, high-performance products to help build secure and scalable networks for any application.
SKU
ER706W-4G
Practical Use Scenarios
-
Retail Outlets: Maintain stable internet access with LTE backup to prevent service interruptions during outages.
-
Remote Branches: Establish high-speed VPN tunnels over LTE or broadband, ensuring secure data communication.
-
Construction Sites: Provide temporary internet access where wired services are unavailable, using LTE as primary connectivity.
-
SMB Offices: Deploy a single device for Wi-Fi 6, VPN services, and LTE redundancy in compact spaces.
-
Mobile Businesses: Guarantee reliable connectivity on the go, thanks to advanced LTE and VPN support.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway meets stringent Australian and New Zealand regulatory standards, including CE, FCC, and RoHS certifications. All products are sourced through authorized TP-Link distributors, ensuring genuine hardware and local warranty support. Warranty claims and technical assistance are handled directly through TP-Link’s official ANZ channels, providing businesses across the region with reliable service and peace of mind.
FAQs
Q1: What LTE bands does the TP-Link ER706W-4G Omada VPN Gateway (ER706W-4G) support?
The ER706W-4G supports a wide range of LTE-FDD and LTE-TDD bands for both EU and US regions, ensuring compatibility with numerous carriers for flexible deployment.
Q2: Does the TP-Link ER706W-4G Omada VPN Gateway (ER706W-4G) support Wi-Fi 6?
Yes! The ER706W-4G offers AX3000 Wi-Fi 6 with speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for superior wireless performance.
Q3: Can the TP-Link ER706W-4G Omada VPN Gateway (ER706W-4G) be managed via the cloud?
Absolutely! The ER706W-4G integrates seamlessly into the Omada SDN ecosystem, enabling centralized cloud management and zero-touch provisioning through Omada controllers.
Q4: How many VPN tunnels does the TP-Link ER706W-4G Omada VPN Gateway (ER706W-4G) support?
The ER706W-4G supports up to 100 IPsec VPN tunnels, 55 OpenVPN tunnels, 50 SSL VPN tunnels, and 20 WireGuard tunnels for secure enterprise connectivity.
Q5: What are the physical dimensions of the TP-Link ER706W-4G Omada VPN Gateway (ER706W-4G)?
The ER706W-4G measures 8.9 × 5.2 × 1.4 inches (226 × 131 × 35 mm), excluding antennas, making it a compact yet powerful option for professional deployments.
