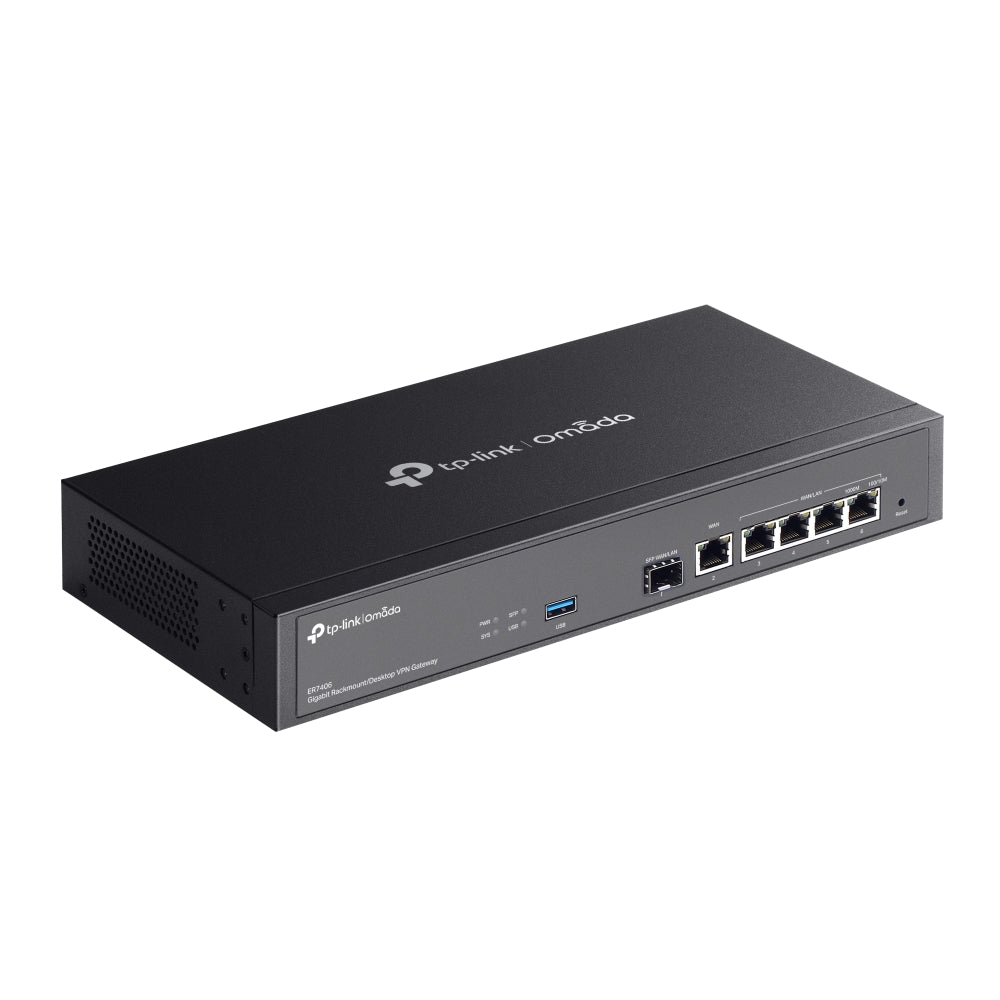

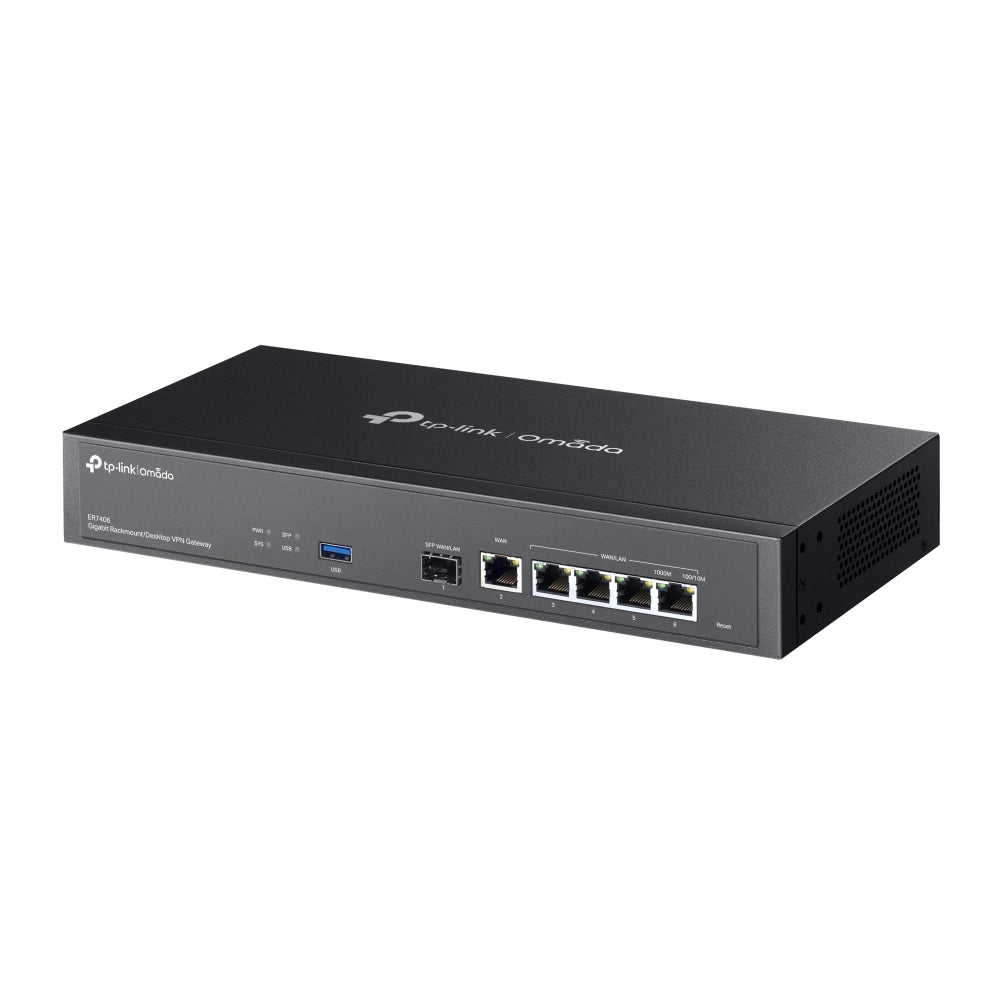

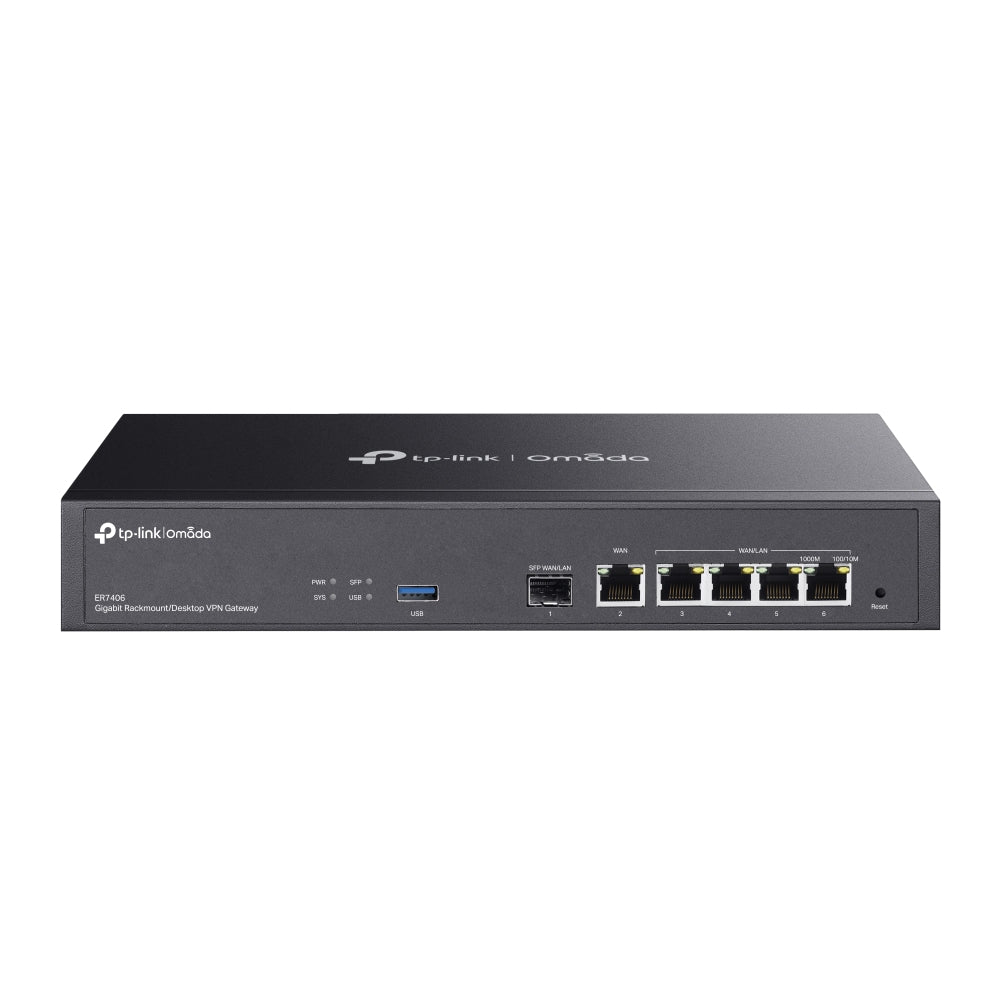

Meet the networking demands of modern businesses with the TP-Link ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway—a high-performance security gateway designed to deliver enterprise-grade routing, advanced VPN services, and robust multi-WAN load balancing.
Powered by a powerful architecture and packed with advanced security capabilities, the ER7406 is perfect for small to medium-sized businesses, branch offices, and service providers seeking secure and scalable network solutions. With five Gigabit WAN/LAN ports, support for load balancing across up to five WAN connections, and versatile VPN options including WireGuard, IPSec, and OpenVPN, this gateway ensures secure and reliable connectivity.
Seamlessly integrated into the Omada SDN ecosystem, the ER7406 provides centralized cloud management, intelligent network monitoring, and zero-touch provisioning. Manage and scale your network easily via the web or the user-friendly Omada app, ensuring operational efficiency and consistent security.
With its compact rackmountable design, fanless operation, and steel enclosure, the ER7406 is an excellent choice for professional deployments demanding reliability, security, and flexibility.
What’s Included in the Box
Main Features
-
Multi-WAN Capability: Supports up to 5 WAN connections with intelligent load balancing for optimal bandwidth utilization and network reliability.
-
Versatile Gigabit Connectivity: Equipped with 1× Gigabit SFP port, 1× dedicated Gigabit WAN port, and 4× Gigabit WAN/LAN ports for flexible deployment.
-
Advanced VPN Support: Enables enterprise-class VPN solutions with support for SSL, IPSec, GRE, WireGuard, PPTP, L2TP, and OpenVPN.
-
Enhanced Security: Features DPI, IPS/IDS, DoS/DDoS protection, web filtering, and ARP inspection for comprehensive threat defense.
-
Omada SDN Integration: Offers centralized management, intelligent monitoring, and zero-touch provisioning through Omada controllers and the Omada app.
-
Fanless Design: Operates silently while maintaining reliable performance in professional environments.
-
Compact Rackmount/Desktop Form Factor: Steel enclosure with robust 4 kV surge protection for secure deployment.
-
USB 3.0 Port: Supports USB storage devices and LTE dongles for WAN backup and network flexibility.
Detailed Specifications
| Hardware Features |
|
| Interfaces |
1 × Gigabit SFP WAN/LAN Port
1 × Gigabit RJ45 WAN Port
4 × Gigabit RJ45 WAN/LAN Ports
1 × USB 3.0 Port (for LTE dongle or storage) |
| Network Media |
10BASE-T, 100BASE-TX, 1000BASE-T (max 100 m, various cable categories) |
| Flash |
128 MB NAND |
| DRAM |
512 MB DDR4 |
| Fan Quantity |
Fanless |
| LEDs |
PWR, SYS, SFP, USB, WAN, WAN/LAN indicators |
| Dimensions |
11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) |
| Power Supply |
100–240 VAC, 50/60 Hz |
| Max Power Consumption |
7.5 W (with USB connected), 4.5 W (without USB connected) |
| Protection |
4 kV surge protection |
| Enclosure |
Steel, rackmount or desktop |
| Performance |
|
| IPS Throughput |
TCP: 229 Mbps; UDP: 188 Mbps |
| DPI Throughput |
TCP: 933 Mbps; UDP: 927 Mbps |
| GRE Throughput |
Unencrypted: 611.9 Mbps; Encrypted: 325.0 Mbps |
| WireGuard VPN Throughput |
341.3 Mbps |
| Concurrent Sessions |
150,000 |
| New Sessions/sec |
5,300 |
| NAT Throughput (Static IP) |
Upload: 945.3 Mbps; Download: 940.5 Mbps |
| IPSec VPN Throughput |
Up to 617.1 Mbps (ESP-SHA1-AES256) |
| OpenVPN Throughput |
139.1 Mbps |
| L2TP VPN Throughput |
Unencrypted: 977.4 Mbps; Encrypted: 334.6 Mbps |
| PPTP VPN Throughput |
Unencrypted: 1064.1 Mbps; Encrypted: 206.8 Mbps |
| SSL VPN Throughput |
131.6 Mbps |
| Packet Forwarding Rate |
66-byte: ~1.45 million pps; 1518-byte: ~81,279 pps |
| VPN & Security |
|
| VPN Types |
GRE, SSL, IPSec, PPTP, L2TP, OpenVPN, WireGuard |
| VPN Capacity |
100 IPSec tunnels, 55 OpenVPN tunnels, 50 SSL VPN tunnels, 20 WireGuard tunnels |
| Security Features |
DPI, IPS/IDS, DoS/DDoS protection, ARP inspection, ACLs, IP/MAC/URL filtering, SPI firewall, session limits, ALG support |
| Management & Cloud |
|
| Centralized Management |
Omada Cloud-Based Controller, Hardware Controller, Software Controller |
| Omada App |
Supported (requires controller) |
| Zero-Touch Provisioning |
Supported |
| Additional Features |
Automatic device discovery, batch configuration, firmware upgrades, intelligent monitoring, abnormal event warnings, unified configuration |
| Certifications & Environment |
|
| Certifications |
CE, FCC, RoHS |
| Operating Temp. |
0–50 ℃ (32–122 ℉) |
| Storage Temp. |
-40–70 ℃ (-40–158 ℉) |
| Operating Humidity |
10–90% RH non-condensing |
| Storage Humidity |
5–90% RH non-condensing |
| System Requirements |
Windows 98SE onward, macOS, NetWare, UNIX, Linux |
Warranty Information
The TP-Link ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway is covered under TP-Link’s standard manufacturer warranty, ensuring professional support and reliable service. Warranty terms may vary by region; please consult TP-Link’s official channels or authorized distributors for details specific to Australia and New Zealand.
About TP-Link
TP-Link is a trusted global leader in networking solutions, dedicated to delivering high-quality products for businesses and consumers. With a reputation for innovation and reliability, TP-Link helps businesses build secure, scalable networks that empower productivity and growth.
SKU
ER7406
Practical Use Scenarios
-
Small and Medium Businesses: Securely connect branches with advanced VPN services and efficient load balancing across multiple WAN connections.
-
Retail and Hospitality: Centralize network security and management for multi-site retail or hospitality environments.
-
Managed Service Providers (MSPs): Deploy robust VPN and SD-WAN services for clients with secure, scalable solutions.
-
Educational Institutions: Maintain secure, high-performance networks across campus facilities with advanced monitoring and threat protection.
-
Professional Offices: Optimize network traffic with DPI and intelligent routing, ensuring secure and stable internet connectivity for critical operations.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway meets rigorous Australian and New Zealand standards for safety and performance, with CE, FCC, and RoHS certifications. Sourced exclusively through authorized TP-Link distributors, the ER7406 guarantees genuine hardware and local warranty support. Warranty claims and technical assistance are managed directly through TP-Link’s official ANZ channels, ensuring a reliable, locally-supported solution for businesses across the region.
FAQs
Q1: How many VPN tunnels can the TP-Link ER7406 Omada VPN Gateway (ER7406) support?
The ER7406 supports up to 100 IPSec VPN tunnels, 55 OpenVPN tunnels, 50 SSL VPN tunnels, and 20 WireGuard tunnels for secure enterprise connectivity.
Q2: Does the TP-Link ER7406 Omada VPN Gateway (ER7406) support SD-WAN?
Yes! The ER7406 offers SD-WAN functionality when managed through the Omada Controller, enabling intelligent routing and optimized network performance.
Q3: What is the maximum NAT throughput of the TP-Link ER7406 Omada VPN Gateway (ER7406)?
The ER7406 delivers up to 945.3 Mbps upload and 940.5 Mbps download NAT throughput, ensuring reliable network performance for business applications.
Q4: Can the TP-Link ER7406 Omada VPN Gateway (ER7406) be mounted in a rack?
Absolutely! The ER7406 includes a rackmount kit for professional installations, while also supporting desktop deployment for flexibility.
Q5: What are the physical dimensions of the TP-Link ER7406 Omada VPN Gateway (ER7406)?
The ER7406 measures 11.6 × 5.5 × 1.7 inches (294 × 140 × 44 mm) and features a durable steel enclosure for robust deployments.
