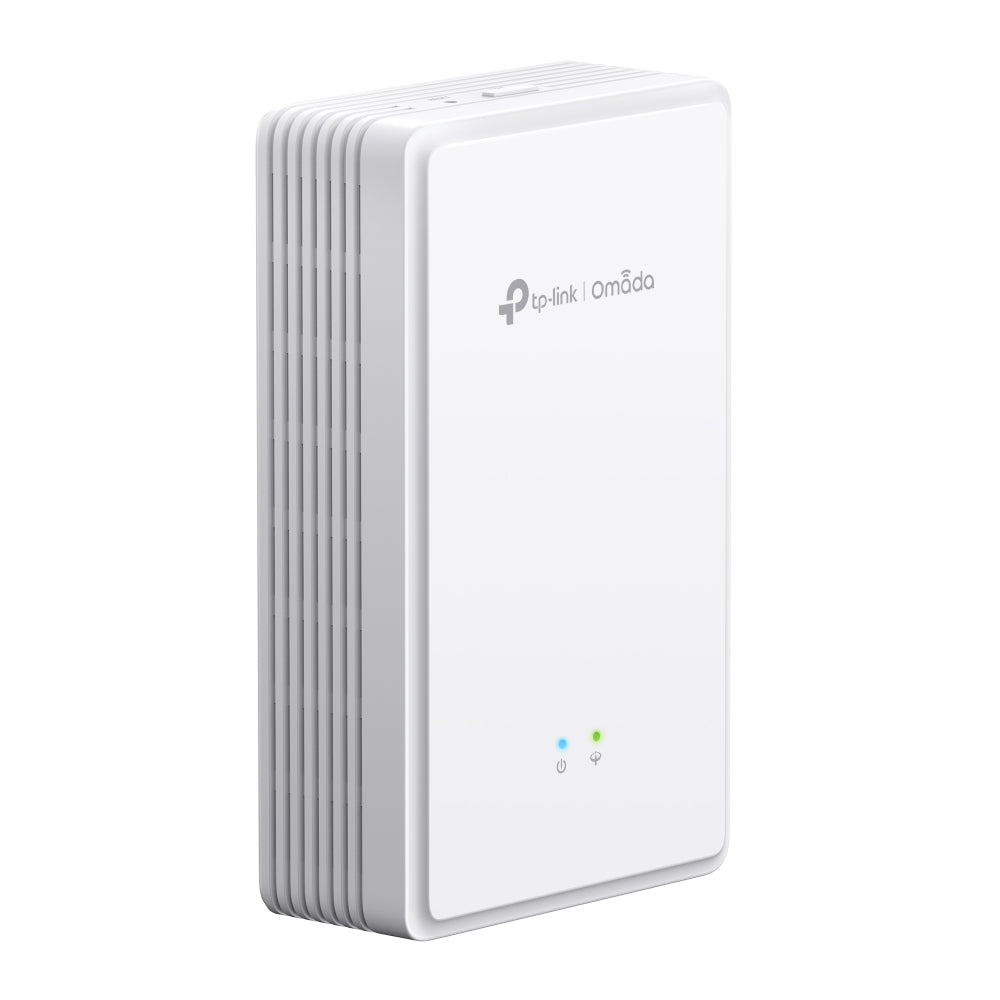

Unleash ultra-fast, fibre-powered networking with the TP-Link Omada EAP615GP-Wall AX1800 Wi-Fi 6 Wall Plate GPON Access Point (SKU: EAP615GP-Wall), engineered to deliver high-performance wireless and wired services for modern enterprises, hospitality venues, and MDUs.
Combining the latest Wi-Fi 6 technology with integrated GPON connectivity, the EAP615GP-Wall ensures seamless multi-service delivery over a single fibre optic cable. Achieve speeds up to 1.8 Gbps, with Omada Mesh support and advanced roaming protocols guaranteeing uninterrupted coverage throughout your facility.
Designed for elegant wall-mount installations, this access point blends into modern interiors while offering versatile features like VoIP support, PPSK, captive portal capabilities, and centralised management via the Omada ecosystem. With low power consumption and robust enterprise-grade security, the EAP615GP-Wall is a compact yet powerful choice for scalable, secure, and high-speed networking.
What's Included in the Box
Main Features
✅ AX1800 Wi-Fi 6 Performance — Delivers combined speeds up to 1.8 Gbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz), perfect for HD streaming, conferencing, and dense user environments.
✅ Integrated GPON Connectivity — Features a GPON port supporting ultra-long-range fibre access with downstream rates up to 2.488 Gbps.
✅ One Fiber for Multiple Services — Consolidates wired, wireless, voice, VoIP, data, and HD video services into a single fibre backbone, reducing infrastructure costs and complexity.
✅ VoIP Support — Provides an FXS RJ11 port, enabling multiple VoIP accounts and advanced call features beyond traditional landlines.
✅ Compact Wall Plate Design — Slim form factor ensures aesthetic, space-saving deployment in hotels, offices, and residential units.
✅ Omada Centralised Management — Integrates seamlessly with Omada SDN, allowing zero-touch provisioning, cloud-based monitoring, and unified control of your entire network.
✅ Seamless Roaming & Mesh — Supports Omada Mesh and 802.11k/v roaming for smooth handoffs between APs, ensuring uninterrupted connectivity.
✅ Enterprise-Grade Security — Advanced features like WPA3, VLAN, rogue AP detection, PPSK, and captive portals protect sensitive data and control network access.
Detailed Specifications

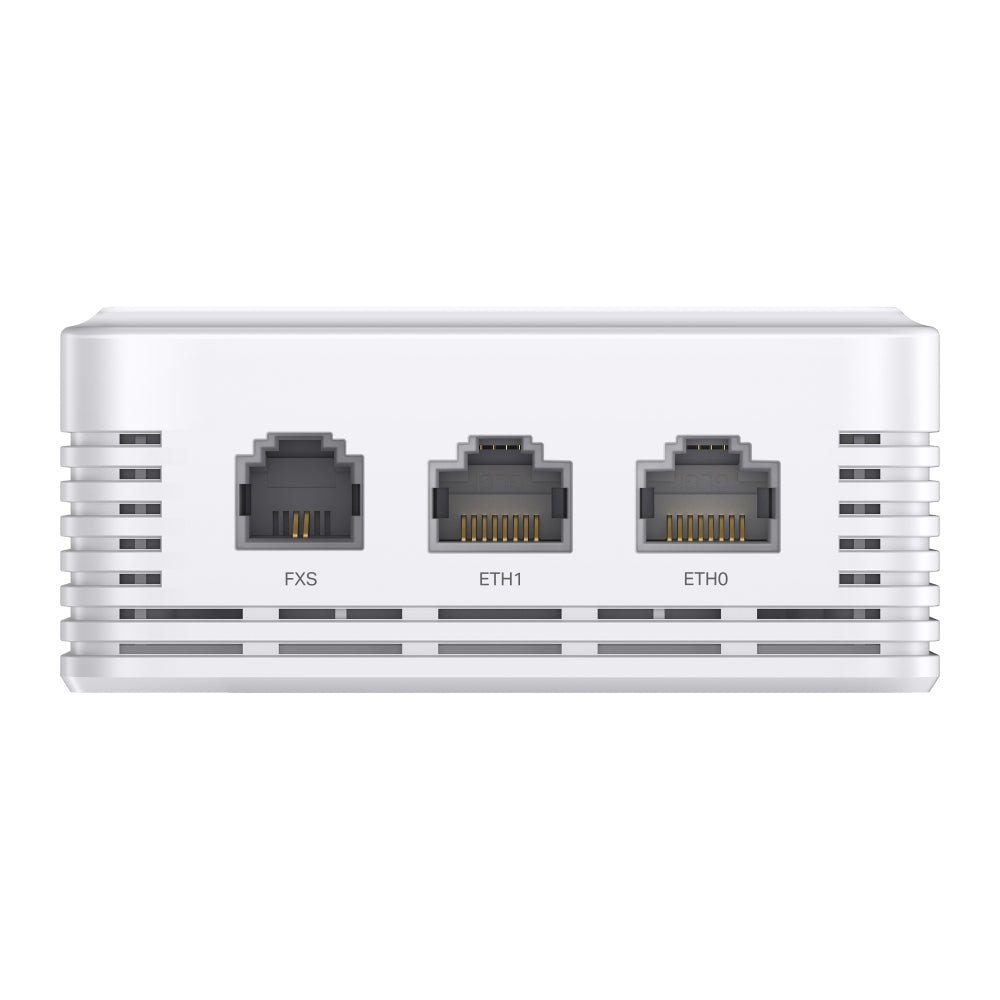

Interfaces:
-
1× GPON Port (SC-APC)
-
1× FXS RJ11 Port
-
2× Gigabit RJ45 Ports
GPON Specifications:
Wireless:
-
Standards: IEEE 802.11 a/b/g/n/ac/ax
-
Frequencies: 2.4 GHz + 5 GHz
-
Signal Rate: 1201 Mbps (5 GHz), 574 Mbps (2.4 GHz)
-
Antennas: Internal Omni (2× 4 dBi @ 2.4 GHz, 2× 6.5 dBi @ 5 GHz)
-
Coverage: Up to 50㎡ (600 ft²)
-
Concurrent Clients: 120+
-
Wireless Functions: MU-MIMO, OFDMA, Mesh, Seamless Roaming, Band Steering, Beamforming, and more
Power:
Physical:
Environment:
Certifications:
Management:
-
Omada App
-
Web Management
-
SNMP v1/v2c/v3
-
SSH
-
Zero-Touch Provisioning
-
Omada Cloud Access
Warranty Information
manufactures warranty applied
Brand Description
TP-Link is a globally trusted brand delivering innovative networking products for both consumer and business markets. From home Wi-Fi routers to sophisticated enterprise solutions like the Omada SDN ecosystem, TP-Link is synonymous with reliability, performance, and ease of use, serving millions of users worldwide.
Practical Use Scenarios
-
Hotels & Hospitality — Deploy discreet high-speed Wi-Fi in guest rooms while supporting IPTV and VoIP over fibre.
-
MDUs (Multi-Dwelling Units) — Deliver seamless internet, voice, and video services to apartments and condominiums via a single fibre connection.
-
Corporate Offices — Provide secure wireless and wired connectivity across offices while integrating with existing Omada infrastructure.
-
Educational Institutions — Ensure reliable Wi-Fi coverage for classrooms, dormitories, and admin buildings with seamless roaming.
-
Healthcare Facilities — Maintain fast, stable connections for data-sensitive medical applications and guest Wi-Fi services.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link Omada EAP615GP-Wall AX1800 Wi-Fi 6 Wall Plate GPON Access Point meets all necessary Australian and New Zealand compliance standards, including CE, FCC, RoHS, and IC certifications. Products are sourced exclusively through authorised TP-Link representatives, ensuring genuine devices and manufacturer-backed warranties. Engineered for the high-density environments typical of Australia and New Zealand, the EAP615GP-Wall delivers reliable, secure networking tailored to local regulations and deployment requirements.
(Including Product Code EAP615GP-Wall)
Q1: What speeds can I expect from the TP-Link EAP615GP-Wall AX1800 Wi-Fi 6 Wall Plate GPON Access Point (SKU: EAP615GP-Wall)?
A1: The EAP615GP-Wall offers speeds up to 1.8 Gbps, with 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz bands.
Q2: Does the TP-Link EAP615GP-Wall (SKU: EAP615GP-Wall) support Omada Mesh networking?
A2: Yes, the EAP615GP-Wall fully integrates into Omada Mesh networks for seamless roaming and expanded coverage.
Q3: Can the TP-Link EAP615GP-Wall (SKU: EAP615GP-Wall) provide VoIP services?
A3: Absolutely. It has an FXS RJ11 port for VoIP connectivity, supporting multiple VoIP accounts and advanced calling features.
Q4: Is the TP-Link EAP615GP-Wall (SKU: EAP615GP-Wall) suitable for Australian and New Zealand installations?
A4: Yes, it complies with all Australian and New Zealand standards, making it ideal for deployments in those markets.
Q5: What is the power consumption of the TP-Link EAP615GP-Wall (SKU: EAP615GP-Wall)?
A5: The EAP615GP-Wall has a maximum power consumption of 12.2W, making it energy-efficient for enterprise environments.
