Empower your network infrastructure with the TP-Link Omada EAP625GP-Wall AX1800 Wi-Fi 6 Wall Plate GPON Access Point (SKU: EAP625GP-Wall), engineered to deliver ultra-fast wireless performance and seamless integration into modern fibre networks.
Designed for enterprises, hotels, multi-dwelling units (MDUs), and commercial environments, this versatile device merges cutting-edge Wi-Fi 6 speeds of up to 1.8 Gbps with robust GPON connectivity. Enjoy seamless roaming, centralised cloud management, and a simplified installation process for scalable deployments.
Thanks to a built-in GPON port, the EAP625GP-Wall extends ultra-range fibre connectivity, while two Gigabit Ethernet ports—including one supporting 802.3af PoE out—enable flexible wired connections for VoIP phones, IPTV, security cameras, and more. Experience unified management with Omada’s cloud ecosystem for effortless configuration and monitoring.
From high-density wireless environments to converged services like VoIP and HD video streaming, the EAP625GP-Wall is your all-in-one solution for powerful and efficient network delivery.
What's Included in the Box
Main Features
✅ AX1800 Wi-Fi 6 Speeds — Enjoy blazing wireless speeds up to 1.8 Gbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) for ultra-smooth streaming, gaming, and business applications.
✅ Integrated GPON Connectivity — Equipped with 1× GPON port (SC-APC) supporting downstream speeds of 2.488 Gbps and upstream of 1.244 Gbps for robust fibre integration.
✅ Multiple Services over One Fiber — Consolidate wired, wireless, VoIP, data, and HD video services through a single fibre connection, ideal for modern digital environments.
✅ PoE Out Capability — One Gigabit RJ45 port supports 802.3af PoE out, simplifying deployment of additional network devices like IP phones or cameras.
✅ Omada Cloud Management — Zero-touch provisioning and remote management via Omada’s Hardware, Software, or Cloud-Based Controller ensures streamlined network administration.
✅ Seamless Mesh & Roaming — Omada Mesh technology and 802.11k/v roaming deliver uninterrupted connectivity across large areas.
✅ Enterprise-Grade Security — Supports advanced security protocols including WPA3, VLAN, captive portal, MAC filtering, rogue AP detection, and more.
✅ Compact Wall Plate Design — Slim form factor blends seamlessly into modern interiors, making it perfect for hospitality and commercial settings.
Detailed Specifications

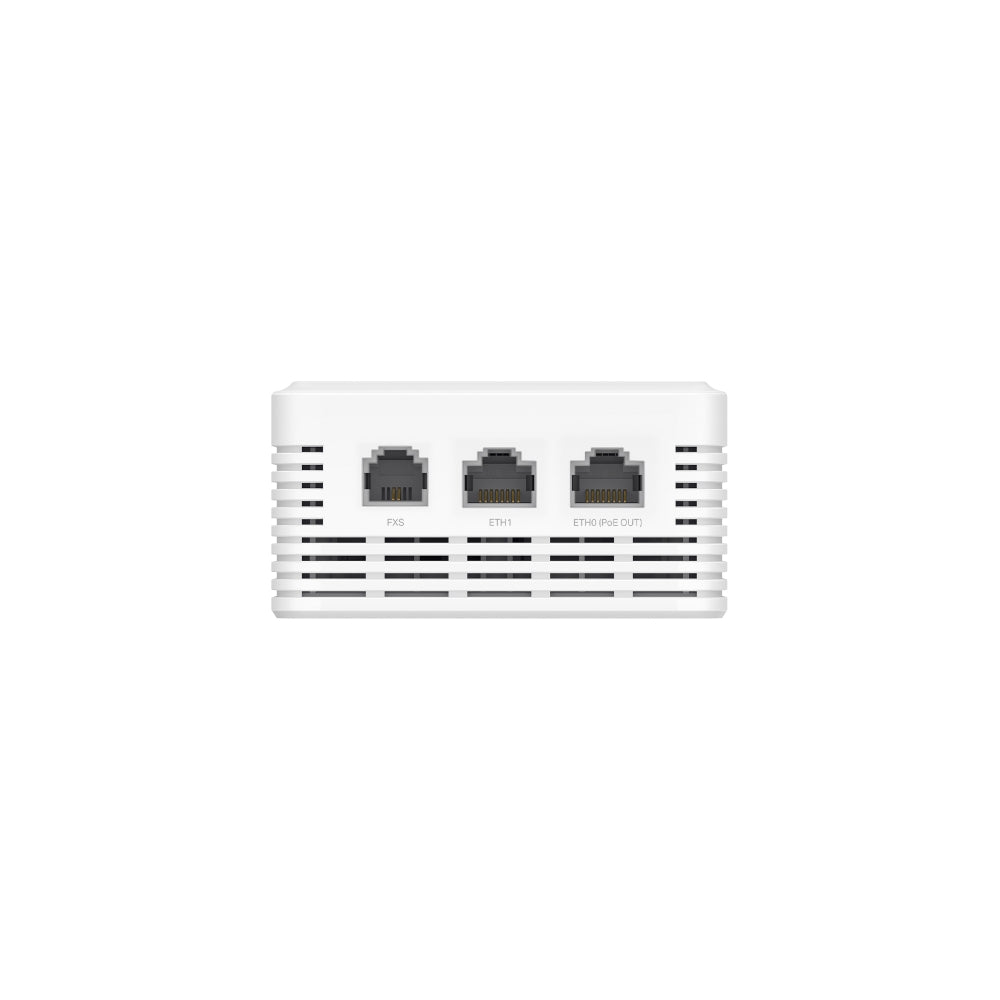

Interfaces:
-
1× GPON Port (SC-APC, ITU-984.x, G.988, Class B+)
-
1× FXS RJ11 Port
-
2× Gigabit RJ45 Ports (one with 802.3af PoE Out)
GPON Specifications:
Wireless:
-
Standards: IEEE 802.11 a/b/g/n/ac/ax
-
Frequencies: 2.4 GHz + 5 GHz
-
Signal Rate: 1201 Mbps (5 GHz), 574 Mbps (2.4 GHz)
-
Antennas: Internal Omni (2× 4 dBi @ 2.4 GHz, 2× 6.5 dBi @ 5 GHz)
-
Coverage: Up to 50㎡ (600 ft²)
-
Concurrent Clients: 120+
-
Features: MU-MIMO, OFDMA, Mesh, Seamless Roaming, Band Steering, Beamforming, etc.
Power:
Physical:
Environment:
Certifications:
Management:
-
Omada App
-
Web Management
-
SNMP v1/v2c/v3
-
SSH
-
Zero-Touch Provisioning
-
Omada Cloud Access
Warranty Information
manufactures warranty applied
Brand Description
TP-Link is a global leader in networking solutions, trusted by millions of businesses and consumers worldwide. The brand is renowned for delivering reliable, high-performance products ranging from routers and switches to sophisticated enterprise-grade network systems like the Omada SDN platform. TP-Link stands for innovation, quality, and exceptional customer support.
Practical Use Scenarios
-
Hotels & Hospitality — Deliver reliable Wi-Fi and IP services to guest rooms without cluttered hardware.
-
Multi-Dwelling Units (MDUs) — Provide internet, IPTV, and VoIP across apartments using one fibre drop per unit.
-
Enterprise Offices — Support secure, high-speed wireless and wired networks for business operations.
-
Healthcare Facilities — Maintain robust Wi-Fi coverage and fibre connectivity for sensitive data and medical devices.
-
Educational Campuses — Enable seamless roaming and fibre backhaul across large school or university buildings.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link EAP625GP-Wall AX1800 Wi-Fi 6 Wall Plate GPON Access Point is fully compliant with Australian and New Zealand standards, including certifications such as CE, FCC, RoHS, and IC. All devices are sourced exclusively through authorised TP-Link distributors and representatives, ensuring genuine products and direct manufacturer warranty support. Optimised for high-density environments typical in Australia and New Zealand, the EAP625GP-Wall guarantees dependable performance, secure connectivity, and compliance with local regulatory requirements.
(Including Product Code EAP625GP-Wall)
Q1: What is the maximum Wi-Fi speed of the TP-Link EAP625GP-Wall AX1800 Wi-Fi 6 Wall Plate GPON Access Point (SKU: EAP625GP-Wall)?
A1: The EAP625GP-Wall supports combined Wi-Fi speeds up to 1.8 Gbps, with 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
Q2: Does the EAP625GP-Wall (SKU: EAP625GP-Wall) support PoE out for connecting other devices?
A2: Yes, one of its Gigabit RJ45 ports supports 802.3af PoE out, making it easy to power devices like IP phones or cameras directly from the access point.
Q3: Can the EAP625GP-Wall (SKU: EAP625GP-Wall) integrate with Omada Mesh networks?
A3: Absolutely. The EAP625GP-Wall supports Omada Mesh technology and seamless roaming, ensuring smooth connectivity across your network.
Q4: Is the TP-Link EAP625GP-Wall (SKU: EAP625GP-Wall) suitable for hotels and MDUs?
A4: Yes, its wall plate design, fibre connectivity, and ability to handle multiple services make it ideal for hotels, multi-dwelling units, and commercial spaces.
Q5: Does the EAP625GP-Wall (SKU: EAP625GP-Wall) meet Australian and New Zealand compliance standards?
A5: Yes, the EAP625GP-Wall complies with Australian and New Zealand standards and certifications, ensuring safe and legal deployment in those regions.
