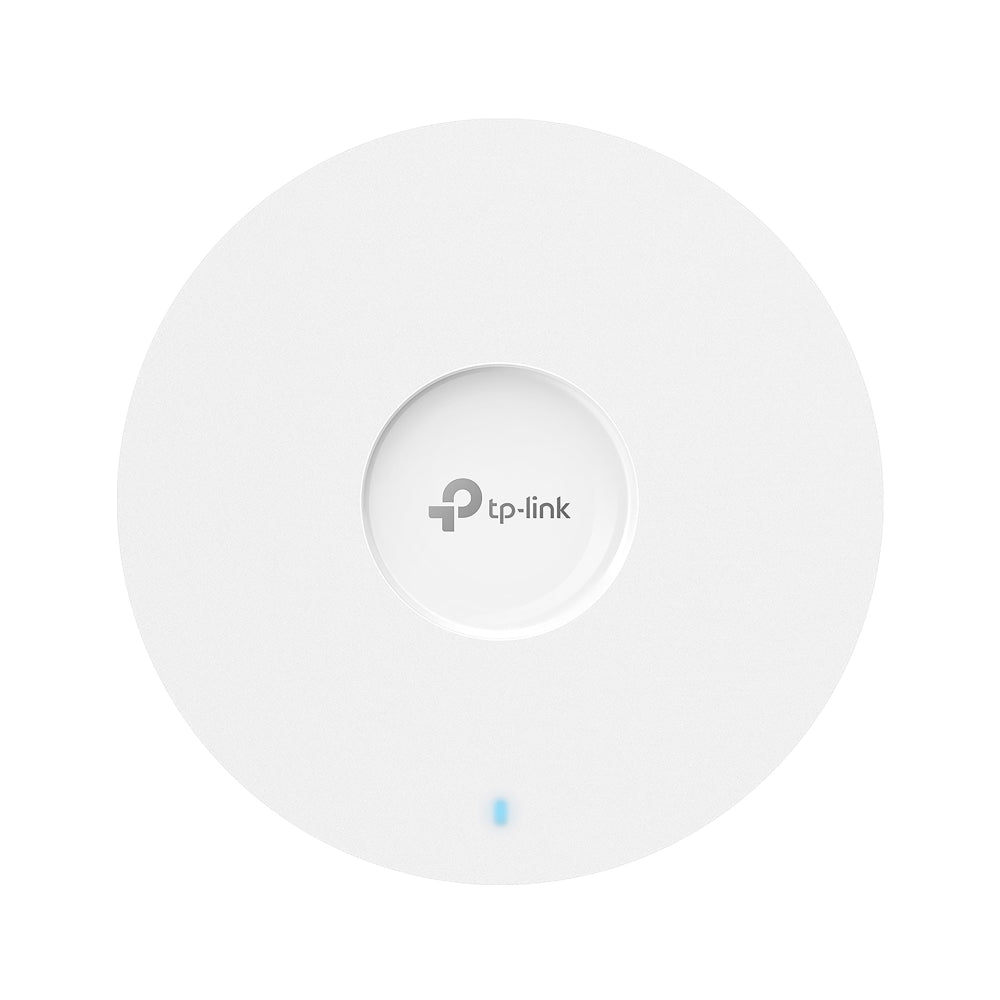

Supercharge your enterprise network with the TP-Link Omada EAP683 UR AX6000 Ceiling Mount Wi-Fi 6 Access Point (SKU: EAP683 UR), delivering blazing-fast speeds, ultra-long-range coverage, and seamless integration into high-density business environments.

Equipped with Wi-Fi 6 (802.11ax) technology, the EAP683 UR offers phenomenal dual-band speeds up to 5,952 Mbps — 4,804 Mbps on the 5 GHz band and 1,148 Mbps on the 2.4 GHz band. Engineered for demanding enterprise scenarios, it features powerful 4×4 MU-MIMO antennas and high transmission power, ensuring ultra-wide coverage and robust connectivity for large offices, educational institutions, hospitality spaces, and high-density deployments.

The EAP683 UR integrates smoothly with the Omada SDN platform, offering cloud-based centralised management, seamless roaming, AI-driven optimisation, and intelligent mesh networking for simplified deployment and maintenance. A 2.5G Ethernet port ensures high-speed backhaul and future-proofs your infrastructure for bandwidth-heavy applications like HD video conferencing and IoT devices.

Enterprise-grade security features — including WPA3 encryption, captive portals, VLAN support, rogue AP detection, and advanced traffic management — keep your network safe and optimised.

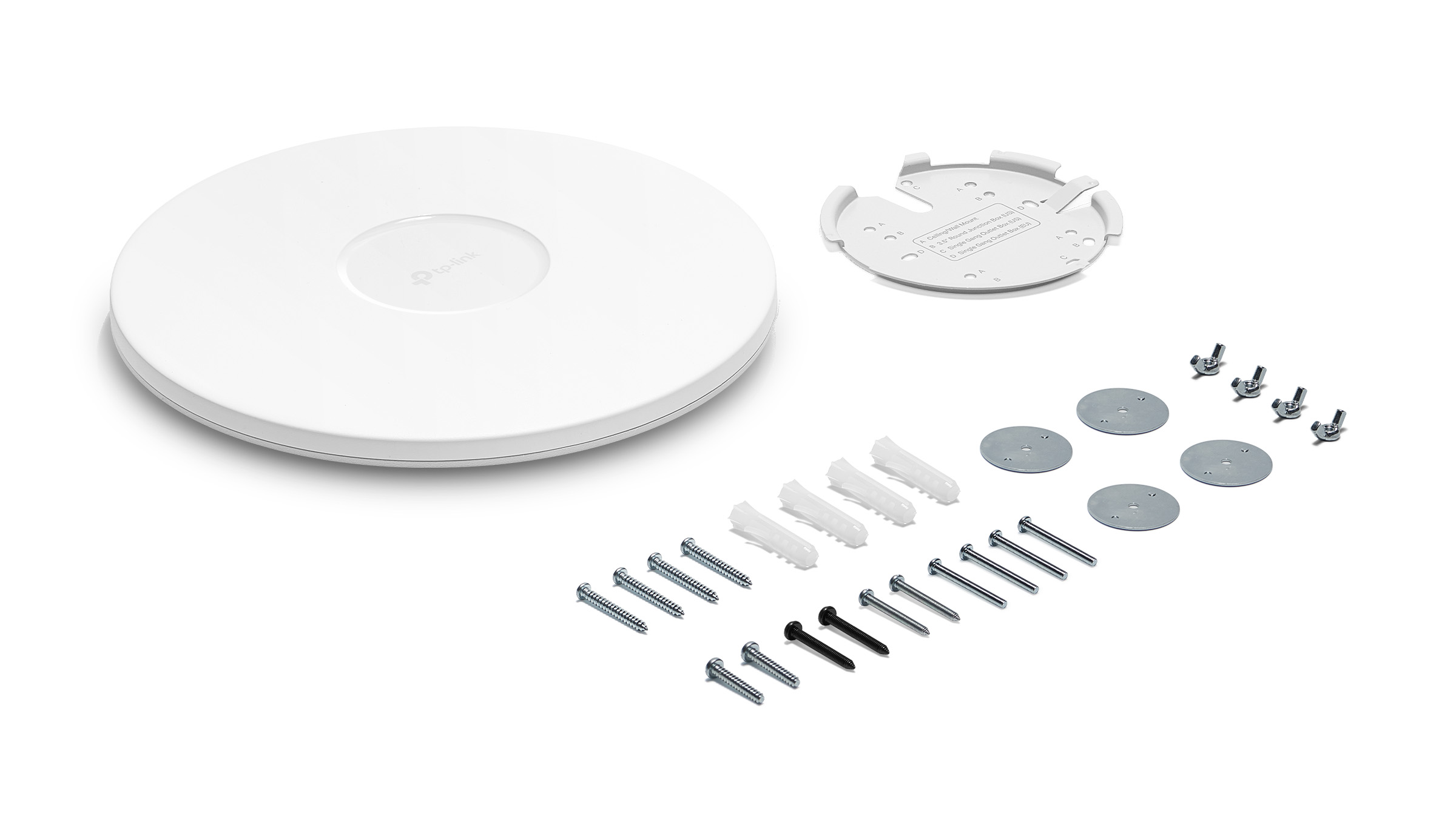

What's Included in the Box

• TP-Link Omada EAP683 UR AX6000 Ceiling Mount Wi-Fi 6 Access Point

• Ceiling/Wall Mounting Kit

• Installation Guide

Main Features

✅ AX6000 Wi-Fi 6 Speed — Achieves up to 5,952 Mbps aggregate wireless speed for ultra-fast data transfer, streaming, and high-density deployments.

✅ Ultra-Range Coverage — Equipped with high-power 4×4 dual-band antennas for robust coverage up to 185㎡ (2,000 ft²).

✅ 2.5G Ethernet Port — Provides high-speed wired backhaul to support bandwidth-intensive applications.

✅ Omada SDN Integration — Seamlessly integrates with Omada Cloud, hardware, or software controllers for unified management, zero-touch provisioning, and centralised monitoring.

✅ Advanced Wi-Fi 6 Technologies — Features HE160 (160 MHz channels), OFDMA, MU-MIMO, and 1024-QAM for greater efficiency and reduced latency.

✅ Seamless Roaming & Mesh — Supports Omada Mesh technology and seamless roaming for uninterrupted connectivity across large networks.

✅ Enterprise-Grade Security — Includes WPA3 encryption, captive portal support, rogue AP detection, VLANs, and 802.1X authentication for maximum network protection.

✅ Flexible Power Options — Powered via 802.3at PoE+ or DC input for simplified installation.

Detailed Specifications

Interfaces:

• 1× 2.5G Ethernet PoE+ Port

Wireless:

• Standards: IEEE 802.11 a/b/g/n/ac/ax

• Frequencies:

  • 5 GHz: up to 4,804 Mbps

  • 2.4 GHz: up to 1,148 Mbps

• Internal Antennas:

  • 2.4 GHz: 4× 4 dBi

  • 5 GHz: 4× 5 dBi

• Coverage: Up to 185㎡ (2,000 ft²)

• Concurrent Clients: 510+

• Wireless Features:

  • 1024-QAM

  • OFDMA

  • HE160 (160 MHz Bandwidth on 5 GHz)

  • 4× Longer OFDM Symbol

  • MU-MIMO

  • Omada Mesh

  • Seamless Roaming (802.11k/v/r)

  • Band Steering

  • Load Balancing

  • Beamforming

  • Airtime Fairness

  • Multiple SSIDs (up to 16)

  • Wireless Scheduling

Power:

• PoE Standard: 802.3at PoE+

• Optional: 12V/2A DC (power adapter not included)

• Max Power Consumption:

  • EU: 20.43W

  • US: 23.69W

Physical:

• Dimensions: 220 × 220 × 32.5 mm

• Weight: [Not specified; estimated ~500g]

• Mounting: Ceiling or Wall Mounting (kits included)

Security:

• Captive Portal Authentication

• Access Control

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• Rogue AP Detection

• Wireless Isolation

• SSID-to-VLAN Mapping

• MAC Filtering

• 802.1X Support

Management:

• Omada App

• SNMP v1/v2c/v3

• SSH

• Web-Based Management (HTTP/HTTPS)

• L3 Management

• Zero-Touch Provisioning

• Omada Cloud Access

• LED ON/OFF Control

• Email Alerts

Environment:

• Operating Temp: 0–40°C

• Storage Temp: -40–70°C

• Operating Humidity: 10–90% RH non-condensing

Certifications:

• CE, FCC, RoHS

Warranty Information

manufactures warranty applied

Brand Description

TP-Link is a leading global provider of reliable networking devices and accessories. Trusted worldwide, TP-Link’s Omada SDN platform enables businesses to deploy scalable, secure, and centrally managed networks with ease and efficiency.

Practical Use Scenarios

• Enterprise Offices — Deliver high-speed wireless for video conferencing, cloud computing, and seamless staff connectivity.

• Hospitality Venues — Provide robust coverage for guests and staff, with secure VLAN separation and captive portals.

• Educational Institutions — Ensure strong, high-speed wireless connections across classrooms, auditoriums, and campus facilities.

• Retail Environments — Support POS systems, digital signage, and customer engagement apps with fast, reliable Wi-Fi.

• Healthcare Facilities — Maintain stable, secure connectivity for staff communication and critical medical devices.

Datasheets / Downloadable Resources

• TP-Link EAP683 UR Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The TP-Link Omada EAP683 UR AX6000 Ceiling Mount Wi-Fi 6 Access Point is fully compliant with Australian and New Zealand standards, including CE, FCC, and RoHS certifications. All units are sourced through authorised TP-Link distributors, ensuring genuine products with manufacturer-backed warranties. The EAP683 UR’s powerful coverage and high-speed connectivity make it ideal for dense deployments typical in Australia and New Zealand, delivering reliable performance tailored to local regulations.

(Including Product Code EAP683 UR)

Q1: What is the total wireless speed of the TP-Link EAP683 UR AX6000 Wi-Fi 6 Access Point (SKU: EAP683 UR)?
A1: The EAP683 UR delivers combined speeds of up to 5,952 Mbps, with 4,804 Mbps on the 5 GHz band and 1,148 Mbps on the 2.4 GHz band.

Q2: Does the TP-Link EAP683 UR (SKU: EAP683 UR) feature a multi-gigabit Ethernet port?
A2: Yes, it includes a 2.5G Ethernet PoE+ port for high-speed wired backhaul.

Q3: Is the EAP683 UR (SKU: EAP683 UR) compatible with Omada Mesh and seamless roaming?
A3: Absolutely. The EAP683 UR integrates with Omada Mesh technology and supports seamless roaming for smooth wireless transitions in multi-AP environments.

Q4: Is the TP-Link EAP683 UR (SKU: EAP683 UR) suitable for use in Australia and New Zealand?
A4: Yes, the EAP683 UR complies with all required standards for legal and reliable deployment in Australia and New Zealand.

Q5: How many clients can the TP-Link EAP683 UR (SKU: EAP683 UR) support simultaneously?
A5: The EAP683 UR can handle over 510 concurrent clients, making it ideal for dense enterprise deployments.
