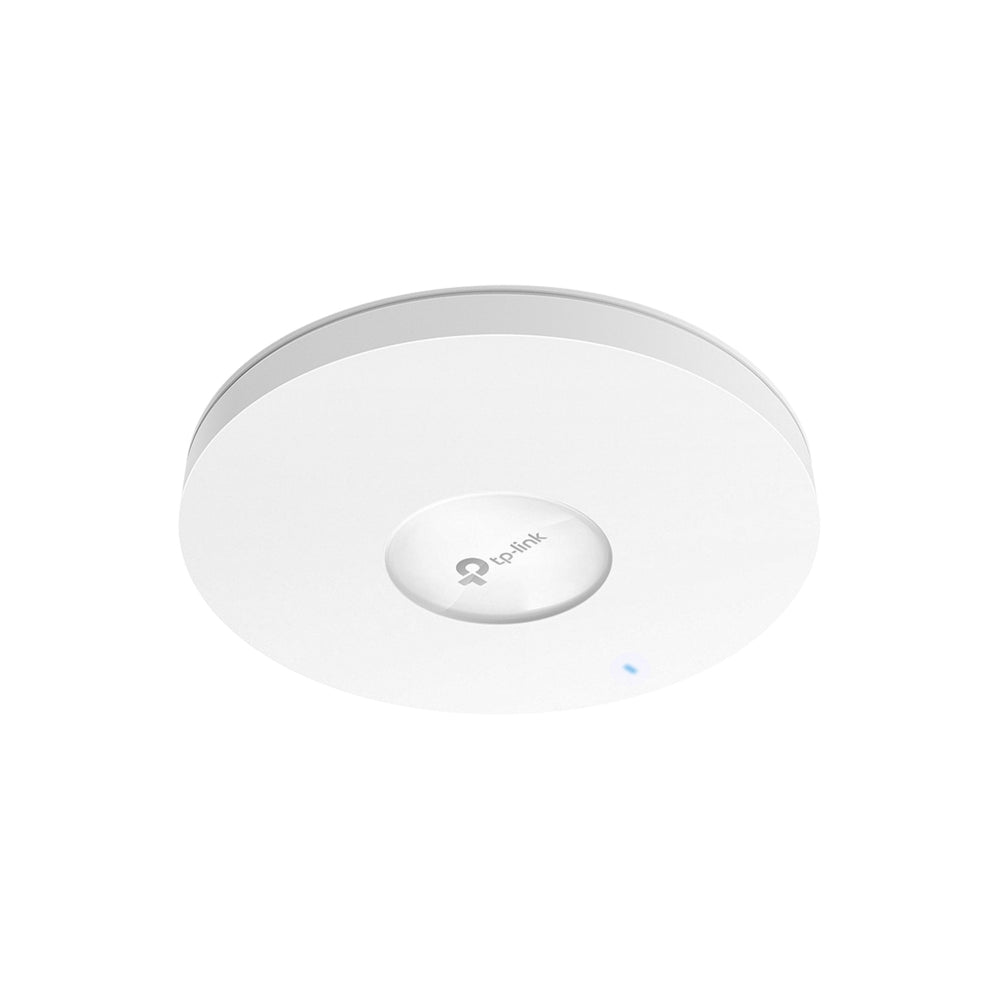

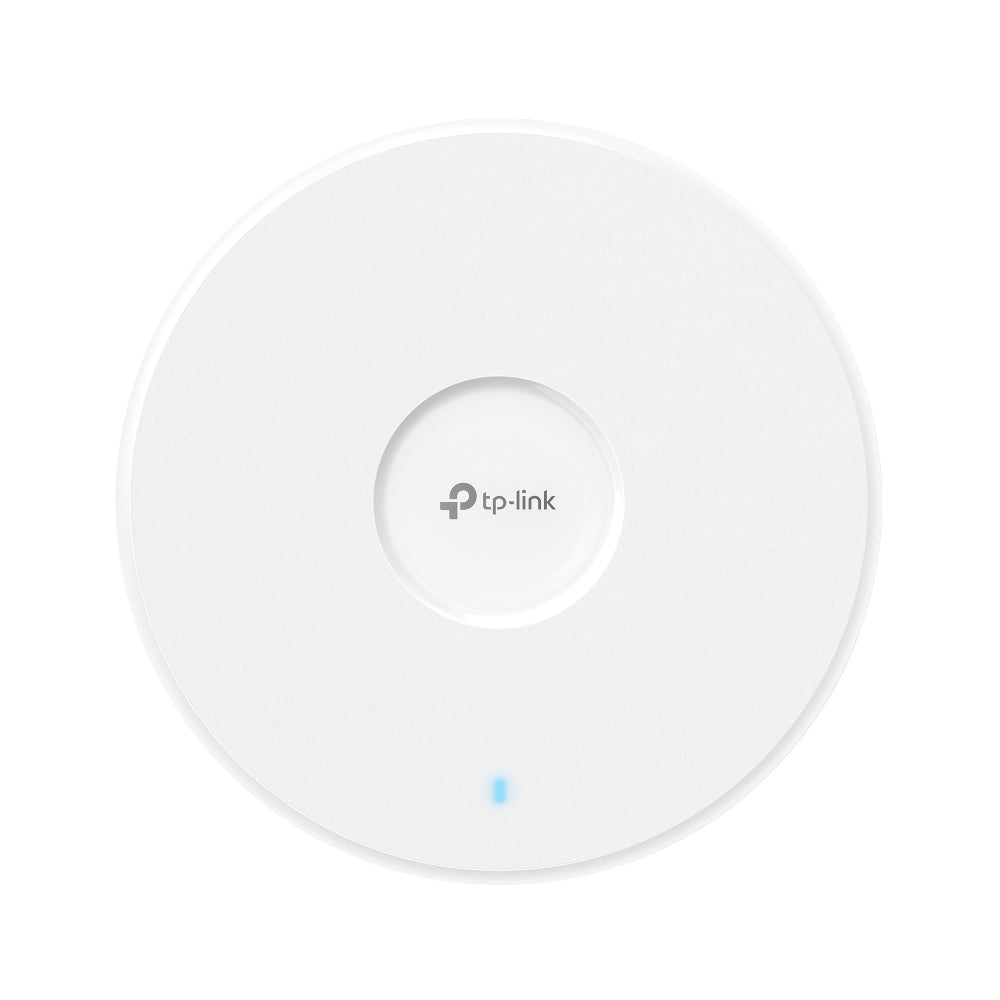

Unlock the future of enterprise networking with the TP-Link Omada EAP772 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point (SKU: EAP772), engineered to deliver lightning-fast, reliable wireless connectivity for high-density business environments.

Equipped with Wi-Fi 7 (802.11be) technology, the EAP772 delivers combined tri-band speeds of up to 9.2 Gbps—an impressive 5765 Mbps on the 6 GHz band, 4324 Mbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band. The device leverages a 320 MHz ultra-wide channel on the 6 GHz band, advanced 4K-QAM modulation, and Multi-Link Operation (MLO) for lower latency, greater capacity, and optimal performance.

A 2.5G Ethernet port unlocks the full potential of Wi-Fi 7, ensuring high-speed backhaul to support modern high-bandwidth applications like HD video conferencing, cloud services, and IoT integration. Featuring Omada SDN support, the EAP772 provides centralised cloud management, AI-driven roaming, seamless mesh networking, and robust enterprise security.

Designed with a slim, elegant profile, the EAP772 fits discreetly into modern business interiors. It’s perfect for offices, hospitality venues, retail spaces, and education facilities looking to deploy scalable, high-performance wireless solutions.

What's Included in the Box

• TP-Link Omada EAP772 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point

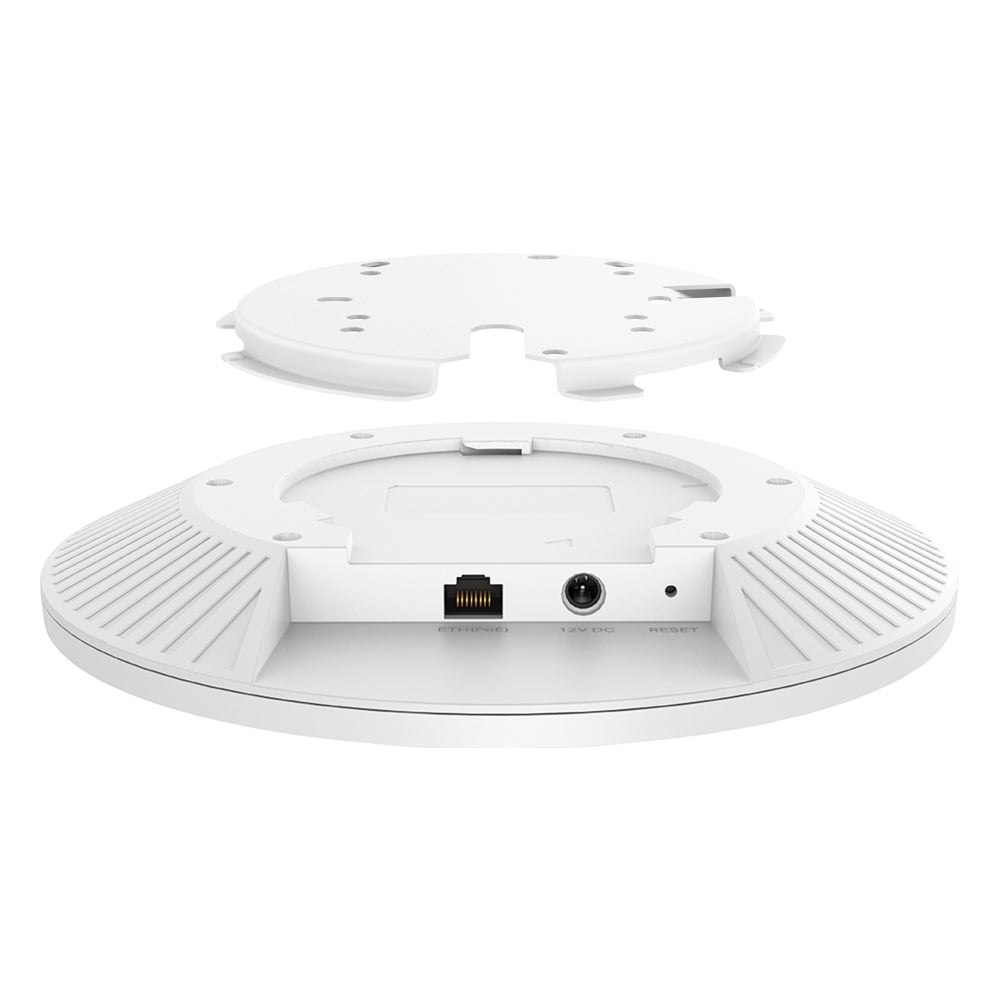

• Ceiling/Wall Mounting Kit

• Installation Guide

Main Features

✅ BE9300 Wi-Fi 7 Speed — Achieve aggregate wireless speeds up to 9.2 Gbps for demanding applications, high client density, and ultra-low latency networking.

✅ 320 MHz Channel Width — Utilises ultra-wide channels on the 6 GHz band, doubling bandwidth and enabling significantly higher data rates versus Wi-Fi 6.

✅ Multi-Link Operation (MLO) — Supports simultaneous connections across multiple frequency bands for reduced latency and enhanced resilience.

✅ 2.5G Ethernet Port — Delivers multi-gigabit wired backhaul to unlock the full performance of Wi-Fi 7.

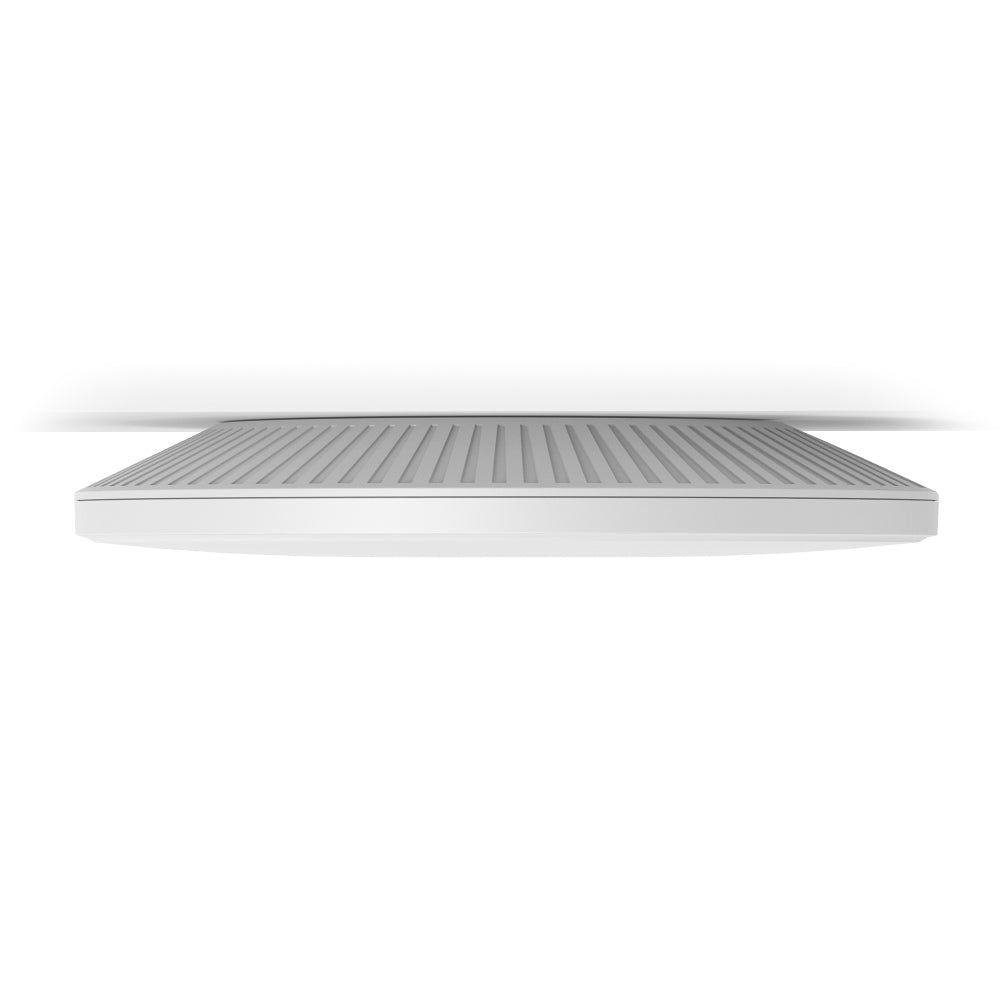

✅ Ultra-Thin, Modern Design — With a sleek 32.5 mm profile, the EAP772 blends seamlessly into any business environment.

✅ Centralised Omada SDN Management — Fully integrates with Omada Cloud, Software, or Hardware Controllers for unified network control, monitoring, and zero-touch provisioning.

✅ Omada Mesh & AI Roaming — Ensures seamless roaming and flexible deployment for expansive coverage in large facilities.

✅ Advanced Security — Includes WPA3, PPSK, rogue AP detection, VLAN segmentation, captive portal, and up to 4,000 MAC filters for robust protection.

✅ High Client Capacity — Supports over 380+ concurrent clients, making it ideal for high-density environments like conference halls, retail floors, and hospitality venues.

Detailed Specifications

Interfaces:

• 1× 2.5G Ethernet Port

Wireless:

• Standards: IEEE 802.11 a/b/g/n/ac/ax/be

• Frequencies:

  • 6 GHz: up to 5765 Mbps

  • 5 GHz: up to 4324 Mbps

  • 2.4 GHz: up to 688 Mbps

• Internal Antennas:

  • 2.4 GHz: 2× 4.0 dBi

  • 5 GHz: 2× 5.0 dBi

  • 6 GHz: 2× 5.0 dBi

• Bluetooth: Bluetooth 5.2, 4.0 dBi

• Coverage: Up to 140㎡ (1500 ft²)

• Concurrent Clients: 380+

• Wireless Features:

  • MLO

  • 4K-QAM

  • Seamless Roaming (802.11k/v/r)

  • MU-MIMO

  • EHT320 (320 MHz Bandwidth on 6 GHz)

  • Omada Mesh

  • BSS Coloring

  • OFDMA

  • Load Balancing

  • Band Steering

  • Beamforming

  • Airtime Fairness

  • Multiple SSIDs (up to 24)

Power:

• 802.3at PoE

• 12V/2.5A DC (power adapter not included)

• Max Power Consumption:

  • PoE: 25.44 W

  • DC: 22.57 W

Physical:

• Dimensions: 220 × 220 × 32.5 mm

• Weight: 1384.6g

• Mounting: Ceiling, Wall (Mounting kits included)

Security:

• Captive Portal Authentication

• Access Control

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• OWE

• Rogue AP Detection

• Wireless Isolation

• VLAN

• MAC Filtering (up to 4,000 entries)

Management:

• Omada App

• SNMP v1/v2c/v3

• SSH

• Web-Based Management

• Zero-Touch Provisioning

• Omada Cloud Access

• LED ON/OFF Control

• Email Alerts

Environment:

• Operating Temp: 0–40°C

• Storage Temp: -40–70°C

• Operating Humidity: 10–90% RH non-condensing

Certifications:

• CE, FCC, RoHS, IC

Warranty Information

manufactures warranty applied

Brand Description

TP-Link is a leading global provider of reliable networking devices and accessories, serving millions of customers worldwide. Renowned for performance and innovation, TP-Link’s Omada SDN platform offers powerful, scalable solutions for businesses seeking secure, high-performance networking.

Practical Use Scenarios

• Corporate Offices — Deliver high-speed, low-latency Wi-Fi for video conferencing, cloud apps, and business operations.

• Hospitality — Offer premium Wi-Fi experiences for guests, including seamless roaming and high-speed streaming.

• Retail Environments — Support POS systems, customer engagement tools, and Wi-Fi marketing with robust connectivity.

• Education Campuses — Ensure stable connections for classrooms, lecture halls, and dormitories.

• Healthcare Facilities — Provide reliable, secure Wi-Fi for critical medical devices, staff communication, and patient services.

Datasheets / Downloadable Resources

• TP-Link EAP772 Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The TP-Link Omada EAP772 BE9300 Tri-Band Wi-Fi 7 Ceiling Mount Access Point meets all Australian and New Zealand regulatory requirements, including CE, FCC, RoHS, and IC certifications. All products are sourced exclusively via authorised TP-Link distributors, ensuring genuine hardware and full manufacturer-backed warranties. Optimised for dense deployments common in Australia and New Zealand, the EAP772 provides secure, reliable connectivity tailored to local business needs.

(Including Product Code EAP772)

Q1: What is the maximum wireless speed of the TP-Link EAP772 BE9300 Wi-Fi 7 Access Point (SKU: EAP772)?
A1: The EAP772 delivers total tri-band speeds up to 9.2 Gbps, with 5765 Mbps on the 6 GHz band, 4324 Mbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band.

Q2: Does the TP-Link EAP772 (SKU: EAP772) feature a multi-gigabit Ethernet port?
A2: Yes, it includes a 2.5G Ethernet port to support high-speed wired backhaul and unleash the full potential of Wi-Fi 7.

Q3: Is the EAP772 (SKU: EAP772) compatible with Omada Mesh and AI Roaming?
A3: Absolutely. The EAP772 supports Omada Mesh technology and advanced AI Roaming for seamless wireless transitions.

Q4: Is the TP-Link EAP772 (SKU: EAP772) compliant with Australian and New Zealand standards?
A4: Yes, the EAP772 meets all required certifications for legal and reliable deployment in Australia and New Zealand.

Q5: How many clients can the TP-Link EAP772 (SKU: EAP772) support simultaneously?
A5: The EAP772 can support over 380 concurrent clients, making it ideal for high-density environments like offices, hospitality venues, and retail spaces.
