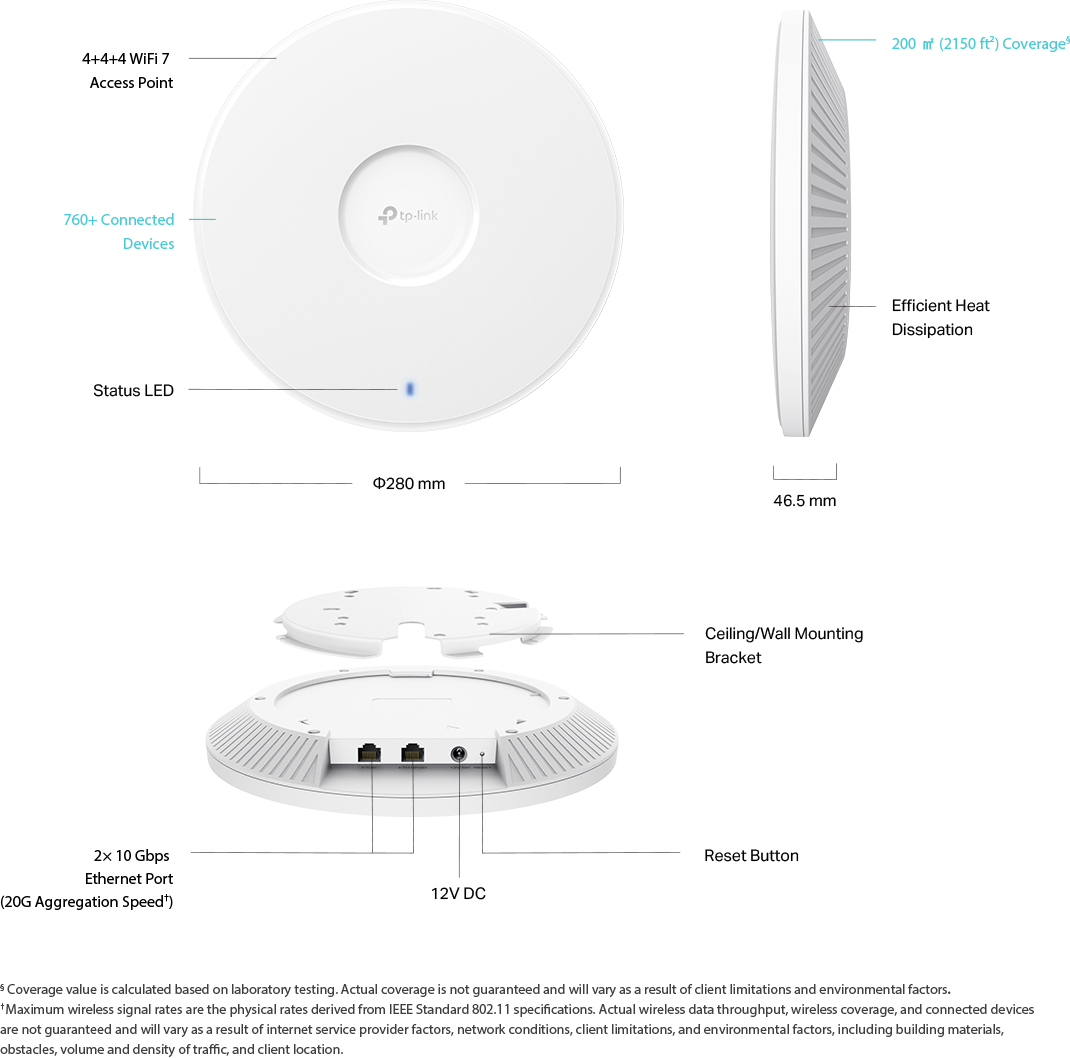

Experience next-generation wireless performance with the TP-Link Omada EAP783 BE19000 Tri-Band Wi-Fi 7 Ceiling Mount Access Point (SKU: EAP783), delivering industry-leading speeds and capacity for demanding enterprise networks.
Engineered for ultra-dense environments, the EAP783 harnesses the power of Wi-Fi 7 to achieve staggering aggregate speeds of up to 19 Gbps across its tri-band architecture (11520 Mbps on 6 GHz, 5760 Mbps on 5 GHz, and 1376 Mbps on 2.4 GHz). Equipped with advanced technologies like Multi-Link Operation (MLO), 4K-QAM modulation, and a 320 MHz channel width on the 6 GHz band, the EAP783 ensures faster throughput, reduced latency, and reliable connections—even in challenging network scenarios.
Dual 10 Gigabit Ethernet ports provide blazing wired backhaul or link aggregation for seamless integration into high-speed infrastructures. As part of the Omada SDN platform, the EAP783 supports centralised cloud management, AI-driven roaming, zero-touch provisioning, and enterprise-grade security features including WPA3 and PPSK.
Whether in large offices, campuses, retail chains, or hospitality deployments, the EAP783 redefines Wi-Fi connectivity for businesses ready to embrace the future.
What's Included in the Box
Main Features
✅ BE19000 Wi-Fi 7 Performance — Achieve phenomenal tri-band speeds up to 19 Gbps, enabling ultra-fast wireless for high-density, multi-device environments.
✅ 320 MHz Channel Width — Utilises ultra-wide channels in the 6 GHz band, doubling throughput versus Wi-Fi 6 solutions.
✅ Multi-Link Operation (MLO) — Combines multiple bands for lower latency, higher resilience, and increased capacity.
✅ Dual 10 Gigabit Ports — Two 10G Ethernet ports support link aggregation, eliminating bottlenecks and delivering extreme backhaul capacity.
✅ Enterprise-Grade Security — Includes advanced features like WPA3, PPSK, rogue AP detection, VLAN, and captive portal for secure business deployments.
✅ Seamless Roaming & Mesh — Works with Omada Mesh and AI Roaming for consistent connectivity and optimal user experience.
✅ High Client Capacity — Supports 760+ concurrent clients, ideal for stadiums, auditoriums, hotels, and enterprise offices.
✅ Centralised Omada SDN Management — Manage, configure, and monitor your entire network through the Omada Cloud-Based Controller, Hardware Controller, or Software Controller.
Detailed Specifications
Interfaces:
Wireless:
Power:
Physical:
Security:
Management:
-
Omada App
-
SNMP v1/v2c/v3
-
SSH
-
Web-based Management
-
Zero-Touch Provisioning
-
Omada Cloud Access
-
LED ON/OFF Control
-
Email Alerts
Environment:
Certifications:
Warranty Information
manufactures warranty applied
Brand Description
TP-Link is a globally renowned networking brand, delivering innovative solutions from home Wi-Fi to enterprise-grade SDN infrastructure. With an emphasis on reliability, high performance, and scalability, TP-Link’s Omada product line empowers businesses worldwide to deploy secure, efficient networks with ease.
Practical Use Scenarios
-
Large Enterprises & Campuses — Provide ultra-fast, low-latency wireless for hundreds of simultaneous users in offices and conference spaces.
-
Hospitality & Hotels — Ensure seamless guest experiences with high-speed Wi-Fi for streaming, VoIP, and business services.
-
Shopping Malls & Retail — Support digital signage, IoT devices, and customer Wi-Fi with robust tri-band coverage.
-
Event Venues & Stadiums — Handle massive client densities with stable, high-capacity wireless performance.
-
Educational Institutions — Deliver fast, reliable connectivity across classrooms, auditoriums, and dormitories.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link Omada EAP783 BE19000 Tri-Band Wi-Fi 7 Ceiling Mount Access Point fully complies with Australian and New Zealand regulatory standards and carries CE, FCC, RoHS, and IC certifications. All products are sourced through authorised TP-Link distributors, ensuring genuine hardware and full manufacturer warranty support. The EAP783’s advanced features are optimised for high-density deployments typical in Australia and New Zealand, delivering secure, reliable, and future-ready wireless connectivity tailored to local requirements.
(Including Product Code EAP783)
Q1: What is the total wireless speed of the TP-Link EAP783 BE19000 Wi-Fi 7 Access Point (SKU: EAP783)?
A1: The EAP783 delivers combined tri-band speeds up to 19 Gbps, with 11520 Mbps on the 6 GHz band, 5760 Mbps on the 5 GHz band, and 1376 Mbps on the 2.4 GHz band.
Q2: Does the TP-Link EAP783 (SKU: EAP783) support 10 Gigabit Ethernet connections?
A2: Yes, it features two 10G Ethernet ports that can be aggregated for up to 20 Gbps backhaul capacity.
Q3: Can the EAP783 (SKU: EAP783) be managed through the Omada Cloud-Based Controller?
A3: Absolutely. The EAP783 integrates seamlessly with the Omada Cloud-Based Controller, Omada Hardware Controllers, and Omada Software Controller for centralised management.
Q4: Is the TP-Link EAP783 (SKU: EAP783) suitable for Australian and New Zealand networks?
A4: Yes, the EAP783 meets all Australian and New Zealand compliance requirements, making it perfect for local deployments.
Q5: How many clients can the TP-Link EAP783 (SKU: EAP783) handle concurrently?
A5: The EAP783 can support over 760 concurrent clients, making it ideal for high-density environments like stadiums, shopping centres, and enterprise campuses.
