Upgrade your small business, retail, or home office network with the ultra-compact yet powerful TP-Link Omada ES205G, a 5-Port Gigabit Easy Managed Switch that delivers professional networking features in a silent, space-saving design.

Equipped with five full gigabit ports, the ES205G ensures high-speed connectivity for desktops, printers, IP cameras, and more. Despite its compact size, it offers advanced features like VLAN, loop prevention, IGMP Snooping, and robust QoS for smooth traffic handling in demanding environments.

Seamlessly integrated into the TP-Link Omada Software Defined Networking (SDN) platform, the ES205G provides unified cloud-based management, zero-touch provisioning, and powerful monitoring via the Omada app or web interface. Whether you’re expanding a small business network, creating a surveillance system, or optimising home office connectivity, the ES205G delivers enterprise-grade features in a simple, fanless package.

What's in the Box

• TP-Link Omada ES205G Easy Managed Switch

• Power Adapter

• Installation Guide

• Rubber Feet

Main Features

✅ 5 Full Gigabit Ports – Offers fast and stable connections for all your network devices, perfect for small networks demanding reliable speed.

✅ Fanless Silent Operation – Operates completely silently, ideal for offices, retail environments, or home use where noise is unwanted.

✅ Omada Cloud Management – Integrates seamlessly with the Omada SDN platform for cloud-based centralised management and zero-touch provisioning.

✅ Advanced Layer 2 Features – Includes VLAN segmentation, loop prevention, IGMP Snooping, and QoS for enhanced network performance and security.

✅ Compact, Flexible Design – Desktop or wall-mountable, the ES205G fits effortlessly into tight spaces.

✅ Surge Protection – ±6kV surge protection safeguards your valuable networking hardware.

Detailed Specifications

Interfaces:

• 5 × 10/100/1000 Mbps RJ45 Ports

• Auto-Negotiation / Auto MDI/MDIX

Fan Quantity: Fanless

Switching Capacity: 10 Gbps
Forwarding Rate: 7.4 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: 4 Mbit
Jumbo Frame Support: Up to 15 KB

Management Features:

• Centralised Omada Cloud management

• Web-based GUI

• DHCP client

• Cable diagnostics

• Automatic device discovery

• Batch configuration and firmware upgrading

• Unified configuration across devices

Quality of Service (QoS):

• Port-based, 802.1p, and DSCP prioritisation

• 8 priority queues

• Weighted Round Robin scheduling

• Bandwidth control per port

• Storm control for traffic management

Layer 2 Features:

• Static link aggregation

• Loop prevention / loopback detection

• 802.3x flow control

• Port mirroring

• Port statistics and mirror status

• 802.1ab LLDP support

L2 Multicast:

• IGMP Snooping (v1/v2/v3)

• Fast Leave

VLAN:

• MTU VLAN

• Port-based VLAN

• 802.1Q Tag VLAN

• Up to 32 VLAN groups, supporting 4,000 VIDs

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)

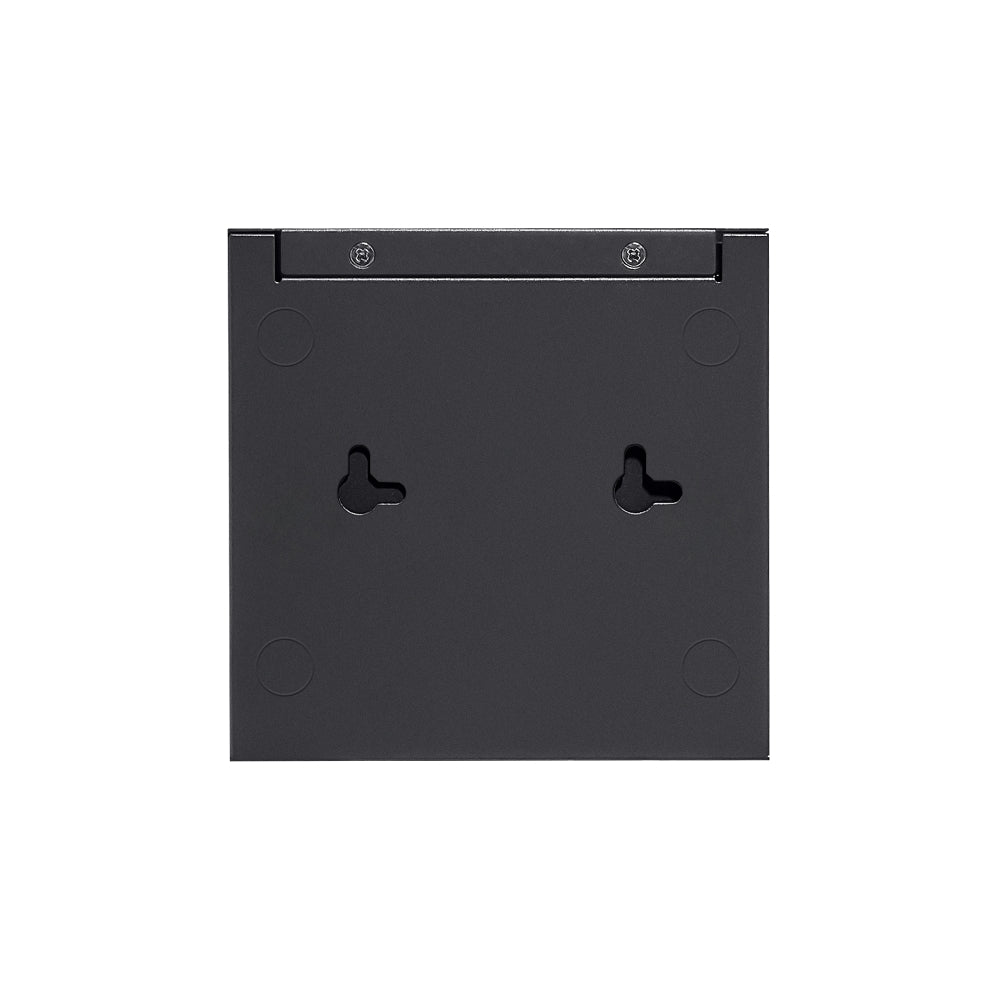

• Mounting: Desktop or wall-mountable

• Surge Protection: ±6kV

Power Supply: External DC Power Adapter (5V DC / 0.6A)

Certifications: FCC, CE, RoHS

Environmental Specifications:

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% RH non-condensing

• Storage Humidity: 5% ~ 90% RH non-condensing

System Requirements: Compatible with Windows®, macOS®, Linux®, NetWare®, UNIX®

Warranty Information

The TP-Link Omada ES205G comes with a limited manufacturer warranty. Customers in Australia and New Zealand enjoy local support and warranty handling through authorised TP-Link channels for fast, dependable assistance.

Brand Description

TP-Link is a trusted global leader in networking solutions, delivering innovative products for businesses and consumers alike. The Omada series demonstrates TP-Link’s dedication to enterprise-grade networking, combining advanced features and cloud management for secure, scalable, and high-performance networks.

SKU

ES205G

Practical Use Scenarios

• Home Offices & Studios – Maintain fast and quiet network connectivity for remote work, streaming, or creative projects.

• Small Retail Environments – Connect POS systems, security cameras, and back-office devices seamlessly.

• Small Business Networks – Power compact networks with advanced management and monitoring features.

• Surveillance Systems – Ideal for handling IP camera traffic with VLAN support and IGMP Snooping for optimal video performance.

• Educational Spaces – Silent operation and easy management make it perfect for classrooms, labs, or libraries.

Datasheets / Downloadable Resources

Download TP-Link Omada ES205G Datasheet )

Excellence for the Australian and New Zealand Market

The TP-Link Omada ES205G fully complies with Australian and New Zealand regulatory standards, with certifications including FCC, CE, and RoHS. Sourced exclusively through authorised distribution channels, this switch guarantees genuine hardware and comprehensive local warranty support. Built for performance, reliability, and quiet operation, the ES205G is the ideal choice for small business or home deployments across Australia and New Zealand.

 FAQs

Q1. Does the ES205G support Omada cloud management? (ES205G)
Yes! The ES205G integrates seamlessly into the Omada SDN platform, offering cloud-based centralised management and zero-touch provisioning.

Q2. Is the ES205G fanless and silent during operation? (ES205G)
Absolutely. The ES205G features a fanless design, ensuring completely silent operation perfect for quiet environments.

Q3. How many gigabit ports does the ES205G have? (ES205G)
The ES205G provides 5 full gigabit RJ45 ports for high-speed connectivity.

Q4. Does the ES205G support VLAN configurations? (ES205G)
Yes. The ES205G offers robust VLAN support including MTU VLAN, port-based VLAN, and 802.1Q tag VLAN for effective network segmentation.

Q5. Can the ES205G be mounted on a wall? (ES205G)
Yes! The ES205G can be installed either on a desktop or wall-mounted for flexible deployment options.
