Upgrade your network with the compact yet powerful TP-Link Omada ES208G, an 8-Port Gigabit Easy Managed Switch designed for seamless integration into small business, home office, retail, or surveillance networks. Combining plug-and-play simplicity with robust Layer 2 features, the ES208G delivers exceptional gigabit performance and silent fanless operation.
This switch offers advanced features such as VLAN support, port isolation, IGMP Snooping, and QoS, ensuring optimal network performance and reliable data traffic management for voice, video, and data applications. The ES208G integrates effortlessly into TP-Link’s Omada Software Defined Networking (SDN) platform, enabling centralised cloud management, zero-touch provisioning, and unified network monitoring and configuration.
Compact, energy-efficient, and easy to deploy on a desktop or wall, the ES208G is the ideal solution for networks demanding high-speed performance and simplified management.
What's in the Box
Main Features
✅ 8 Full Gigabit Ports – Delivers reliable high-speed connections for all network devices, ensuring smooth operation for demanding applications.
✅ Silent Fanless Operation – Ideal for noise-sensitive environments such as offices, retail spaces, and home workspaces.
✅ Omada Cloud Management – Supports centralised cloud-based management and monitoring via the Omada SDN platform for unified network control.
✅ Advanced Layer 2 Features – Includes VLAN, port isolation, loop prevention, IGMP Snooping, and QoS for superior network security and performance.
✅ Compact & Versatile – Desktop or wall-mountable design fits seamlessly into various installation environments.
✅ Robust Surge Protection – ±6kV surge protection ensures stable operation and safeguards connected equipment.
Detailed Specifications
Interfaces:
Fan Quantity: Fanless
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: 4 Mbit
Jumbo Frame Support: Up to 15 KB
Management Features:
-
Centralised Omada Cloud management
-
Web-based GUI
-
DHCP client
-
Cable diagnostics
-
Automatic device discovery
-
Batch configuration and firmware upgrades
-
Unified configuration across devices
Quality of Service (QoS):
-
Port-based, 802.1p, and DSCP prioritisation
-
8 priority queues
-
Weighted Round Robin scheduling
-
Bandwidth control per port
-
Storm control for traffic management
Layer 2 Features:
L2 Multicast:
-
IGMP Snooping (v1/v2/v3)
-
Fast Leave
VLAN:
Transmission Method: Store-and-Forward
Physical:
Power Supply: DC Power Adapter (5V DC / 0.6A)
Certifications: FCC, CE, RoHS
Environmental Specifications:
-
Operating Temperature: -5°C ~ 45°C (23°F ~ 113°F)
-
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
-
Operating Humidity: 10% ~ 90% RH non-condensing
-
Storage Humidity: 5% ~ 90% RH non-condensing
System Requirements: Compatible with Windows®, macOS®, Linux®, NetWare®, UNIX®
Warranty Information
The TP-Link Omada ES208G is backed by a limited manufacturer warranty. Customers in Australia and New Zealand can rely on local support and warranty handling through authorised TP-Link service channels for quick and efficient assistance.
Brand Description
TP-Link is a global leader in reliable networking solutions, offering innovative products for both consumer and business markets. Renowned for performance, security, and user-friendly operation, TP-Link’s Omada series combines powerful hardware with cloud-based management to empower enterprises with flexible, scalable, and secure networking solutions.
SKU
ES208G
Practical Use Scenarios
-
Small Office Networks – Ideal for connecting computers, printers, VoIP phones, and other networked devices with silent operation and gigabit speeds.
-
Retail Environments – Supports POS systems, security cameras, and digital signage while maintaining network segmentation with VLANs.
-
Surveillance Installations – Perfect for connecting IP cameras and ensuring smooth video streaming with QoS prioritisation.
-
Home Offices – Delivers professional-grade networking features in a quiet, compact form factor for remote work setups.
-
Classrooms & Libraries – Enables quiet, reliable networking for educational and collaborative environments.
Datasheets / Downloadable Resources
Download TP-Link Omada ES208G Datasheet
Excellence for the Australian and New Zealand Market
The TP-Link Omada ES208G fully complies with Australian and New Zealand regulatory standards and certifications, including FCC, CE, and RoHS. Exclusively sourced through authorised distribution channels, this switch guarantees genuine hardware and full warranty coverage. Built to handle regional conditions and diverse deployment scenarios, the ES208G is a trusted choice for professional networking across Australia and New Zealand.
FAQs
Q1. Is the ES208G suitable for silent operation in office environments? (ES208G)
Yes! The ES208G features a fanless design, ensuring completely silent operation, perfect for offices, classrooms, or retail environments.
Q2. Can the ES208G be managed through Omada Cloud? (ES208G)
Absolutely. The ES208G integrates seamlessly into TP-Link’s Omada SDN platform, enabling cloud-based management and zero-touch provisioning.
Q3. How many gigabit ports are available on the ES208G? (ES208G)
The ES208G offers 8 full gigabit RJ45 ports for high-speed connections across your entire network.
Q4. Does the ES208G support VLAN segmentation? (ES208G)
Yes. The ES208G supports MTU VLANs, port-based VLANs, and 802.1Q tag VLANs, allowing for secure and efficient network segmentation.

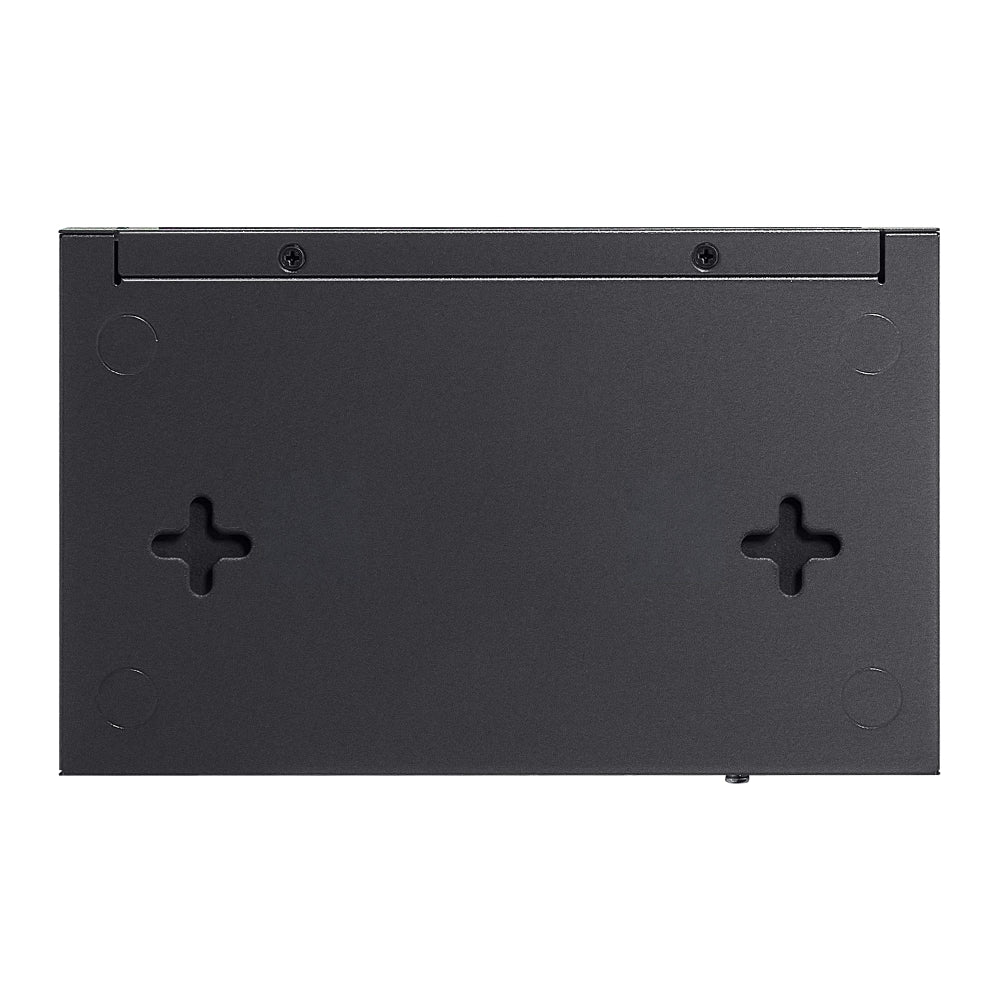

Q5. Is the ES208G wall-mountable? (ES208G)
Yes! The ES208G can be installed either on a desktop or wall-mounted for flexible deployment options.
