Empower your network infrastructure with the TP-Link Omada SG2005P-PD, a rugged, high-performance 5-Port Gigabit Smart Switch designed for outdoor and demanding environments. Featuring innovative PoE++ passthrough technology, it seamlessly bridges long-distance deployments while maintaining gigabit speeds, making it perfect for surveillance systems, outdoor wireless access points, and remote network installations.

With its robust IP55-rated weatherproof enclosure, the SG2005P-PD operates reliably in harsh conditions ranging from -40°C to 60°C, backed by 4 kV lightning protection. Integrating effortlessly with TP-Link’s Omada SDN platform, it offers centralised cloud management, zero-touch provisioning, and advanced Layer 2 and Layer 3 features for exceptional flexibility and security. Whether you’re expanding an enterprise network or deploying critical devices across challenging locations, the SG2005P-PD delivers unparalleled performance and peace of mind.

What's in the Box

• TP-Link Omada SG2005P-PD Smart Switch

• Mounting Kits (for wall or pole installation)

• Installation Guide

Main Features

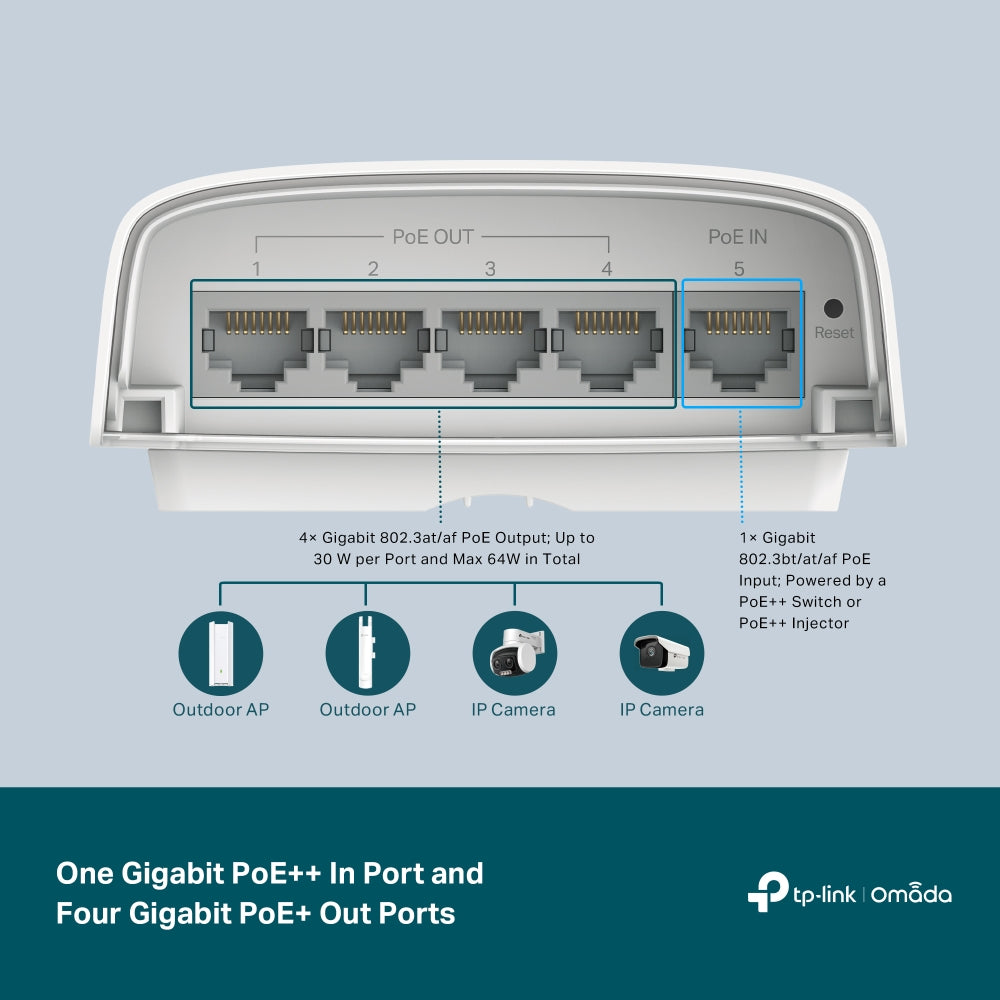

✅ PoE++ Passthrough – One PoE++ input and four PoE+ output ports, supporting up to 64W PoE budget for downstream devices.

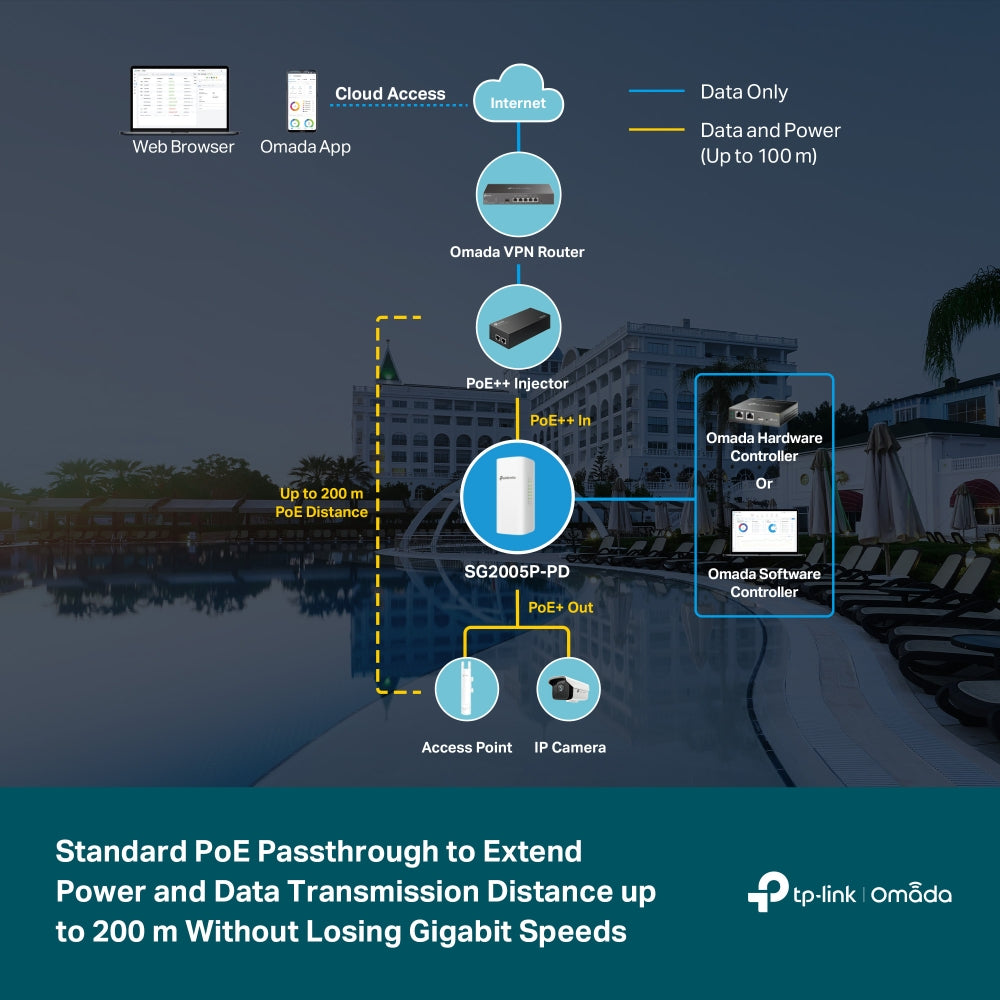

✅ Extended PoE Range – Achieve up to 200 meters of PoE transmission, doubling the standard distance for long-range applications without compromising gigabit speeds.

✅ Weatherproof Build – IP55-rated enclosure, dustproof, waterproof, and UV-resistant, built for reliable outdoor operation.

✅ Omada SDN Integration – Centralised cloud management, zero-touch provisioning, multi-site management, and advanced monitoring through Omada Controller.

✅ Advanced Layer 2 & Layer 3 Capabilities – Static routing, ACLs, QoS, VLAN support, multicast management, and robust security protocols ensure enterprise-grade networking.

✅ Fanless Design – Silent operation with high thermal efficiency.

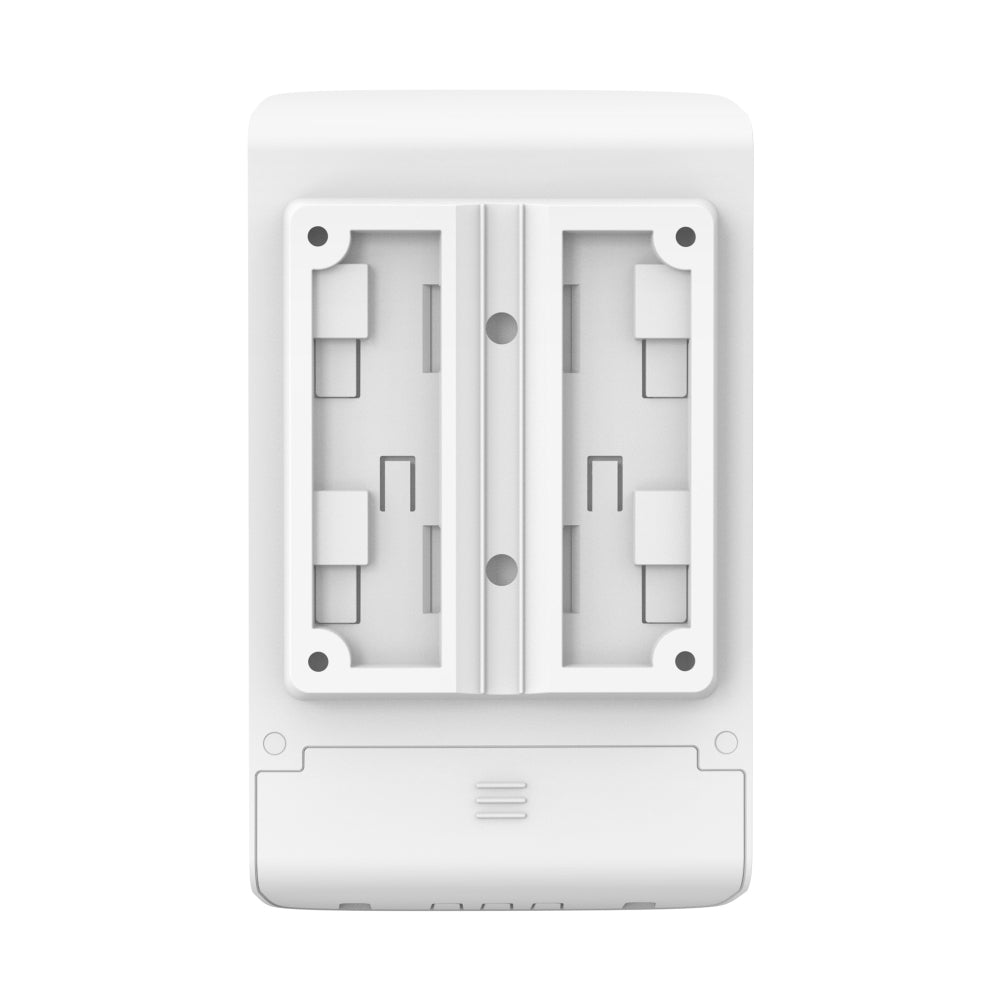

✅ Flexible Mounting Options – Easily installed on poles or walls to suit diverse deployment scenarios.

Detailed Specifications

Standards and Protocols: IEEE 802.3i/u/ab/ad/af/at/bt, IEEE 802.1d/s/w/q/p/x, and more.

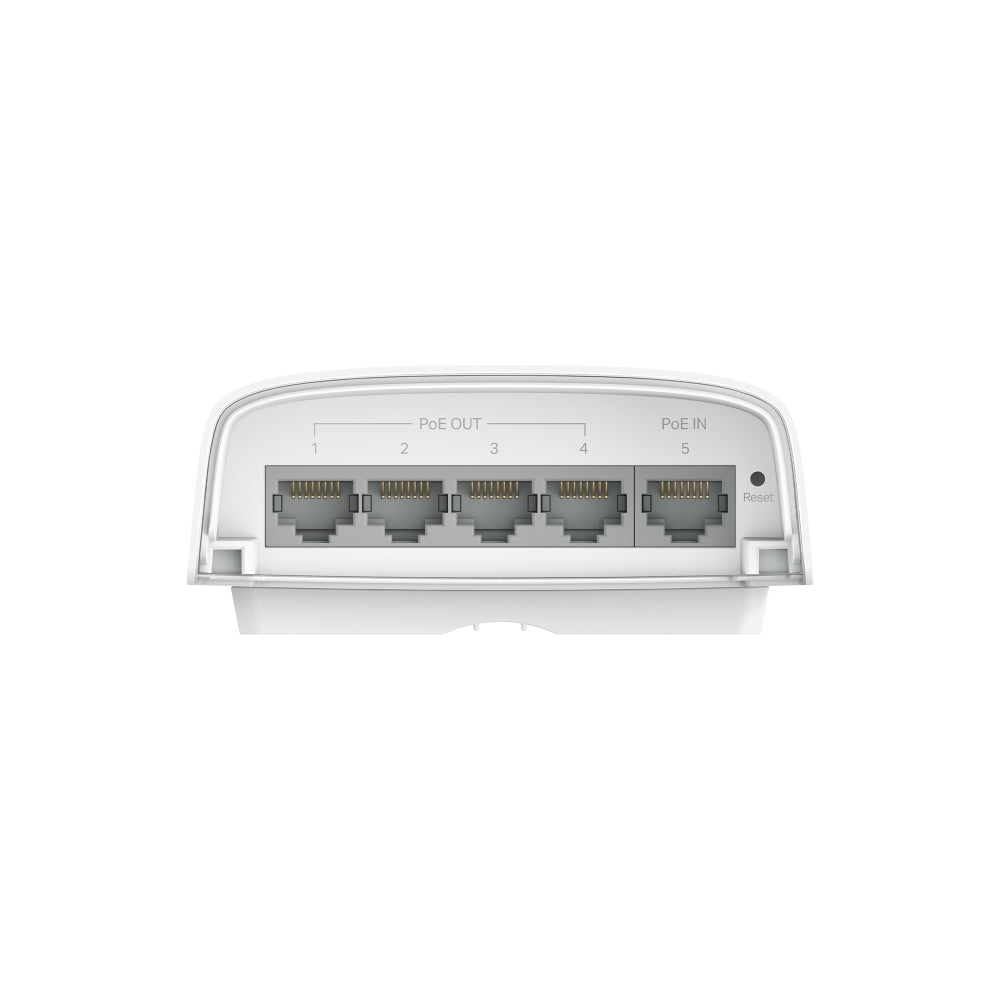

Interfaces:

• 1× 10/100/1000 Mbps RJ45 PoE++ In (Port 5)

• 4× 10/100/1000 Mbps RJ45 PoE+ Out (Ports 1–4)

PoE Power Budget:

• 64W with 802.3bt Type 4 (90W input)

• 44W with 802.3bt Type 3 (60W input)

• 19W with 802.3at

• 6W with 802.3af

Switching Capacity: 10 Gbps
Forwarding Rate: 7.44 Mpps
MAC Address Table: 8,000 entries
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame Support: Up to 9 KB
Power Supply: Powered via PoE++ input (no external power supply needed)
Max Power Consumption: 71.5W (802.3bt Type 4)
Max Heat Dissipation: 243.99 BTU/hr

Management Features:

• Centralised cloud management via Omada SDN

• Web GUI, CLI, SNMP v1/v2c/v3

• RMON, cable diagnostics, CPU monitoring

• Dual image and configuration support

Security Features:

• AAA, 802.1X, port security, storm control

• Advanced ACLs for granular control

• IP/IPv6 MAC binding, ARP inspection

• DoS protection, secure management via HTTPS/SSH

Layer 2/3 Features:

• VLANs (up to 4,000 groups)

• Static routing (up to 32 routes)

• IGMP/MLD Snooping, multicast VLAN registration

• Link aggregation (static & LACP)

Dimensions (W x D x H): 100 × 38.5 × 170 mm (3.9 × 1.5 × 6.7 in)
Weight: Lightweight and easy to mount

Certifications: CE, FCC, RoHS

Environment:

• Operating Temp: -40 to 60 °C

• Storage Temp: -40 to 70 °C

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

System Requirements: Compatible with major OS platforms including Windows, macOS, Linux, NetWare, UNIX

Warranty Information

The TP-Link Omada SG2005P-PD is covered by a limited manufacturer’s warranty. Warranty services are provided directly through TP-Link and their authorized partners, ensuring reliable local support and prompt service.

Brand Description

TP-Link is a globally recognized leader in networking solutions, delivering innovative, high-quality products for consumers and businesses alike. With decades of expertise in reliable wired and wireless networking, TP-Link combines robust engineering with user-friendly management and industry-leading support. The Omada range reflects TP-Link’s commitment to scalable, professional networking tailored for enterprises, hospitality, retail, and industrial applications.

SKU

SG2005P-PD

Practical Use Scenarios

• Outdoor Surveillance: Ideal for powering long-range IP cameras mounted on poles or buildings, maintaining stable connectivity and power delivery even over extended distances.

• Outdoor Wireless Access Points: Perfect for stadiums, parks, or campus deployments requiring reliable gigabit connectivity and power for APs.

• Remote Building Connectivity: Bridge network connections to distant buildings, sheds, or sites without additional electrical wiring.

• Industrial Installations: Suitable for harsh industrial environments where dust, rain, and extreme temperatures are common.

• Temporary Events: Quickly deploy networking infrastructure for outdoor events, festivals, or construction sites.

Datasheets / Downloadable Resources

Download TP-Link SG2005P-PD Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link Omada SG2005P-PD is fully compliant with Australian and New Zealand regulatory standards, including CE, FCC, and RoHS certifications, ensuring safe and reliable operation in local conditions. It is sourced exclusively through authorised distributors, guaranteeing genuine products and full warranty support directly from TP-Link. This model is optimised for the unique requirements of the Australian and New Zealand market, including operation under harsh environmental conditions and compatibility with regional networking standards. Customers can purchase with confidence, knowing that warranty claims and technical support are managed locally through TP-Link’s authorised service channels.

FAQs

Q1. Can the SG2005P-PD power PoE cameras up to 200 meters away? (SG2005P-PD)
Yes! Thanks to its PoE Passthrough feature, the SG2005P-PD supports PoE transmission distances of up to 200 meters while maintaining gigabit speeds, making it excellent for long-range cameras.

Q2. How much PoE budget does the SG2005P-PD provide? (SG2005P-PD)
When powered via a 90W 802.3bt Type 4 input, the SG2005P-PD offers a PoE budget of up to 64W for connected devices.

Q3. Is the SG2005P-PD suitable for outdoor installation? (SG2005P-PD)
Absolutely. The SG2005P-PD has an IP55-rated weatherproof enclosure and operates reliably in temperatures from -40°C to 60°C.

Q4. Can I manage the SG2005P-PD through the Omada Cloud Controller? (SG2005P-PD)
Yes! The SG2005P-PD integrates seamlessly into the Omada SDN platform, enabling cloud-based management, monitoring, and zero-touch provisioning.

Q5. Does the SG2005P-PD support VLAN configuration? (SG2005P-PD)
Yes. The SG2005P-PD supports up to 4,000 VLAN groups, including 802.1Q tag VLANs, MAC VLANs, and voice VLANs for network segmentation.
