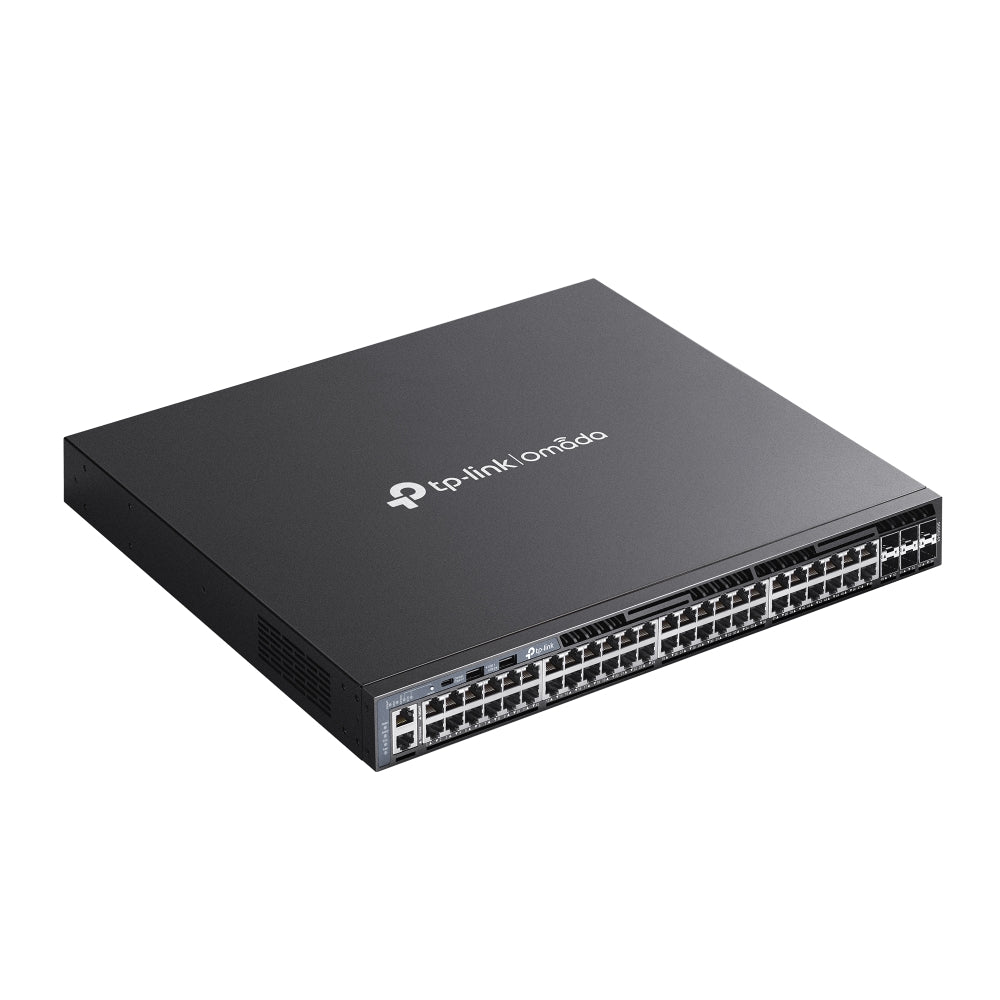

Meet the demands of modern enterprise networks with the TP-Link Omada SG6654X, a powerful 48-Port Gigabit Layer 3 Managed Switch designed for high-density environments, advanced routing, and seamless scalability. Equipped with 6× 10G SFP+ uplink/stacking slots, it’s perfect for aggregating large campus or enterprise networks, offering a robust 216 Gbps switching capacity per unit.

Featuring comprehensive Layer 3 capabilities—including RIP, OSPF, VRRP, ECMP, and multicast routing—the SG6654X delivers the advanced traffic management and high availability that business-critical networks require. With physical stacking of up to 8 units and dual internal power supplies, it ensures performance continuity and redundancy, while a rich suite of security features like ACLs, port security, and 802.1X protects vital data and network resources.

Integrated with the Omada SDN platform, the SG6654X supports centralized cloud management, zero-touch provisioning, and intelligent monitoring. Whether deployed as a core or aggregation switch, this model is the ideal choice for enterprise IT professionals who demand reliability, scalability, and robust feature sets.

What's Included in the Box

• SG6654X Switch

• 2× Power Cords

• RJ45 Console Cable

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Enterprise-Grade Performance

• 48× Gigabit RJ45 ports for high-density connectivity

• 6× 10G SFP+ slots for high-speed uplinks or stacking

• 216 Gbps switching capacity

• 160.7 Mpps forwarding rate

✅ Advanced Layer 3 Routing

• RIP, OSPF, VRRP, ECMP

• Static and dynamic routing

• DHCP Server and Relay for flexible IP management

✅ Robust Security Suite

• ACLs, DoS Defend, Port Security

• Dynamic ARP Inspection

• 802.1X authentication and RADIUS support

• IPv6 Source Guard and ND Snooping

✅ Highly Scalable & Reliable

• Stack up to 8 units

• Up to 120 Gbps stack bandwidth

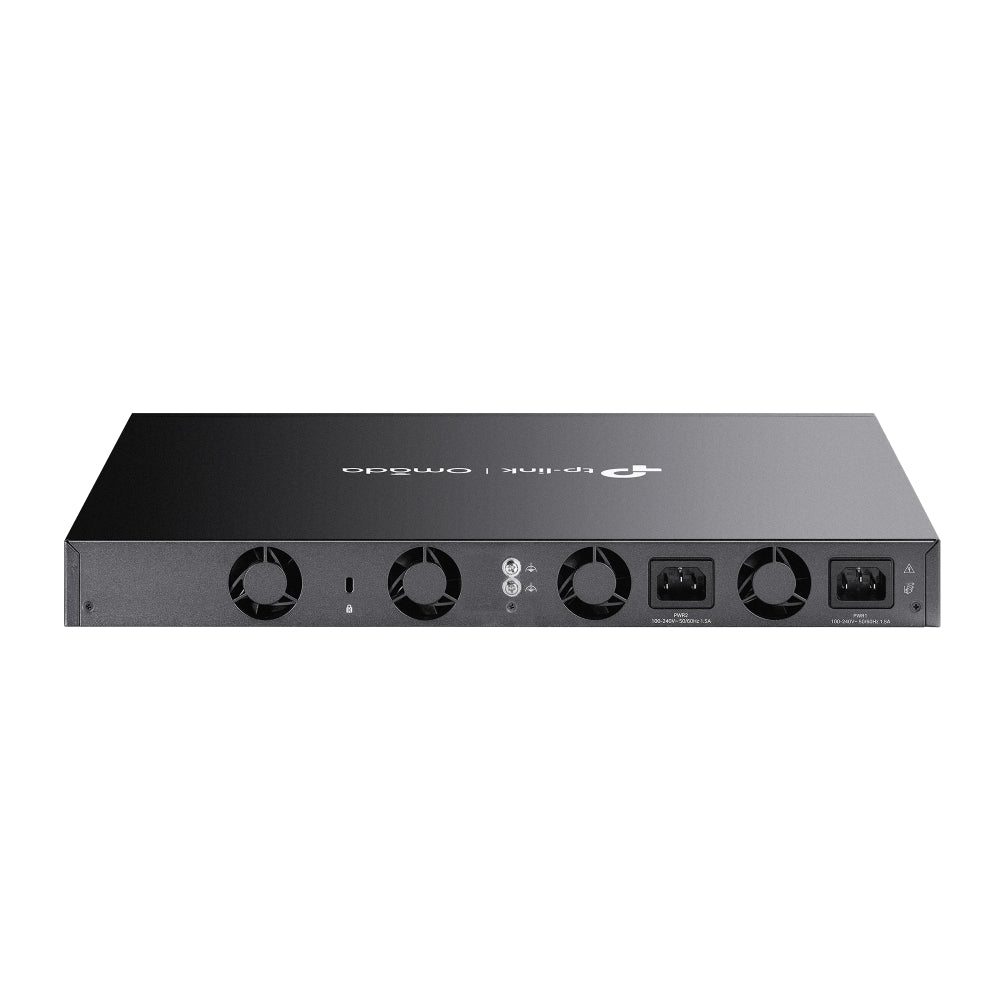

• Dual internal fixed power supplies for redundancy

• ERPS for ring protection

✅ Cloud-Managed & Standalone Options

• Integrated into Omada SDN for unified management

• Also manageable via Web UI, CLI, SNMP, and RMON

✅ Intelligent QoS

• 8 priority queues

• Bandwidth control and traffic shaping

• Voice VLAN for optimized VoIP

Detailed Specifications

• Ports:

  • 48× 10/100/1000 Mbps RJ45 ports

  • 6× 10G SFP+ slots

  • 2× USB 2.0 ports

  • 1× RJ45 console port

  • 1× USB Type-C console port

  • 1× RJ45 management port

• Performance:

  • Switching Capacity: 216 Gbps

  • Packet Forwarding Rate: 160.7 Mpps

  • Jumbo Frame: 9 KB

  • MAC Address Table: 32K

  • Packet Buffer Memory: 3 MB

• Stacking:

  • Up to 8 units

  • Stacking ports: 10G SFP+ slots

  • Stack Bandwidth: up to 120 Gbps

• Layer 3 Routing:

  • Max 256 IPv4/IPv6 interfaces

  • Static routing: Max 1,024 IPv4 / 512 IPv6 routes

  • OSPF, RIP, VRRP, ECMP support

  • Proxy ARP

• Multicast Support:

  • IGMP Snooping v1/v2/v3

  • PIM-DM, PIM-SM

  • Multicast VLAN Registration (MVR)

• Security:

  • 802.1X authentication

  • Port isolation

  • Dynamic ARP Inspection

  • IP-MAC-Port binding

  • DoS Defense

  • DHCP Snooping

  • IPv6 security features

• QoS Features:

  • 8 queues of priority

  • Port and DSCP prioritization

  • Bandwidth control

  • Voice VLAN

• Management:

  • Centralized Omada SDN

  • Web-based GUI, CLI

  • SNMP v1/v2c/v3

  • RMON support

  • Dual image and dual configuration

  • Cable diagnostics

• Power & Environmental:

  • Power Supply: Dual internal fixed power modules

  • Max Power Consumption: 39.8 W

  • Heat Dissipation: 135.81 BTU/hr

  • Operating Temp:

    • -5 °C to 50 °C @ 300 m

    • -5 °C to 45 °C @ 2,000 m

    • -5 °C to 40 °C @ 3,000 m

  • Operating Humidity: 10–90% RH non-condensing

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty: Typically 3 years (confirm local terms for Australia & New Zealand)

About TP-Link Omada

Omada’s SDN platform delivers unified cloud management for wireless, wired, and gateway products. It offers effortless scalability, centralized monitoring, and advanced security features, making it the preferred solution for enterprise and campus environments across diverse industries.

SKU

SG6654X

Practical Use Scenarios

• Enterprise Core/Distribution Layer: A powerful backbone for large business campuses.

• High-Density Edge Switching: Ideal for connecting hundreds of endpoints in enterprise wiring closets.

• Managed Services Providers (MSPs): Centralized cloud control for multi-site deployments.

• Large Retail & Hospitality: Seamless network management with high resilience and security.

Datasheets or Downloadable Resources

Download Omada SG6654X Datasheet

Excellence for the Australian and New Zealand Market

The SG6654X complies with all relevant Australian and New Zealand certifications and standards. It’s sourced through authorized TP-Link partners, ensuring genuine products and full local warranty support. Designed to handle enterprise-grade workloads and demanding local compliance, it’s a solid choice for business networks across the ANZ region.

FAQs (SG6654X)

Q1: Does the SG6654X support Layer 3 routing protocols like OSPF and RIP?
A1: Yes! The switch supports advanced routing protocols including RIP, OSPF, VRRP, and ECMP. (SG6654X)

Q2: How many switches can be stacked together with the SG6654X?
A2: You can physically stack up to 8 SG6654X switches for high scalability and redundancy. (SG6654X)

Q3: Is the SG6654X manageable via the cloud?
A3: Absolutely—it integrates seamlessly with the Omada SDN platform for centralized cloud-based management. (SG6654X)

Q4: What’s the maximum switching capacity of a single SG6654X?
A4: Each unit offers a switching capacity of 216 Gbps and a forwarding rate of 160.7 Mpps. (SG6654X)

Q5: Does the SG6654X have redundant power supplies?
A5: Yes—it features two internal fixed power supply modules for higher availability. (SG6654X)
