Upgrade your business network infrastructure with the TP-Link SG2008, an efficient and cost-effective 8-Port Gigabit Smart Managed Switch tailored for small businesses, retail, and SOHO environments. Featuring 8× Gigabit RJ45 ports, including one PD port that allows the switch to be powered via PoE from another PoE switch, this versatile device simplifies deployments where power outlets are scarce.

The SG2008 integrates seamlessly into the Omada SDN (Software-Defined Networking) platform, offering centralized cloud management, remote configuration, and intelligent monitoring through the Omada app or web interface. It provides advanced enterprise-grade features such as static routing, VLAN, ACL, and robust security protections, all in a compact, fanless design for silent operation.

Perfect for network expansions and modern business applications, the SG2008 delivers reliability, efficiency, and secure connectivity while minimizing operational noise and energy consumption.

What's Included in the Box

• SG2008 Switch

• Power Adapter

• Installation Guide

• Rubber Feet

Main Features

✅ Compact Smart Managed Switch

• 8× Gigabit RJ45 ports, including 1 PD port for flexible power options.

✅ PoE-Powered Device Capability

• Operate the switch directly from a PoE source to simplify cabling and reduce power outlet requirements.

✅ Omada SDN Integration

• Centralized cloud management, Zero-Touch Provisioning (ZTP), and remote monitoring streamline network operations.

✅ Fanless Design

• Silent operation suitable for quiet office spaces or retail environments.

✅ Robust Security Suite

• Features like IP-MAC-Port Binding, ACL, storm control, and port security ensure network integrity.

✅ Enterprise-Grade Performance in a Small Form Factor

• Supports VLAN, advanced QoS, static routing, and multicast optimization.

Detailed Specifications

Hardware Specifications

• Ports:

  • 8× 10/100/1000 Mbps RJ45 Ports

    • Includes 1 PoE PD Port for flexible power input

• Power Options:

  • External 12 VDC/1 A Adapter

  • PoE Powered Device capability via PD port

• Fan Quantity: Fanless

• Physical Security Lock: Yes

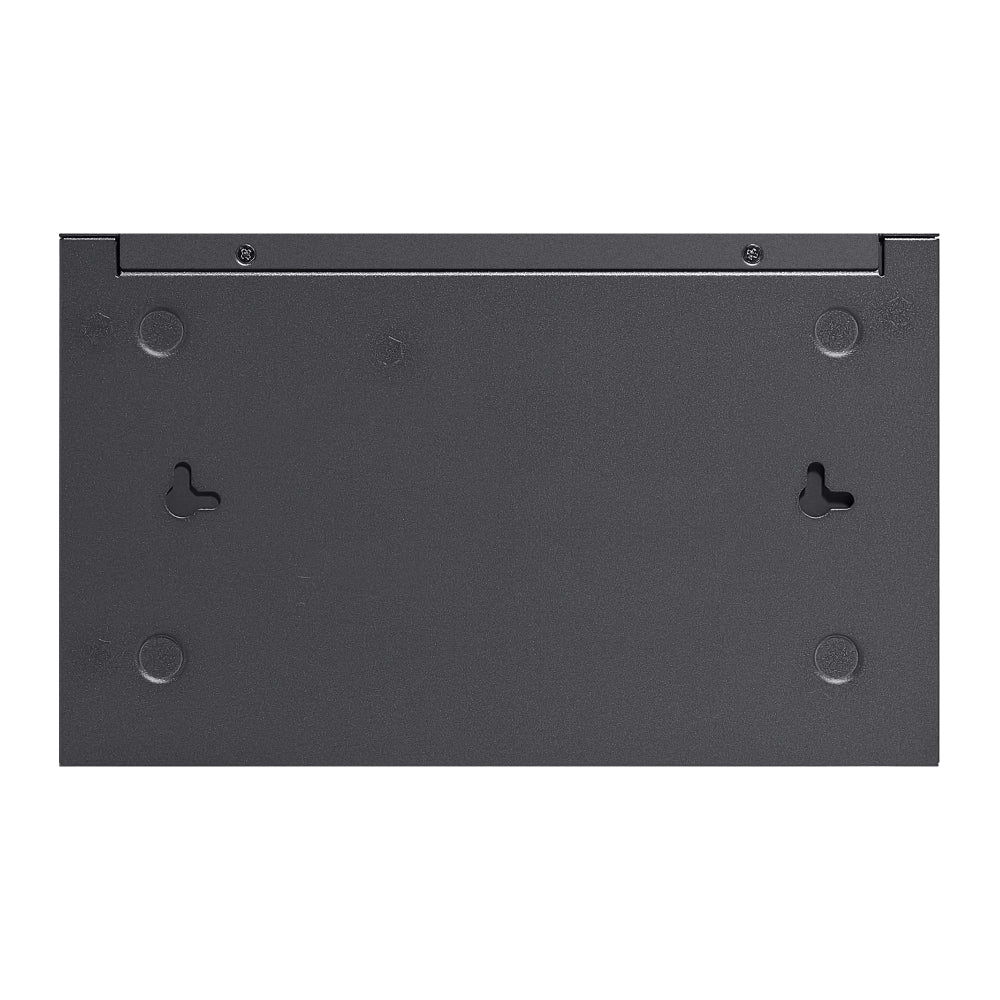

• Mounting: Desktop / Wall-Mounting

• Dimensions: 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

• Max. Power Consumption: 6.4 W

• Max. Heat Dissipation: 21.84 BTU/hr

Performance

• Bandwidth/Backplane: 16 Gbps

• Packet Forwarding Rate: 11.9 Mpps

• MAC Address Table: 8K

• Packet Buffer Memory: 4.1 Mbit

• Jumbo Frame: 9 KB

Software Features

• Quality of Service (QoS):

  • 802.1p CoS/DSCP priority

  • 8 Priority Queues

  • Strict Priority (SP), Weighted Round Robin (WRR)

  • Bandwidth Control

  • Storm Control

• Layer 2 & Layer 2+ Features:

  • Static Routing (IPv4/IPv6)

  • DHCP Server, Relay, and L2 Relay

  • Static ARP, Proxy ARP

  • Link Aggregation

  • Spanning Tree Protocol

  • Loopback Detection

  • 802.3x Flow Control

  • Mirroring

• L2 Multicast:

  • IGMP Snooping

  • MLD Snooping

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering

• VLAN:

  • Up to 4K VLAN groups

  • 802.1Q VLAN tagging

  • MAC VLAN

  • Protocol VLAN

  • GVRP

  • Voice VLAN

• Access Control:

  • Time-based ACL

  • MAC/IP/IPv6 ACLs

  • Combined ACL

  • Up to 230 ACL entries

• Security:

  • IP-MAC-Port Binding

  • AAA (TACACS+/RADIUS)

  • DHCP Snooping

  • DoS Defend

  • Port Isolation

  • Static/Dynamic/Permanent Port Security

  • Broadcast/Multicast/Unicast Storm Control

• IPv6:

  • Dual-Stack IPv4/IPv6

  • IPv6 ACLs

  • Neighbor Discovery

  • Static IPv6 Routing

• Management:

  • Omada SDN integration

  • Web-based GUI

  • CLI (Telnet/SSH)

  • SNMP v1/v2c/v3

  • RMON

  • Dual Image support

  • Cable Diagnostics

Warranty Information

TP-Link offers standard limited warranty coverage for the SG2008. Warranty periods may vary by region—please consult your local TP-Link website for details.

About TP-Link Omada

TP-Link Omada provides comprehensive networking solutions for businesses, integrating wired and wireless devices under a single cloud-managed platform for seamless operation and maintenance across one or multiple sites.

SKU

SG2008

Practical Use Scenarios

• Small Retail Stores: Deploy silent switching for IP terminals and in-store devices.

• Offices & SOHO: Add VLAN segmentation and advanced security in a small workspace.

• Warehouses: Create secure wired networks for inventory systems and monitoring equipment.

• Smart Home Installations: Manage traffic for smart devices and PoE-enabled solutions.

Datasheets or Downloadable Resources

Download SG2008 Datasheet

Excellence for the Australian and New Zealand Market

The SG2008 meets global standards with CE, FCC, and RoHS certifications, ensuring it adheres to safety and quality benchmarks suitable for Australian and New Zealand markets. Local warranty support and authorized distribution channels guarantee genuine products and dependable after-sales service. The Omada SDN platform further aligns with the requirements of modern Australian and New Zealand businesses, ensuring scalable and secure network deployments.

FAQs (SG2008)

Q1: Can the SG2008 operate without a power adapter?
A1: Yes, the SG2008 includes one PD port allowing it to be powered via PoE from another switch, eliminating the need for a power adapter in certain deployments. (SG2008)

Q2: Is the SG2008 noisy?
A2: No. It’s completely fanless, ensuring silent operation, perfect for noise-sensitive environments. (SG2008)

Q3: Does the SG2008 support VLAN configurations?
A3: Yes, it supports up to 4,000 VLAN groups, including advanced VLAN features like GVRP and Voice VLAN. (SG2008)

Q4: Can I manage the SG2008 through the cloud?
A4: Absolutely. The SG2008 integrates into the Omada SDN, enabling cloud-based management, monitoring, and zero-touch provisioning. (SG2008)

Q5: How much power does the SG2008 consume?
A5: Its maximum power consumption is only 6.4 W, making it energy-efficient for continuous operation. (SG2008)
