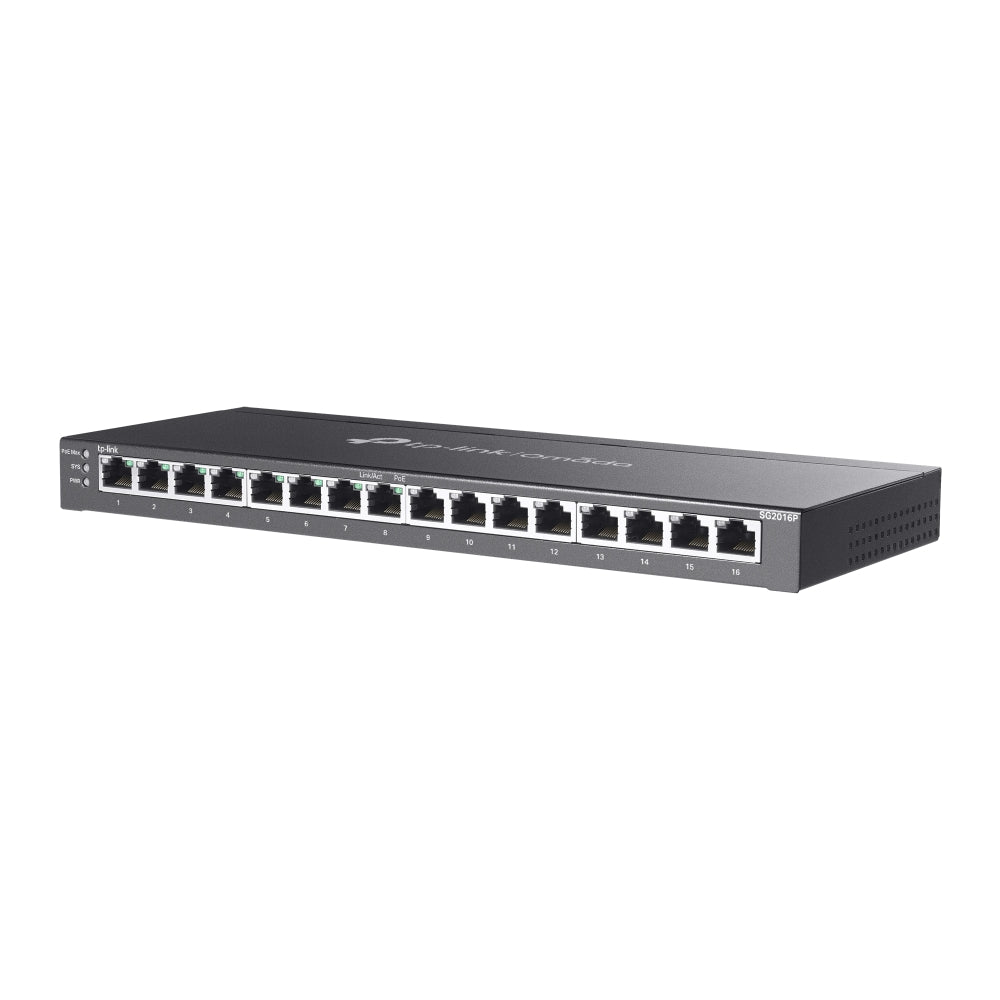

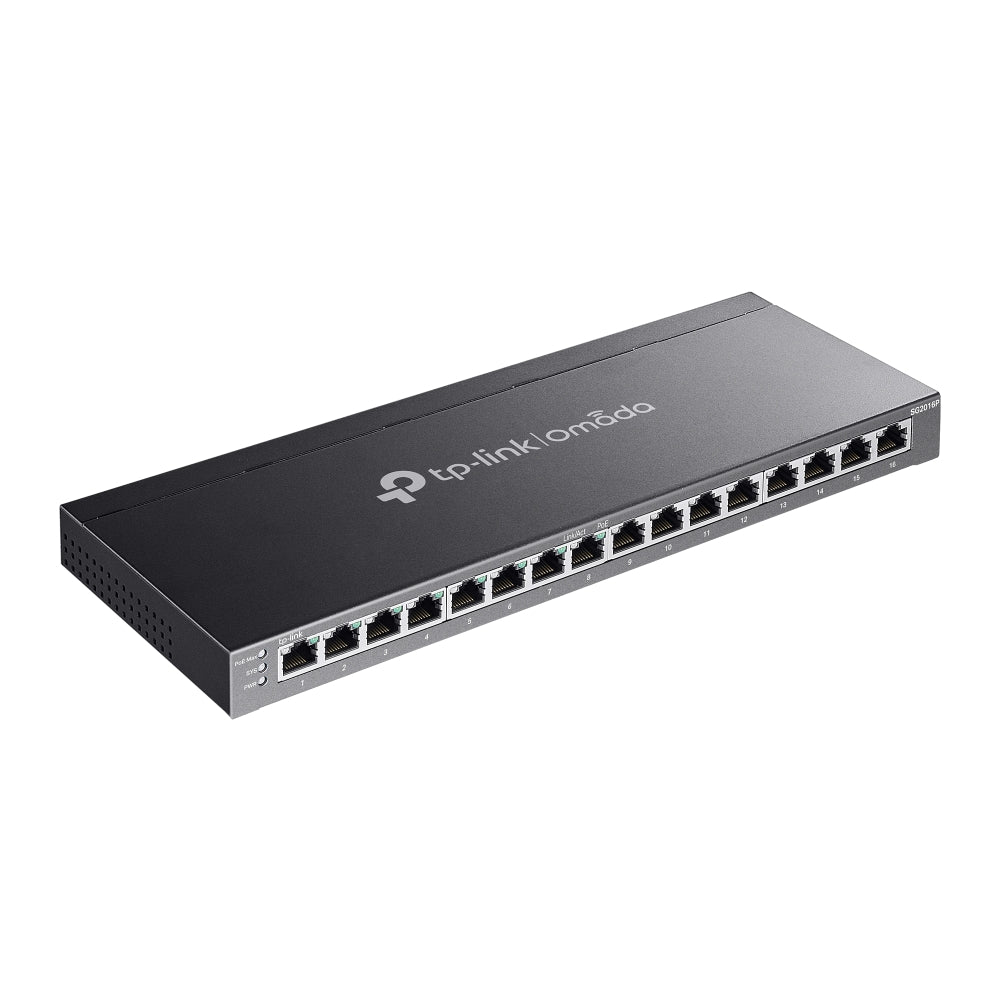

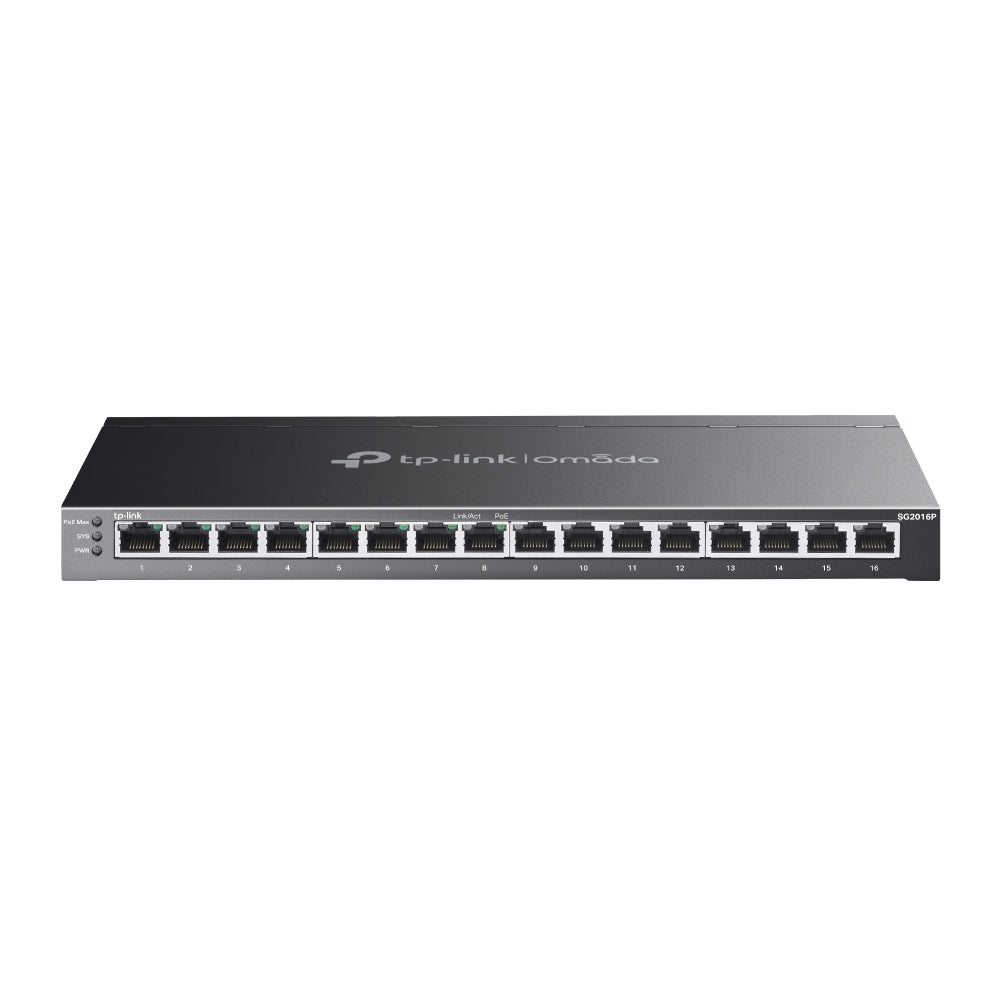

Boost your business network’s efficiency and simplify device deployments with the TP-Link SG2016P, a powerful 16-Port Gigabit Smart Managed PoE+ Switch. This compact yet highly capable switch features 8× Gigabit PoE+ ports, each delivering up to 30 W of power, making it ideal for powering PoE-enabled devices like IP cameras, wireless access points, and VoIP phones. The generous 120 W total PoE budget ensures ample power for small-to-medium PoE deployments.

Incorporating the flexibility of Omada SDN cloud management, the SG2016P allows you to manage and monitor your network remotely via the Omada app, while also offering standalone management through a user-friendly web interface, CLI, SNMP, or RMON.

With advanced L2/L2+ features, comprehensive security protocols, and a robust fanless metal chassis for silent operation, the SG2016P is a perfect solution for small businesses, retail environments, hospitality, and branch offices requiring affordable, reliable, and scalable networking.

What's Included in the Box

• SG2016P Switch

• Power Adapter

• Installation Guide

• Rubber Feet

Main Features

✅ 8× PoE+ Ports with 120 W Budget

• Power PoE devices directly, eliminating the need for separate power supplies.

✅ Compact Gigabit Connectivity

• 16 Gigabit RJ45 ports deliver fast, reliable connections for wired devices.

✅ Integrated Omada SDN Cloud Management

• Supports centralized management, remote monitoring, and zero-touch provisioning for streamlined operations.

✅ Fanless Silent Design

• Perfect for noise-sensitive environments like offices, retail spaces, and classrooms.

✅ Comprehensive Security Features

• IP-MAC-Port Binding, 802.1X authentication, ACLs, and storm control for secure networking.

✅ Robust Layer 2+ Features

• Supports static routing, VLANs, link aggregation, and more for flexible network designs.

Detailed Specifications

• Interfaces:

  • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support PoE+)

• Performance:

  • Switching Capacity: 32 Gbps

  • Packet Forwarding Rate: 23.81 Mpps

  • MAC Address Table: 8 K

  • Packet Buffer Memory: 4.1 Mbit

  • Jumbo Frame: 9 KB

• PoE:

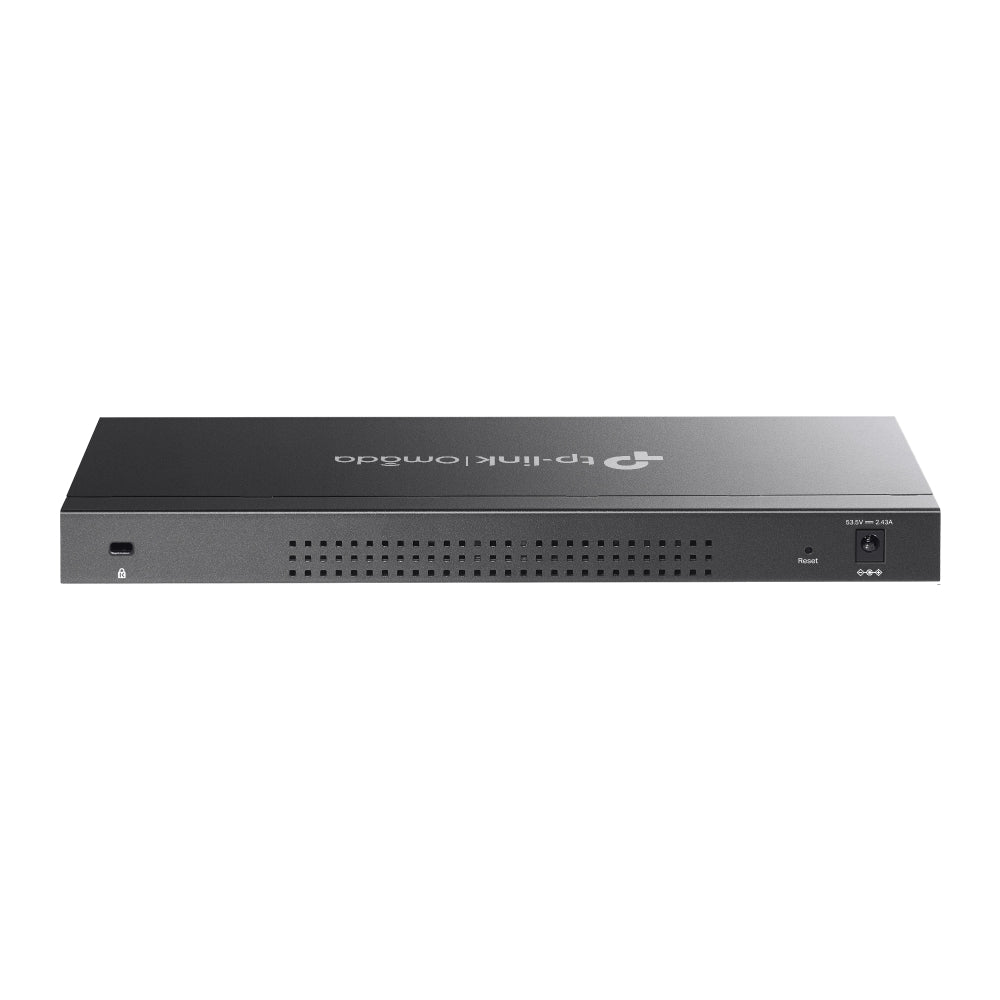

  • Power Supply: External Adapter (53.5 VDC / 2.43 A)

  • Total PoE Budget: 120 W (up to 30 W per port)

  • Max Power Consumption: 146.5 W (full PoE load)

  • Max Heat Dissipation: 499.98 BTU/hr

• Layer 2 & L2+ Features:

  • Static Routing (32 IPv4/IPv6 static routes)

  • DHCP Server and Relay

  • Link Aggregation

  • Spanning Tree Protocol (STP, RSTP, MSTP)

  • Loopback Detection

  • 802.3x Flow Control

  • Port Mirroring

  • LLDP/LLDP-MED

• Multicast Features:

  • IGMP Snooping v1/v2/v3

  • MLD Snooping v1/v2

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering (256 profiles, 16 entries per profile)

• Quality of Service (QoS):

  • 802.1p CoS/DSCP priority

  • 8 Priority Queues

  • Scheduling Modes: SP, WRR

  • Storm Control

  • Bandwidth Control (Port/Flow based)

• Security:

  • IP-MAC-Port Binding

  • 802.1X Authentication (Port-based, MAC-based)

  • AAA with RADIUS

  • DHCP Snooping

  • ARP Inspection

  • ND Detection and Snooping

  • DoS Defend

  • Port Isolation

  • Static/Dynamic/Permanent Port Security (up to 64 MACs per port)

  • Secure Management via HTTPS and SSH

• VLAN Support:

  • Up to 4,000 VLAN Groups

  • MAC VLAN (12 entries)

  • Protocol VLAN

  • Voice VLAN

  • GVRP

  • QinQ (Port-Based, Selective)

• Management:

  • Omada SDN Cloud Management

  • Web-based GUI

  • CLI via Telnet

  • SNMP v1/v2c/v3

  • RMON (1, 2, 3, 9)

  • Dual Image and Dual Configuration

  • Cable Diagnostics

  • Batch Configuration and Firmware Upgrade

• Certifications: CE, FCC, RoHS

• Dimensions: 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)

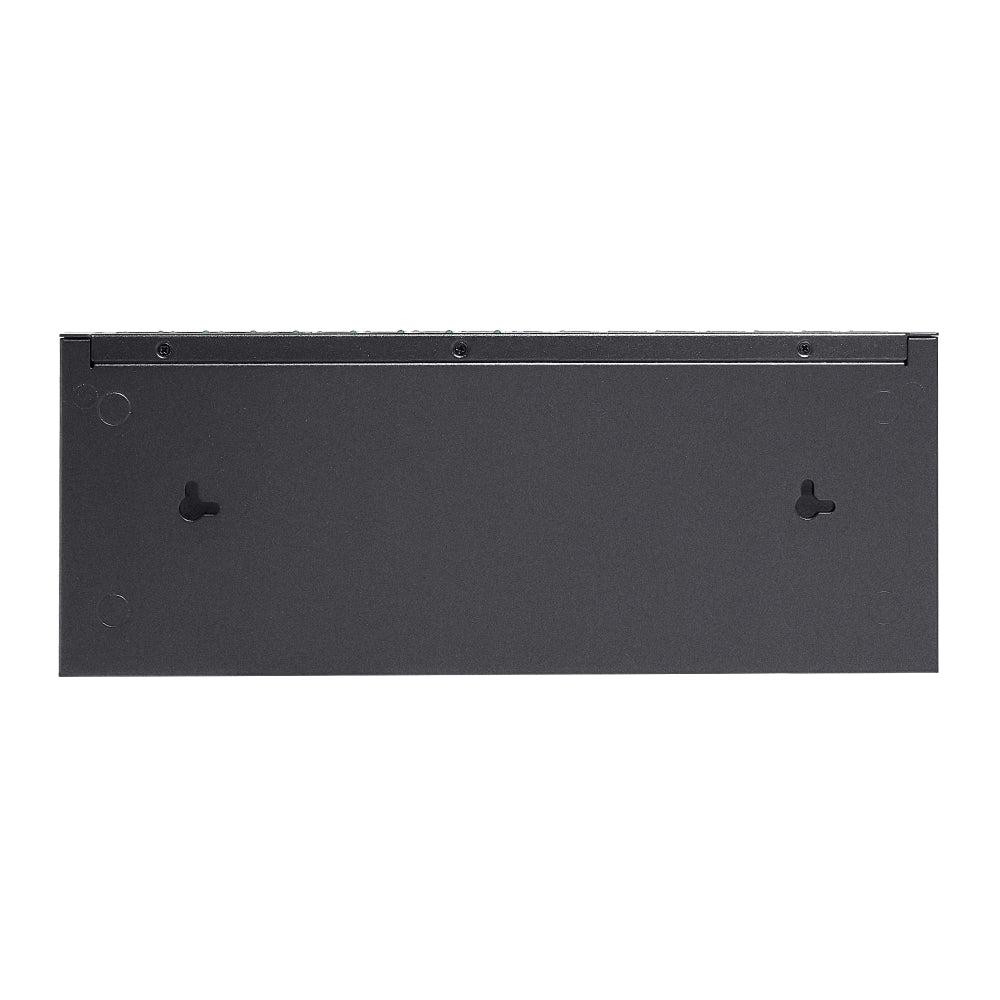

• Mounting: Desktop / Wall-Mounting

Warranty Information

• Manufacturer’s Limited Warranty

About TP-Link Omada

TP-Link Omada is a leading solution for business networks, providing unified management for switches, gateways, and access points through a single cloud platform, ensuring security, scalability, and simplified deployments.

SKU

SG2016P

Practical Use Scenarios

• Retail Environments: Power PoS terminals, security cameras, and wireless access points from a single switch.

• Small Business Networks: Simplify network setups with PoE for IP phones and APs while maintaining secure, high-speed connectivity.

• Hospitality and Education: Quiet operation suits offices, schools, and hotels where noise-sensitive deployments are essential.

Datasheets or Downloadable Resources

Download SG2016P Datasheet

Excellence for the Australian and New Zealand Market

The SG2016P meets stringent CE, FCC, and RoHS certifications and is distributed exclusively through authorized Australian and New Zealand channels for genuine product quality and warranty support. With localized warranty handling and full compliance to regional standards, it’s the ideal choice for professionals seeking dependable, enterprise-class network performance in ANZ environments.

FAQs (SG2016P)

Q1: How many devices can the SG2016P power via PoE?
A1: The SG2016P can power up to 8 PoE devices simultaneously, with a maximum budget of 120 W across those ports. (SG2016P)

Q2: Is the SG2016P fanless for silent operation?
A2: Yes! The SG2016P features a fanless design for completely silent operation, perfect for quiet environments. (SG2016P)

Q3: Does the SG2016P support VLANs and advanced network segmentation?
A3: Absolutely. It supports up to 4,000 VLAN groups, including MAC VLAN, Voice VLAN, and QinQ. (SG2016P)

Q4: Can the SG2016P be managed remotely?
A4: Yes. It integrates with Omada SDN for cloud-based management and also offers standalone management via web interface, CLI, or SNMP. (SG2016P)

Q5: What’s the power supply type for the SG2016P?
A5: It uses an external power adapter (53.5 VDC / 2.43 A), making it efficient and suitable for compact installations. (SG2016P)
