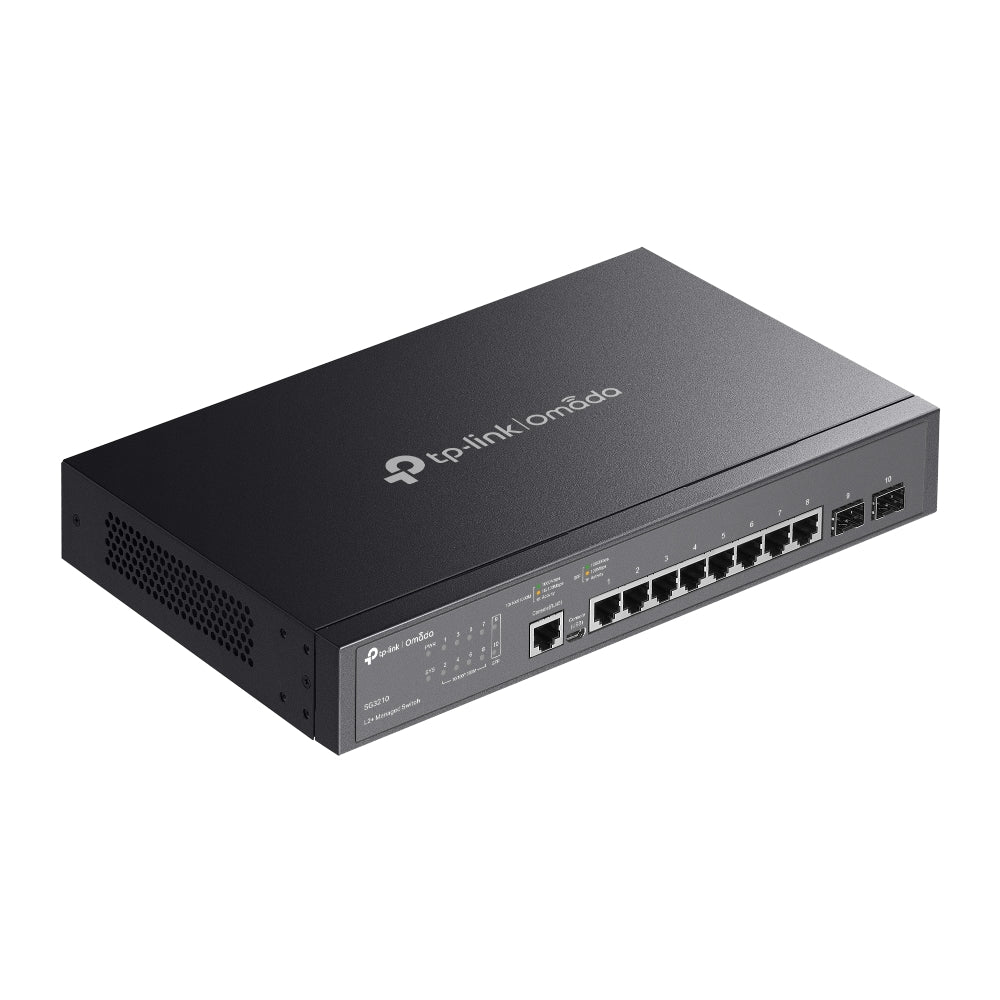

Empower your small business or enterprise edge with the TP-Link SG3210, an advanced 8-Port Gigabit L2+ Managed Switch designed for versatile, high-performance networking.

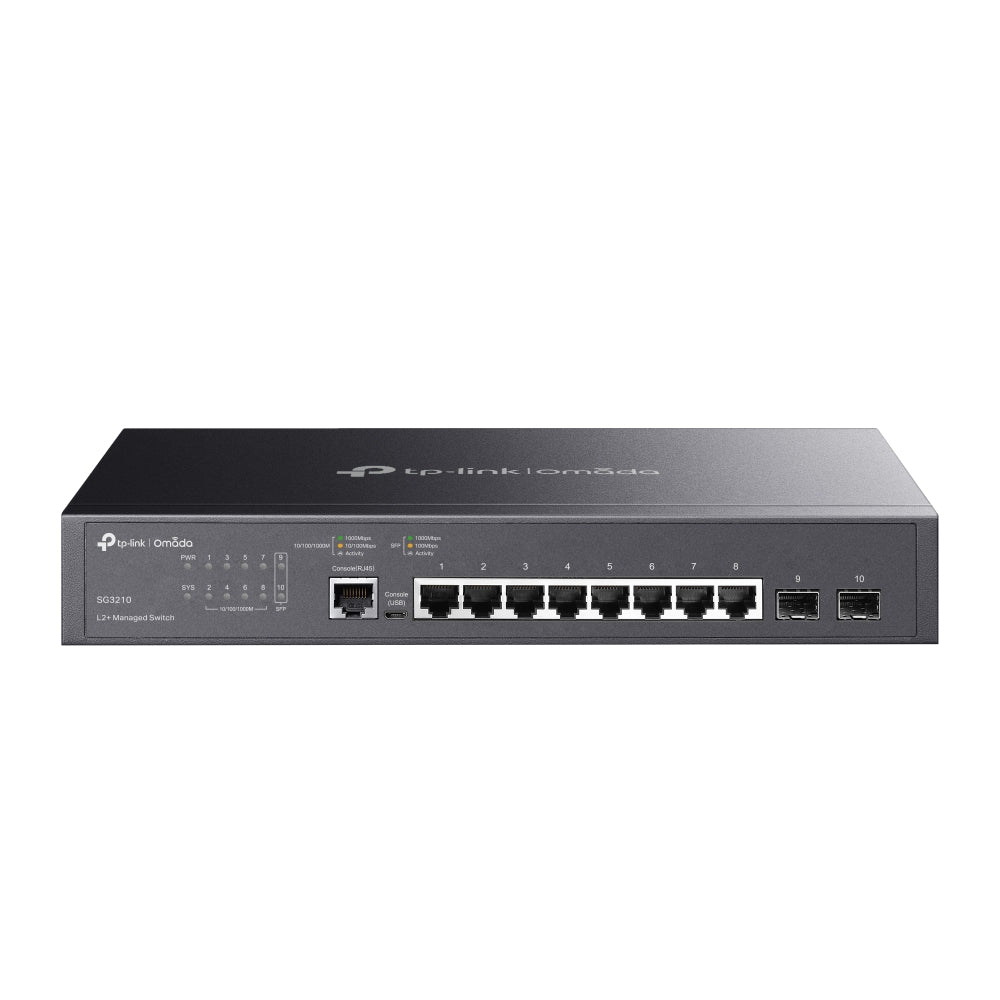

Equipped with 8× Gigabit RJ45 ports and 2× Gigabit SFP slots, the SG3210 offers flexible connectivity options, perfect for linking multiple devices, deploying fiber uplinks, or extending networks over longer distances. With a 20 Gbps switching capacity, it handles large data flows without bottlenecks.

Built for modern networks, this fanless switch runs silently and integrates seamlessly into Omada SDN, enabling Zero-Touch Provisioning, centralized cloud management, and intelligent monitoring via the Omada app or web-based interface.

Advanced L2+ features—including VLAN, ACL, QoS, static routing, and multicast support—make it ideal for creating secure, segmented, and high-efficiency networks. The SG3210 is the perfect fit for businesses seeking reliability, silent operation, and enterprise-grade management in a compact form factor.

What's Included in the Box

• SG3210 Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Flexible Gigabit Connectivity

• 8× Gigabit RJ45 ports and 2× Gigabit SFP slots for flexible copper or fiber uplinks.

✅ Silent, Fanless Design

• Perfect for noise-sensitive environments such as offices, retail, or hospitality.

✅ Cloud-Based Management

• Integrated into Omada SDN for cloud management, remote monitoring, and Zero-Touch Provisioning.

✅ Robust Layer 2+ and L3 Features

• Static routing, VLANs, advanced QoS, and security features enable precise traffic control and network segmentation.

✅ Advanced Security Controls

• Protects networks with IP-MAC-Port binding, DoS defense, DHCP snooping, 802.1X, RADIUS authentication, and more.

✅ Energy Efficient

• Very low maximum power consumption of only 6.84 W.

Detailed Specifications

• Interfaces:

  • 8× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

  • 2× 100/1000 Mbps SFP Slots

  • 1× RJ45 Console Port

  • 1× Micro-USB Console Port

• Performance:

  • Switching Capacity: 20 Gbps

  • Packet Forwarding Rate: 14.89 Mpps

  • MAC Address Table: 8 K

  • Packet Buffer Memory: 4.1 Mbit

  • Jumbo Frame: 9 KB

  • Max Power Consumption: 6.84 W (220V/50Hz)

  • Max Heat Dissipation: 23.33 BTU/h

• Layer 3 Features:

  • Static Routing (48 IPv4/IPv6 static routes)

  • Proxy ARP, Gratuitous ARP

  • DHCP Server, DHCP Relay (Interface/VLAN)

  • DHCP L2 Relay

• Layer 2 and Layer 2+ Features:

  • Link Aggregation (Static & LACP)

  • Spanning Tree Protocol (STP, RSTP, MSTP)

  • Loopback Detection

  • Flow Control (802.3x)

  • Port Mirroring

• L2 Multicast:

  • IGMP Snooping (v1/v2/v3), MLD Snooping (v1/v2)

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering (256 profiles, 16 entries per profile)

• Quality of Service (QoS):

  • 8 priority queues

  • 802.1p CoS/DSCP priority

  • Queue scheduling (SP, WRR, SP+WRR)

  • Port/Flow-based Rate Limiting

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping, ARP Inspection

  • IPv4 and IPv6 Source Guard

  • DoS Defend

  • Static/Dynamic Port Security (up to 64 MACs per port)

  • Storm Control (Broadcast/Multicast/Unicast)

  • 802.1X authentication

  • AAA including TACACS+

  • Secure management (HTTPS, SSH)

• VLAN Support:

  • Up to 4,000 VLAN groups

  • MAC VLAN (12 entries)

  • Protocol VLAN (16 templates)

  • GVRP

  • QinQ (Port-Based and Selective)

  • Voice VLAN

• ISP Features:

  • L2PT, DLDP

  • PPPoE ID Insertion

  • ERPS

  • 802.3ah Ethernet Link OAM

  • DDM

• Management:

  • Web-based GUI

  • CLI via console, Telnet, SSH

  • SNMP v1/v2c/v3, RMON (1,2,3,9 groups)

  • Omada SDN platform

  • Cable Diagnostics

  • Dual Image and Dual Configuration

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty (contact your local distributor for details).

About TP-Link Omada

TP-Link Omada delivers a seamless networking experience through cloud-based centralized management, ensuring scalability, security, and streamlined deployment for businesses of all sizes.

SKU

SG3210

Practical Use Scenarios

• Edge Switch in SMB Networks: Connects PCs, printers, IP cameras, and wireless access points for efficient LAN operation.

• Retail & Hospitality: Silent, fanless design makes it ideal for public spaces where noise levels must remain low.

• Small Enterprise Distribution: Offers VLAN support and L3 static routing for traffic segregation and security.

• Fiber Uplink Deployment: Leverages SFP slots for reliable fiber uplinks over long distances.

Datasheets or Downloadable Resources

Download SG3210 Datasheet

Excellence for the Australian and New Zealand Market

The SG3210 meets stringent CE, FCC, and RoHS certifications and is designed to comply with Australian and New Zealand regulatory standards. All units are sourced via authorised local channels, ensuring genuine hardware and manufacturer-supported warranties. Local support and warranty handling ensure peace of mind for businesses investing in robust network solutions.

FAQs (SG3210)

Q1: Is the SG3210 fanless and silent?
A1: Yes! The SG3210 has a fanless design for completely silent operation, perfect for noise-sensitive spaces. (SG3210)

Q2: How many VLANs does the SG3210 support?
A2: It supports up to 4,000 VLAN groups, allowing highly segmented network architectures. (SG3210)

Q3: Does the SG3210 support cloud management?
A3: Absolutely. The SG3210 integrates with TP-Link’s Omada SDN for cloud-based management and Zero-Touch Provisioning. (SG3210)

Q4: What is the power consumption of the SG3210?
A4: The SG3210 is very energy-efficient, with a maximum power consumption of only 6.84 W. (SG3210)

Q5: Can the SG3210 handle fiber uplinks?
A5: Yes! It includes 2× Gigabit SFP slots for fiber connectivity, ideal for extending your network over longer distances. (SG3210)
