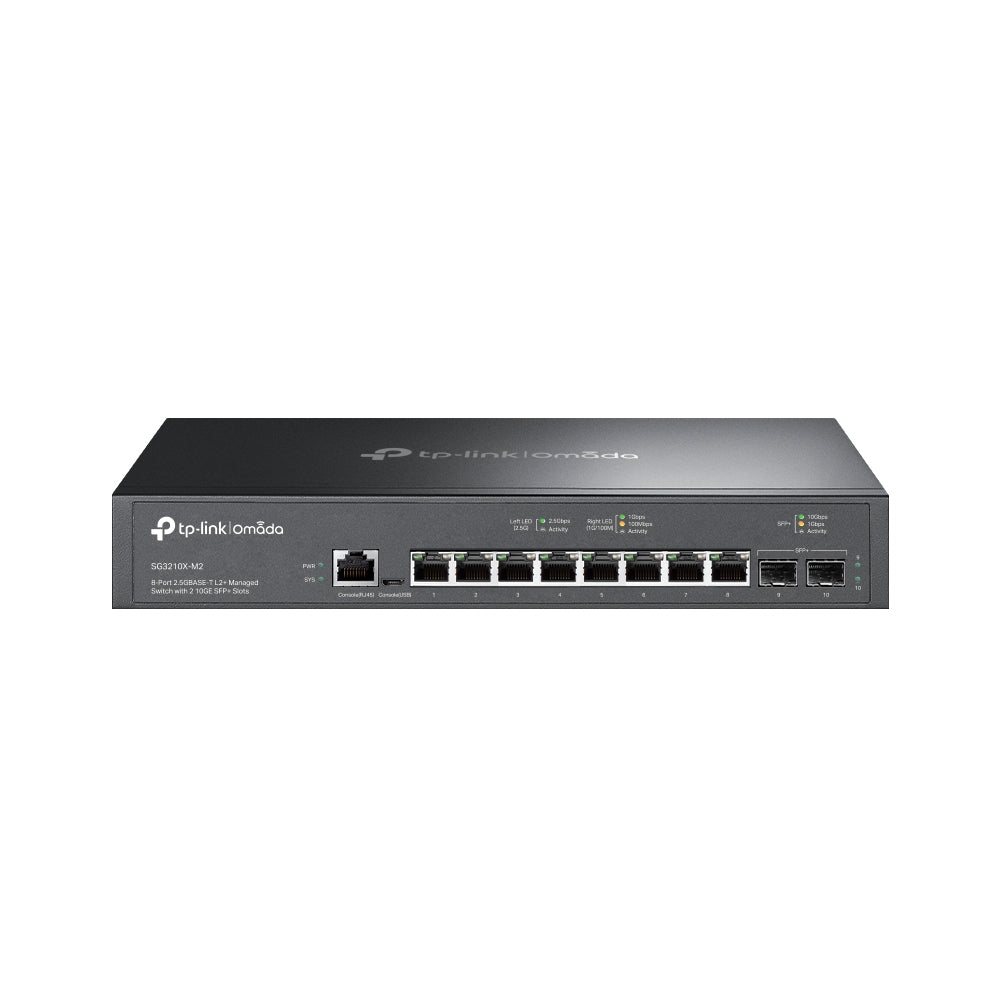

Experience the future of networking with the TP-Link SG3210X-M2, a versatile 2.5G L2+ Managed Switch that’s purpose-built to unleash the speed and capacity demanded by modern enterprise networks, WiFi 7/6E/6 APs, and bandwidth-intensive applications.

Equipped with 8× 2.5 Gbps RJ45 ports, the SG3210X-M2 smashes the traditional gigabit ceiling, ensuring your network can keep pace with the latest multi-gigabit devices. For powerful network expansion, its 2× 10G SFP+ uplink slots deliver lightning-fast connectivity for backhaul, aggregation, or uplinks to core networks.

Packed with a wealth of L2/L3 features, including static routing, VLANs, advanced QoS, and robust security controls, this switch ensures optimized traffic management and bulletproof protection for your infrastructure.

Integrated seamlessly into the Omada SDN platform, the SG3210X-M2 supports Zero-Touch Provisioning, cloud-based centralized management, and remote monitoring—all accessible via a user-friendly web GUI or mobile app.

Whether deployed as a high-speed distribution switch or as a core piece of an advanced enterprise network, the SG3210X-M2 offers exceptional performance, security, and flexibility.

What's Included in the Box

• SG3210X-M2 Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ 2.5G Multi-Gigabit Ports

• 8× 2.5 Gbps RJ45 ports empower your network to handle WiFi 7/6E/6 APs and high-speed devices without bottlenecks.

✅ 10G SFP+ Uplinks

• 2× 10G SFP+ slots deliver blazing-fast connectivity for uplinks, core links, and high-capacity aggregation.

✅ Silent, Fanless Operation

• Designed for noise-sensitive environments like offices or retail spaces.

✅ Omada SDN Integration

• Enjoy Zero-Touch Provisioning, cloud management, and intelligent monitoring via Omada’s centralized management platform.

✅ Advanced L2+/L3 Functionality

• Static routing, VLANs, ACLs, QoS, and multicast support enable precise traffic control and optimization.

✅ Robust Security Suite

• Comprehensive protection including IP-MAC-Port binding, DoS defense, DHCP snooping, 802.1X, RADIUS authentication, and more.

✅ Energy Efficient Design

• Low power consumption of only 15.0W max, perfect for eco-conscious deployments.

Detailed Specifications

• Interfaces:

  • 8× 2.5 Gbps RJ45 Ports

  • 2× 10G SFP+ Slots

  • 1× RJ45 Console Port

  • 1× Micro-USB Console Port

• Performance:

  • Switching Capacity: 80 Gbps

  • Packet Forwarding Rate: 59.52 Mpps

  • MAC Address Table: 16 K

  • Packet Buffer Memory: 12 Mbit

  • Jumbo Frame: 9 KB

  • Max Power Consumption: 15.0 W (110V/60Hz)

  • Max Heat Dissipation: 51.18 BTU/h

• Layer 3 Features:

  • Static Routing (48 IPv4/IPv6 static routes)

  • Proxy ARP, Gratuitous ARP

  • DHCP Server, DHCP Relay (Interface/VLAN)

  • DHCP L2 Relay

• Layer 2 and Layer 2+ Features:

  • Link Aggregation (Static & LACP, up to 8 groups)

  • Spanning Tree Protocol (STP, RSTP, MSTP)

  • Loopback Detection

  • Flow Control (802.3x)

  • Port Mirroring

• L2 Multicast:

  • IGMP Snooping (v1/v2/v3), MLD Snooping (v1/v2)

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering (256 profiles, 16 entries per profile)

• Quality of Service (QoS):

  • 8 priority queues

  • 802.1p CoS/DSCP priority

  • Queue scheduling (SP, WRR, SP+WRR)

  • Port/Flow-based Rate Limiting

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping, ARP Inspection

  • IPv4 and IPv6 Source Guard

  • DoS Defend

  • Static/Dynamic Port Security (up to 64 MACs per port)

  • Storm Control (Broadcast/Multicast/Unicast)

  • 802.1X authentication

  • AAA including TACACS+

  • Secure management (HTTPS, SSH)

• VLAN Support:

  • Up to 4,000 VLAN groups

  • MAC VLAN (256 entries)

  • Protocol VLAN (16 templates)

  • GVRP

  • QinQ (Port-Based and Selective)

  • Voice VLAN

• ISP Features:

  • L2PT, DLDP

  • PPPoE ID Insertion

  • ERPS

  • 802.3ah Ethernet Link OAM

  • DDM

  • sFlow

• Management:

  • Web-based GUI

  • CLI via console, Telnet, SSH

  • SNMP v1/v2c/v3, RMON (1,2,3,9 groups)

  • Omada SDN platform

  • Cable Diagnostics

  • Dual Image and Dual Configuration

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty

About TP-Link Omada

TP-Link Omada delivers enterprise-grade networking, seamlessly integrating wired and wireless solutions under a unified SDN platform for scalable, secure, and cost-effective deployments.

SKU

SG3210X-M2

Practical Use Scenarios

• WiFi 7/6E/6 AP Deployment: Perfect backbone for multi-gigabit APs needing speeds beyond 1Gbps.

• Small Business Core Switch: Supports static routing and advanced security in compact environments.

• Edge or Distribution Switch: Connects high-speed devices and uplinks to 10G core switches.

• Retail & Hospitality: Fanless, silent operation suits customer-facing areas.

Datasheets or Downloadable Resources

Download SG3210X-M2 Datasheet

Excellence for the Australian and New Zealand Market

The SG3210X-M2 is fully compliant with CE, FCC, and RoHS certifications and is ideal for the Australian and New Zealand markets. All products are sourced through authorized local channels, ensuring genuine hardware and manufacturer-backed support. Local warranty handling offers peace of mind for businesses investing in reliable network infrastructure.

FAQs (SG3210X-M2)

Q1: Does the SG3210X-M2 support multi-gigabit WiFi deployments like WiFi 7 and WiFi 6E?
A1: Absolutely! The SG3210X-M2’s 8× 2.5G ports make it perfect for unleashing the full speed of WiFi 7/6E/6 access points. (SG3210X-M2)

Q2: How many VLANs can the SG3210X-M2 handle?
A2: The switch supports up to 4,000 VLAN groups for powerful network segmentation and policy management. (SG3210X-M2)

Q3: Can I manage the SG3210X-M2 through the cloud?
A3: Yes! The SG3210X-M2 integrates with TP-Link’s Omada SDN for cloud-based management, remote monitoring, and Zero-Touch Provisioning. (SG3210X-M2)

Q4: What’s the power consumption of the SG3210X-M2?
A4: The SG3210X-M2 is highly efficient, with a maximum power consumption of only 15.0W. (SG3210X-M2)

Q5: Does the SG3210X-M2 support advanced security features?
A5: Yes, it includes features like IP-MAC-Port Binding, DHCP Snooping, DoS defense, 802.1X authentication, and more for robust network protection. (SG3210X-M2)
