Step into the future of networking with the TP-Link SG3218XP-M2, a powerful L2+ managed switch purpose-built to handle the explosive bandwidth demands of modern networks, including WiFi 7, 6E, and 6 deployments.

Featuring 16× 2.5G ports (8 PoE+ and 8 non-PoE), plus 2× 10G SFP+ uplink slots, the SG3218XP-M2 shatters the limitations of standard Gigabit networks and unlocks seamless, high-speed connections for next-generation wireless access points and network devices.

Backed by an ample 240W PoE budget, the switch powers devices directly through Ethernet cabling, making it an ideal choice for high-density wireless deployments, IP cameras, and VoIP systems. Its advanced L2/L3/L4 QoS ensures flawless voice and video applications, while an array of robust security features protects your business network.

Integrated into the Omada SDN platform, this switch provides centralized cloud management, Zero-Touch Provisioning, and intelligent network monitoring for effortless scaling and simplified maintenance across single or multi-site networks.

Whether you’re building a high-speed backbone for a business, campus, retail environment, or hospitality deployment, the SG3218XP-M2 delivers the performance, flexibility, and control you need.

What's Included in the Box

• SG3218XP-M2 Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

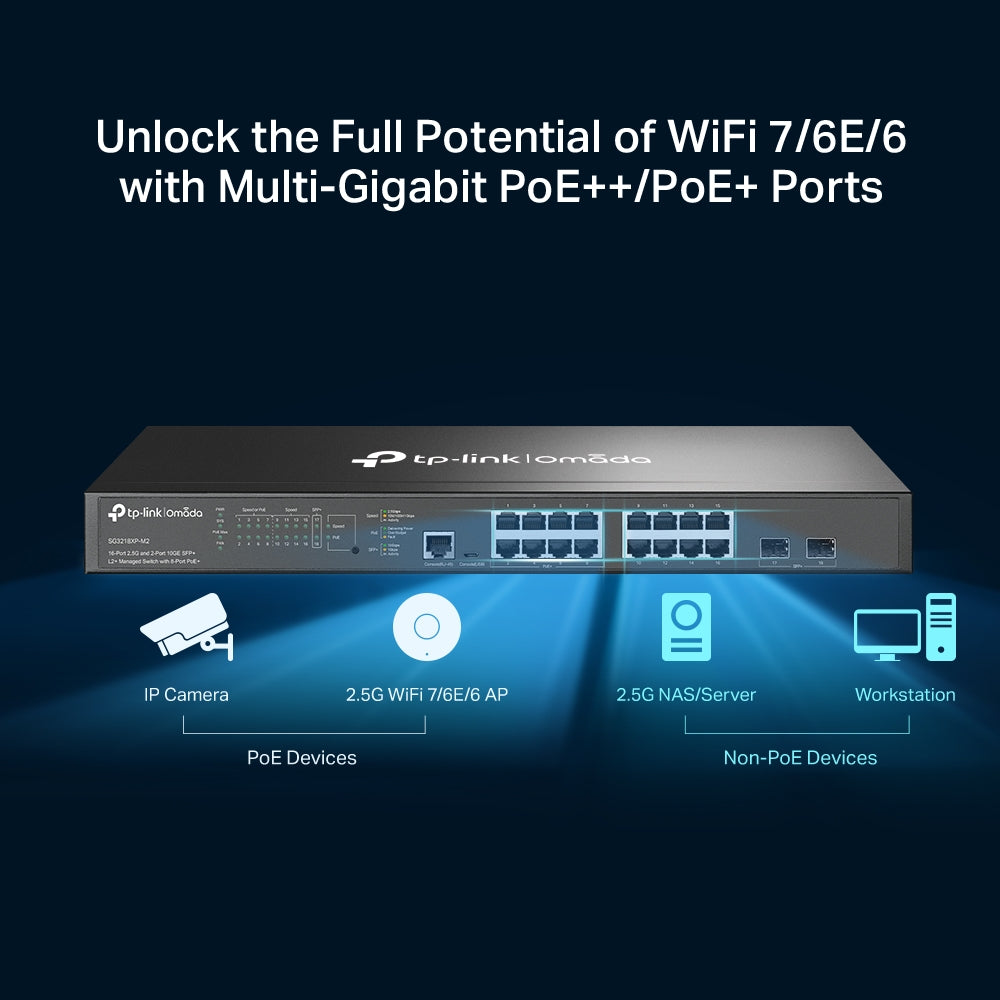

✅ 2.5G Multi-Gigabit Ports

• 16× 2.5 Gbps ports (8 PoE+ and 8 non-PoE) maximize speed for WiFi 7/6E/6 APs and high-bandwidth applications.

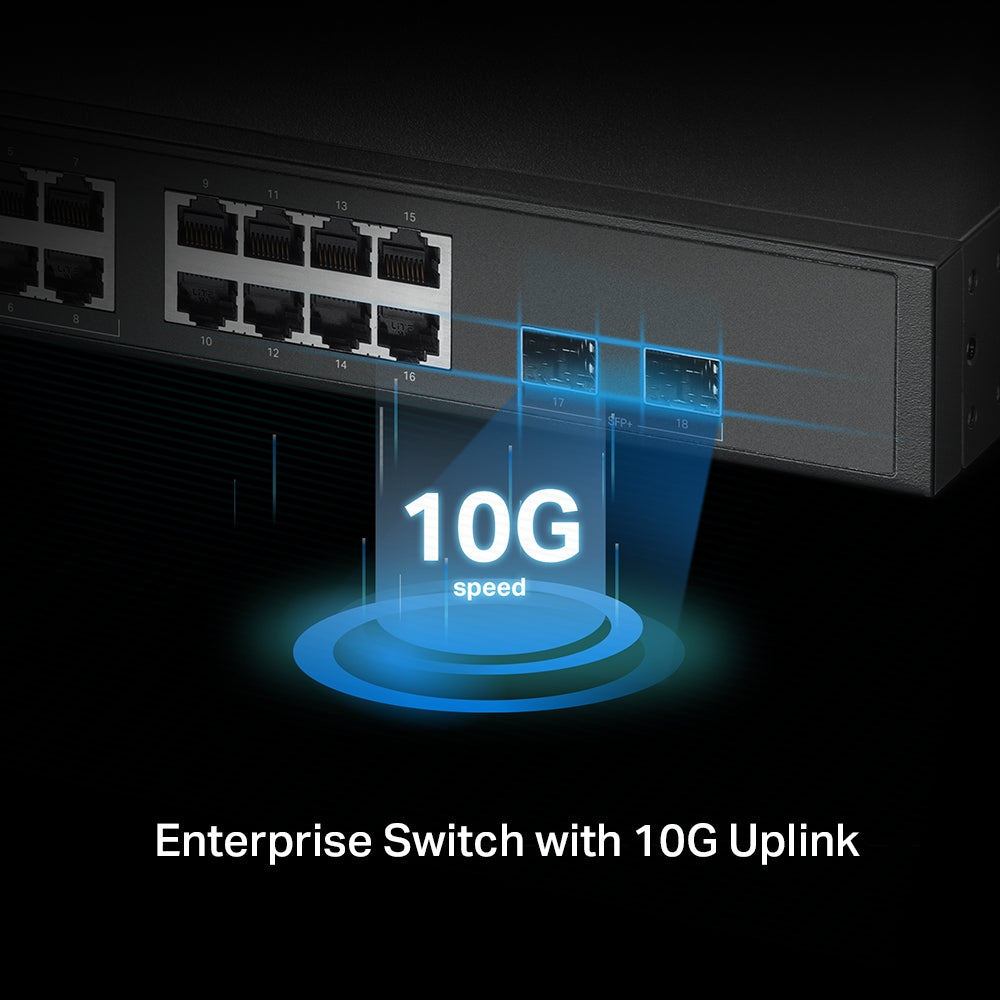

✅ 10G SFP+ Uplinks

• 2× 10 Gbps SFP+ slots ensure lightning-fast backbone or uplink connections for high-throughput aggregation.

✅ Robust PoE+ Support

• 8× PoE+ ports deliver up to 30W per port with a generous 240W PoE power budget.

✅ Powerful L2+ and Static Routing

• Features advanced VLANs, ACLs, link aggregation, and static routing for efficient network segmentation and performance optimization.

✅ Omada SDN Cloud Integration

• Unified cloud management, remote monitoring, and Zero-Touch Provisioning simplify administration across sites.

✅ Comprehensive Security

• Protect your network with features like IP-MAC-Port binding, DHCP snooping, DoS defend, and secure management protocols.

✅ Optimized for Voice and Video Traffic

• Advanced QoS prioritizes critical applications, ensuring smooth performance for voice, video, and data.

Detailed Specifications

• Interfaces:

  • 16× 2.5 Gbps RJ45 Ports (8 PoE+ and 8 non-PoE)

  • 2× 10G SFP+ Slots

  • 1× RJ45 Console Port

  • 1× Micro-USB Console Port

• Performance:

  • Switching Capacity: 120 Gbps

  • Packet Forwarding Rate: 89.28 Mpps

  • MAC Address Table: 16 K

  • Packet Buffer Memory: 12 Mbit

  • Jumbo Frame: 9 KB

  • Max Power Consumption: 299.4 W (with 240W PD connected)

  • Max Heat Dissipation: 1021.64 BTU/hr

• PoE Capabilities:

  • 8× PoE+ Ports (802.3af/at) up to 30 W per port

  • Total PoE Budget: 240 W

• Layer 2 and Layer 3 Features:

  • Static Routing (48 IPv4/IPv6 routes)

  • Proxy ARP, Gratuitous ARP

  • DHCP Server, DHCP Relay (Interface/VLAN)

  • Link Aggregation (Static & LACP, up to 8 groups)

  • Spanning Tree Protocol (STP/RSTP/MSTP)

  • Loopback Detection (Port-based and VLAN-based)

  • 802.3x Flow Control

  • Port Mirroring

• L2 Multicast:

  • IGMP Snooping v1/v2/v3

  • MLD Snooping v1/v2

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering: 256 profiles, 16 entries per profile

• Quality of Service (QoS):

  • 8 priority queues

  • 802.1p CoS/DSCP priority

  • Queue scheduling (SP, WRR, SP+WRR)

  • Port/Flow-based Rate Limiting

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping, ARP Inspection

  • IPv4 and IPv6 Source Guard

  • DoS Defend

  • Static/Dynamic Port Security (up to 64 MACs per port)

  • Storm Control for Broadcast, Multicast, and Unicast

  • 802.1X authentication

  • AAA including TACACS+

  • Secure management (HTTPS, SSH)

• VLAN Support:

  • Up to 4,000 VLAN groups

  • MAC VLAN (256 entries)

  • Protocol VLAN (16 templates)

  • GVRP

  • QinQ (Port-Based and Selective)

  • Voice VLAN

• ISP Features:

  • L2PT, DLDP

  • PPPoE ID Insertion

  • ERPS

  • 802.3ah Ethernet Link OAM

  • DDM

  • sFlow

• Management:

  • Web-based GUI

  • CLI via console, Telnet, SSH

  • SNMP v1/v2c/v3, RMON (1,2,3,9 groups)

  • Omada Cloud-Based Controller

  • Cable Diagnostics

  • Dual Image and Dual Configuration

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty

About TP-Link Omada

TP-Link Omada delivers enterprise-class networking with unified wired and wireless management. The Omada SDN platform ensures seamless scalability, superior security, and streamlined operation from a single cloud interface.

SKU

SG3218XP-M2

Practical Use Scenarios

• High-Speed Wireless Deployments: Perfect for WiFi 7/6E/6 APs needing multi-gig connections.

• Enterprise LAN Backbone: Supports demanding traffic and redundancy with 10G uplinks.

• IP Surveillance Networks: Power cameras with PoE+ while handling high video traffic.

• Retail & Hospitality: Ideal for branch offices or multi-tenant facilities requiring central cloud control.

Datasheets or Downloadable Resources

Download SG3218XP-M2 Datasheet

Excellence for the Australian and New Zealand Market

The SG3218XP-M2 is fully certified under CE, FCC, and RoHS, ensuring compliance with Australian and New Zealand regulations. All products are sourced from official TP-Link channels, guaranteeing authentic hardware and reliable support. Warranty claims and technical assistance are managed locally for peace of mind.

FAQs (SG3218XP-M2)

Q1: Does the SG3218XP-M2 support WiFi 7/6E/6 deployments?
A1: Yes! The SG3218XP-M2’s 2.5G ports are ideal for WiFi 7/6E/6 APs, delivering multi-gig speeds to unlock their full potential. (SG3218XP-M2)

Q2: What’s the total PoE power budget of the SG3218XP-M2?
A2: The switch offers a 240W total PoE budget, supporting up to 30W per port on its 8 PoE+ ports. (SG3218XP-M2)

Q3: Can I manage the SG3218XP-M2 through the cloud?
A3: Absolutely! The SG3218XP-M2 integrates with TP-Link’s Omada SDN platform for centralized cloud-based management and zero-touch provisioning. (SG3218XP-M2)

Q4: Does the SG3218XP-M2 support static routing?
A4: Yes, it supports 48 static routes for both IPv4 and IPv6 to efficiently manage internal traffic. (SG3218XP-M2)

Q5: How many VLANs can the SG3218XP-M2 handle?
A5: The SG3218XP-M2 supports up to 4,000 VLAN groups, allowing extensive network segmentation and policy management. (SG3218XP-M2)
