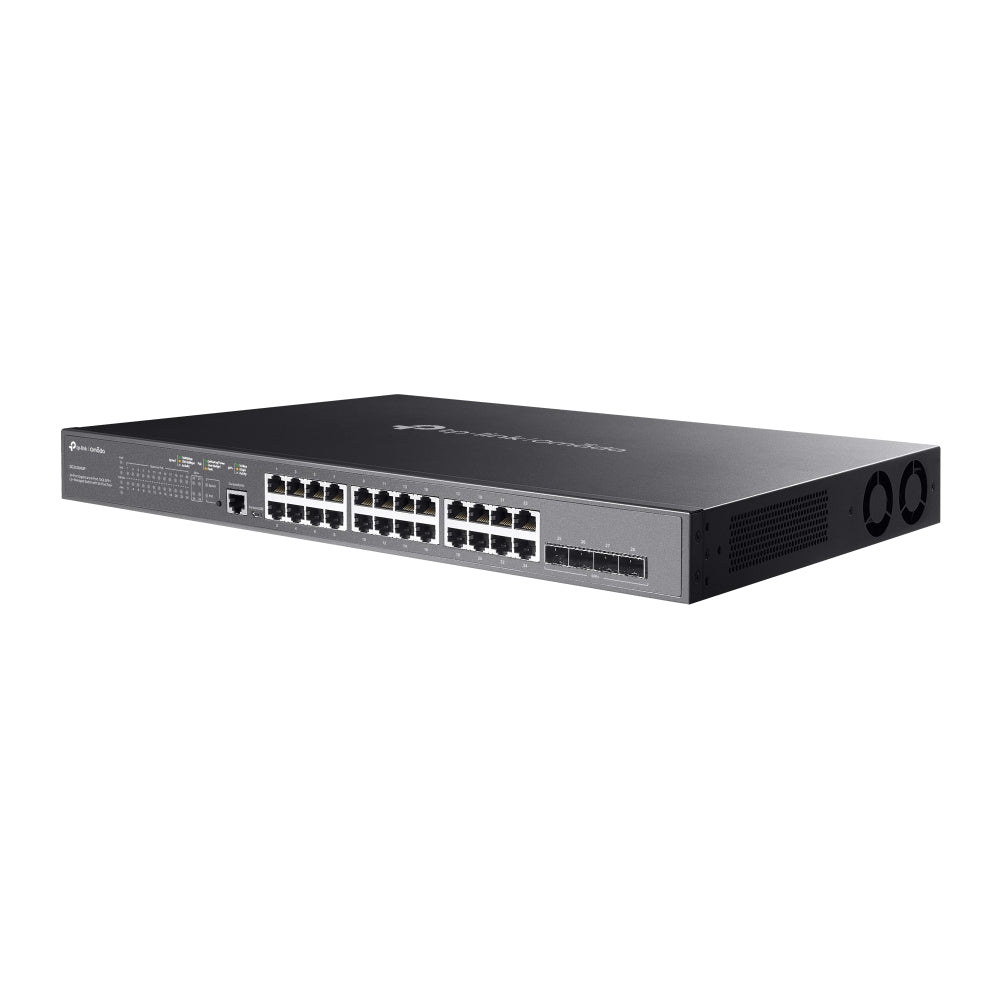

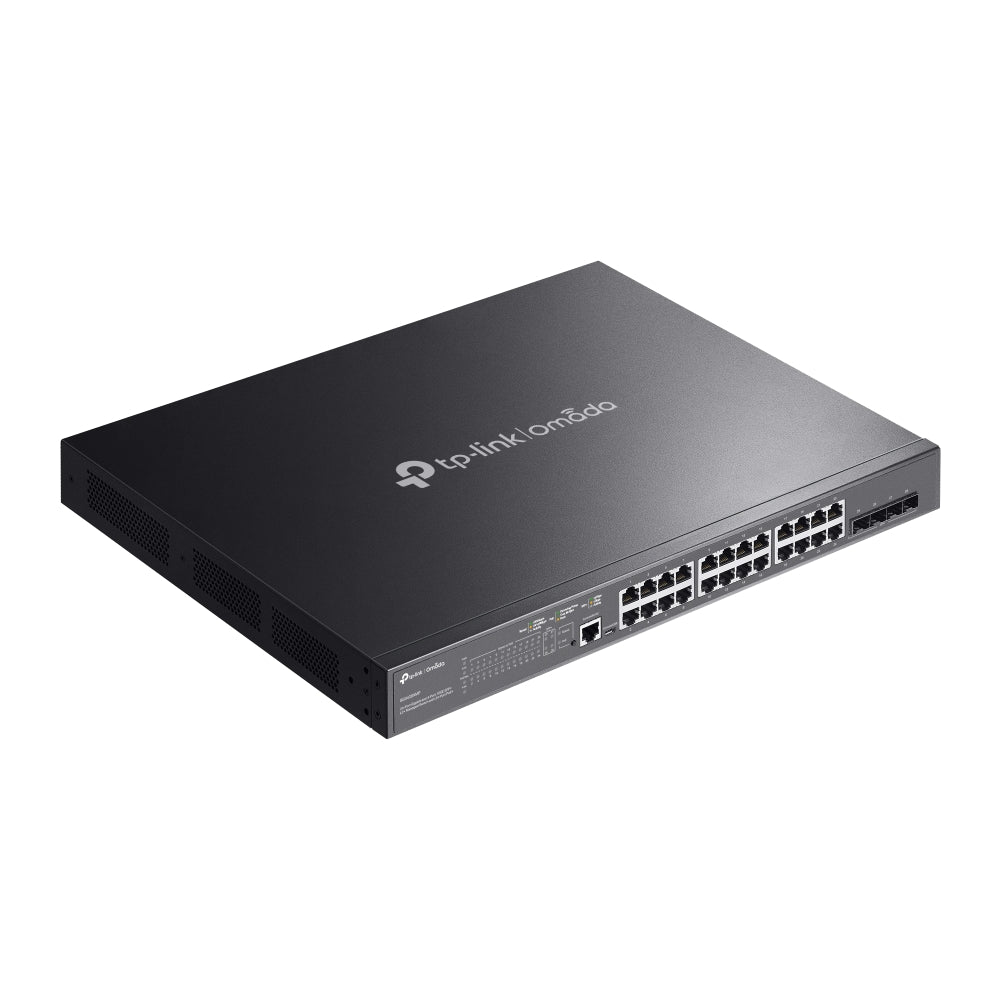

Step up your network infrastructure with the TP-Link SG3428XMP, a powerful L2+ managed switch designed for demanding business environments. Featuring 24 Gigabit PoE+ ports capable of delivering up to 30 W per port, and backed by a robust 384 W total PoE budget, this switch is perfect for powering high-performance devices such as WiFi 6 access points, VoIP phones, and IP surveillance cameras—all through a single cable.

With 4× 10 Gbps SFP+ uplink slots, the SG3428XMP ensures high-speed connectivity for seamless data aggregation and network expansion. Integrated into the Omada SDN platform, it offers cloud-based centralized management, zero-touch provisioning, and advanced monitoring tools for streamlined network administration across single or multi-site deployments.

Enhanced with advanced L2 and L3 features, strong security mechanisms, and enterprise-grade performance, the SG3428XMP delivers the reliability and flexibility that modern networks demand.

What's Included in the Box

• SG3428XMP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ High PoE+ Power Delivery

• 24× PoE+ ports delivering up to 30 W per port

• Total PoE budget of 384 W, perfect for powering PoE devices without external injectors

✅ 10G High-Speed Uplinks

• 4× 10 Gbps SFP+ uplinks for lightning-fast connectivity to core or aggregation switches

✅ Superior Switching Performance

• 128 Gbps switching capacity and 95.23 Mpps packet forwarding rate for non-blocking data transfer

✅ Advanced Layer 2 and Layer 3 Features

• Static Routing, VLAN management, Multicast handling, and advanced security ensure network efficiency and control

✅ Omada SDN Integration

• Centralized cloud management, zero-touch provisioning, and unified monitoring simplify network administration

✅ Robust Security Suite

• Comprehensive ACLs, DHCP snooping, IP-MAC-Port Binding, 802.1X authentication, and more for strong network protection

✅ Durable Rack-Mountable Design

• Sturdy metal casing with efficient cooling and rack-mountable form factor for enterprise deployments

Detailed Specifications

• Ports & Interfaces:

  • 24× 10/100/1000 Mbps RJ45 PoE+ Ports

  • 4× 10G SFP+ Slots

  • 1× RJ45 Console Port

  • 1× Micro-USB Console Port

• PoE Specifications:

  • PoE+ Ports: 24 Ports (up to 30 W each)

  • Total PoE Power Budget: 384 W

• Performance:

  • Switching Capacity: 128 Gbps

  • Packet Forwarding Rate: 95.23 Mpps

  • MAC Address Table: 16 K

  • Packet Buffer Memory: 12 Mbit

  • Jumbo Frame: 9 KB

• Power & Cooling:

  • Max Power Consumption: 486.2 W (with 384 W PD connected)

  • Max Heat Dissipation: 1658.78 BTU/hr

  • Fan Quantity: 2

• Layer 2 and Layer 3 Features:

  • Static Routing (48 routes)

  • 128 IPv4/IPv6 interfaces

  • Static/Dynamic ARP

  • DHCP Server and Relay

  • Link Aggregation (Static and LACP)

  • Spanning Tree Protocol (STP, RSTP, MSTP)

  • Loopback Detection

  • 802.3x Flow Control

  • Port Mirroring

• L2 Multicast:

  • IGMP Snooping (v1/v2/v3)

  • MLD Snooping (v1/v2)

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering: 256 profiles, 16 entries per profile

• Quality of Service (QoS):

  • 8 priority queues

  • 802.1p CoS/DSCP priority

  • Bandwidth control

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping

  • ARP Inspection

  • IPv4/IPv6 Source Guard

  • DoS Defend

  • Static/Dynamic Port Security (up to 64 MACs per port)

  • Broadcast/Multicast/Unicast Storm Control

  • 802.1X Authentication

  • AAA (including TACACS+)

  • HTTPS and SSH secure management

• VLAN Support:

  • Up to 4,000 VLAN groups

  • MAC VLAN: 30 entries

  • Protocol VLAN: 16 templates

  • Private VLAN, GVRP

  • VLAN VPN (QinQ)

  • Voice VLAN

• ISP Features:

  • L2PT

  • DLDP

  • PPPoE ID Insertion

  • ERPS

  • 802.3ah Ethernet OAM

  • DDM

  • sFlow

• Management:

  • Web-based GUI

  • CLI via console, Telnet, SSH

  • SNMP v1/v2c/v3, RMON (1, 2, 3, 9 groups)

  • Omada Cloud-Based Controller

  • Zero-Touch Provisioning

  • Cable Diagnostics

  • Dual Image and Dual Configuration

• Environment:

  • Operating Temperature: 0–45 ℃ (32–113 ℉)

  • Storage Temperature: -40–70 ℃ (-40–158 ℉)

  • Operating Humidity: 10–90% RH non-condensing

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty.

About TP-Link Omada

TP-Link Omada SDN delivers a unified cloud platform that simplifies the management of wired and wireless networks for businesses of all sizes. With scalable solutions and advanced features, Omada ensures seamless connectivity and robust network security.

SKU

SG3428XMP

Practical Use Scenarios

• Enterprise Networks: Centralized management of multiple PoE devices including IP phones and APs.

• IP Surveillance Systems: Power cameras directly via PoE without extra power adapters.

• Retail & Hospitality: Reliable network backbone with VLANs for secure guest and internal networks.

• Campus & Education: Simplified deployment and management of large-scale wired infrastructures.

Datasheets or Downloadable Resources

Download SG3428XMP Datasheet

Excellence for the Australian and New Zealand Market

The SG3428XMP complies with all applicable regional certifications for safe and reliable deployment in Australia and New Zealand. Exclusively sourced from authorized distributors, it comes with local warranty support and technical assistance to ensure peace of mind for business installations.

FAQs (SG3428XMP)

Q1: How much PoE power does the SG3428XMP provide per port?
A1: Each PoE+ port delivers up to 30 W, ideal for devices like access points and IP cameras. (SG3428XMP)

Q2: What is the total PoE budget of the SG3428XMP?
A2: The SG3428XMP supports a total PoE budget of 384 W, enough for multiple high-powered devices. (SG3428XMP)

Q3: Does the SG3428XMP support Omada cloud management?
A3: Yes! It fully integrates into the Omada SDN platform for centralized, cloud-based management and monitoring. (SG3428XMP)

Q4: How many VLANs can the SG3428XMP handle?
A4: The switch supports up to 4,000 VLAN groups, making it ideal for complex network segmentation. (SG3428XMP)

Q5: Is the SG3428XMP suitable for surveillance applications?
A5: Absolutely. Its ample PoE budget and high-speed uplinks make it excellent for powering and aggregating IP camera traffic. (SG3428XMP)
