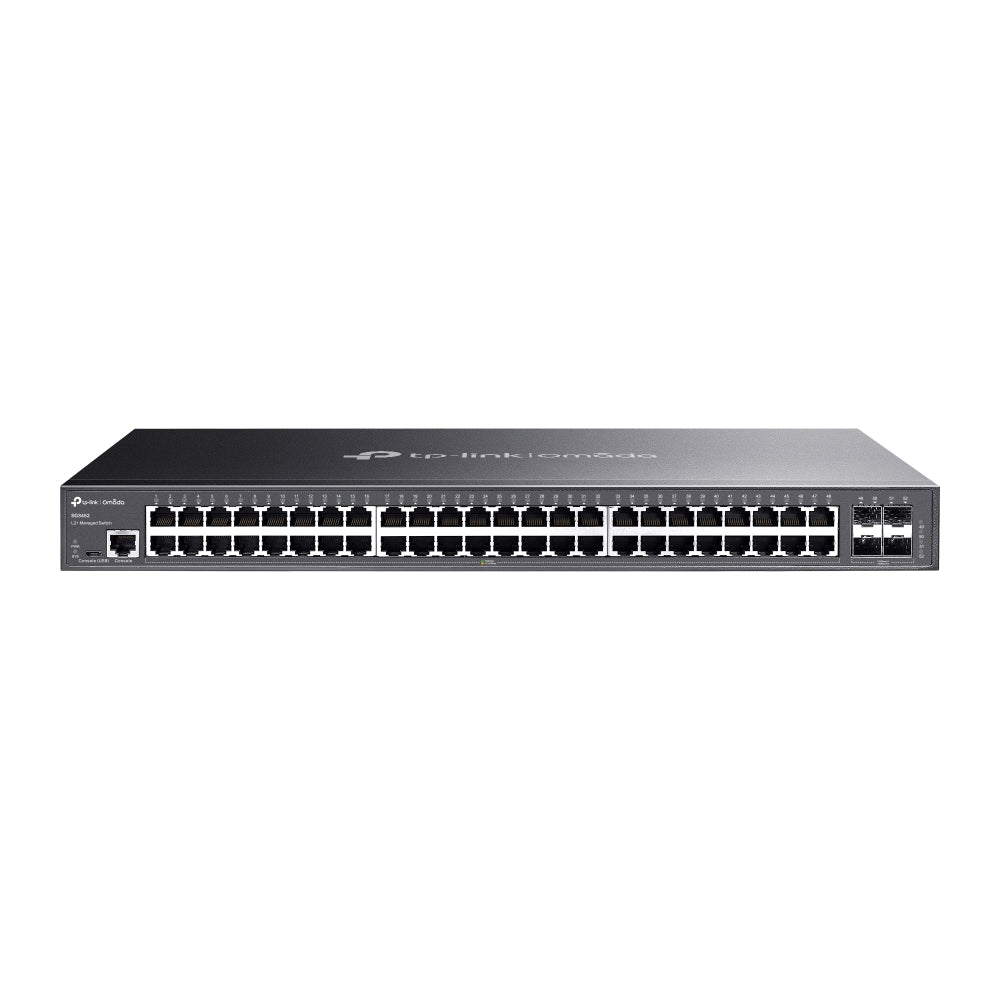

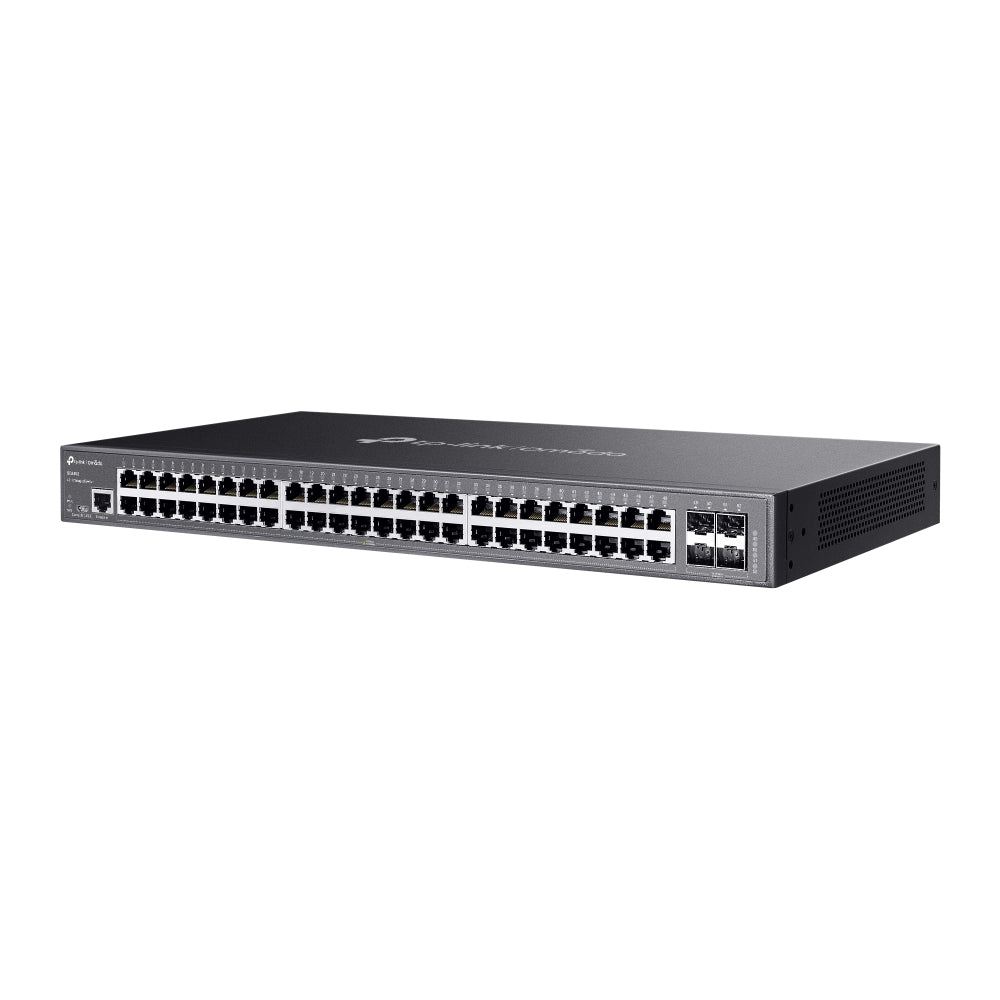

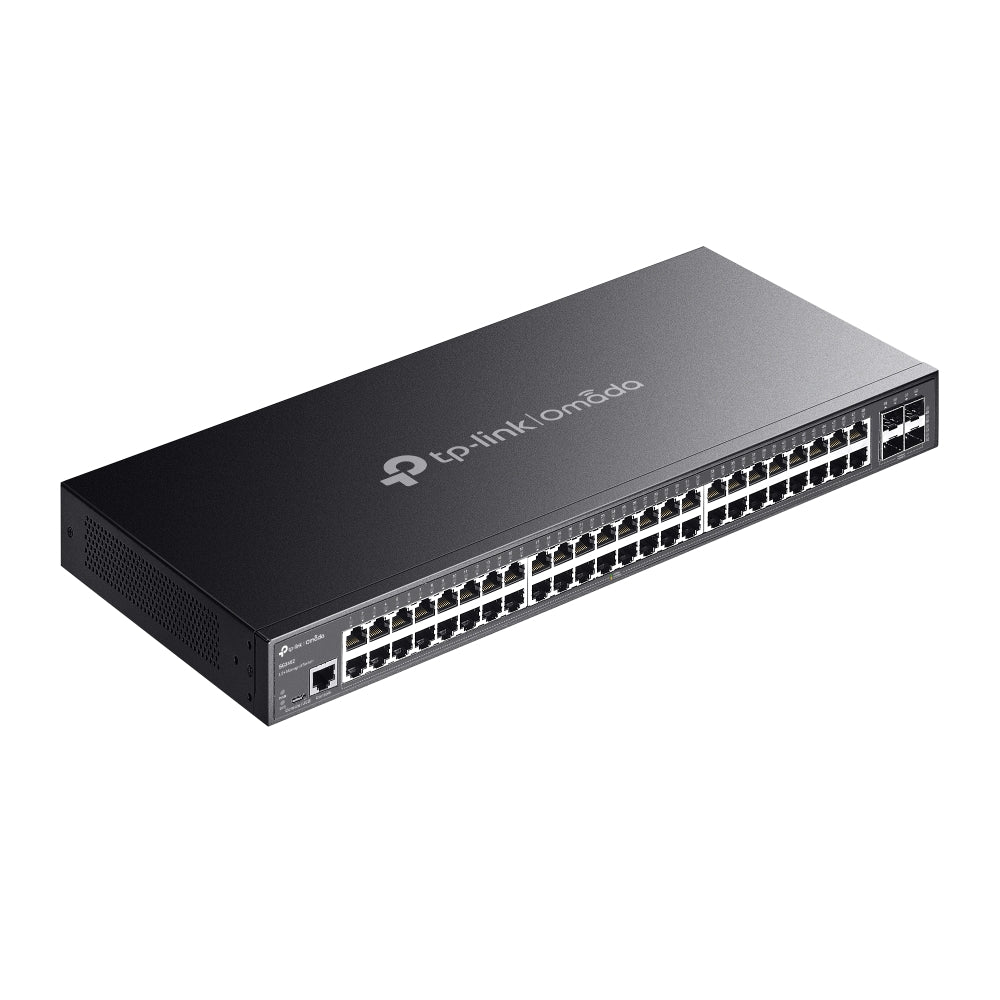

Experience enterprise-grade switching with the TP-Link SG3452, an advanced 48-Port Gigabit L2+ managed switch designed for versatile connectivity, robust performance, and seamless integration into TP-Link’s Omada SDN ecosystem. Equipped with 48× Gigabit RJ45 ports and 4× Gigabit SFP slots, it offers flexible fiber uplinks while maintaining silent operation thanks to its fanless design.

Delivering a switching capacity of 104 Gbps and a forwarding rate of 77.38 Mpps, the SG3452 ensures smooth and reliable data transmission for demanding business networks. Ideal for medium to large enterprises, educational institutions, hospitality, or retail, it comes packed with advanced Layer 2 and Layer 3 features like static routing, VLANs, comprehensive security, and Quality of Service (QoS).

Managed locally through a web GUI or remotely via TP-Link’s Omada Cloud platform, the SG3452 offers unmatched flexibility, simplified deployments, and centralized visibility. It’s the perfect choice for organizations seeking high-performance, quiet operation, and powerful management capabilities.

What's Included in the Box

• SG3452 Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Gigabit Performance Across 48 Ports

• 48× 10/100/1000 Mbps RJ45 ports ensure reliable high-speed connections for demanding business networks.

✅ Flexible Fiber Uplinks

• 4× SFP slots allow for long-distance fiber uplinks, link aggregation, and network expansion.

✅ Silent Fanless Design

• Enjoy silent operation ideal for noise-sensitive environments like offices and classrooms.

✅ Powerful Layer 2 and Layer 3 Capabilities

• Advanced networking features including static routing, VLANs, ACLs, QoS, IGMP snooping, and more.

✅ Omada SDN Integration

• Centralized cloud management, zero-touch provisioning, and intelligent monitoring for simplified deployments.

✅ Enterprise-Grade Security

• Robust protection with IP-MAC-Port binding, DHCP snooping, ARP inspection, and secure management protocols.

Detailed Specifications

• Ports & Interfaces:

  • 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

  • 4× 100/1000 Mbps SFP Slots

  • 1× RJ45 Console Port

  • 1× Micro-USB Console Port

• Performance:

  • Switching Capacity: 104 Gbps

  • Packet Forwarding Rate: 77.38 Mpps

  • MAC Address Table: 16 K

  • Packet Buffer Memory: 12 Mbit

  • Jumbo Frame: 9 KB

• Power & Environment:

  • Fan Quantity: Fanless

  • Max Power Consumption: 34.86 W

  • Max Heat Dissipation: 118.94 BTU/h

  • Operating Temperature: 0–40 ℃

  • Storage Temperature: -40–70 ℃

• Layer 2 and Layer 3 Features:

  • Static Routing: 48 IPv4/IPv6 static routes

  • Static ARP (128 entries), 316 ARP entries total

  • Proxy ARP, Gratuitous ARP

  • DHCP Server, Relay, L2 Relay

  • Link Aggregation (Static and LACP)

  • Spanning Tree Protocol (STP, RSTP, MSTP)

  • Loopback Detection

  • 802.3x Flow Control

  • Port Mirroring

  • Device Link Detect Protocol (DLDP)

• L2 Multicast:

  • IGMP Snooping v1/v2/v3

  • MLD Snooping v1/v2

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering: 256 profiles, 16 entries per profile

• Quality of Service (QoS):

  • 8 priority queues

  • 802.1p CoS/DSCP priority

  • Bandwidth control

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping, ARP Inspection

  • IPv4 Source Guard

  • IPv6 MAC-Port Binding, ND detection

  • DoS Defend

  • Static/Dynamic Port Security (up to 64 MACs per port)

  • Storm Control

  • 802.1X authentication

  • AAA (including TACACS+)

  • Secure web management (HTTPS) and CLI (SSH)

• VLAN Support:

  • Up to 4,000 VLAN groups

  • MAC VLAN: 48 entries

  • Protocol VLAN: 16 templates

  • Private VLAN, GVRP

  • VLAN VPN (QinQ)

  • Voice VLAN

• ISP Features:

  • L2PT

  • DLDP

  • PPPoE ID Insertion

  • ERPS

• Management:

  • Web-based GUI

  • CLI via console, Telnet, SSH

  • SNMP v1/v2c/v3, RMON (1,2,3,9 groups)

  • Omada Cloud-Based Controller

  • Zero-Touch Provisioning

  • Cable Diagnostics

  • Dual Image and Dual Configuration

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty

About TP-Link Omada

The TP-Link Omada SDN platform revolutionizes network management with seamless cloud integration, intelligent monitoring, and simplified deployments—all managed from a single unified interface. Trusted worldwide for delivering scalable, secure, and high-performance networking solutions.

SKU

SG3452

Practical Use Scenarios

• Business Networks: High-density connectivity for desktops, printers, and devices in office environments.

• Education & Schools: Silent operation suitable for classrooms or labs requiring quiet equipment.

• Hospitality & Retail: Supports VLANs for guest networks and secure staff operations.

• Managed Service Providers: Ideal for deploying secure, multi-tenant solutions with remote cloud management.

Datasheets or Downloadable Resources

Download SG3452 Datasheet

Excellence for the Australian and New Zealand Market

The SG3452 meets CE, FCC, and RoHS certifications, ensuring compliance with local Australian and New Zealand standards. Products are sourced exclusively via authorized channels, guaranteeing genuine TP-Link hardware, local warranty support, and prompt technical assistance.

FAQs (SG3452)

Q1: Does the SG3452 support VLAN configurations?
A1: Yes! The SG3452 supports up to 4,000 VLAN groups, including advanced options like QinQ, GVRP, and Voice VLANs. (SG3452)

Q2: Is the SG3452 fanless?
A2: Yes, the SG3452 features a fanless design for silent operation, making it ideal for noise-sensitive environments. (SG3452)

Q3: Can I manage the SG3452 remotely?
A3: Absolutely! The SG3452 integrates with the Omada SDN platform for remote management via cloud-based controllers and the Omada app. (SG3452)

Q4: What is the switching capacity of the SG3452?
A4: The SG3452 offers a switching capacity of 104 Gbps, ensuring fast and reliable performance. (SG3452)

Q5: Does the SG3452 support IPv6?
A5: Yes, the SG3452 supports dual-stack IPv4/IPv6, as well as advanced IPv6 features like MLD Snooping and static routing. (SG3452)
