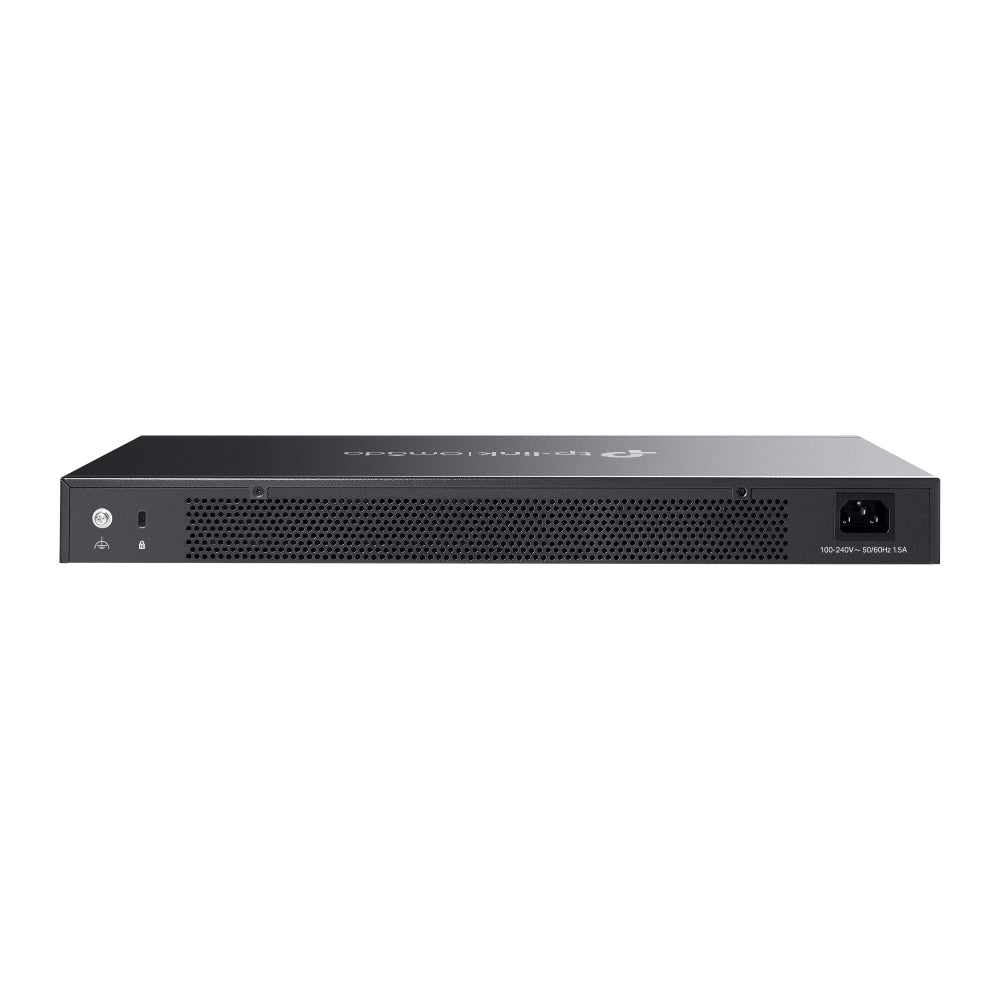

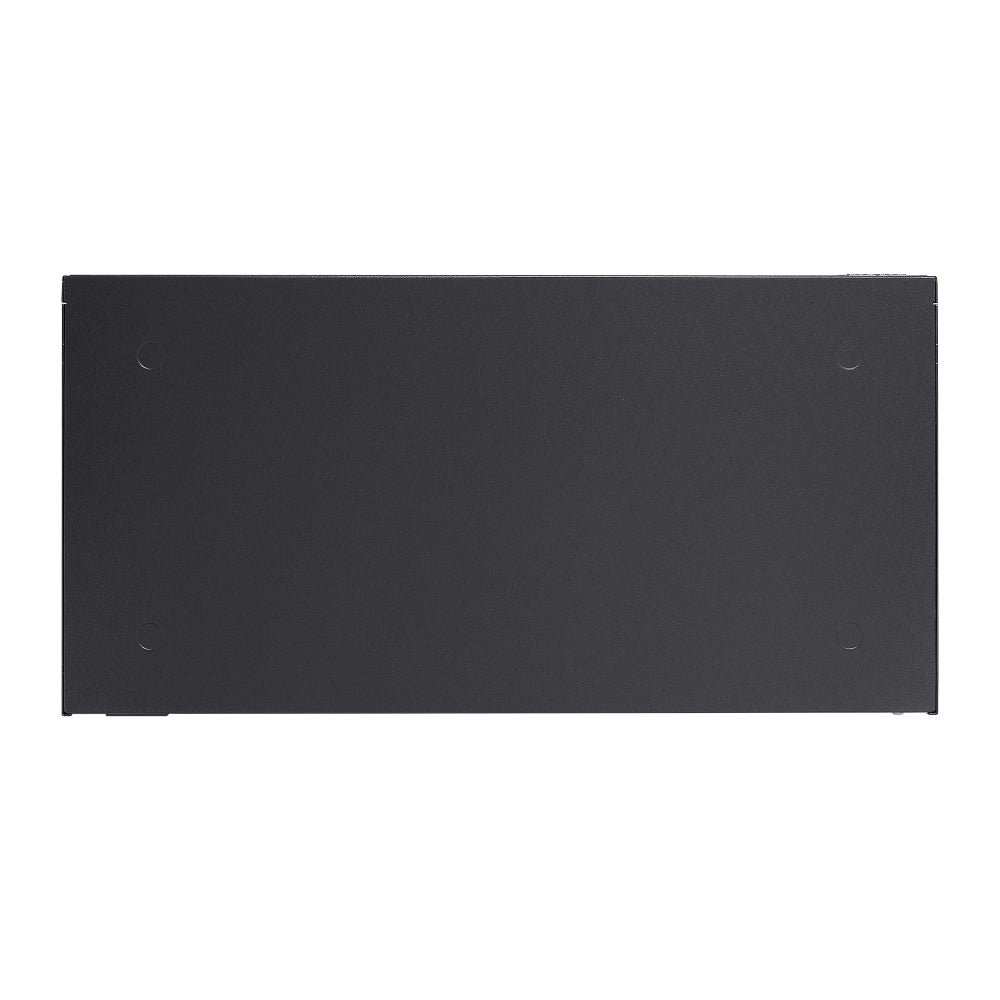

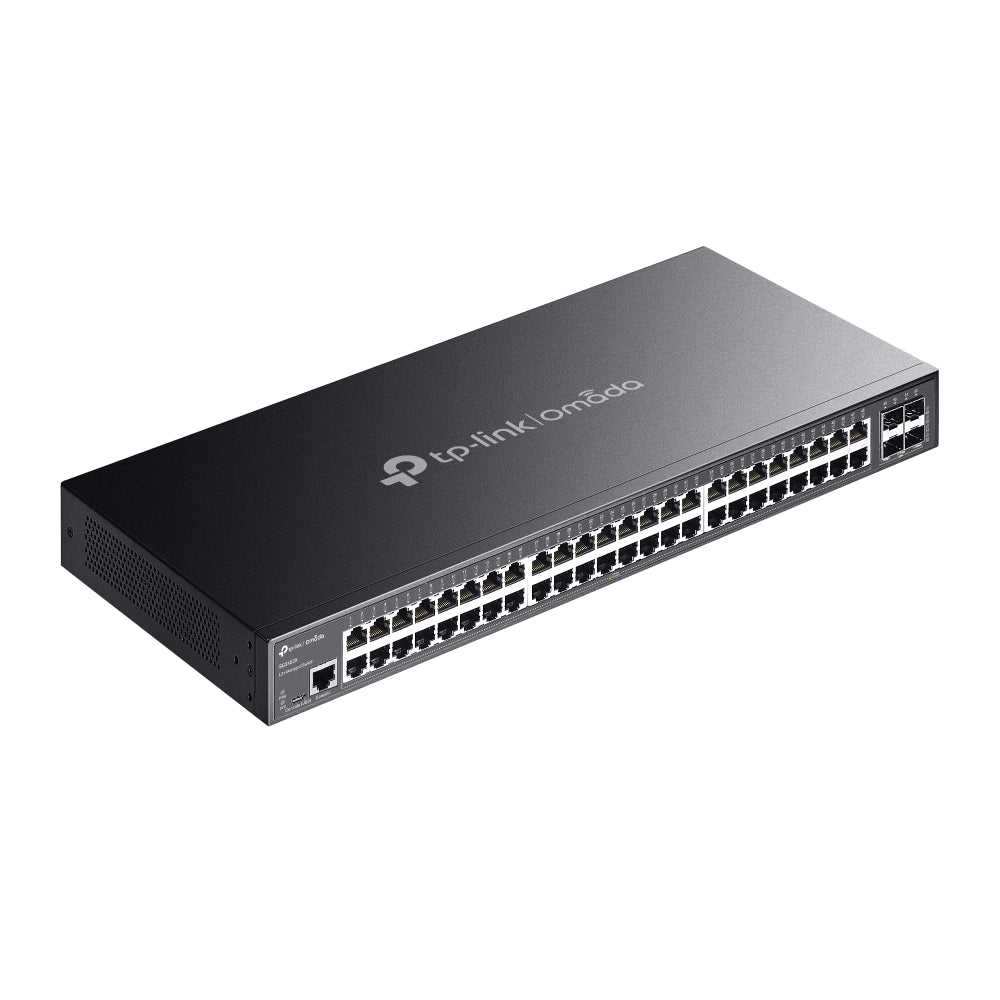

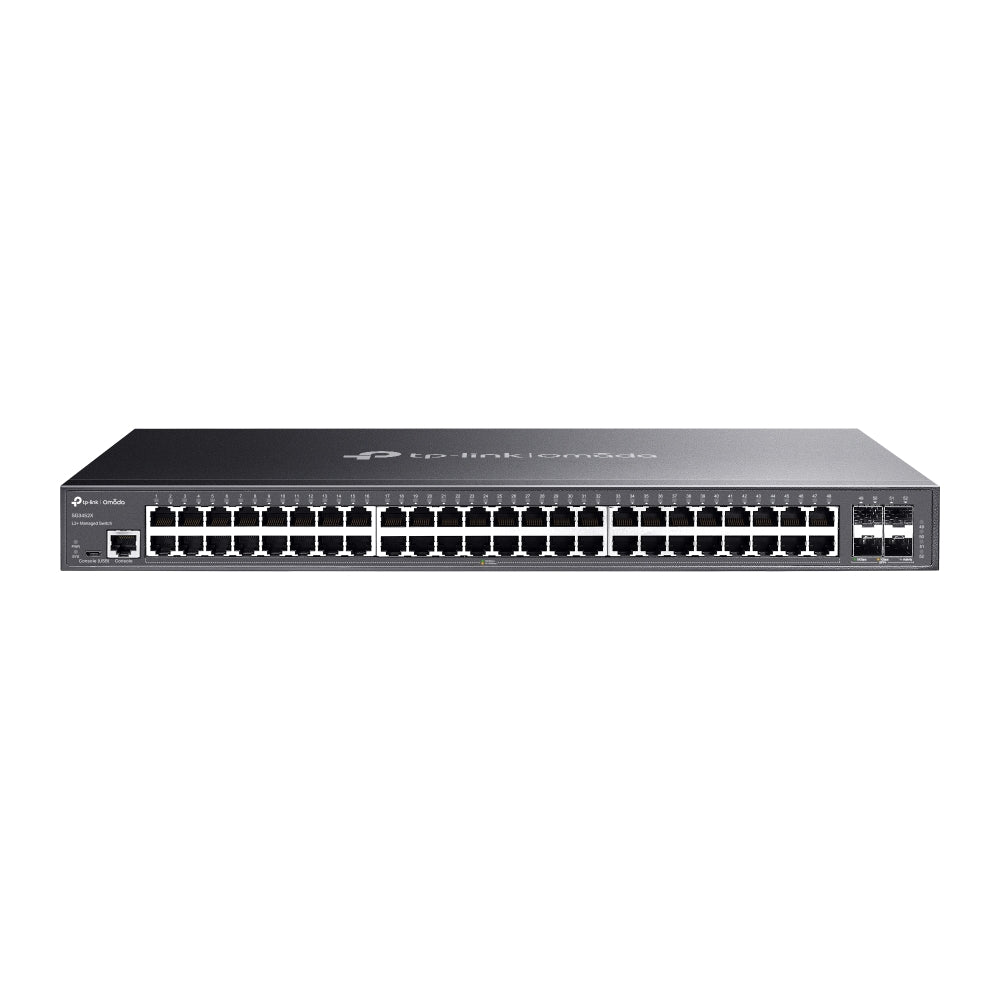

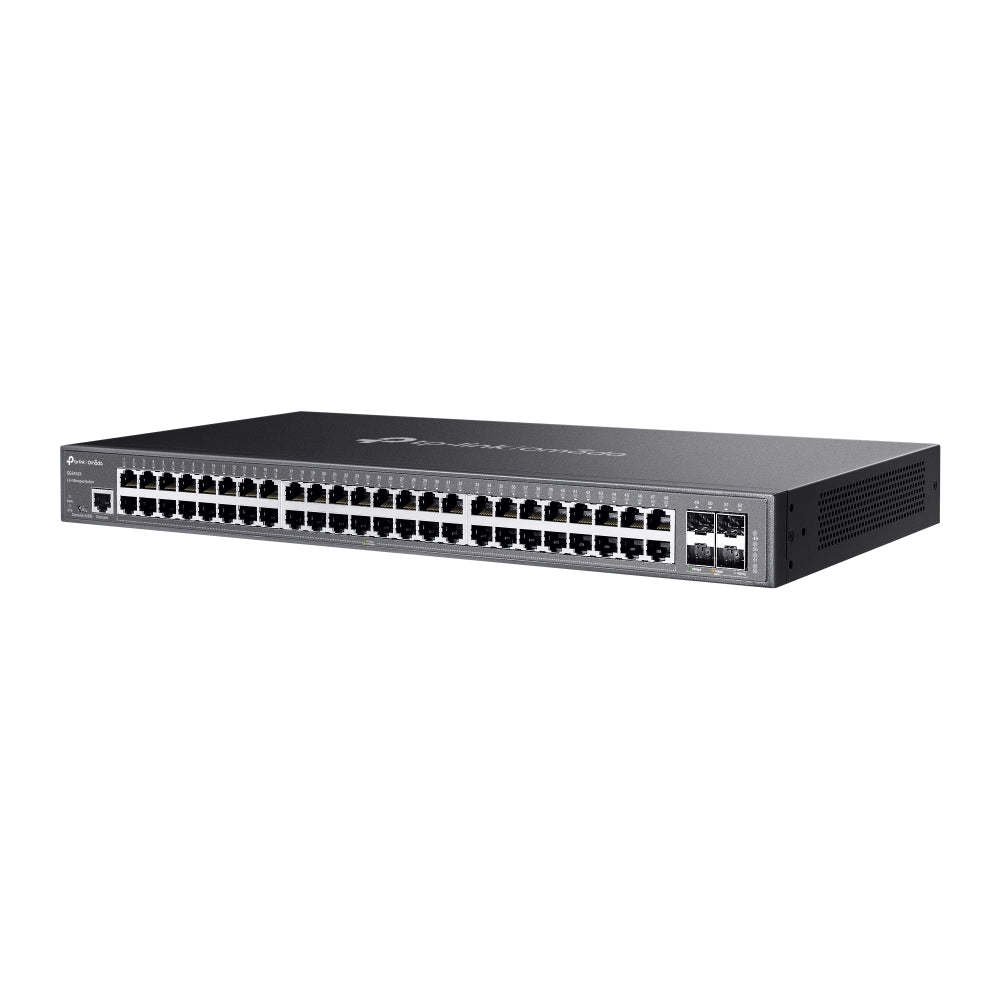

The TP-Link SG3452X is a high-performance 48-Port Gigabit L2+ Managed Switch designed for modern business networks that demand robust performance, enterprise-level security, and silent operation. Equipped with 48× Gigabit RJ45 ports and 4× 10GE SFP+ uplink slots, it offers an impressive 176 Gbps switching capacity, making it perfect for high-density deployments requiring fast, reliable connectivity.

With Omada SDN integration, the SG3452X provides seamless centralized cloud management, zero-touch provisioning, and advanced network monitoring. This switch also features comprehensive L2+ and static routing capabilities, ensuring efficient traffic management and future-ready scalability—all in a fanless, noise-free chassis, ideal for quiet office environments or noise-sensitive installations.

What's Included in the Box

• TP-Link SG3452X Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Silent Fanless Operation

• Perfect for offices and noise-sensitive environments

✅ Enterprise-Grade Performance

• 48 Gigabit RJ45 ports for versatile network connections

• 4× 10G SFP+ uplink slots for ultra-fast backbone links

• 176 Gbps switching capacity and 130.94 Mpps forwarding rate

✅ Omada SDN Integration

• Cloud-based management and zero-touch provisioning for simplified deployments

✅ Comprehensive L2+/L3 Capabilities

• Static Routing, VLAN segmentation, multicast management, and advanced QoS

✅ Robust Security Suite

• Advanced ACLs, IP-MAC-Port Binding, AAA support, and DoS protection

✅ Flexible Management

• Web GUI, CLI, SNMP, RMON, and Omada app support

✅ High Reliability & Durability

• Fanless metal chassis for silent, long-term operation

Detailed Specifications

• Ports & Interfaces:

  • 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

  • 4× 10G SFP+ Slots

  • 1× RJ45 Console Port

  • 1× Micro-USB Console Port

• Performance:

  • Switching Capacity: 176 Gbps

  • Packet Forwarding Rate: 130.94 Mpps

  • MAC Address Table: 16 K

  • Packet Buffer Memory: 12 Mbit

  • Jumbo Frame Size: 9 KB

• Power & Design:

  • Fanless design

  • Max Power Consumption: 32.72 W

  • Max Heat Dissipation: 111.65 BTU/hr

  • Power Supply: 100-240 V AC ~50/60 Hz

  • Physical Security Lock

  • Dimensions: 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

  • Rackmountable

• Layer 2+ and L3 Features:

  • Static Routing (48 IPv4/IPv6 routes)

  • Link Aggregation (static and LACP)

  • Spanning Tree Protocols (STP, RSTP, MSTP)

  • Loopback Detection

  • 802.3x Flow Control

  • Port Mirroring

• Multicast:

  • IGMP v1/v2/v3 Snooping

  • MLD Snooping

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering with 256 profiles

• Quality of Service (QoS):

  • 8 priority queues

  • 802.1p CoS and DSCP prioritization

  • Bandwidth Control

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping, ARP Inspection

  • IPv4/IPv6 Source Guard

  • DoS Defend

  • Static/Dynamic Port Security (up to 64 MAC addresses per port)

  • Broadcast/Multicast/Unicast Storm Control

  • 802.1X Authentication

  • AAA support including TACACS+

  • HTTPS and SSH secure management

• VLAN Support:

  • Supports up to 4,000 VLAN groups

  • MAC VLAN

  • Protocol VLAN

  • Private VLAN

  • QinQ VLAN VPN

  • Voice VLAN

• ISP & Carrier Features:

  • L2PT (Layer 2 Protocol Tunneling)

  • DLDP (Device Link Detect Protocol)

  • PPPoE ID Insertion

  • ERPS (Ethernet Ring Protection Switching)

  • Ethernet OAM (802.3ah)

  • DDM and sFlow

• Management:

  • Web-based GUI

  • CLI through console port, Telnet, SSH

  • SNMP v1/v2c/v3 with RMON

  • Omada Cloud-Based Controller support

  • Zero-Touch Provisioning

  • Dual Image and Dual Configuration

  • Cable Diagnostics

  • Energy Efficient Ethernet (EEE)

• Environmental:

  • Operating Temperature: 0–45 ℃ (32–113 ℉)

  • Storage Temperature: -40–70 ℃ (-40–158 ℉)

  • Operating Humidity: 10–90% RH non-condensing

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty (contact your regional distributor for warranty details)

About TP-Link Omada

TP-Link Omada SDN is a professional networking platform providing seamless cloud-based management, robust security, and scalable performance for enterprises and SMBs. Build unified wired and wireless networks with ease while enjoying centralized monitoring and intelligent automation.

SKU

SG3452X

Practical Use Scenarios

• Office Networks: Deploy silent networking infrastructure in quiet workspaces or meeting rooms

• Retail & Hospitality: Connect POS systems, security cameras, and digital signage without disruptive noise

• Enterprise Networks: Create efficient, high-density core or distribution layers with fast uplinks

• Education Campuses: Power high-capacity wired infrastructure with secure management

Datasheets or Downloadable Resources

Download SG3452X Datasheet

Excellence for the Australian and New Zealand Market

The SG3452X is fully compliant with Australian and New Zealand standards, ensuring dependable operation and compatibility with regional networking requirements. All units are sourced through authorized channels, providing peace of mind with local warranty support and direct assistance from TP-Link’s expert team.

FAQs (SG3452X)

Q1: Does the SG3452X generate fan noise?
A1: No. The SG3452X features a fanless design for silent operation, ideal for quiet office or retail environments. (SG3452X)

Q2: Is the SG3452X managed via the Omada Cloud platform?
A2: Yes! The SG3452X integrates seamlessly into the Omada SDN platform for centralized cloud management and zero-touch provisioning. (SG3452X)

Q3: What is the maximum switching capacity of the SG3452X?
A3: It supports up to 176 Gbps switching capacity, ensuring high-speed data transfer for busy networks. (SG3452X)

Q4: How many 10G uplink ports does the SG3452X provide?
A4: The switch features 4× 10GE SFP+ slots for high-bandwidth uplinks or stacking connections. (SG3452X)

Q5: Can I create VLANs on the SG3452X for network segmentation?
A5: Absolutely! It supports up to 4,000 VLAN groups, including advanced VLAN features such as QinQ, Voice VLAN, and Private VLANs. (SG3452X)
