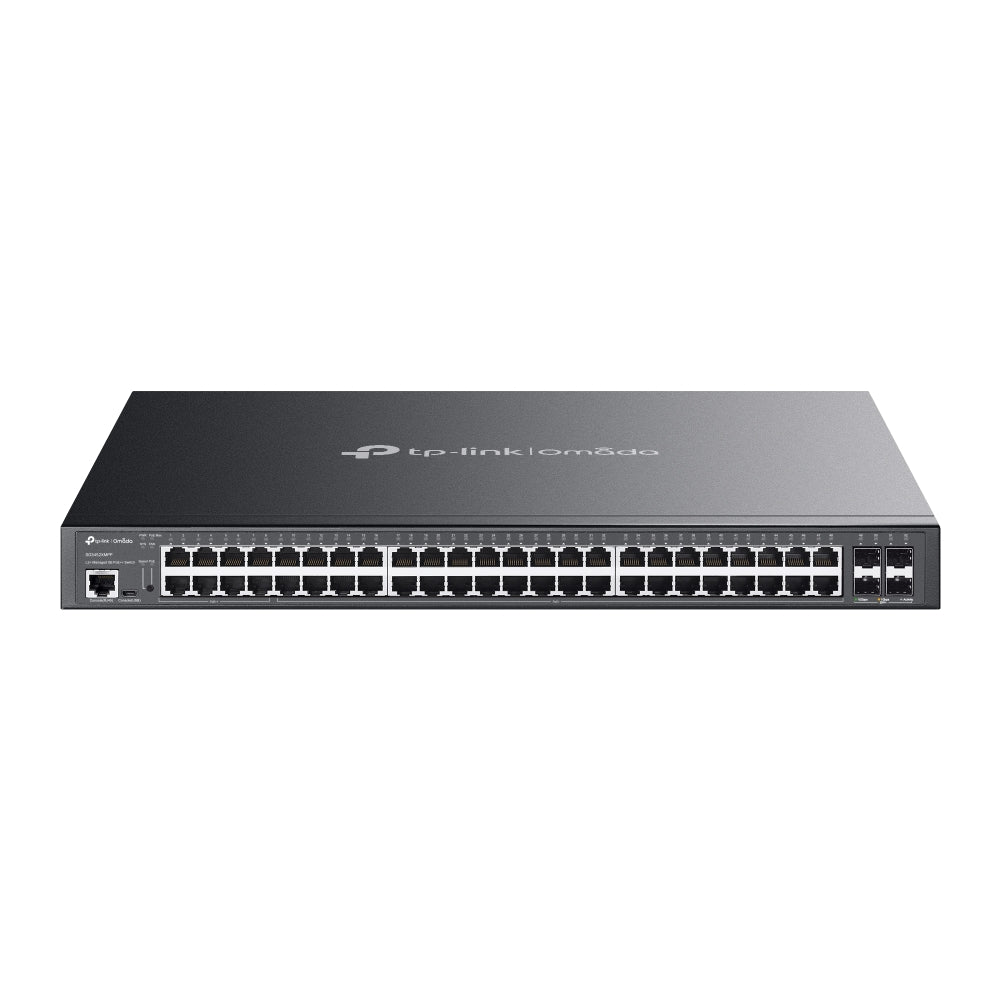

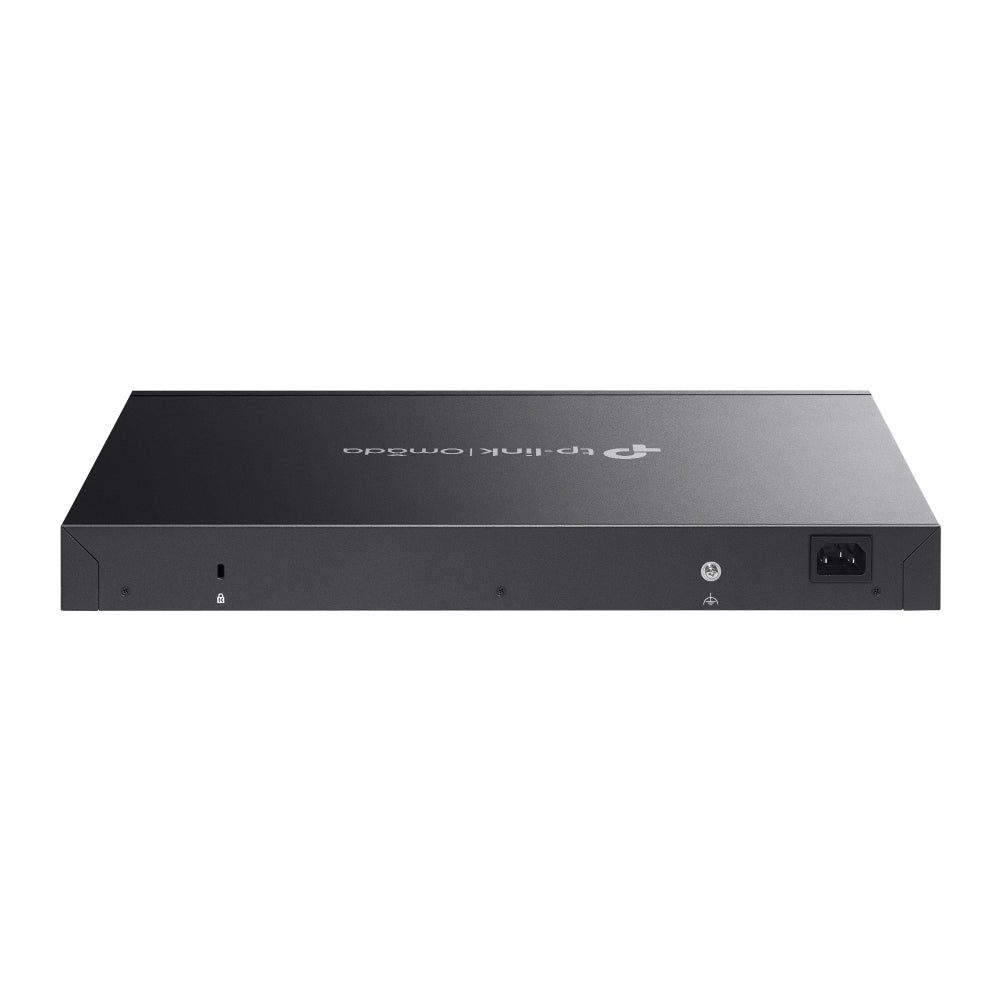

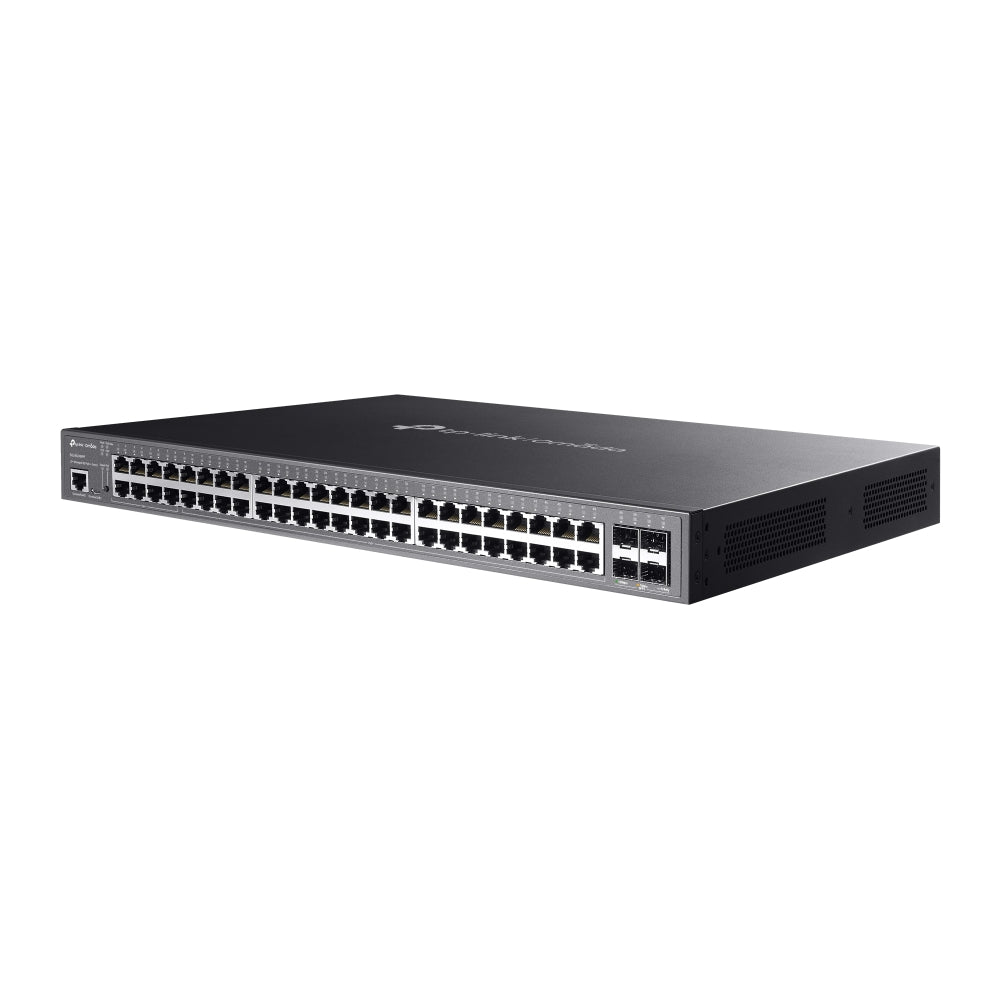

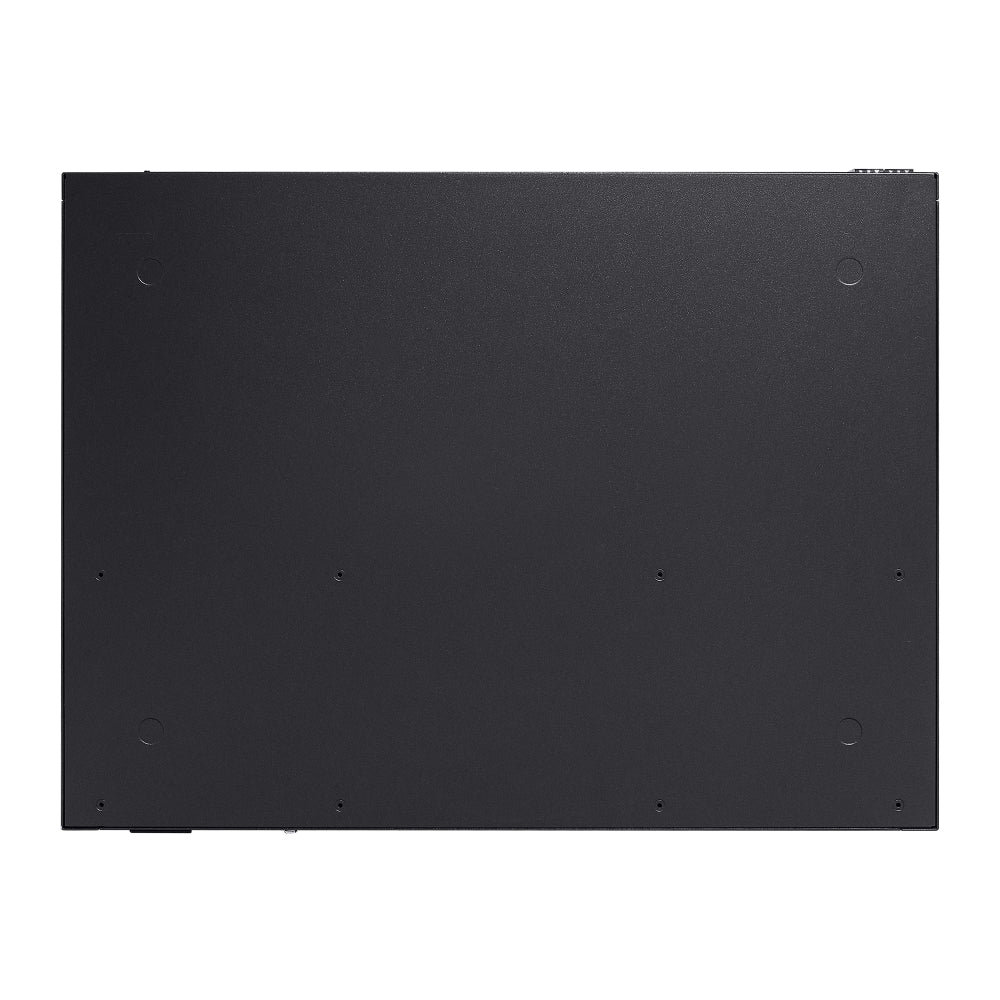

The TP-Link SG3452XMPP is a cutting-edge 48-Port Gigabit L2+ Managed Switch engineered to deliver unmatched flexibility, power, and intelligent management for modern enterprise networks. Equipped with 8× Gigabit PoE++ ports offering up to 90W per port, and 40× Gigabit PoE+ ports supporting up to 30W each, it powers high-demand devices like WiFi 6/6E access points, PTZ cameras, and VoIP systems with ease.

Four 10G SFP+ uplink slots ensure lightning-fast backbone connectivity, providing ample bandwidth for high-traffic environments and data-intensive applications. Integrated into the Omada SDN ecosystem, the SG3452XMPP offers centralized cloud management, zero-touch provisioning, and comprehensive monitoring, delivering streamlined deployment and simplified ongoing management.

With robust security, advanced L2/L2+ features, static routing, and durable metal construction, the SG3452XMPP is the ideal solution for businesses seeking high-performance switching with extensive PoE capabilities and intelligent network control.

What's Included in the Box

• TP-Link SG3452XMPP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Powerful PoE++ and PoE+ Deployment

• 8× PoE++ ports, delivering up to 90W each for high-power devices

• 40× PoE+ ports for versatile deployment of standard PoE devices

• Massive 750W total PoE budget

✅ 10G Uplink Flexibility

• 4× 10G SFP+ slots for ultra-fast uplinks and stacking

✅ Enterprise-Class Performance

• 176 Gbps switching capacity

• 130.9 Mpps packet forwarding rate

✅ Advanced Network Control

• Static routing improves internal traffic handling

• Comprehensive VLAN, QoS, and multicast features

✅ Omada SDN Integration

• Unified cloud-based management and monitoring

• Zero-Touch Provisioning for simplified deployment

✅ Robust Security Suite

• IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, 802.1X, and more

✅ Durable and Compact Design

• Slim rackmount form factor with secure metal housing

Detailed Specifications

• Ports & Interfaces:

  • 48× Gigabit RJ45 ports (8× PoE++ ports, 40× PoE+ ports)

  • 4× 10G SFP+ slots

  • 1× RJ45 console port

  • 1× Micro-USB console port

• PoE Capabilities:

  • PoE++ ports (Ports 1–8): Up to 90W per port

  • PoE+ ports (Ports 9–48): Up to 30W per port

  • Total PoE Power Budget: 750W

• Performance:

  • Switching Capacity: 176 Gbps

  • Packet Forwarding Rate: 130.9 Mpps

  • MAC Address Table: 16 K entries

  • Packet Buffer: 12 Mbit

  • Jumbo Frame: 9 KB

• Hardware:

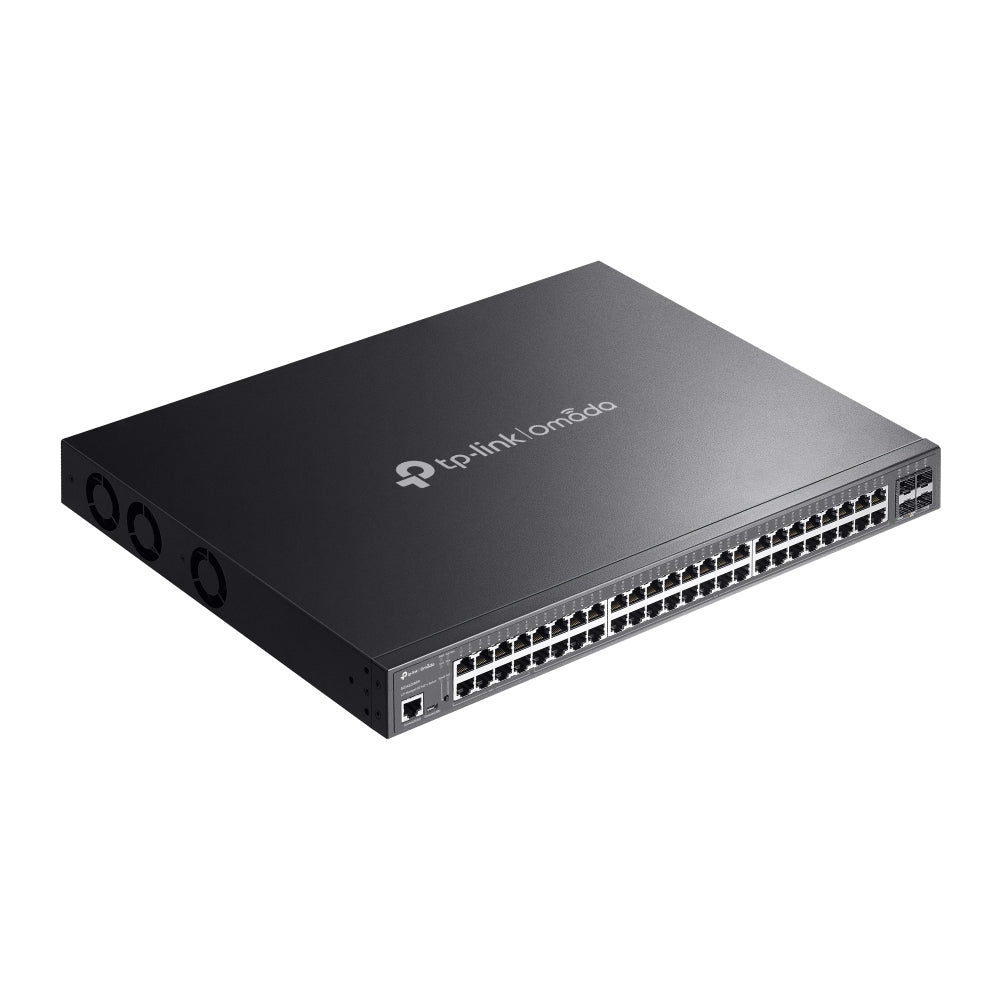

  • Three cooling fans

  • Physical security lock

  • Power Supply: 100-240 V AC ~50/60 Hz

  • Dimensions: 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

  • Max Power Consumption: 913.4 W (with full PoE load)

  • Max Heat Dissipation: 3114.69 BTU/hr

• Layer 2+ and L3 Features:

  • Static routing for optimized traffic paths

  • Link aggregation (static and LACP)

  • Spanning Tree Protocols (STP, RSTP, MSTP)

  • Loopback detection

  • 802.3x flow control

  • Port and CPU mirroring

• Multicast:

  • IGMP v1/v2/v3 Snooping

  • MLD Snooping

  • MVR (Multicast VLAN Registration)

  • Multicast Filtering (up to 1000 groups)

• Quality of Service (QoS):

  • 8 priority queues

  • CoS/DSCP prioritization

  • Bandwidth control

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping, ARP Inspection, Source Guard

  • DoS Defense

  • Port Isolation

  • Broadcast/Multicast/Unicast Storm Control

  • 802.1X authentication (port and MAC-based)

  • AAA including TACACS+

  • HTTPS and SSH secure management

• VLAN Support:

  • Supports up to 4,000 VLANs

  • MAC VLAN, Protocol VLAN

  • Private VLAN

  • QinQ (VLAN VPN)

• ISP & Carrier Features:

  • L2PT (Layer 2 Protocol Tunneling)

  • DLDP (Device Link Detect Protocol)

  • PPPoE ID Insertion

  • ERPS (Ethernet Ring Protection Switching)

  • Ethernet OAM (802.3ah)

  • DDM and sFlow

• Management:

  • Web-based GUI

  • CLI via console port, Telnet, SSH

  • SNMP v1/v2c/v3 with RMON support

  • Omada Cloud-Based Controller support

  • Zero-Touch Provisioning

  • Dual Image and Dual Configuration

  • Cable Diagnostics

  • EEE Energy Efficient Ethernet

• Environmental:

  • Operating Temperature: 0–40 ℃ (32–104 ℉)

  • Storage Temperature: -40–70 ℃ (-40–158 ℉)

  • Operating Humidity: 10–90% RH non-condensing

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty (refer to regional distributor details)

About TP-Link Omada

Omada SDN from TP-Link is designed to deliver high-performance, scalable, and centrally managed network solutions for businesses of all sizes, offering unified wired and wireless network control with robust security and easy cloud access.

SKU

SG3452XMPP

Practical Use Scenarios

• Enterprise Networks: Power WiFi 6/6E APs, VoIP systems, and security cameras from a single powerful switch

• Campus Environments: High-bandwidth backbone for multi-building deployments

• Retail & Hospitality: Simplified power and connectivity for surveillance, PoS, and guest Wi-Fi

• ISP Edge Deployments: Ideal for delivering high-performance services with PoE++ support

Datasheets or Downloadable Resources

Download SG3452XMPP Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link SG3452XMPP complies fully with Australian and New Zealand standards and is sourced through official regional channels. Local warranty support and regional optimization ensure seamless deployment and reliable service across enterprise networks in the ANZ market.

FAQs (SG3452XMPP)

Q1: How many PoE++ ports are available on the SG3452XMPP?
A1: It features 8× PoE++ ports, each capable of delivering up to 90W for high-power devices. (SG3452XMPP)

Q2: What’s the total PoE budget of the SG3452XMPP?
A2: The SG3452XMPP has a 750W total PoE budget, ideal for powering numerous high-demand devices. (SG3452XMPP)

Q3: Does the SG3452XMPP support Omada Cloud management?
A3: Yes! It integrates seamlessly with TP-Link’s Omada SDN platform for centralized cloud management and monitoring. (SG3452XMPP)

Q4: What’s the switching capacity of the SG3452XMPP?
A4: The SG3452XMPP provides a robust 176 Gbps switching capacity to handle large network loads. (SG3452XMPP)

Q5: Is the SG3452XMPP suitable for enterprise deployments with high PoE demands?
A5: Absolutely. It’s perfect for enterprises requiring powerful PoE++ capabilities for devices like WiFi 6 APs, PTZ cameras, and VoIP systems. (SG3452XMPP)
