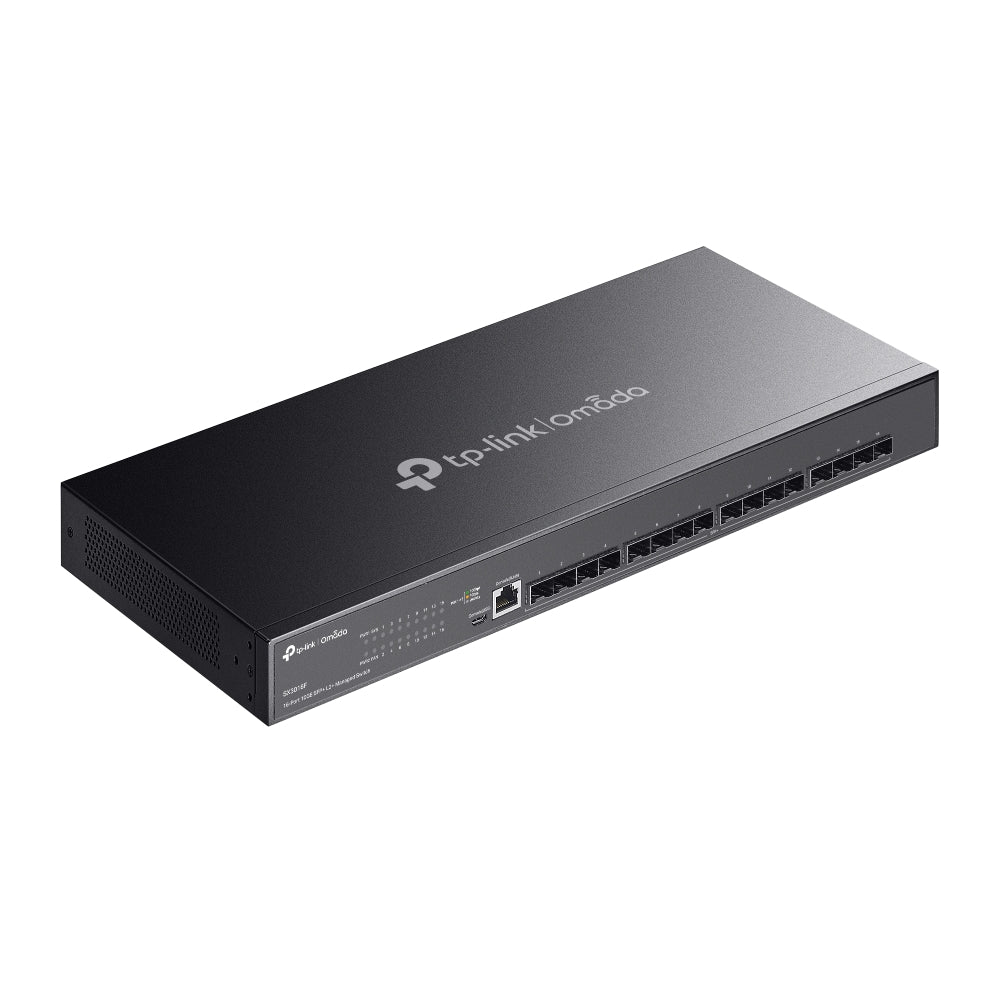

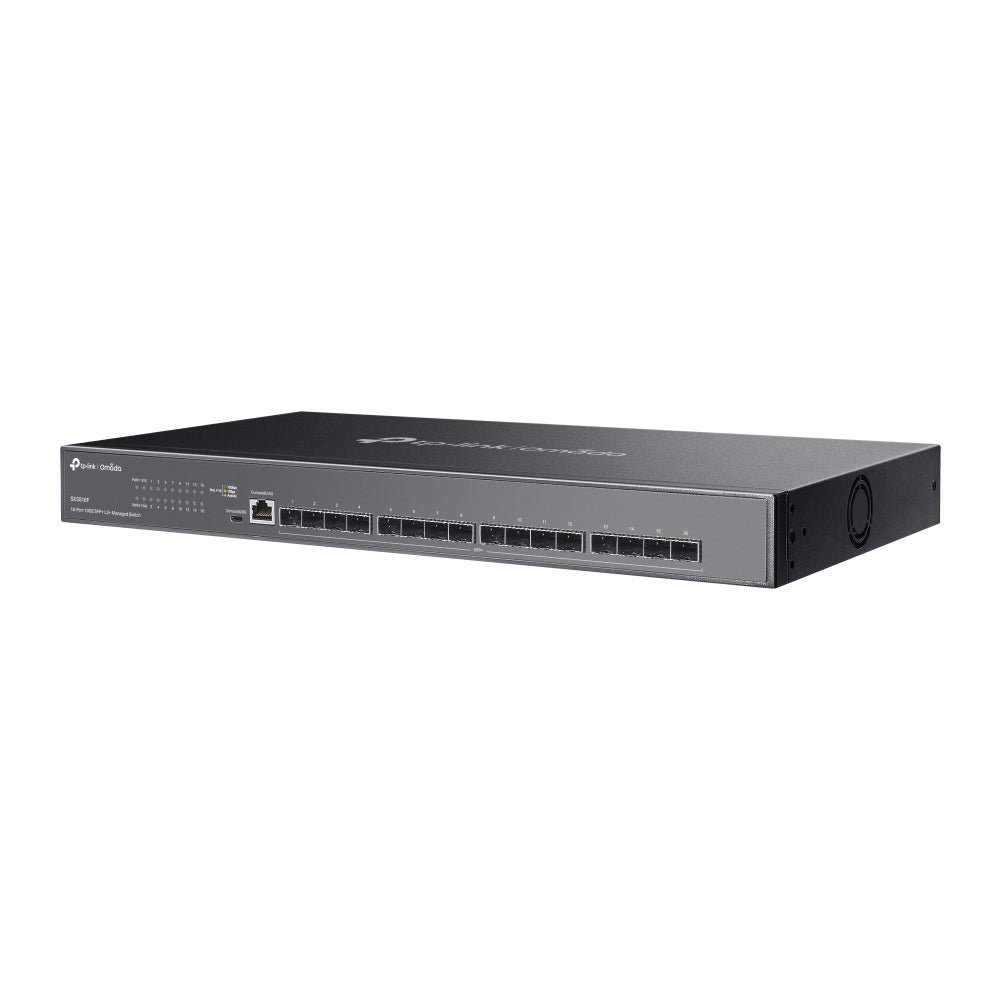

Unlock blistering 10G network speeds and rock-solid reliability with the TP-Link SX3016F, a high-performance L2+ managed switch purpose-built for modern enterprise networks, data centers, and high-bandwidth applications.

Equipped with 16× 10G SFP+ slots, the SX3016F delivers outstanding capacity for fiber uplinks, aggregation, and backbone deployments. It provides a 320 Gbps switching capacity and a lightning-fast 238.08 Mpps packet forwarding rate, ensuring non-blocking performance even in the most demanding network environments.

With dual redundant power supplies for uninterrupted operation, advanced Layer 2 and Lite Layer 3 functionality—including Static Routing—and robust security features like ACLs, IP-MAC-Port Binding, and AAA support, the SX3016F is the perfect solution for mission-critical enterprise deployments.

Seamlessly integrated into TP-Link’s Omada SDN, the switch offers centralized cloud management, Zero-Touch Provisioning, intelligent monitoring, and advanced automation, making it easier than ever to manage multi-site networks at scale.

What's Included in the Box

• SX3016F Switch

• 2× Power Cords

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Blazing-Fast 10G Fiber Connectivity

• 16× 10G SFP+ slots for lightning-fast uplinks, aggregation, and fiber deployments

✅ Enterprise-Class Performance

• 320 Gbps switching capacity

• 238.08 Mpps forwarding rate for seamless handling of large-scale traffic

✅ Redundant Power Supplies

• Dual redundant PSUs ensure high availability and uninterrupted operation

✅ Advanced Layer 2+ and Lite Layer 3 Features

• Static Routing optimizes traffic flow within large networks

• VLAN, ACL, QoS, and multicast support for versatile deployment

✅ Omada SDN Integration

• Centralized cloud management for multi-site deployments

• Zero-Touch Provisioning for rapid deployments

✅ Robust Security

• Comprehensive ACLs, IP-MAC-Port Binding, ARP Inspection, DoS Defense, 802.1X Authentication, and AAA

✅ Compact and Efficient Design

• Quiet operation with a single fan

• Rack-mountable for professional installations

Detailed Specifications

• Ports & Interfaces:

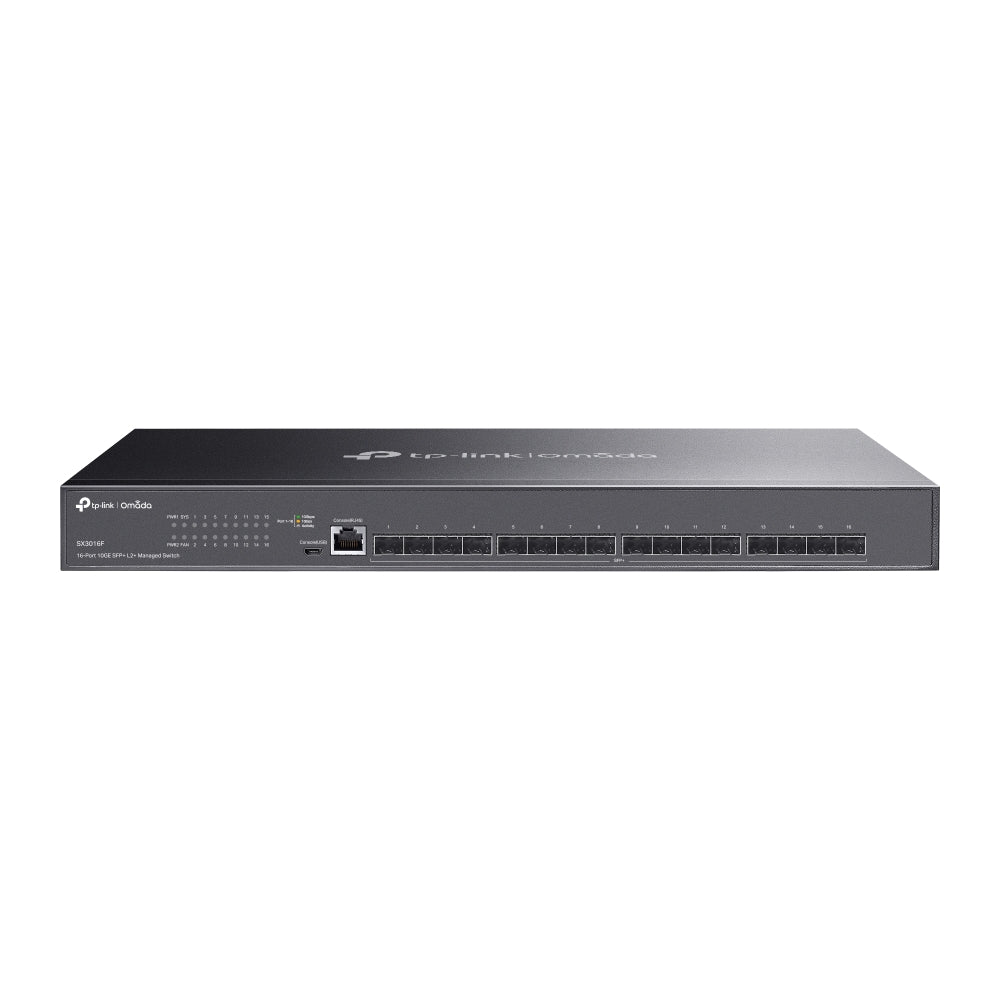

  • 16× 10G SFP+ slots

  • 1× RJ45 console port

  • 1× Micro-USB console port

• Performance:

  • Switching Capacity: 320 Gbps

  • Forwarding Rate: 238.08 Mpps

  • MAC Address Table: 32 K entries

  • Packet Buffer: 24 Mbit

  • Jumbo Frame: 9 KB

• Redundancy & Hardware:

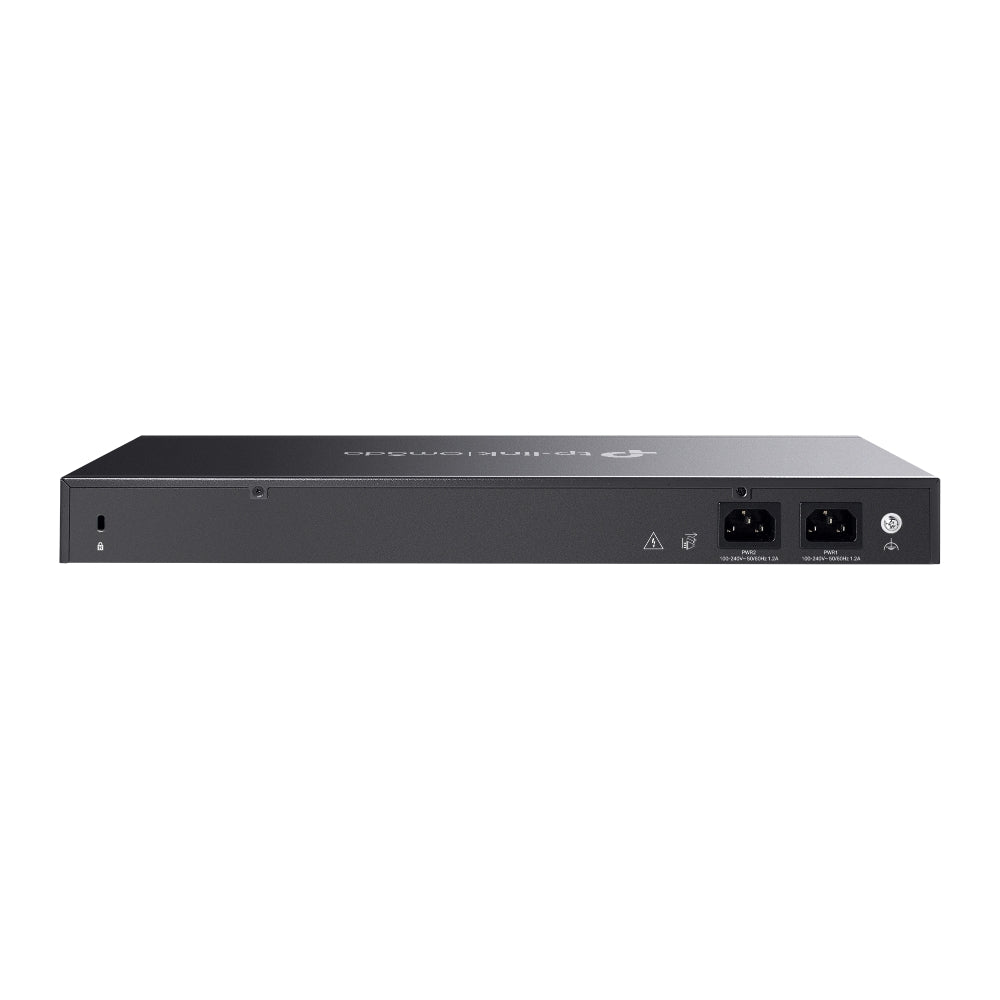

  • Dual redundant power supplies (100–240 V AC)

  • Fan Quantity: 1

  • Dimensions: 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

  • Max Power Consumption: 32.74 W (220 V / 50 Hz)

  • Max Heat Dissipation: 111.71 BTU/hr

• Layer 2+ Features:

  • Static Routing: Up to 48 IPv4/IPv6 static routes

  • 128 IP Interfaces (IPv4/IPv6)

  • Link Aggregation (static and LACP)

  • Spanning Tree Protocols (STP, RSTP, MSTP)

  • Loopback Detection

  • Flow Control and HOL Blocking Prevention

  • Port and CPU Mirroring

• Multicast:

  • IGMP v1/v2/v3 Snooping

  • MLD Snooping

  • MVR (Multicast VLAN Registration)

  • Multicast Filtering: up to 1000 IGMP groups

  • Static Multicast Groups

• Quality of Service (QoS):

  • 8 priority queues

  • CoS/DSCP traffic prioritization

  • Bandwidth control per port/flow

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping, ARP Inspection, Source Guard

  • DoS Defend

  • Port Isolation

  • Broadcast/Multicast/Unicast Storm Control

  • 802.1X authentication (port and MAC-based)

  • AAA (including TACACS+)

  • HTTPS and SSH secure management

• VLAN Support:

  • Supports up to 4,000 VLANs

  • MAC VLAN, Protocol VLAN

  • Private VLAN

  • QinQ (VLAN VPN)

• ISP & Carrier Features:

  • L2PT (Layer 2 Protocol Tunneling)

  • DLDP (Device Link Detect Protocol)

  • PPPoE ID insertion

  • ERPS (Ethernet Ring Protection Switching)

  • Ethernet OAM (802.3ah)

  • DDM and sFlow monitoring

• Management:

  • Web-based GUI

  • CLI via console port, Telnet, SSH

  • SNMP v1/v2c/v3 with RMON support

  • Omada Cloud-Based Controller support

  • Zero-Touch Provisioning

  • Dual Image and Dual Configuration

  • Cable Diagnostics

  • EEE energy-saving features

• Environmental:

  • Operating Temperature: 0–45 ℃ (32–113 ℉)

  • Storage Temperature: -40–70 ℃ (-40–158 ℉)

  • Operating Humidity: 10–90% RH non-condensing

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty

About TP-Link Omada

TP-Link’s Omada series empowers businesses with next-generation networking solutions offering robust performance, simplified centralized management, and excellent scalability for networks of any size.

SKU

SX3016F

Practical Use Scenarios

• Data Centers & Server Farms: Aggregation of high-speed servers and storage systems

• Campus Networks: High-speed fiber backbones between network segments

• Enterprise Edge Deployments: Core layer for large business networks

• ISP & Carrier Networks: High-performance switching and advanced monitoring for service delivery

Datasheets or Downloadable Resources

Download SX3016F Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link SX3016F meets all relevant Australian and New Zealand standards for quality and compliance. Sourced exclusively through authorized channels, it comes backed by regional warranty support and ensures seamless compatibility with ANZ enterprise network environments.

FAQs (SX3016F)

Q1: Does the SX3016F support dual power redundancy?
A1: Yes, it features dual redundant power supplies for increased network reliability. (SX3016F)

Q2: Can I manage the SX3016F through the Omada cloud platform?
A2: Absolutely! The SX3016F integrates seamlessly into Omada SDN for centralized management, monitoring, and Zero-Touch Provisioning. (SX3016F)

Q3: How many 10G ports does the SX3016F provide?
A3: It offers 16× 10G SFP+ slots, ideal for fiber uplinks and high-capacity connections. (SX3016F)

Q4: Does the SX3016F support advanced multicast features?
A4: Yes, it supports IGMP/MLD Snooping, MVR, and multicast filtering for optimized traffic control. (SX3016F)

Q5: What environments is the SX3016F best suited for?
A5: It’s perfect for data centers, enterprise cores, campus networks, and high-speed fiber deployments. (SX3016F)
