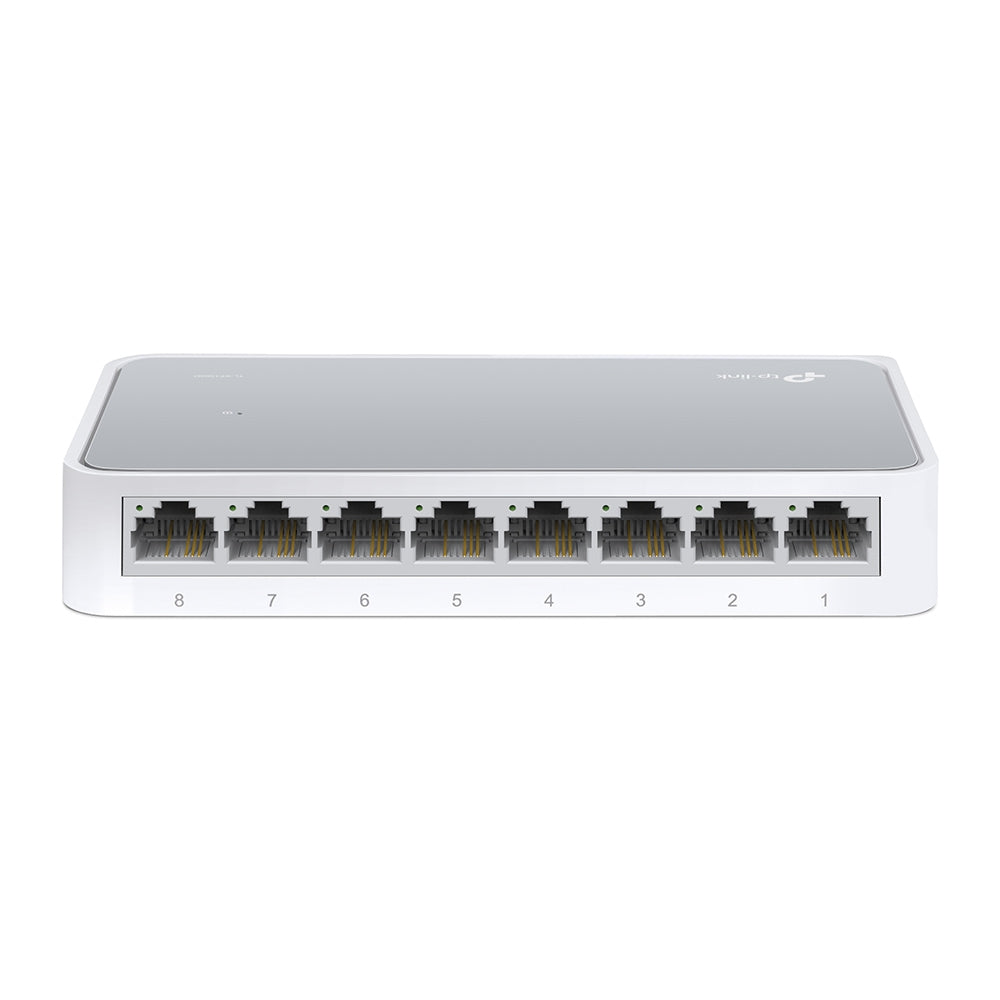

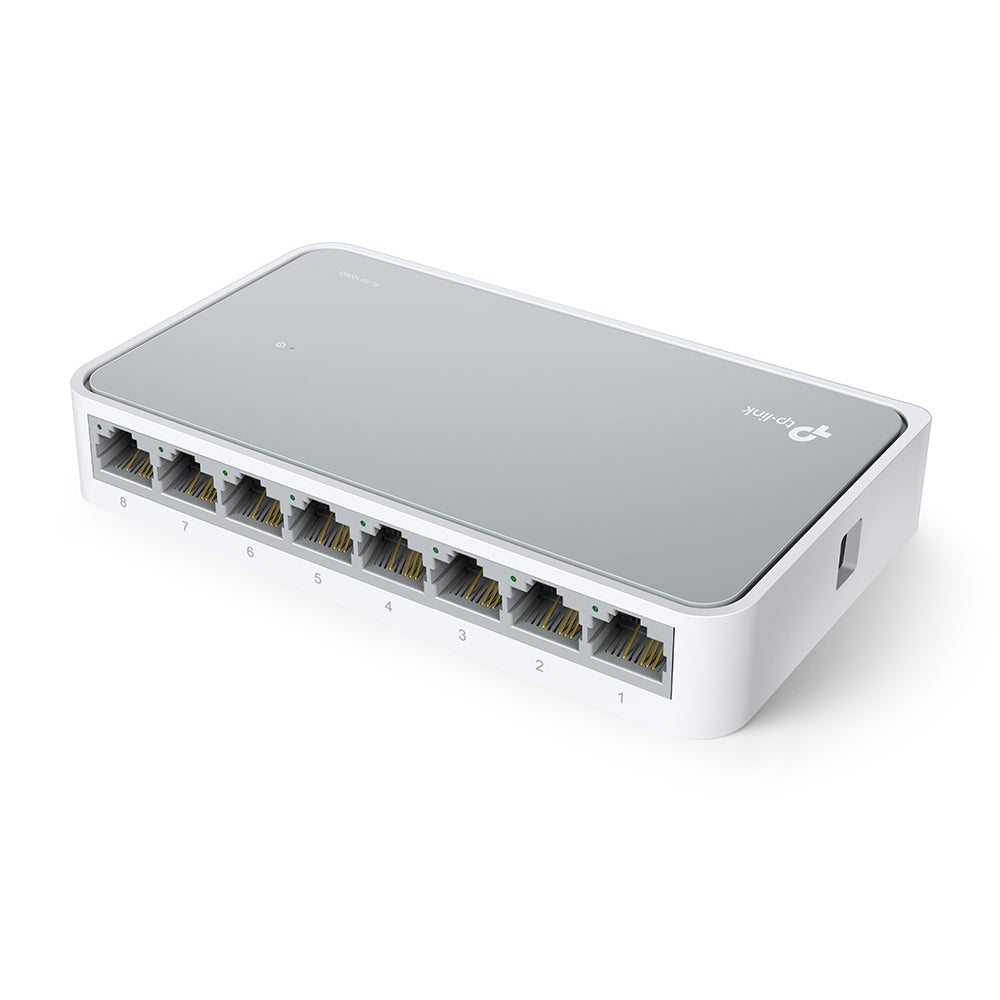

The TP-Link TL-SF1008D is an affordable and efficient 8-Port Fast Ethernet Desktop Switch, designed for small office and home network expansion. With eight 10/100Mbps auto-negotiation RJ45 ports, each supporting Auto MDI/MDIX, this switch offers seamless plug-and-play setup, allowing users to eliminate the need for crossover cables or manual configurations.
The device incorporates Green Ethernet technology, enabling it to automatically reduce power consumption by up to 60%, based on cable length and connection status. With a plastic, fanless chassis, the TL-SF1008D delivers silent operation and compact flexibility for desktop deployment.
Ideal for adding more Ethernet ports to a router or uplinking network devices like IP cameras, VoIP phones, printers, or NAS systems, this switch is a reliable, eco-conscious choice for cost-effective network scaling.
What's in the Box
Main Features
✅ 8× 10/100 Mbps RJ45 ports with auto-negotiation
✅ Auto MDI/MDIX support for cable-type independence
✅ Green Ethernet reduces power consumption up to 60%
✅ Fanless for completely silent operation
✅ IEEE 802.3x flow control ensures reliable data transmission
✅ Compact and lightweight plastic housing
✅ Plug and play — absolutely no configuration required
Detailed Specifications
Hardware Features
-
Standards & Protocols: IEEE 802.3, 802.3u, 802.3x, CSMA/CD
-
Interface: 8× 10/100 Mbps RJ45 Ports (Auto-Negotiation, Auto MDI/MDIX)
-
Fan Quantity: Fanless
-
Power Supply: External Power Adapter (Output: 9V/0.6A, Input: 100–240VAC, 50/60Hz)
-
Buffer Size: 768 Kb
-
Data Rates: 10/100 Mbps (Half Duplex), 20/200 Mbps (Full Duplex)
-
LED Indicators: Power, Port Status (1–8)
-
Dimensions: 5.3 × 3.1 × 0.9 in. (134.5 × 79 × 22.5 mm)
-
Max Power Consumption: 2.05W
-
Max Heat Dissipation: 6.99 BTU/h
Performance
Software Features
Warranty Information
Manufactures warrenty applied
Brand Description
TP-Link is a global provider of reliable networking products and accessories. With a strong presence in the Australian and New Zealand markets, TP-Link ensures all equipment meets regional compliance and performance standards, backed by professional local support.
SKU
TL-SF1008D
Practical Use Scenarios
-
🏠 Expand home networks by connecting PCs, printers, and TVs
-
🧑💻 Home office users can connect VoIP phones, NAS, and backup devices
-
🏢 Startups and SMBs can add additional LAN ports without reconfiguring routers
-
🎮 Gamers and streamers get stable connections for consoles and media centers
-
🧰 Network technicians use it for lab setups and network testing
Datasheets / Downloadable Resources
TP-Link TL-SF1008D
Excellence for the Australian and New Zealand Market
The TL-SF1008D is fully RCM-certified for sale and operation in Australia and New Zealand. It adheres to regional compliance standards, and all units are distributed via authorized TP-Link partners. Warranty and technical support are managed locally, ensuring fast and professional assistance for ANZ customers.
FAQs
Q1. Does TL-SF1008D support plug-and-play setup? (TL-SF1008D)
Yes. The TL-SF1008D requires no software or configuration. Simply connect your devices and it's ready to use.
Q2. Is the TL-SF1008D fanless and quiet in operation? (TL-SF1008D)
Absolutely. The fanless design ensures silent performance, perfect for quiet environments like homes and offices.
Q3. Can TL-SF1008D help reduce power usage? (TL-SF1008D)
Yes. With Green Ethernet technology, it adjusts power based on cable length and link status, reducing energy consumption by up to 60%.
Q4. What’s the difference between TL-SF1008D and a managed switch? (TL-SF1008D)
The TL-SF1008D is an unmanaged switch, offering a simplified plug-and-play experience without advanced configuration or VLANs.
Q5. Is TL-SF1008D compliant with Australian power standards? (TL-SF1008D)
Yes. The product is CE and RCM-certified, and the included power adapter works with 100–240VAC input, compliant with AU/NZ standards.
