Enhance your small business, surveillance, or home network with the TP-Link TL-SF1008P, a compact yet powerful 8-Port 10/100Mbps Desktop Switch featuring 4 PoE+ ports for streamlined connectivity and power delivery.

Designed to simplify installations, the TL-SF1008P lets you power IP cameras, VoIP phones, wireless access points, and other PoE devices using a single Ethernet cable—eliminating the need for separate power adapters and reducing cable clutter.

Each PoE+ port supports up to 30 W, with a total PoE budget of 66 W, ensuring sufficient power for demanding devices. Advanced features like Extend Mode deliver data and power up to 250 metres, perfect for deploying cameras in large areas. Priority Mode guarantees critical applications receive bandwidth, and PoE Auto Recovery automatically reboots non-responsive devices for stable operation.

With its fanless design, the TL-SF1008P operates silently, making it an ideal solution for offices, retail stores, and any noise-sensitive environment.

What's in the Box

• TP-Link TL-SF1008P Switch

• Power Adapter

• Installation Guide

• Rubber Feet

Main Features

✅ 4 PoE+ Ports with 66 W Budget – Power cameras, phones, and APs without extra cabling.

✅ Up to 30 W Per PoE Port – Handles higher-power PoE devices effortlessly.

✅ Long-Range PoE Transmission – Extend Mode allows data and power to reach up to 250 m.

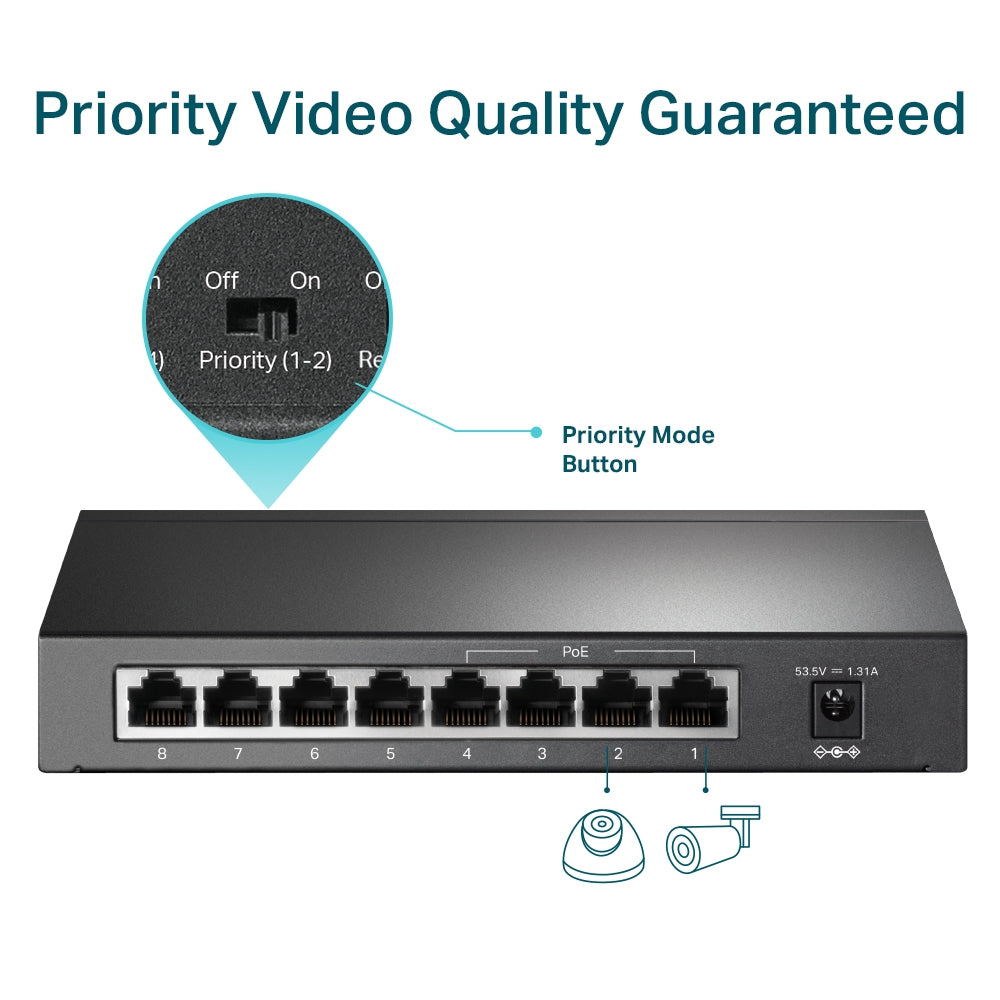

✅ Priority Mode for Critical Traffic – Prioritizes bandwidth for crucial devices like cameras.

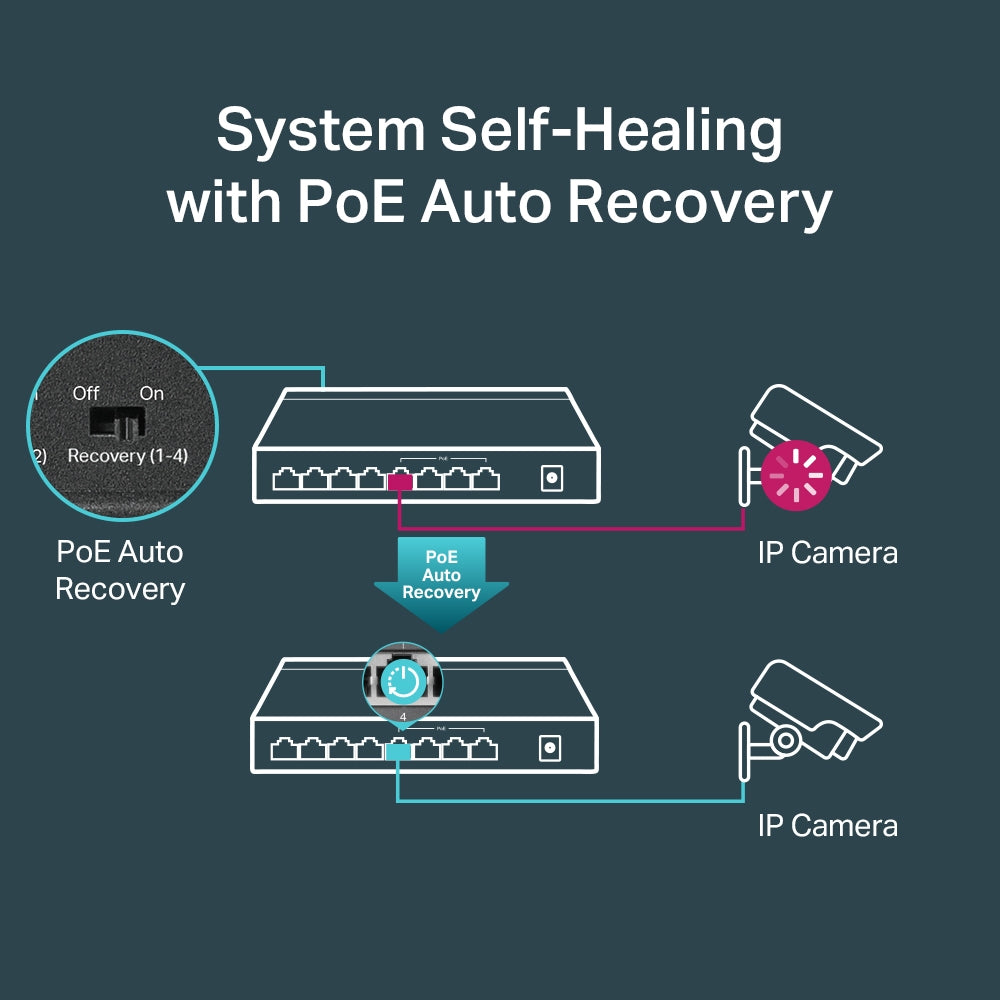

✅ Automatic Device Recovery – PoE Auto Recovery ensures stable device operation.

✅ Fanless and Silent – Perfect for noise-sensitive spaces.

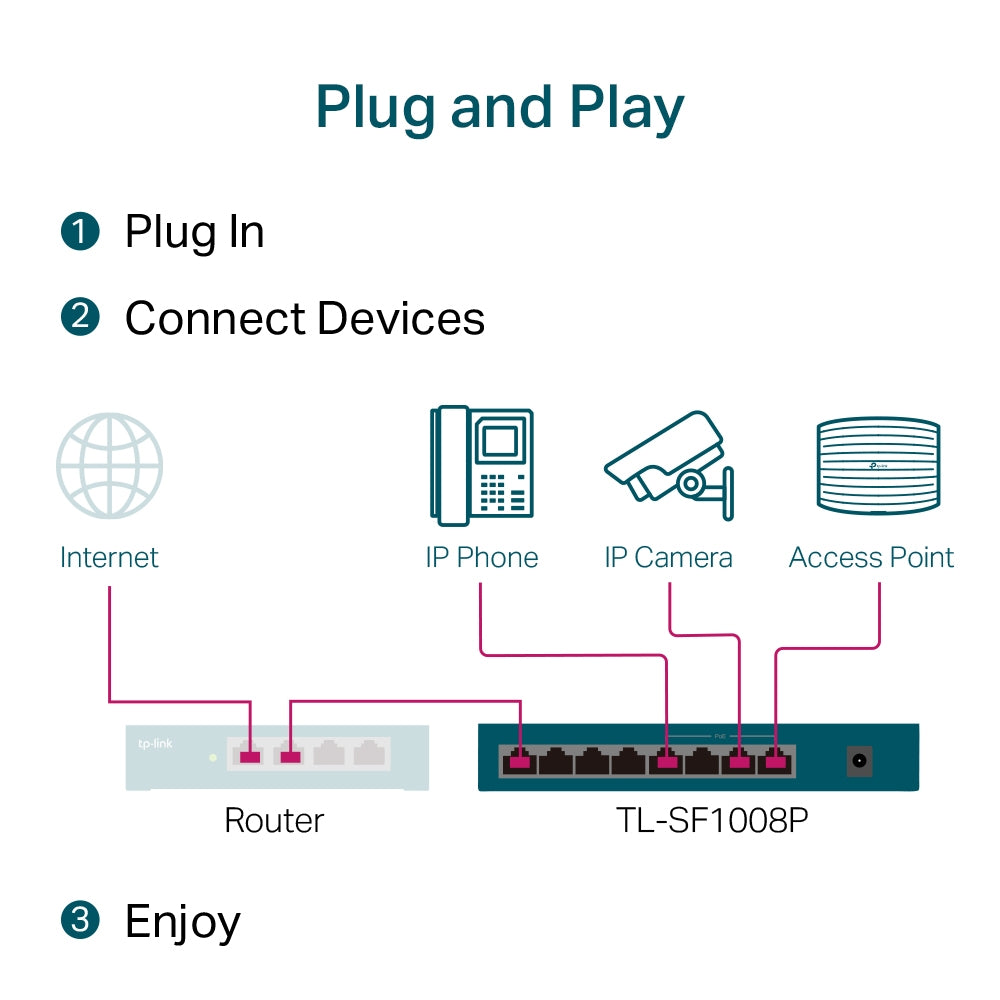

✅ Plug-and-Play Deployment – No configuration required for instant connectivity.

Detailed Specifications

Interfaces:

• 8 × 10/100 Mbps RJ45 Ports

  • 4 × 802.3af/at PoE+ ports

• Auto Negotiation / Auto MDI/MDIX

PoE Details:

• Standards: IEEE 802.3af/at compliant

• PoE Ports: Ports 1–4

• Max Power per PoE Port: 30 W

• Total PoE Power Budget: 66 W

Performance:

• Switching Capacity: 1.6 Gbps

• Packet Forwarding Rate: 1.1904 Mpps

• MAC Address Table: 2K entries

• Jumbo Frame: 2 KB

Advanced Features:

• Extend Mode (up to 250 m PoE distance on ports 1–4)

• Priority Mode (Ports 1–2)

• PoE Auto Recovery (Ports 1–4)

• Mac Address Auto-Learning and Auto-Aging

• IEEE802.3x Flow Control

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 171 × 98 × 27 mm (6.7 × 3.9 × 1.1 in)

• Fan Quantity: Fanless

• Physical Security Lock: Yes

Power:

• External Power Adapter: 53.5 V DC / 1.31 A

• Max Power Consumption:

  • 2.27 W (no PD connected)

  • 75.33 W (with 66 W PD connected)

• Max Heat Dissipation:

  • 7.74 BTU/h (no PD connected)

  • 256.88 BTU/h (with 66 W PD connected)

Certifications: FCC, CE, RoHS

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

The TL-SF1008P is backed by TP-Link’s standard warranty and support. Please check with your distributor or retailer for specific warranty terms in your region.

Brand Description

TP-Link is a globally trusted networking brand, renowned for delivering high-quality, affordable networking solutions to homes and businesses worldwide.

SKU

TL-SF1008P

Practical Use Scenarios

• Small Business Networks – Power phones, cameras, or access points with minimal wiring.

• Retail & Hospitality – Ideal for powering security cameras and Wi-Fi APs across floors.

• Residential Installations – Simplify smart home device setups with PoE support.

• Surveillance Networks – Extend Mode covers large premises with long cable runs.

• Quiet Work Environments – Fanless operation ensures noise-free performance.

Datasheets / Downloadable Resources

Download TL-SF1008P Datasheet

Excellence for the Australian and New Zealand Market

The TL-SF1008P complies with Australian and New Zealand electrical safety and telecommunications standards and is sourced via authorised TP-Link channels. Customers benefit from local support, warranty handling, and confidence in genuine, compliant products tailored to the region’s requirements.

 FAQs

Q1. How much power does the TL-SF1008P provide for PoE devices? (TL-SF1008P)
The TL-SF1008P offers up to 30 W per PoE port, with a total PoE budget of 66 W across four ports.

Q2. Can the TL-SF1008P power devices over longer distances? (TL-SF1008P)
Yes! With Extend Mode enabled, PoE power and data can travel up to 250 metres, ideal for distant cameras or devices.

Q3. Is the TL-SF1008P silent during operation? (TL-SF1008P)
Yes. Its fanless design ensures completely silent operation, perfect for offices and noise-sensitive spaces.

Q4. Does the TL-SF1008P require configuration? (TL-SF1008P)
No. The switch is plug-and-play and requires no software setup for basic operation.

Q5. How does Priority Mode work on the TL-SF1008P? (TL-SF1008P)
Priority Mode ensures that Ports 1–2 receive bandwidth priority for applications like video surveillance or VoIP, maintaining stable performance even under heavy traffic.
