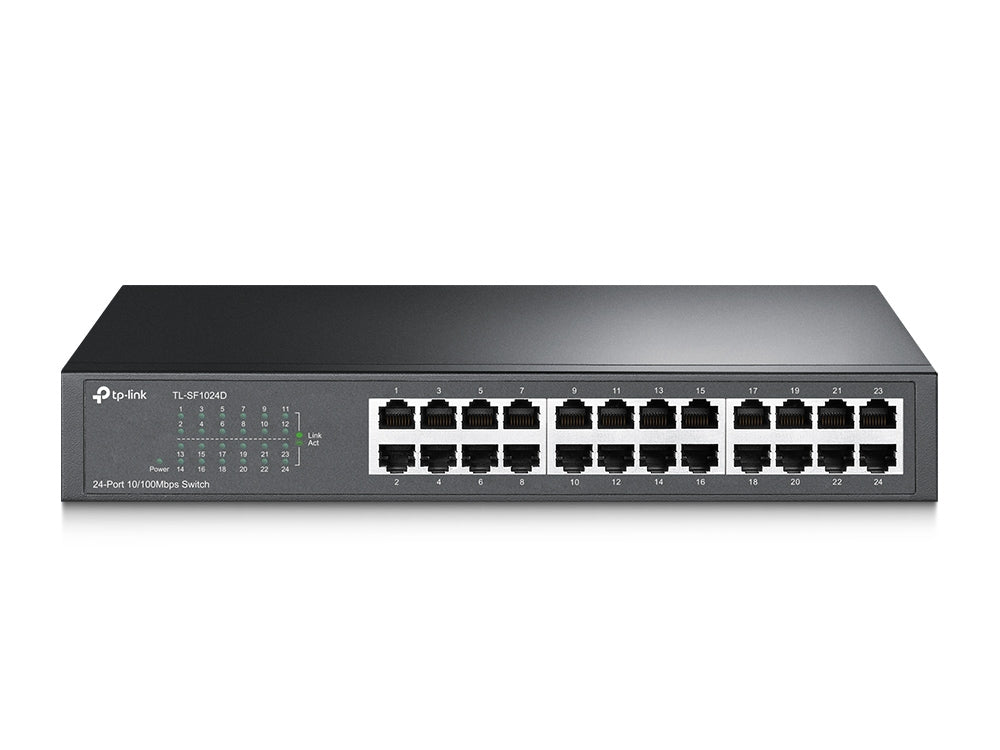

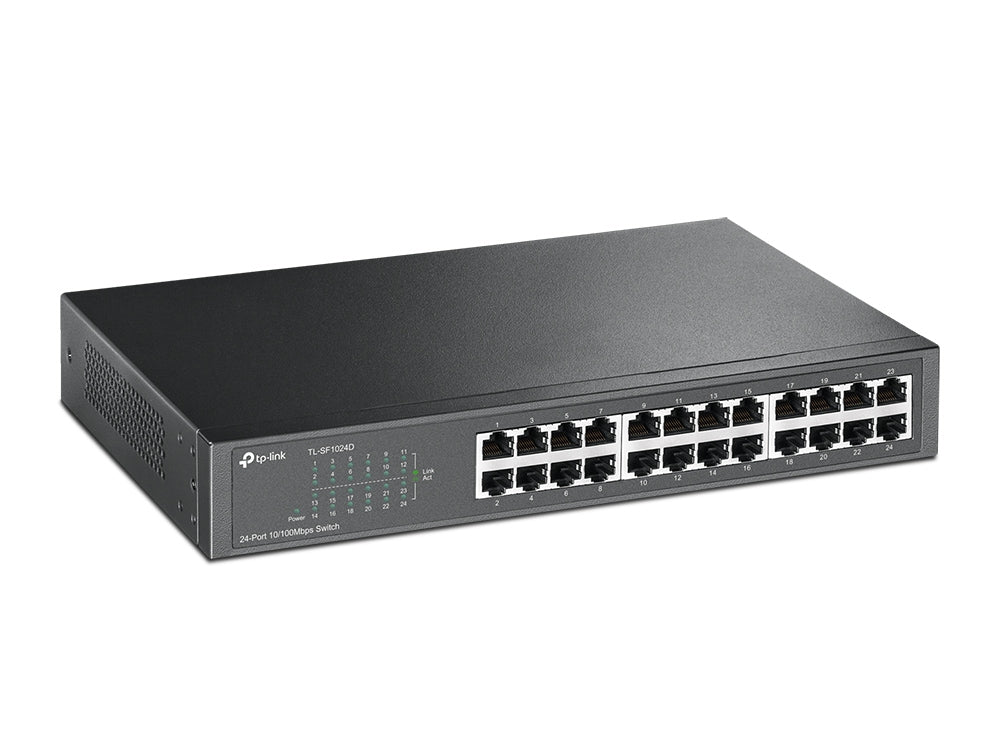

e TP-Link TL-SF1024D is a compact, energy-efficient 24-Port 10/100Mbps Ethernet Switch ideal for small business networks and home offices. Designed to optimize wired connectivity with high reliability, the TL-SF1024D provides plug-and-play functionality with auto MDI/MDIX support to eliminate crossover cable concerns.
Housed in a durable 13-inch steel desktop/rackmount case, it’s a perfect fit for desktop deployments or standard rack installations. Featuring MAC address self-learning, store-and-forward switching, and IEEE 802.3x flow control, it ensures efficient and consistent data traffic handling.
Thanks to TP-Link Green Ethernet technology, the switch delivers up to 75% power savings, helping you minimize your energy bills while keeping your network performance intact.
What's in the Box
Main Features
✅ 24× 10/100 Mbps RJ45 Ports with auto-negotiation and auto MDI/MDIX
✅ Green Ethernet technology — reduces power usage by up to 75%
✅ Fanless design — silent and energy-efficient operation
✅ MAC address auto-learning & aging
✅ IEEE 802.3x flow control — for reliable full-duplex transmission
✅ Store-and-forward architecture — minimizes packet errors
✅ Standard 13-inch steel case — rack or desktop mountable
Detailed Specifications
Hardware Features
-
Standards & Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
-
Interfaces: 24 × 10/100 Mbps RJ45 ports (Auto Negotiation / Auto MDI/MDIX)
-
Network Media:
-
Power Supply: External Adapter (Output: 9VDC / 0.6A)
-
Max Power Consumption: 3.19W
-
Max Heat Dissipation: 10.88 BTU/h
-
Fan Quantity: Fanless
-
Physical Security Lock: Yes
-
Mounting: Desktop or Rackmount
-
Dimensions: 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Performance
-
Switching Capacity: 4.8 Gbps
-
Packet Forwarding Rate: 3.57 Mpps
-
MAC Address Table: 8K entries
-
Buffer Memory: 2 Mb
-
Transmission Method: Store-and-Forward
Warranty Information
The TL-SF1024D is backed by TP-Link's limited warranty, with full support provided through authorized distributors in Australia and New Zealand.
Brand Description
TP-Link is a globally recognized leader in networking equipment, offering high-performance, budget-friendly, and energy-conscious solutions. With strong representation in the ANZ region, TP-Link ensures local support and availability across all major industries and households.
SKU
TL-SF1024D
Practical Use Scenarios
-
🏢 Business Offices – Power network infrastructure across employee workstations
-
🏘️ Apartment Buildings – Manage wired connections across units cost-effectively
-
🧑🏫 Education Institutions – Centralized switching for classroom or lab computers
-
🧰 Workshops/Studios – Expand wired networks for high-reliability hardware setups
-
📦 Warehouses – Enable device connectivity for inventory and logistics systems
Datasheets / Downloadable Resources
TP-Link TL-SF1024D
Excellence for the Australian and New Zealand Market
The TL-SF1024D is fully compatible with Australian and New Zealand power standards, and RCM-certified for local safety compliance. Stocked and distributed by authorized local resellers, it ensures dependable delivery, warranty handling, and post-purchase support within the region.
FAQs
Q1. Can the TL-SF1024D be rack-mounted? (TL-SF1024D)
Yes, the TL-SF1024D comes with rackmount brackets and is designed for standard 13-inch rackmount installation.
Q2. Is TL-SF1024D a managed switch? (TL-SF1024D)
No, the TL-SF1024D is an unmanaged switch and does not require configuration.
Q3. Does TL-SF1024D support Gigabit Ethernet? (TL-SF1024D)
No, the TL-SF1024D supports 10/100 Mbps speeds and is best suited for basic Ethernet applications.
Q4. How does Green Ethernet technology work in TL-SF1024D? (TL-SF1024D)
Green Ethernet automatically adjusts power consumption based on link status and cable length, reducing power usage by up to 75%.
Q5. What is the ideal use case for TL-SF1024D? (TL-SF1024D)
TL-SF1024D is ideal for environments requiring stable 10/100 Mbps LAN connectivity without advanced configuration — such as small offices, schools, or utility room
