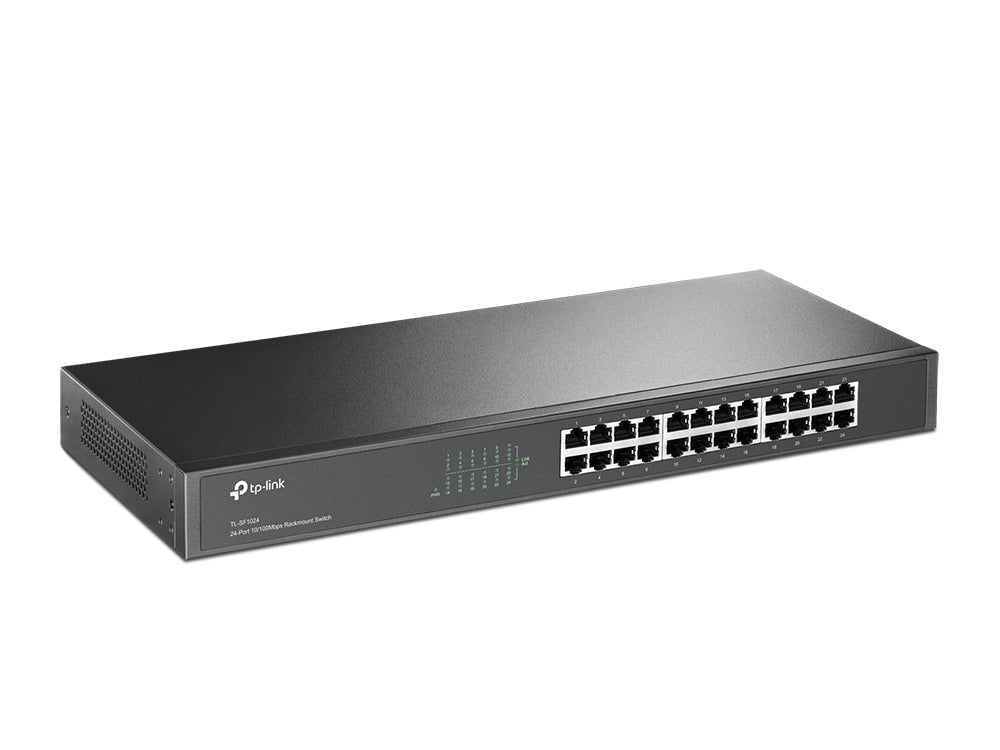

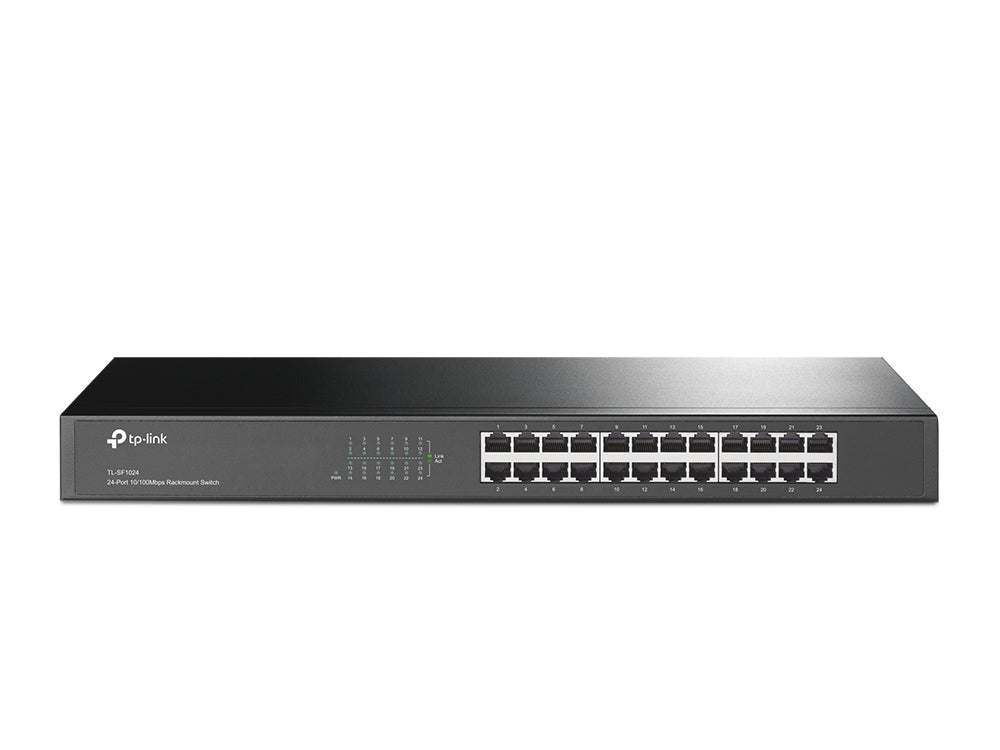

The TP-Link TL-SF1024 is a reliable, high-performance 24-Port 10/100Mbps Rackmount Switch engineered for seamless Ethernet connectivity in small-to-medium business networks. With support for Auto MDI/MDIX and MAC address self-learning, the TL-SF1024 offers plug-and-play simplicity with no configuration required.

Designed for energy efficiency, it features innovative green technology that reduces power consumption by up to 75%, making it ideal for cost-conscious deployments. The fanless design ensures noiseless operation, perfect for office environments, and the durable steel housing fits standard 19” racks for professional server rooms.

Whether expanding an existing LAN or building a new network infrastructure, the TL-SF1024 is a reliable and affordable solution for consistent, high-speed data delivery.

What's in the Box

• TP-Link TL-SF1024 24-Port 10/100Mbps Rackmount Switch

• Power Cord

• Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ 24× 10/100 Mbps Auto-Negotiation RJ45 Ports
✅ Auto MDI/MDIX for cable type detection
✅ Green Ethernet Technology – saves up to 75% energy
✅ MAC Address Self-Learning with 8K MAC address table
✅ Fanless Operation – quiet, efficient, long-lasting
✅ Store-and-Forward Architecture – reliable and accurate data forwarding
✅ Standard 19” Rackmount Steel Case

Detailed Specifications

Hardware Features:

• Standards & Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

• Interfaces: 24 × 10/100 Mbps RJ45 Ports (Auto Negotiation / Auto MDI/MDIX)

• Network Media Support:

  • 10BASE-T: UTP category 3, 4, 5 (max 100m)

  • 100BASE-TX: UTP category 5, 5e or above (max 100m)

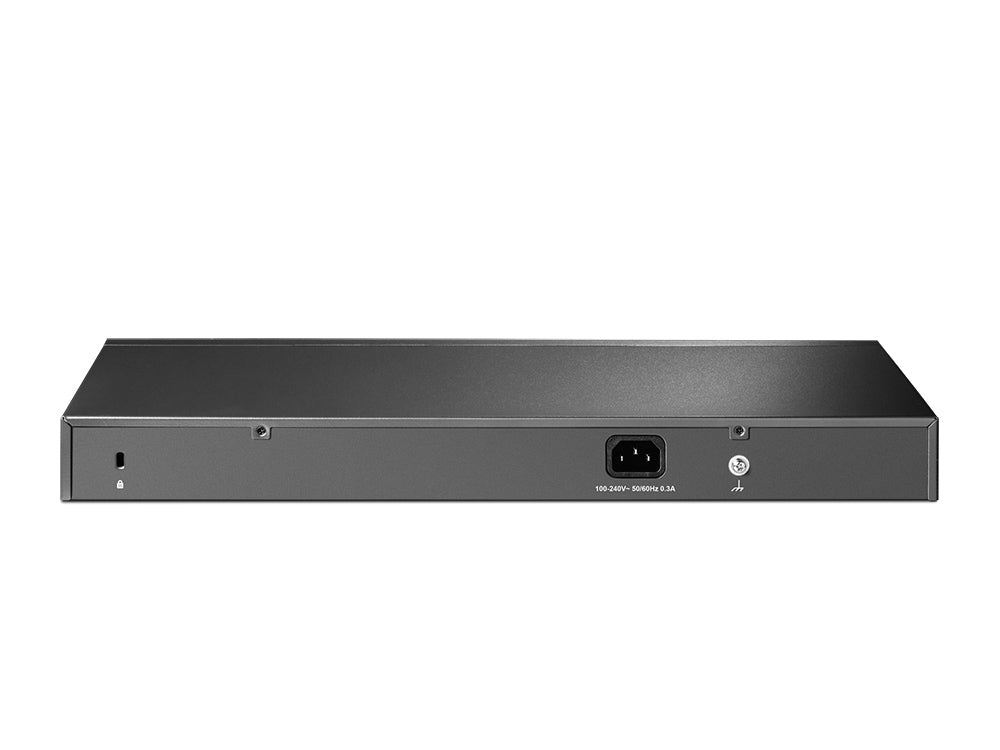

• Power Supply: 100–240V AC, 50/60Hz

• Max. Power Consumption: 3.19W

• Max. Heat Dissipation: 10.88 BTU/h

• Fan Quantity: Fanless

• Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

• Mounting: Rackmount

Performance:

• Switching Capacity: 4.8 Gbps

• Packet Forwarding Rate: 3.57 Mpps

• MAC Address Table: 8K

• Buffer Memory: 2 Mb

• Jumbo Frame Support: Not specified

• Advanced Features:

  • IEEE 802.3x Flow Control

  • Energy-Efficient Green Technology

Transmission Method:

• Store-and-Forward

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link is a trusted global brand in networking, known for delivering reliable, scalable, and energy-efficient solutions for homes, small businesses, and enterprise infrastructure. With extensive support and product availability in Australia and New Zealand, TP-Link ensures ongoing product innovation and dependable service.

SKU

TL-SF1024

Practical Use Scenarios

• 🏢 Business Offices – Expand wired connectivity for PCs, IP phones, and printers

• 🧑🏫 Educational Institutions – Network classrooms or lab computers with a single switch

• 🛎️ Hospitality Industry – Power reliable guest WiFi backhaul and surveillance systems

• 🏘️ Residential Complexes – Centralized Ethernet distribution for smart devices

• 🧪 Lab or Workshop Settings – Ideal for test benches or prototyping stations

Datasheets / Downloadable Resources

TP-Link TL-SF1024

Excellence for the Australian and New Zealand Market

The TP-Link TL-SF1024 is sourced from authorized distributors in the ANZ region and is fully compliant with local RCM and EMC regulatory requirements. Built to withstand Australian temperature ranges and humidity, this switch guarantees performance, reliability, and safety. With warranty and support services handled directly through TP-Link’s Australian presence, customers benefit from peace of mind and responsive service.

 FAQs

Q1. Can TL-SF1024 be mounted in a server rack? (TL-SF1024)
Yes, the TL-SF1024 comes with a rackmount kit and is designed to fit standard 19-inch server racks.

Q2. Does TL-SF1024 require configuration or management software? (TL-SF1024)
No, it is a plug-and-play unmanaged switch that works out of the box with no configuration needed.

Q3. How energy-efficient is the TL-SF1024? (TL-SF1024)
The TL-SF1024 can reduce power consumption by up to 75% using TP-Link’s Green Ethernet technology.

Q4. Is TL-SF1024 compatible with PoE devices? (TL-SF1024)
No, TL-SF1024 does not provide PoE power. You will need a separate PoE switch or injector to power PoE-enabled devices.

Q5. What makes TL-SF1024 ideal for office environments? (TL-SF1024)
Its fanless design ensures silent operation, and its compact rackmountable form makes it ideal for office or network cabinets.
