Upgrade your wired network with the TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch, delivering fast and reliable Gigabit Ethernet connections for desktops, printers, IP cameras, NAS devices, and more. This ultra-compact switch features five 10/100/1000 Mbps Auto-Negotiation ports with Auto MDI/MDIX support, making installation hassle-free without needing crossover cables.

Thanks to Green Ethernet technology, the TL-SG1005D conserves energy by dynamically adjusting power consumption based on link status and cable length. The fanless design ensures quiet operation—perfect for home and small office environments—while IEEE 802.3x flow control ensures stable, efficient data transfer for smooth performance.

Whether you’re expanding your home network or enhancing a small business infrastructure, the TL-SG1005D is a cost-effective and plug-and-play solution designed for simplicity, energy efficiency, and long-term reliability.

What's in the Box

• TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch

• Power Adapter

• Installation Guide

Main Features

✅ 5× Gigabit RJ45 Ports – Each port supports 10/100/1000 Mbps auto-negotiation
✅ Auto MDI/MDIX – No need for crossover cables
✅ IEEE 802.3x Flow Control – Full-duplex reliable data transfer
✅ Green Ethernet Technology – Reduces energy usage intelligently
✅ Compact & Lightweight – Sleek plastic housing with desktop or wall-mounting options
✅ Plug & Play – Installs in seconds with no configuration required
✅ Fanless Design – Silent, energy-efficient operation

Detailed Specifications

Hardware:

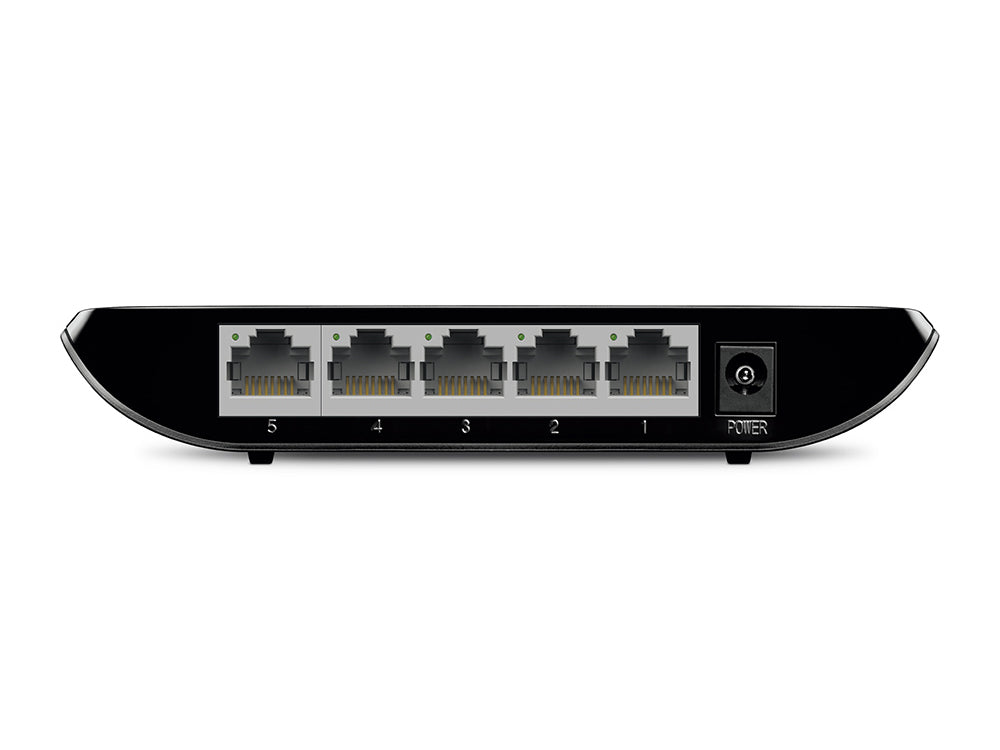

• Interface: 5 × 10/100/1000 Mbps RJ45 Ports with Auto Negotiation and Auto MDI/MDIX

• Power Supply: External Adapter (5V DC / 0.6A)

• Housing: Plastic

• Fan: Fanless

• Physical Security Lock: Not Included

• Dimensions: 5.5 × 3.5 × 0.9 in (140 × 88 × 23 mm)

• Max Power Consumption: 3.1W

• Max Heat Dissipation: 10.57 BTU/hr

Performance:

• Switching Capacity: 10 Gbps (full duplex)

• MAC Address Table: 2K entries

• Jumbo Frame: 15 KB

• Transmission Method: Store-and-Forward

Software Features:

• Green Ethernet Technology

• IEEE 802.3x Flow Control

• Back Pressure Support

• 802.1p/DSCP QoS (from hardware version V7 onward)

Certifications:
FCC, CE, RoHS

Environment:

• Operating Temperature: 0°C40°C (32°F104°F)

• Storage Temperature: -40°C60°C (-40°F140°F)

• Operating Humidity: 10%~90% RH non-condensing

• Storage Humidity: 5%~90% RH non-condensing

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link is a globally recognized networking brand offering reliable and affordable solutions for home and business use. Backed by decades of R&D, TP-Link products are known for their performance, durability, and ease of use in diverse networking environments.

SKU

TL-SG1005D

Practical Use Scenarios

• Small Office LAN Expansion – Add fast wired connections for workstations, printers, and IP phones

• Home Network Enhancement – Connect smart TVs, gaming consoles, and media centers

• Budget-Friendly Networking – Suitable for start-ups and freelancers needing low-cost Gigabit Ethernet

• Silent Desktop Use – Fanless design makes it perfect for quiet home or work environments

• IoT Device Connectivity – Seamless link for hubs, smart sensors, and other Ethernet-based IoT devices

Datasheets / Downloadable Resources

TP-Link TL-SG1005D Official Product Page

Excellence for the Australian and New Zealand Market

The TL-SG1005D has been rigorously tested and meets Australian and New Zealand electrical safety and EMC compliance standards. Sourced directly from authorized regional distributors, it offers full warranty support and optimal compatibility with local ISP infrastructure. Its energy-saving design, plug-and-play simplicity, and quiet operation make it a top-tier choice for the ANZ market.

FAQs

Q1. Can the TL-SG1005D be wall-mounted? (TL-SG1005D)
Yes, the TL-SG1005D can be mounted on a wall or placed on a desktop, providing flexible deployment options.

Q2. Is the TL-SG1005D suitable for gaming setups? (TL-SG1005D)
Absolutely. With full Gigabit support and QoS (from V7 onward), the TL-SG1005D is ideal for stable, low-latency gaming connections.

Q3. What kind of power adapter is included with the TL-SG1005D? (TL-SG1005D)
It includes an external power adapter with a 5V DC / 0.6A output.

Q4. Does TL-SG1005D support jumbo frames? (TL-SG1005D)
Yes, it supports jumbo frames up to 15 KB, helping improve performance for large data transfers.

Q5. How energy-efficient is the TL-SG1005D? (TL-SG1005D)
The TL-SG1005D uses Green Ethernet technology to automatically reduce power consumption based on network activity and cable length.
