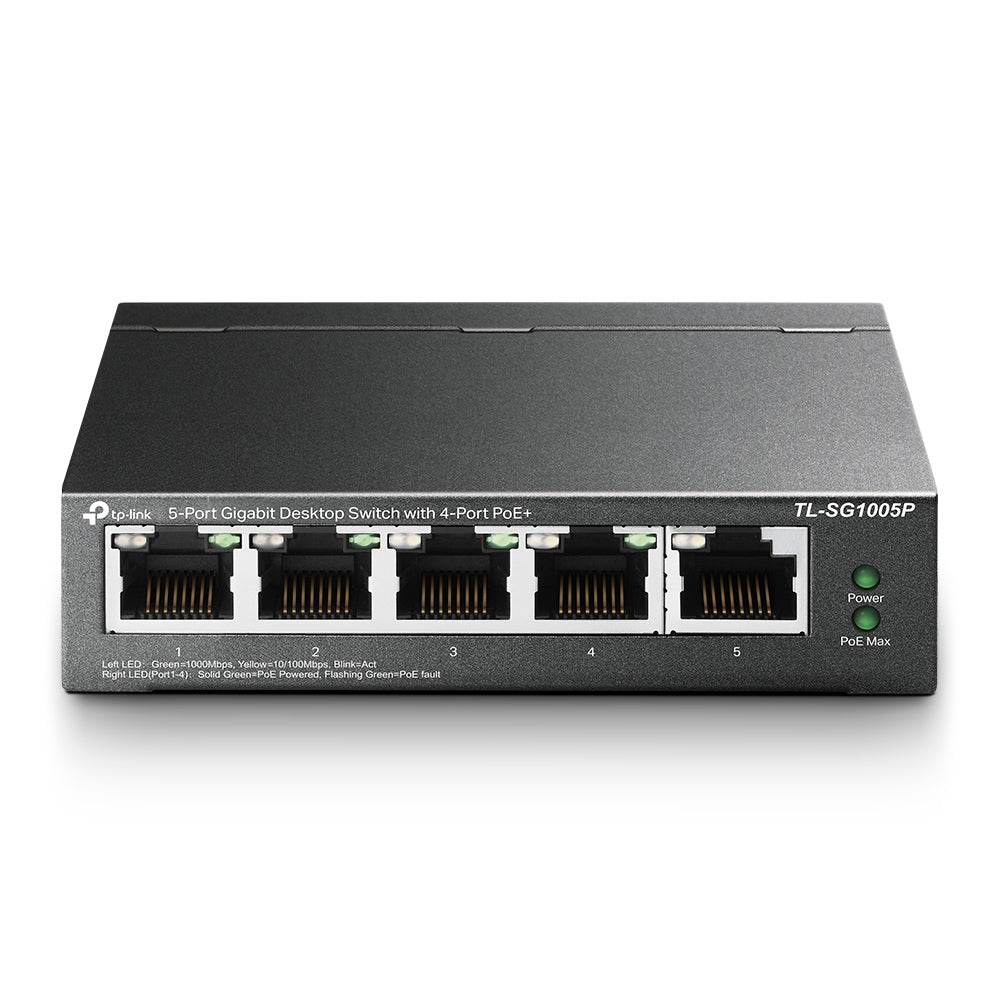

Empower your network with both power and data through a single cable using the TP-Link TL-SG1005P, a versatile 5-Port Gigabit Desktop Switch featuring four PoE+ ports. Designed for small businesses, surveillance systems, and smart home setups, this compact switch provides seamless connectivity while supplying power to PoE-enabled devices like IP cameras, wireless access points, and VoIP phones.

Each PoE+ port delivers up to 30W, with a total PoE power budget of 65W, ensuring reliable performance for multiple devices. With advanced features such as PoE Auto Recovery, the switch automatically reboots any unresponsive PoE devices, maintaining stable operation without manual intervention.

The TL-SG1005P also supports Extend Mode, enabling data and power transmission up to 250 meters—ideal for extended camera deployments or large floorplans. Its fanless design ensures completely silent operation, perfect for quiet office environments. Plug-and-play functionality makes setup a breeze, requiring no configuration for immediate network expansion.

What's in the Box

• TP-Link TL-SG1005P Desktop Switch

• Power Adapter

• Installation Guide

Main Features

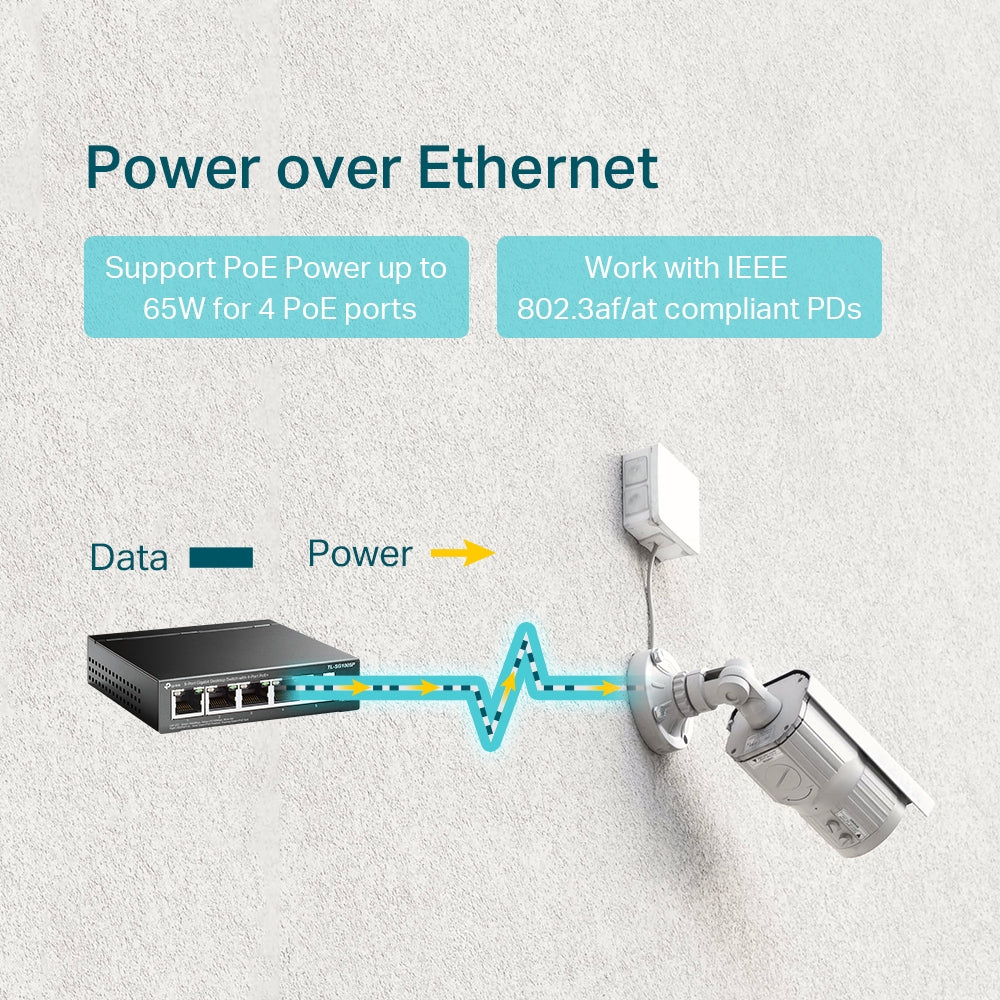

✅ 4-Port PoE+ Power Delivery – Provides up to 30W per port, powering devices like IP cameras, access points, and VoIP phones via a single Ethernet cable.

✅ 65W PoE Budget – Supports multiple PoE devices simultaneously without power constraints.

✅ Gigabit Performance – All five ports support 10/100/1000 Mbps speeds for smooth, high-bandwidth applications.

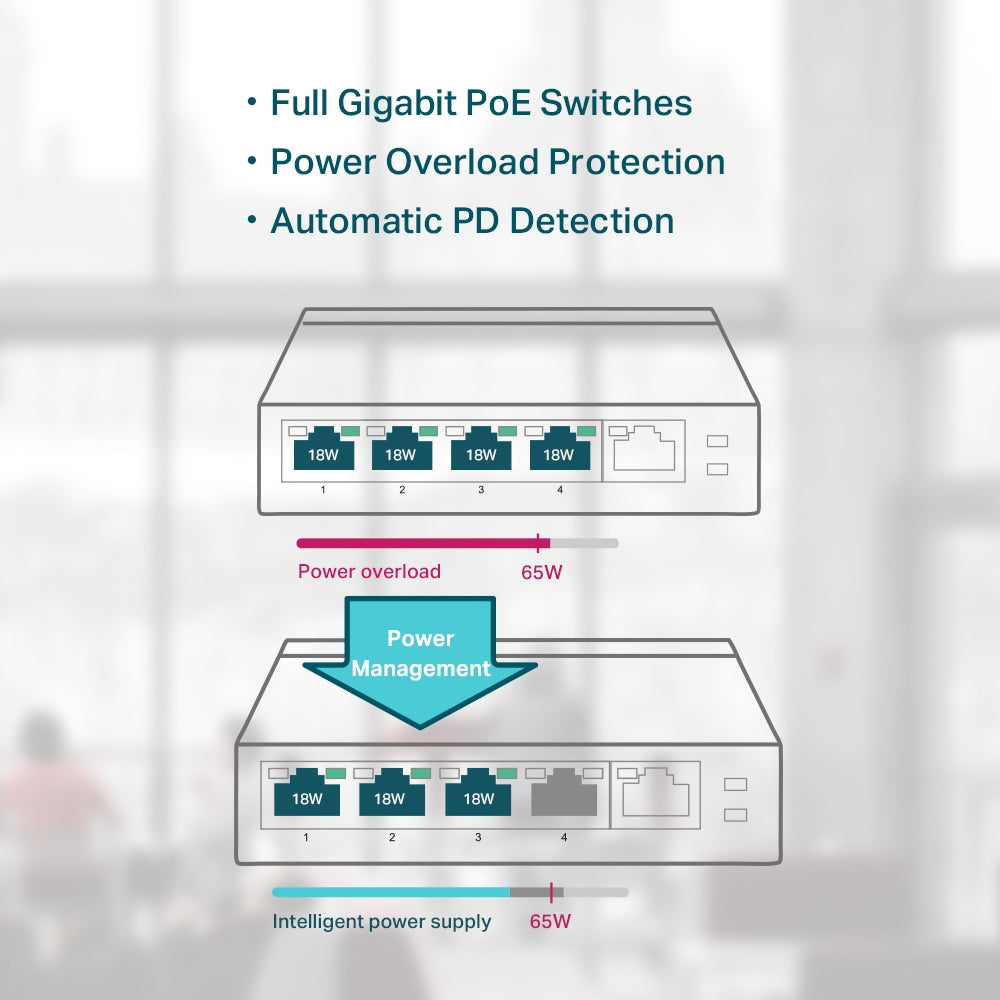

✅ PoE Auto Recovery – Automatically reboots unresponsive PoE devices for uninterrupted network reliability.

✅ Extended PoE Range – Extend Mode pushes PoE data and power transmission up to 250 meters.

✅ Silent Fanless Operation – Ensures a noise-free environment, perfect for offices, retail, or home use.

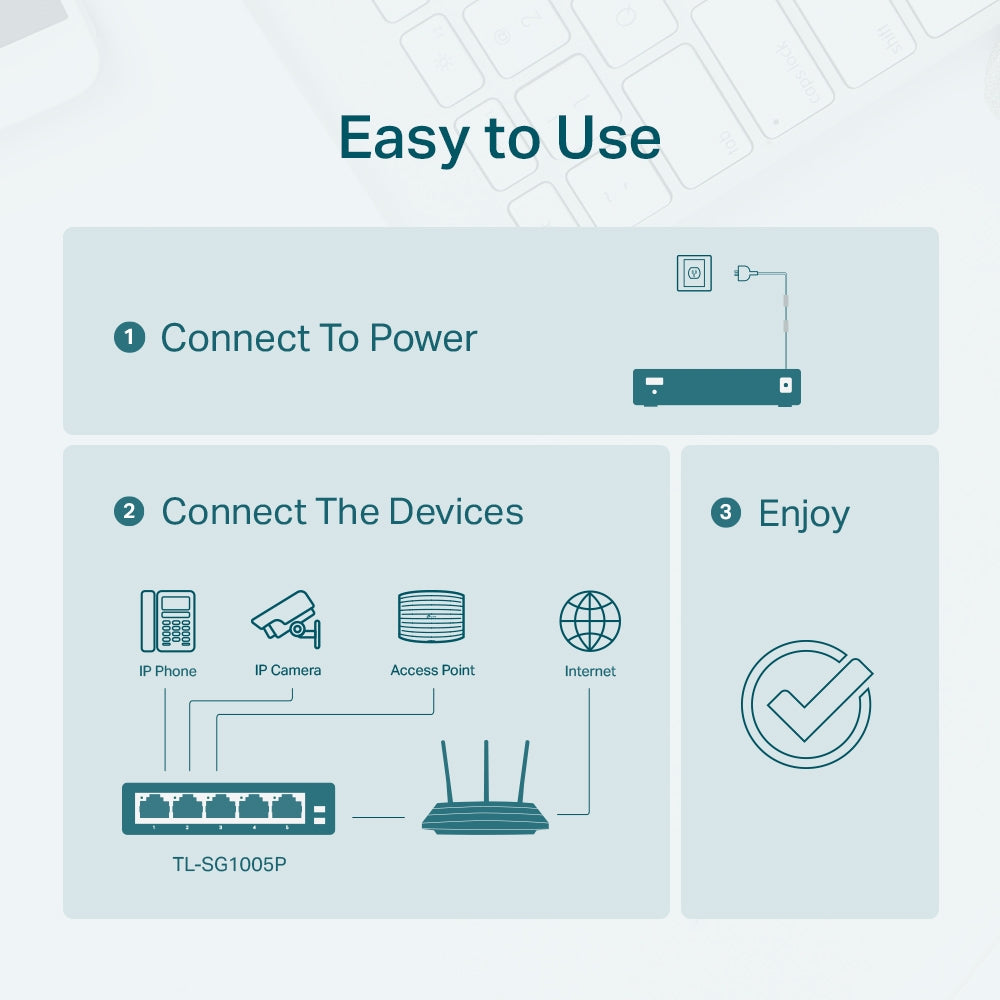

✅ Plug-and-Play Deployment – No software configuration required for instant network expansion.

Detailed Specifications

Interfaces:

• 5 × 10/100/1000 Mbps RJ45 Ports

• Auto-Negotiation / Auto MDI/MDIX

PoE Ports:

• Ports 1-4: IEEE 802.3at/af compliant

• Max PoE Power per Port: 30W

• Total PoE Budget: 65W

• PoE Auto Recovery: Yes

• Extend Mode: Yes, up to 250m range

Performance:

• Switching Capacity: 10 Gbps

• Packet Forwarding Rate: 7.44 Mpps

• MAC Address Table: 2K entries

• Jumbo Frame: 16 KB

Quality of Service (QoS):

• IEEE 802.1p/DSCP priority

• IGMP Snooping

• MAC address auto-learning and auto-aging

• IEEE 802.3x Flow Control

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 99.8 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)

• Fan Quantity: Fanless

• Mounting: Desktop

• Surge Protection: ±6kV

Power Supply: External Power Adapter (48VDC / 1.25A)

Max Power Consumption:

• 3.95W (no PD connected)

• 64.44W (with 56W PD connected)

Heat Dissipation:

• 13.48 BTU/h (no PD connected)

• 219.87 BTU/h (with 56W PD connected)

Certifications: FCC, CE, RoHS

Environmental Specifications:

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% RH non-condensing

• Storage Humidity: 5% ~ 90% RH non-condensing

Warranty Information

The TP-Link TL-SG1005P comes with a limited manufacturer warranty. Customers in Australia and New Zealand enjoy local support and warranty services through authorised TP-Link channels, ensuring peace of mind and swift assistance.

Brand Description

TP-Link is a global leader in networking solutions, dedicated to delivering reliable, innovative products for both home and business networks. The Easy Smart and PoE series embodies TP-Link’s mission to simplify complex networking tasks with robust, user-friendly devices.

SKU

TL-SG1005P

Practical Use Scenarios

• Small Office Networking – Power IP phones, wireless APs, and security cameras without separate power sources.

• Surveillance Systems – Connect and power PoE cameras in large spaces with extended PoE transmission.

• Retail & Hospitality – Reduce cabling costs and simplify device deployment in shops, cafes, or hotels.

• Home Smart Devices – Create a neat, silent home network for smart cameras, Wi-Fi APs, or intercoms.

• Event Setups – Ideal for temporary networks needing quick, plug-and-play connectivity and PoE power.

Datasheets / Downloadable Resources

Download TP-Link TL-SG1005P Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link TL-SG1005P fully complies with Australian and New Zealand standards, including CE, FCC, and RoHS certifications. It is sourced exclusively through authorised distribution, ensuring genuine products and full warranty support locally. Engineered for durability and optimal performance, it’s the perfect solution for modern networking needs in Australia and New Zealand.

FAQs

Q1. Can the TL-SG1005P power high-consumption devices like PTZ cameras? (TL-SG1005P)
Yes, each PoE port supports up to 30W, making it suitable for many PTZ cameras and high-power PoE devices.

Q2. Does the TL-SG1005P require configuration to operate? (TL-SG1005P)
No configuration is needed. It’s completely plug-and-play for instant deployment.

Q3. What is the maximum distance for PoE connections with the TL-SG1005P? (TL-SG1005P)
Using Extend Mode, PoE data and power transmission can reach up to 250 metres.

Q4. Is the TL-SG1005P silent in operation? (TL-SG1005P)
Yes! Its fanless design ensures completely silent operation, perfect for quiet environments.

Q5. How much total power budget does the TL-SG1005P offer? (TL-SG1005P)
The TL-SG1005P provides up to 65W total PoE power budget, sufficient for multiple devices running simultaneously.
