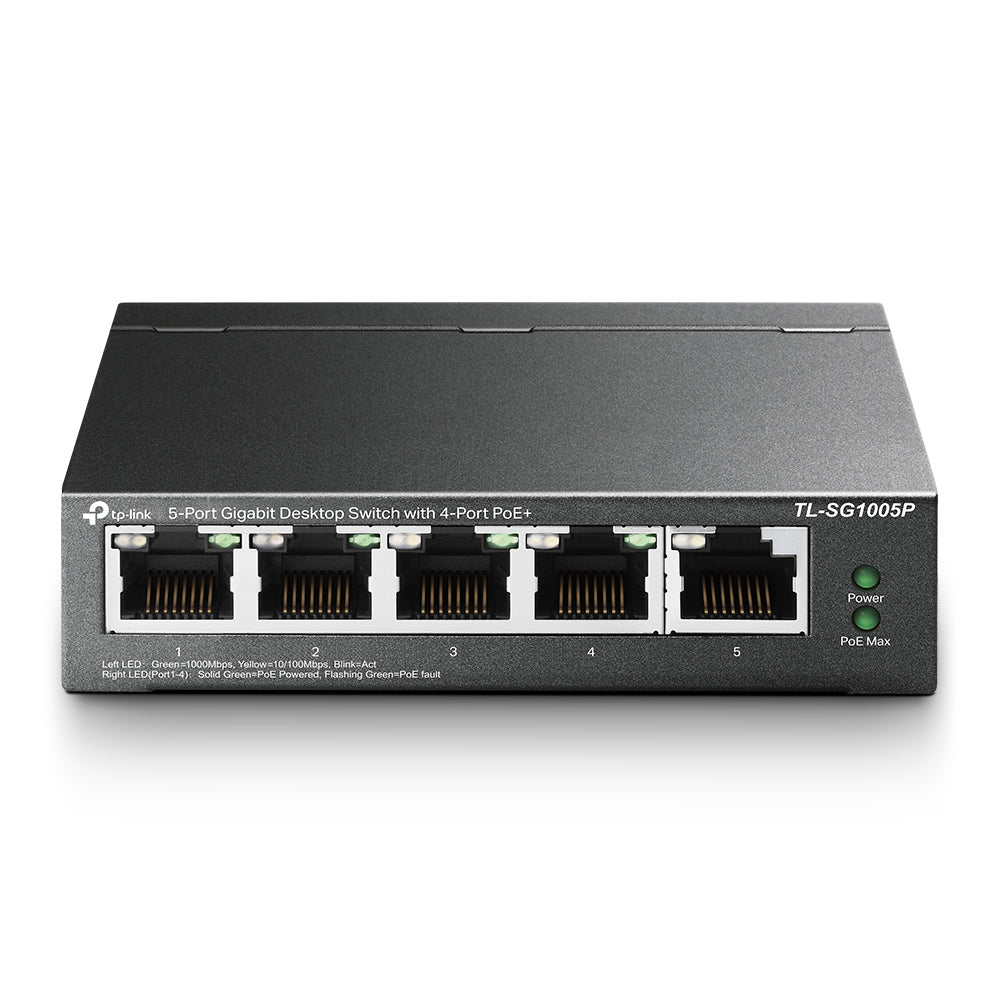

Streamline your network infrastructure with the TP-Link TL-SG1005P, a powerful yet compact 5-Port Gigabit Desktop Switch featuring 4 PoE+ ports to deliver both data and power over a single Ethernet cable.
Ideal for small business environments, home surveillance setups, and retail deployments, this easy-to-use switch allows seamless integration of PoE-enabled devices like IP cameras, wireless access points, or VoIP phones—without the need for extra power adapters.
With support for up to 30W per PoE port and a total PoE budget of 65W, the TL-SG1005P ensures reliable power delivery to multiple devices simultaneously. It features Extend Mode for long-range deployments, transmitting data and power up to 250 meters, perfect for large areas or expansive camera installations.
This switch also integrates intelligent functions such as PoE Auto Recovery, automatically rebooting unresponsive devices to keep your network stable without manual intervention. Its fanless design guarantees silent operation, making it ideal for offices, shops, and home use.
Simply plug in the TL-SG1005P, and you’re ready to expand your network—no complex configuration required.
What's in the Box
Main Features
✅ 4 PoE+ Ports for Versatile Deployment – Power and connect devices like IP cameras, wireless APs, and VoIP phones using a single cable.

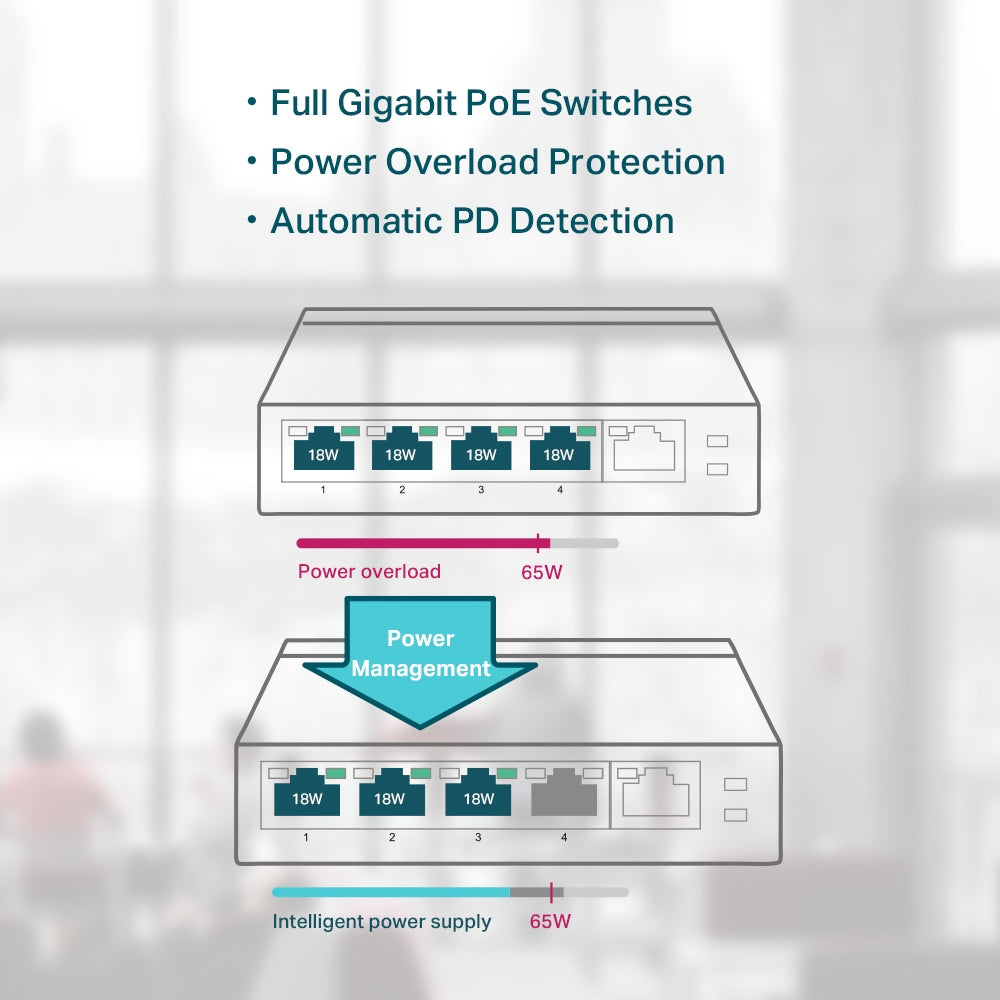

✅ Total 65W PoE Power Budget – Handles multiple high-power devices simultaneously with robust power allocation.
✅ Gigabit Speeds on All Ports – Supports up to 1000 Mbps for smooth video streaming, large file transfers, and network performance.
✅ PoE Auto Recovery – Automatically detects and reboots frozen or unresponsive PoE devices to maintain network stability.
✅ Extended PoE Reach – Extend Mode pushes PoE data and power transmission up to 250 meters for large-scale deployments.
✅ Silent, Fanless Operation – Keeps your environment quiet, ideal for offices and retail spaces.

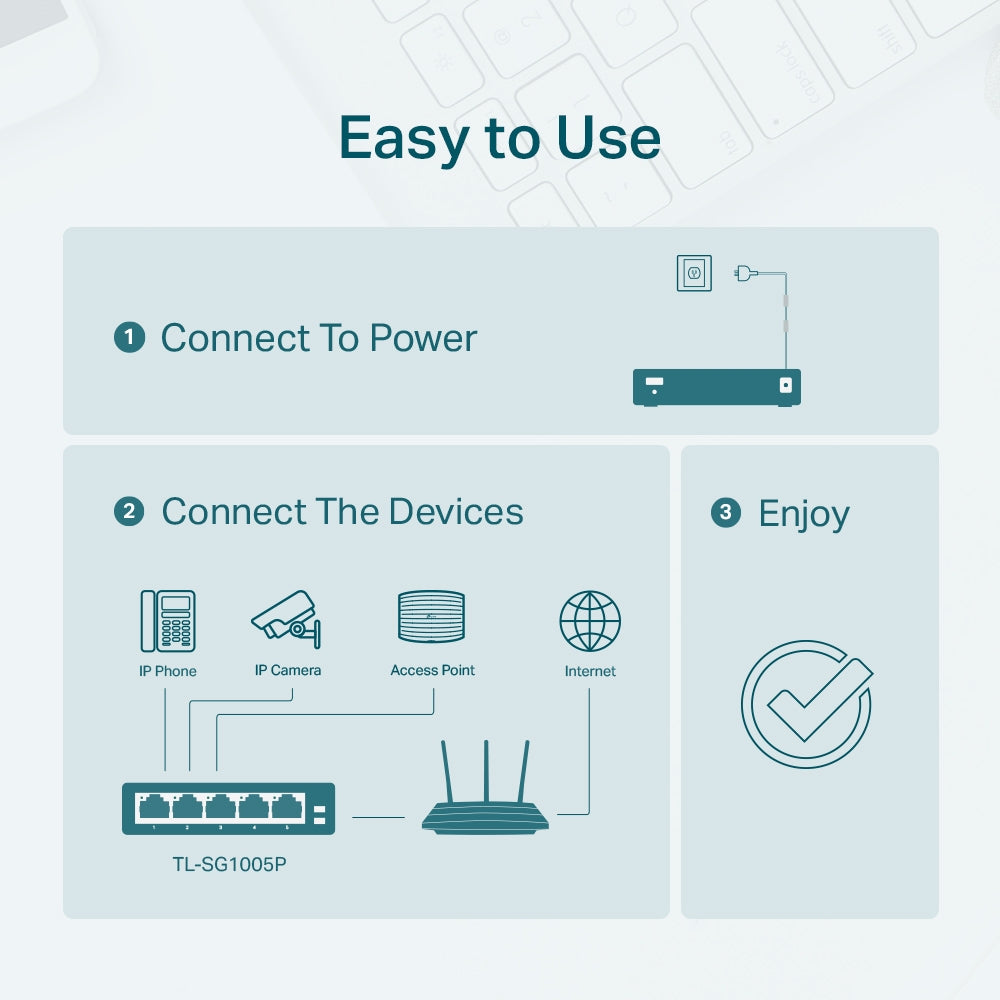

✅ Plug-and-Play Installation – No software configuration required, ready for immediate use.
Detailed Specifications
Interfaces:
PoE Ports:
-
Ports 1-4: IEEE 802.3af/at compliant
-
Max PoE Power per Port: 30W
-
Total PoE Budget: 65W
-
PoE Auto Recovery: Yes
-
Extend Mode: Yes, up to 250m
Performance:
-
Switching Capacity: 10 Gbps
-
Packet Forwarding Rate: 7.44 Mpps
-
MAC Address Table: 2K entries
-
Jumbo Frame: 16 KB
Quality of Service (QoS):
Transmission Method: Store-and-Forward
Physical:
Power Supply: External Power Adapter (48VDC / 1.25A)
Max Power Consumption:
Heat Dissipation:
Certifications: FCC, CE, RoHS
Environmental Specifications:
-
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
-
Operating Humidity: 10% ~ 90% RH non-condensing
-
Storage Humidity: 5% ~ 90% RH non-condensing
Warranty Information
The TP-Link TL-SG1005P includes a limited manufacturer warranty, with full support for customers in Australia and New Zealand via authorised TP-Link channels, guaranteeing genuine products and peace of mind.
Brand Description
TP-Link is globally renowned for innovative networking products that deliver reliable performance and exceptional value. From high-speed routers to smart switches, TP-Link designs solutions to empower modern connectivity in both home and business networks.
SKU
TL-SG1005P
Practical Use Scenarios
-
Small Business Office – Connect and power VoIP phones and security cameras without separate power adapters.
-
Home Surveillance – Power IP cameras across a property while maintaining gigabit speeds for streaming and home office use.
-
Retail & Hospitality – Simplify network deployment in stores, restaurants, or hotels with integrated PoE support.
-
Warehouse & Industrial – Extend PoE connectivity up to 250m for expansive areas requiring camera coverage.
-
Temporary Event Networks – Rapidly deploy power and connectivity for cameras, Wi-Fi, or displays without complex wiring.
Datasheets / Downloadable Resources
Download TP-Link TL-SG1005P Datasheet
Excellence for the Australian and New Zealand Market
The TP-Link TL-SG1005P meets all applicable Australian and New Zealand standards, including CE, FCC, and RoHS certifications. Distributed exclusively via authorised channels, it guarantees genuine products and full local warranty support. Engineered for reliable operation in varied environments, it’s the ideal choice for businesses and home networks across Australia and New Zealand.
FAQs
Q1. How many devices can the TL-SG1005P power simultaneously? (TL-SG1005P)
The TL-SG1005P can power up to four PoE devices at once, sharing a total PoE budget of 65W.
Q2. Does the TL-SG1005P support long-distance PoE connections? (TL-SG1005P)
Yes! With Extend Mode, it can provide data and power up to 250 meters, perfect for long cable runs to IP cameras.
Q3. Is the TL-SG1005P silent during operation? (TL-SG1005P)
Absolutely. Its fanless design ensures completely silent operation, making it ideal for quiet office spaces.
Q4. Is configuration required for basic use of the TL-SG1005P? (TL-SG1005P)
No configuration is necessary. Simply plug in your devices for instant network expansion.
Q5. What’s the power limit per PoE port on the TL-SG1005P? (TL-SG1005P)
Each PoE port can deliver up to 30W, accommodating devices like PTZ cameras or high-powered wireless access points.
