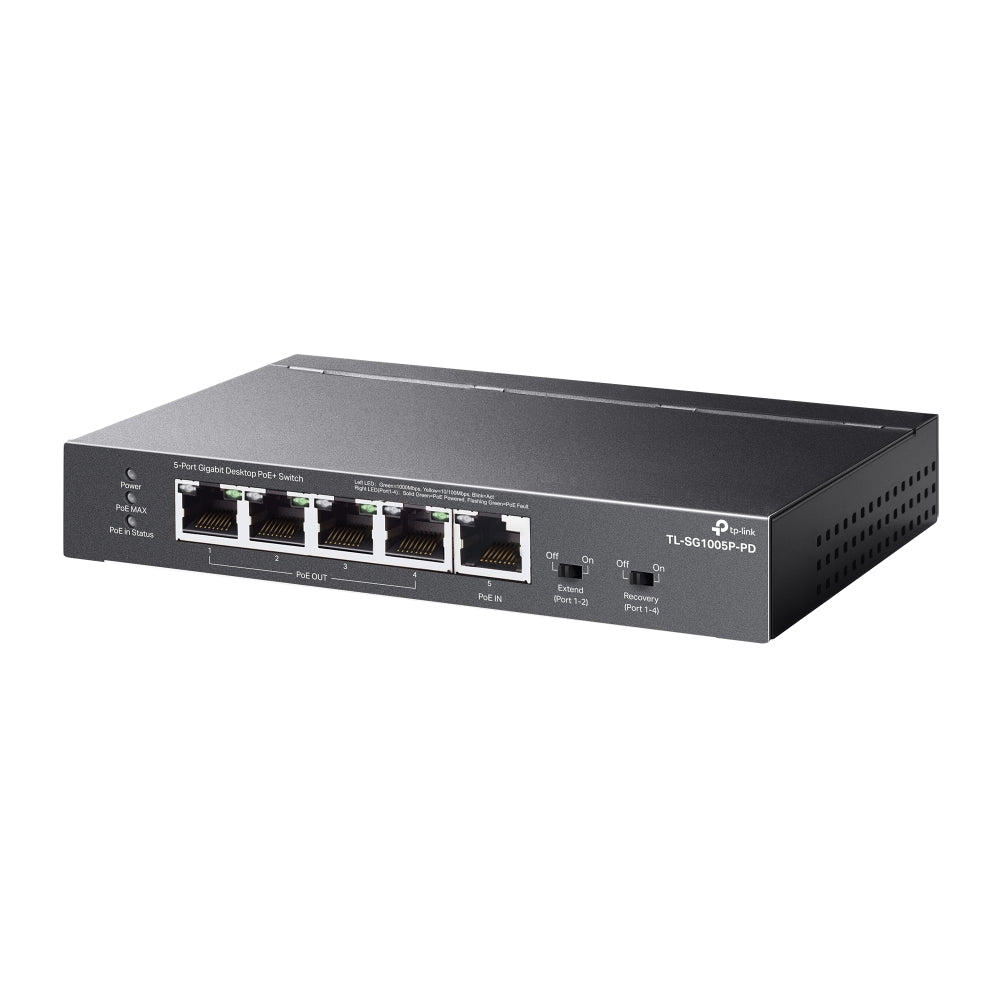

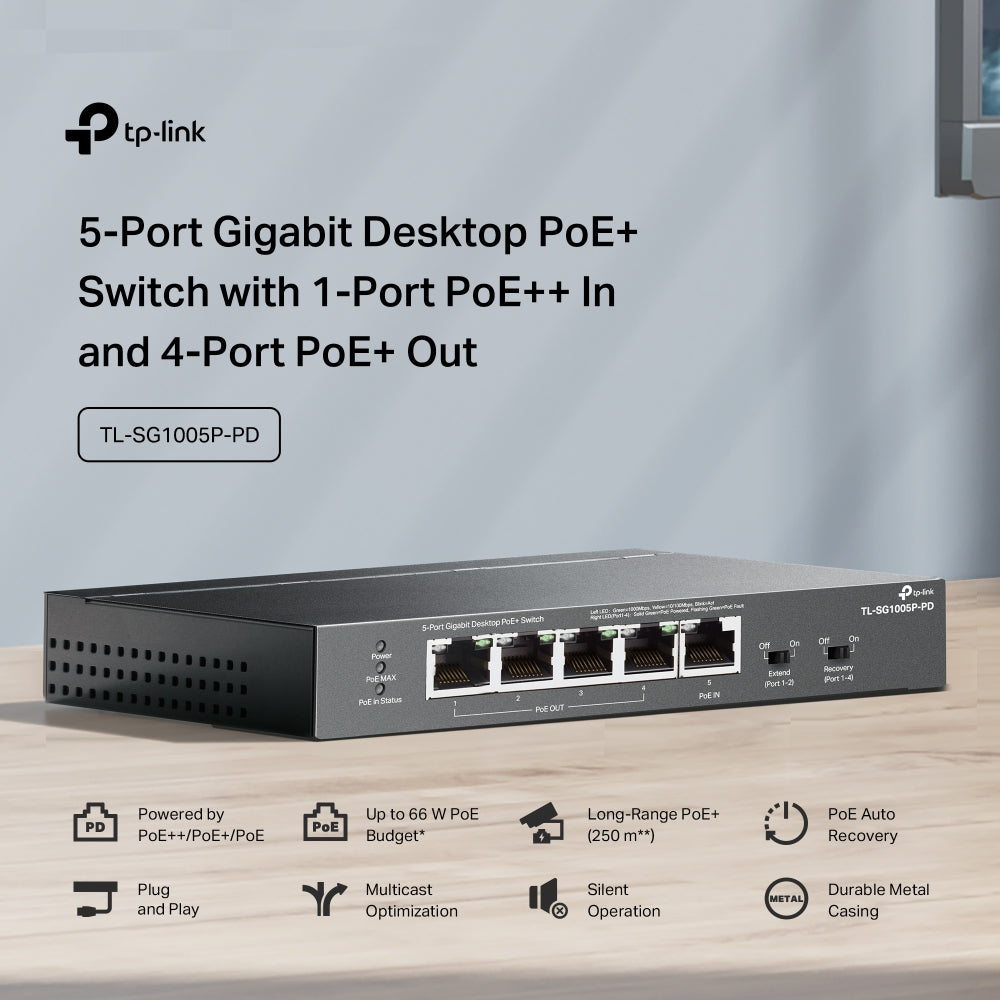

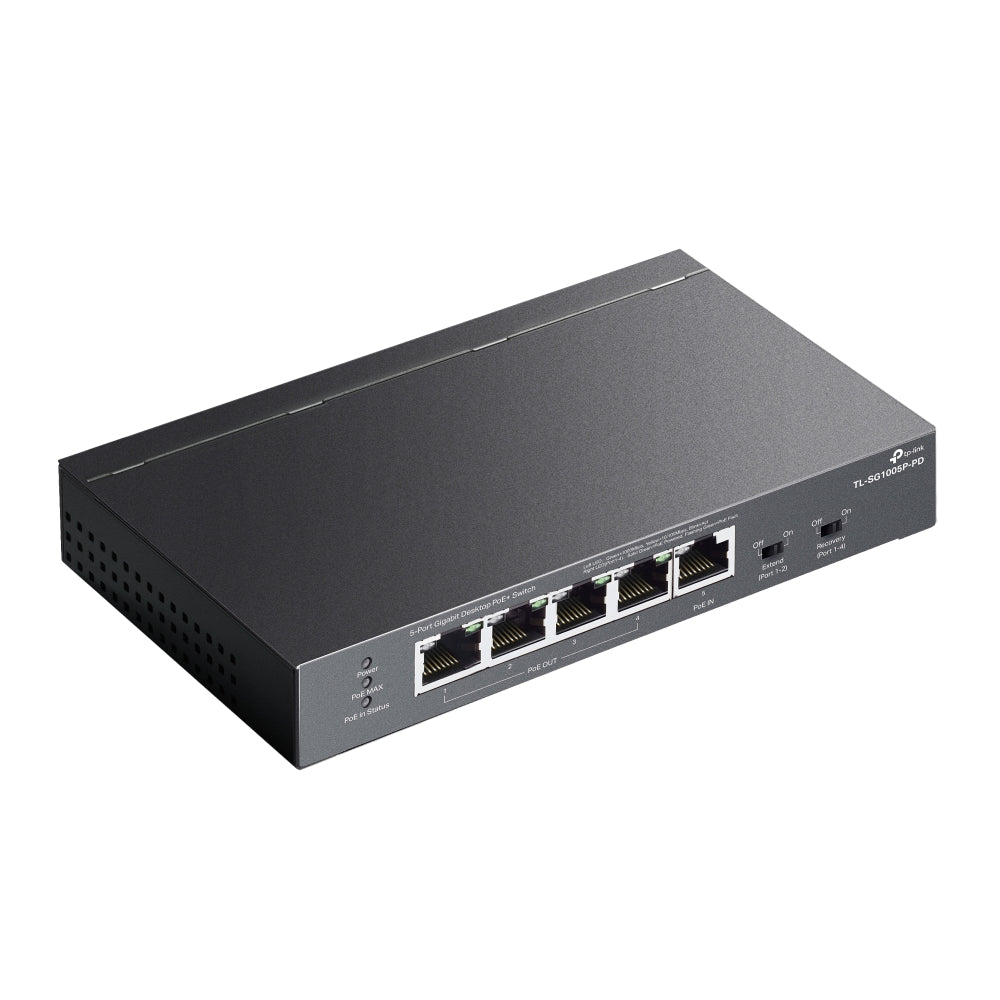

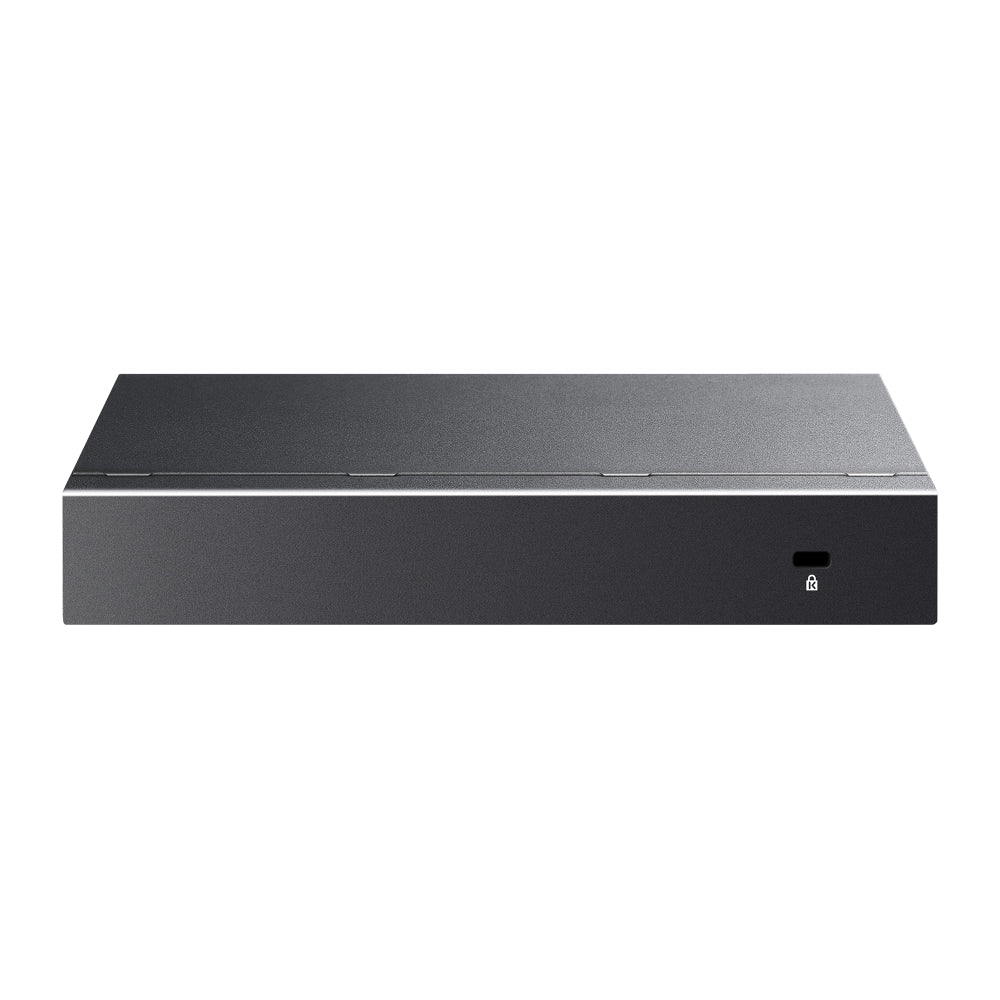

Simplify power and network deployments with the innovative TP-Link TL-SG1005P-PD, a compact yet powerful 5-Port Gigabit PoE+ Desktop Switch designed for modern networks.

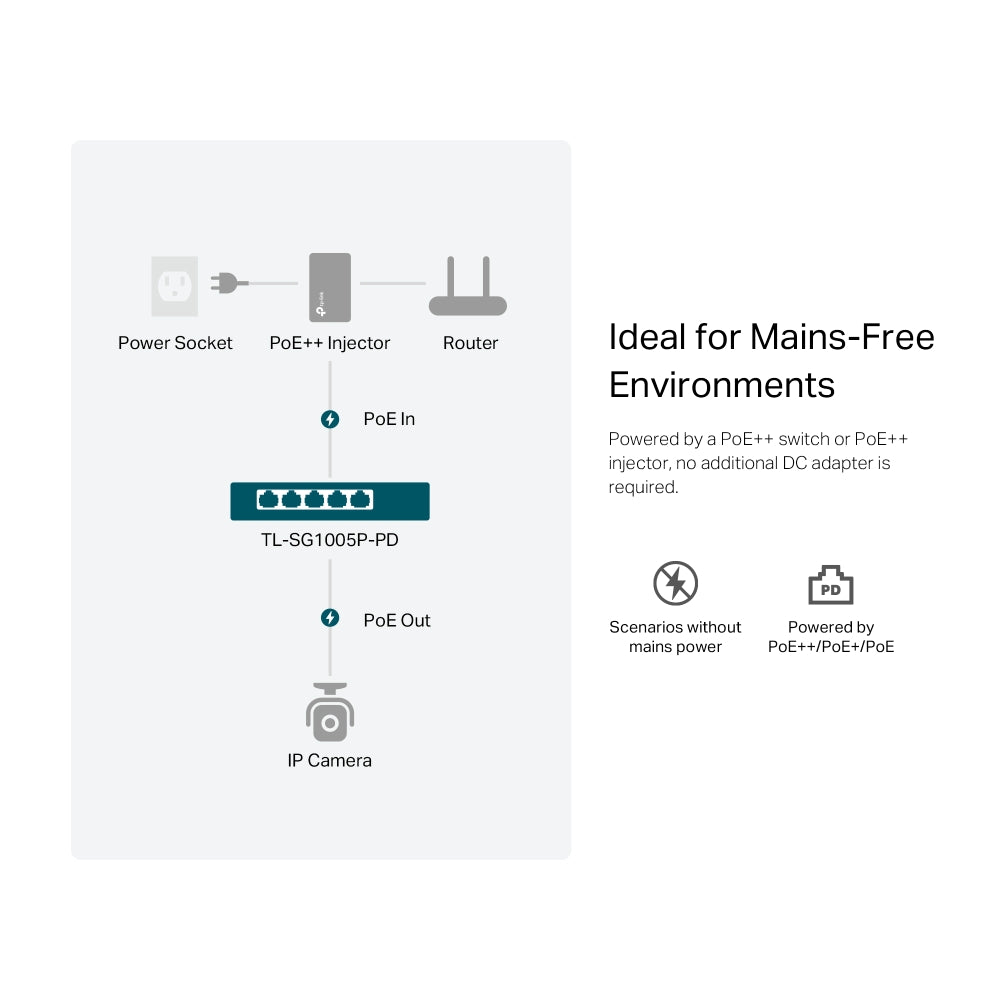

This unique switch operates solely via PoE input power, eliminating the need for external AC/DC adapters. With one PoE++ input port and four PoE+ output ports, it’s perfect for installations where traditional power sources are unavailable or inconvenient. Depending on the upstream PoE source, it delivers a flexible PoE budget up to 66W, supporting high-power devices such as PTZ cameras, advanced wireless access points, and IP phones.
Extend Mode pushes PoE data and power transmission up to 250 metres, ideal for large properties or extended surveillance deployments. PoE Auto Recovery ensures maximum uptime by automatically rebooting unresponsive devices, keeping your network operating reliably without manual intervention.

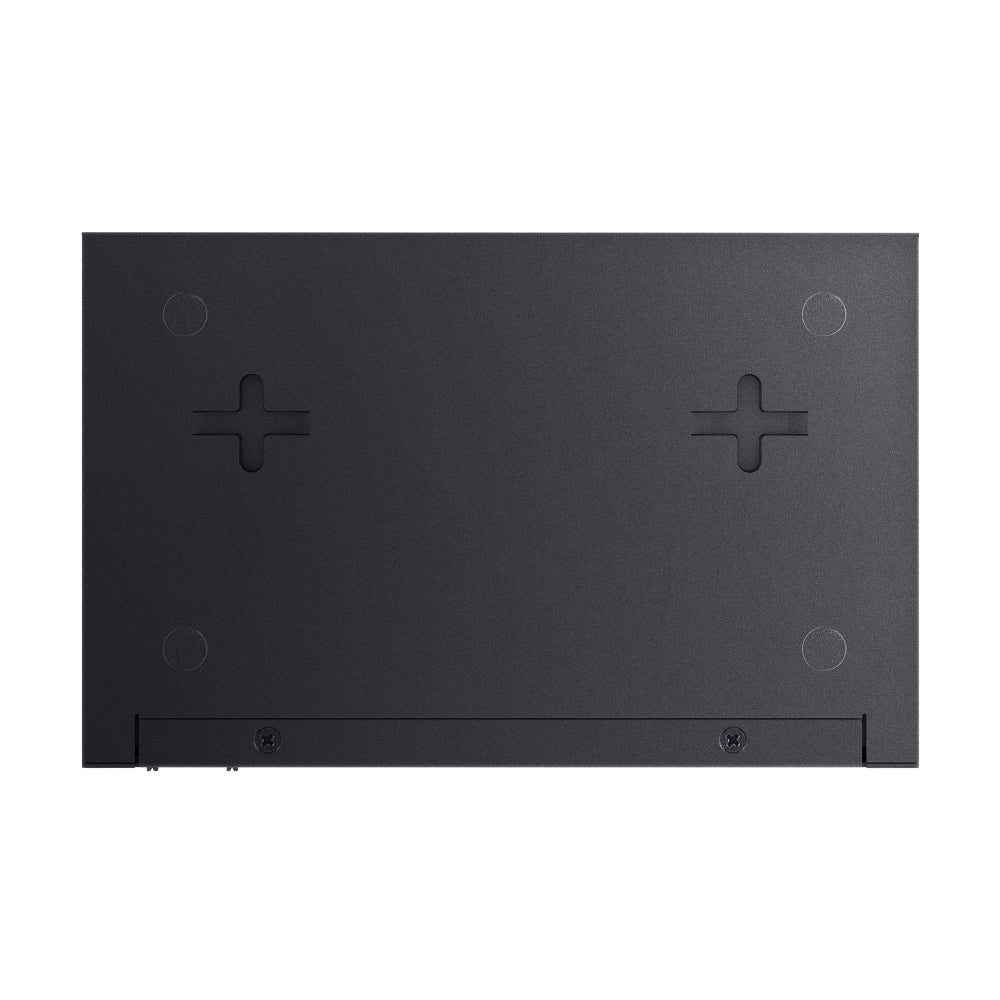

Its fanless design guarantees silent operation, while the robust metal casing and versatile desktop or wall-mounting options make the TL-SG1005P-PD suitable for various environments—from home offices to industrial spaces.
What's in the Box
Main Features
✅ Innovative PoE-Powered Operation – Powered entirely via PoE input, ideal for locations without direct power outlets.
✅ Flexible PoE Budget – Supports up to 66W of PoE output, depending on the upstream power source, to power multiple devices simultaneously.
✅ 1-Port PoE++ In / 4-Port PoE+ Out – PoE++ input for high-power sourcing; PoE+ output for devices such as cameras, APs, and VoIP phones.

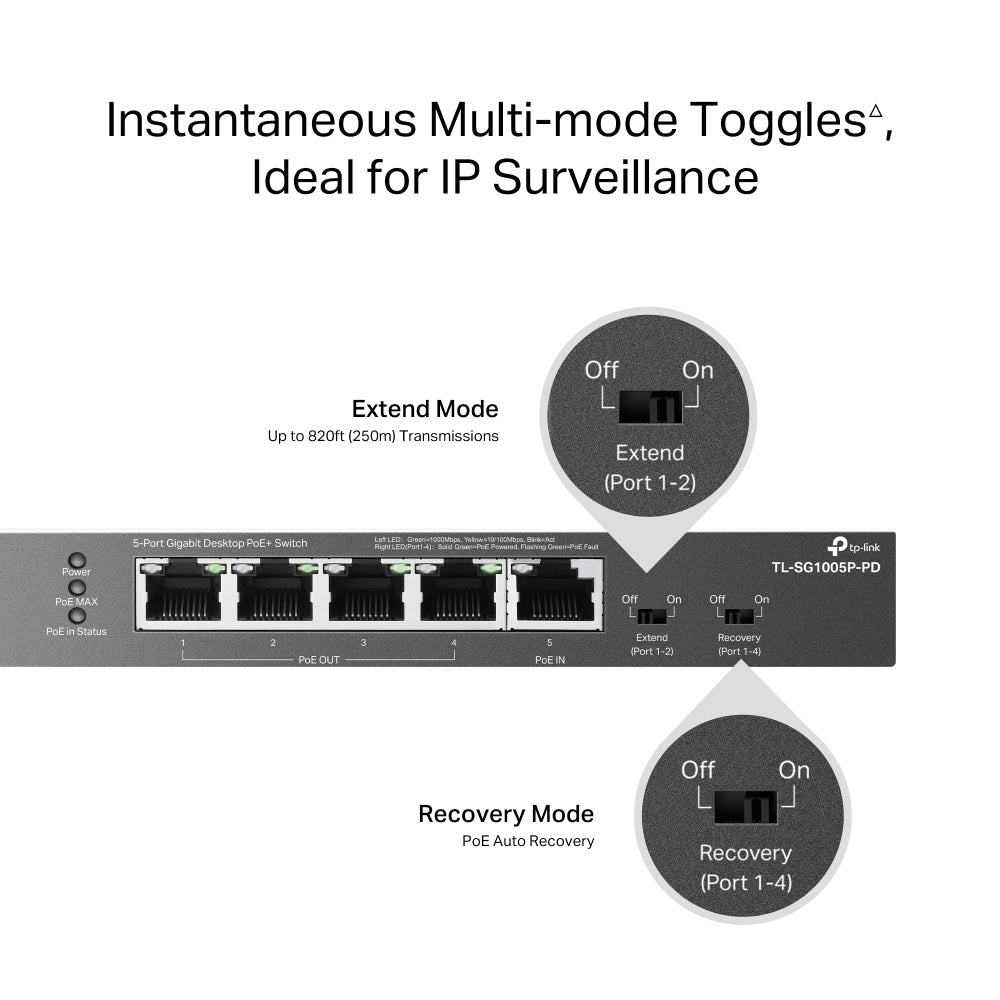

✅ Extend Mode for Long Distances – Power and data transmission reach up to 250 metres—perfect for large properties and outdoor installations.
✅ PoE Auto Recovery – Automatically detects and reboots unresponsive PoE devices for uninterrupted operation.
✅ Fanless Silent Design – Operates silently, suitable for noise-sensitive environments.

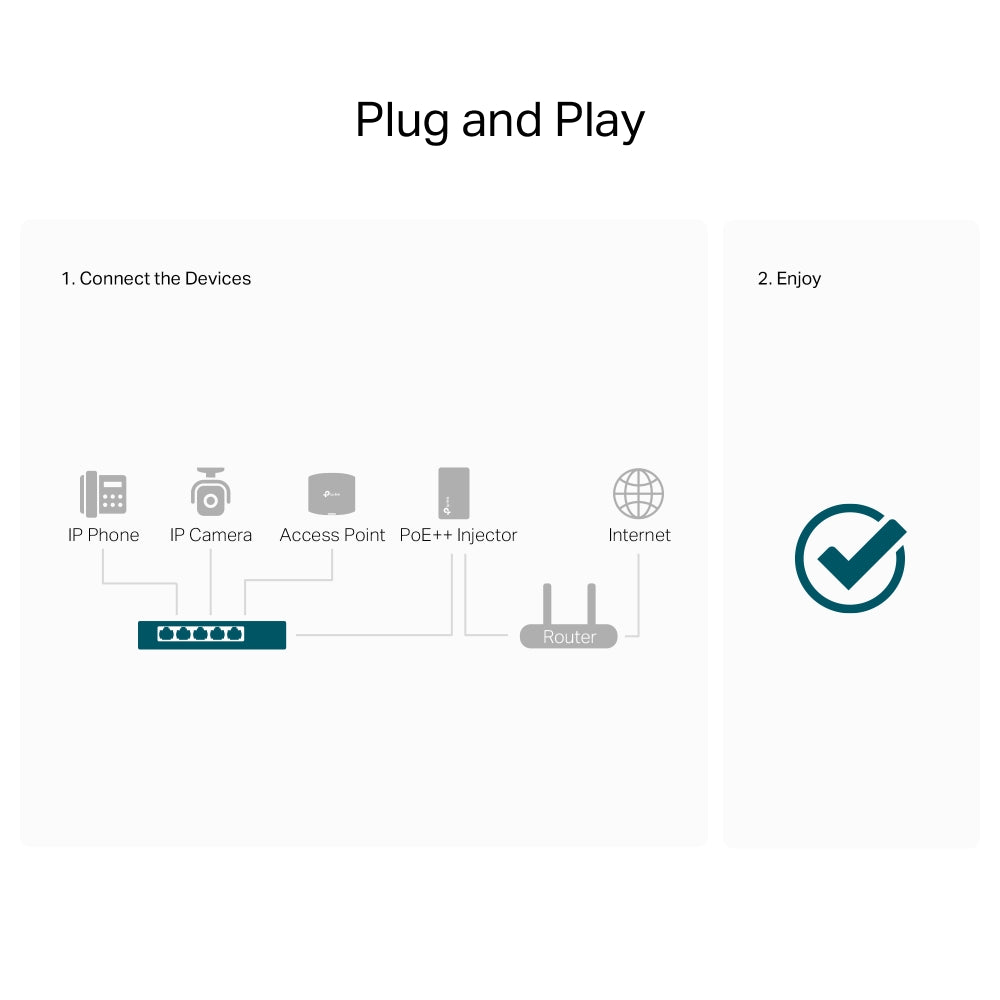

✅ Plug-and-Play Simplicity – No configuration needed for basic operation, yet packed with advanced features for professional deployments.
Detailed Specifications
Interfaces:
-
5 × 10/100/1000 Mbps RJ45 Ports
-
1 × 10/100/1000 Mbps RJ45 PoE In Port (compliant with 802.3af/at/bt Type 3/Type 4)
-
4 × 10/100/1000 Mbps RJ45 PoE Out Ports (compliant with 802.3af/at)
-
Auto-Negotiation / Auto MDI/MDIX
PoE Ports:
Performance:
-
Switching Capacity: 10 Gbps
-
Packet Forwarding Rate: 7.44 Mpps
-
MAC Address Table: 2K entries
-
Jumbo Frame: 16 KB
Quality of Service (QoS):
Advanced Features:
Physical:
Power Supply: Powered only via PoE input (no external AC/DC input supported)
Max Power Consumption:
-
2.68 W (no PD connected, powered via 90W PoE In)
-
68.59 W (powered via 90W PoE In, with 66W PD load)
Heat Dissipation:
Certifications: CE, FCC, RoHS
Environmental Specifications:
-
Operating Temperature: -30°C ~ 70°C (-22°F ~ 158°F)
-
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
-
Operating Humidity: 10% ~ 90% RH non-condensing
-
Storage Humidity: 5% ~ 90% RH non-condensing
Warranty Information
The TP-Link TL-SG1005P-PD comes with a limited manufacturer warranty. Customers in Australia and New Zealand benefit from local support and warranty services through authorised TP-Link channels, ensuring seamless assistance and peace of mind.
Brand Description
TP-Link stands as a leading global provider of networking products, renowned for combining innovative technology with user-friendly designs. The Easy Smart series embodies TP-Link’s commitment to delivering practical solutions for businesses and homes that demand both performance and simplicity.
SKU
TL-SG1005P-PD
Practical Use Scenarios
-
Outdoor Surveillance Networks – Deploy PoE cameras in large outdoor areas without running dedicated power lines, using long-distance Extend Mode.
-
Industrial Installations – Ideal for environments lacking AC power outlets, such as factory floors or warehouses.
-
Retail & Hospitality – Power wireless APs, VoIP phones, and cameras in commercial spaces, reducing wiring complexity.
-
Temporary Event Setups – Perfect for pop-up stores, exhibitions, and event sites where power availability is limited.
-
Home Office Networks – Maintain a silent, reliable setup with power delivered directly from a PoE-enabled router or switch.
Datasheets / Downloadable Resources
Download TP-Link TL-SG1005P-PD Datasheet
Excellence for the Australian and New Zealand Market
The TP-Link TL-SG1005P-PD meets all relevant Australian and New Zealand standards, including CE, FCC, and RoHS certifications. Available exclusively via authorised channels, it guarantees genuine hardware and full warranty support locally. Engineered for robust operation in diverse environments, it’s the perfect solution for modern networking demands across Australia and New Zealand.
SEO-Optimized FAQs
Q1. Does the TL-SG1005P-PD need a separate power adapter? (TL-SG1005P-PD)
No, the TL-SG1005P-PD is powered exclusively via PoE input and does not support AC or DC power adapters.
Q2. How far can the TL-SG1005P-PD extend PoE power and data transmission? (TL-SG1005P-PD)
Using Extend Mode, the TL-SG1005P-PD can deliver data and power up to 250 meters, ideal for distant IP cameras and devices.
Q3. What is the maximum power budget of the TL-SG1005P-PD? (TL-SG1005P-PD)
The maximum PoE output budget is 66W when powered by a 90W 802.3bt Type 4 PoE source.
Q4. Can the TL-SG1005P-PD automatically recover failed PoE devices? (TL-SG1005P-PD)
Yes, PoE Auto Recovery ensures network stability by automatically rebooting unresponsive PoE devices.
Q5. Is the TL-SG1005P-PD silent in operation? (TL-SG1005P-PD)
Absolutely. Its fanless design ensures completely silent operation, making it perfect for quiet environments.
