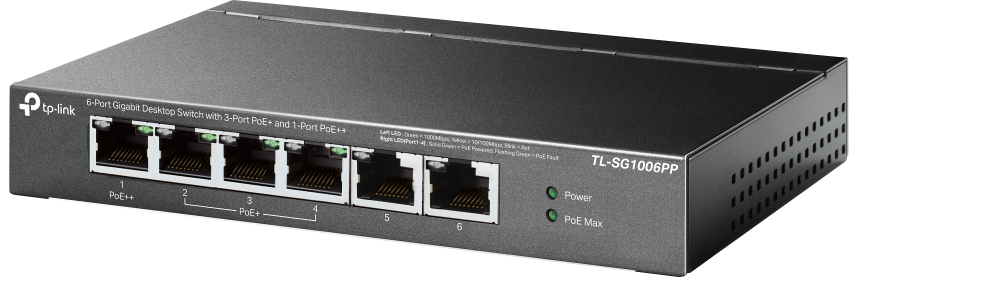

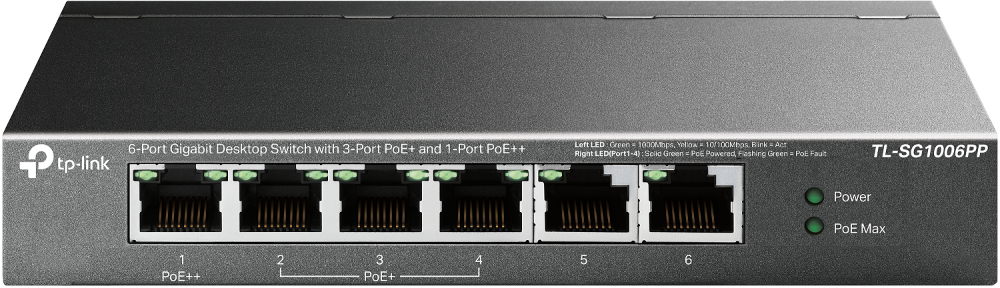

Expand your network with exceptional flexibility using the TP-Link TL-SG1006PP, a versatile 6-Port Gigabit Desktop Switch designed to deliver both power and data over a single Ethernet cable. This compact switch is the ideal choice for small offices, surveillance systems, or home networking where PoE capabilities are essential.
Equipped with one high-power PoE++ port delivering up to 60W and three PoE+ ports with up to 30W each, the TL-SG1006PP supports a total PoE budget of 64W. Perfect for high-power devices such as PTZ cameras, Wi-Fi 6 access points, or advanced IP phones, it provides seamless power and data connectivity in one simple device.
Key features like PoE Auto Recovery keep your network stable by automatically rebooting unresponsive PoE devices, while Extend Mode pushes power and data up to 250 meters—ideal for distant cameras or APs. With a silent fanless design and plug-and-play simplicity, the TL-SG1006PP is perfect for quiet workspaces or installations where noise must be kept to a minimum.
Whether you’re powering high-demand devices or expanding a business network, this switch provides reliable performance and advanced features without complexity.
What's in the Box
Main Features
✅ 1 PoE++ and 3 PoE+ Ports with 64W Budget – Power high-demand devices such as PTZ cameras or Wi-Fi 6 APs with one PoE++ port up to 60W, plus three PoE+ ports up to 30W each.
✅ Gigabit Connectivity Across All Ports – Enjoy high-speed, stable connections across six RJ45 ports for smooth data transfer.

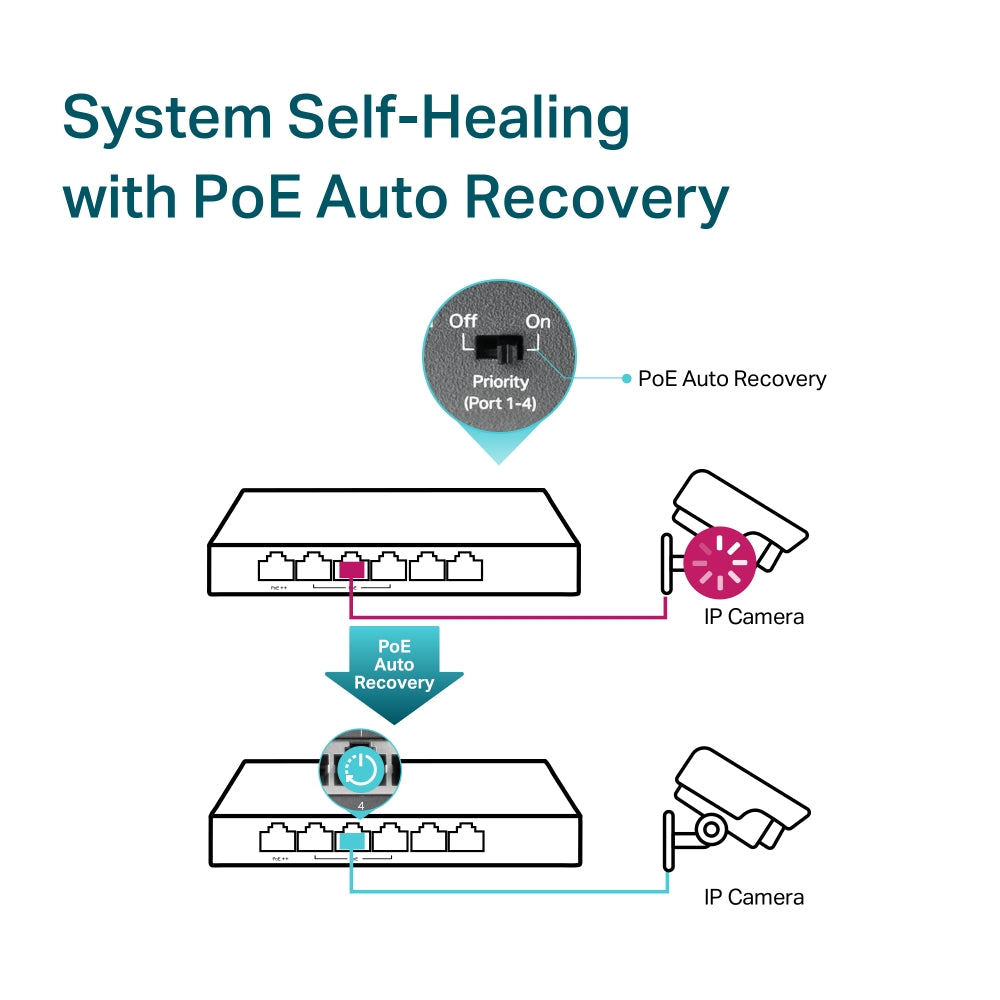

✅ PoE Auto Recovery – Detects and automatically reboots unresponsive PoE devices for continuous, stable network operation.
✅ Fanless Silent Operation – Operates silently, ideal for offices, retail spaces, or home environments where noise must be minimal.

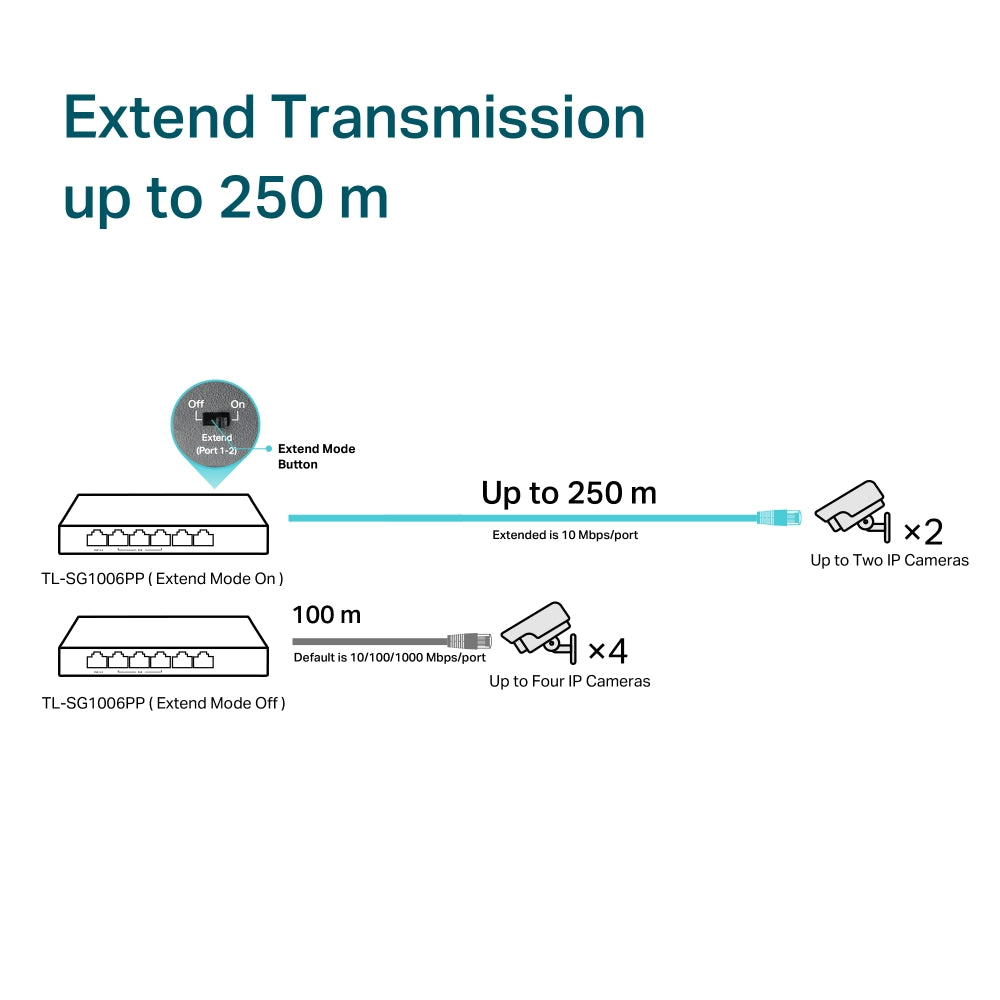

✅ Extend Mode – Supports data and power transmission up to 250 meters, perfect for remote device installations.

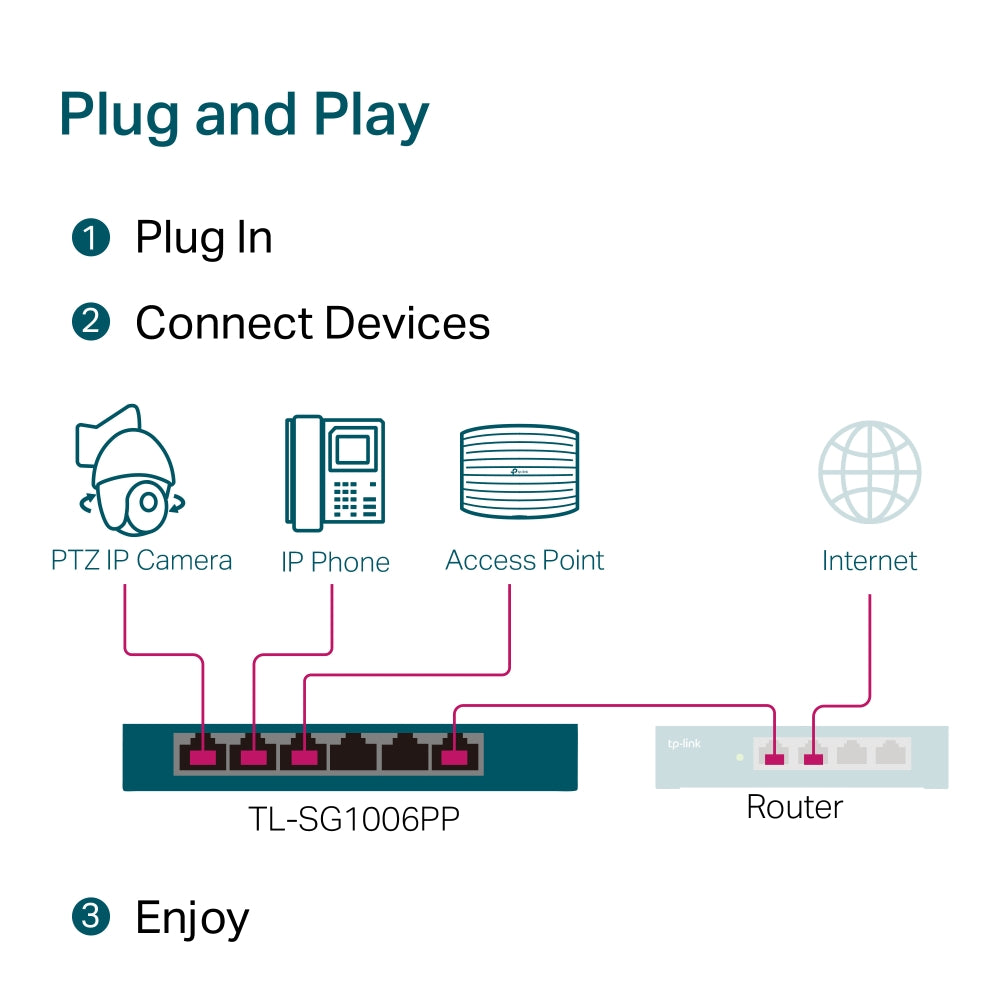

✅ Plug-and-Play Deployment – No configuration required for basic operation, yet advanced features are available for further control.
Detailed Specifications
Interfaces:
PoE Ports:
-
Port 1: IEEE 802.3af/at/bt compliant (PoE++) – up to 60W
-
Ports 2-4: IEEE 802.3af/at compliant (PoE+) – up to 30W each
-
Total PoE Budget: 64W
-
PoE Auto Recovery: Yes
-
Extend Mode (up to 250m): Yes
Performance:
-
Switching Capacity: 12 Gbps
-
Packet Forwarding Rate: 8.928 Mpps
-
MAC Address Table: 4K entries
-
Jumbo Frame: 16 KB
Quality of Service (QoS):
Layer 2 Features:
Transmission Method: Store-and-Forward
Physical:

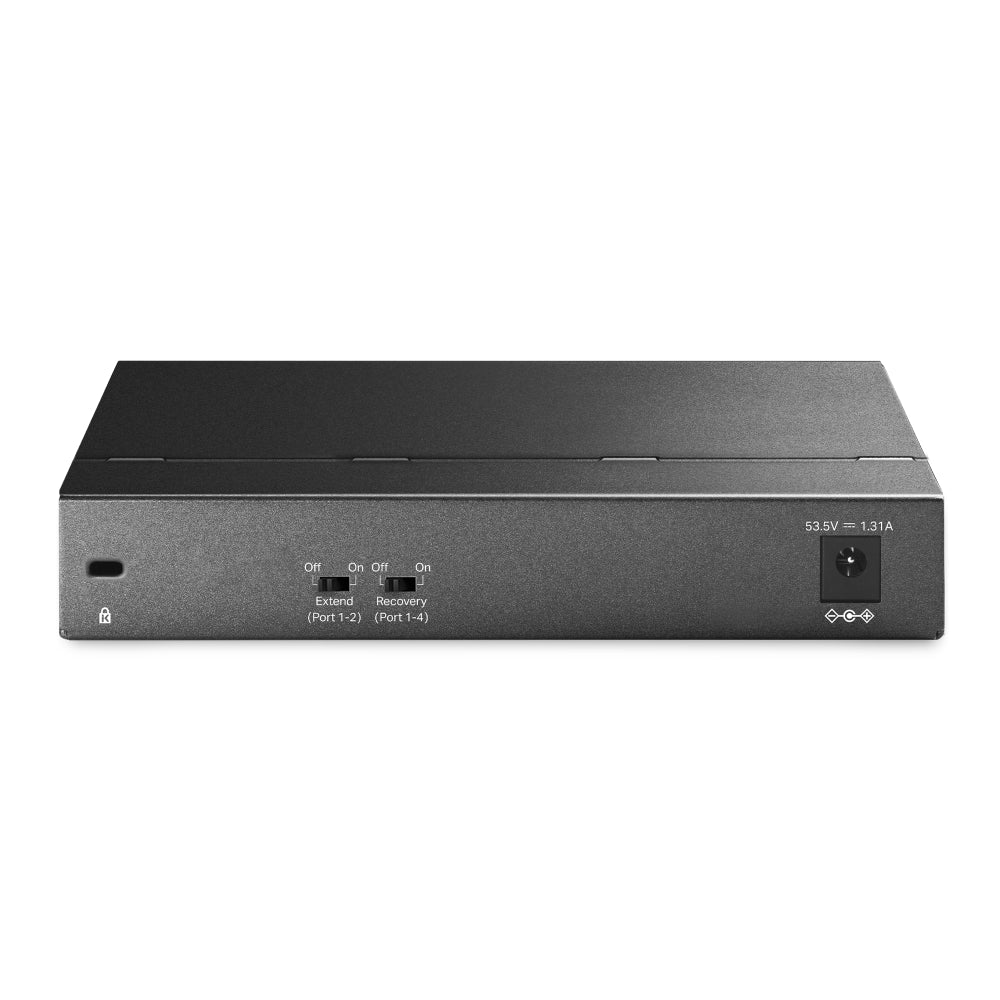

Power Supply: External Power Adapter (53.5 VDC / 1.31 A)
Max Power Consumption:
Heat Dissipation:
Certifications: FCC, CE, RoHS
Environmental Specifications:
-
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
-
Operating Humidity: 10% ~ 90% RH non-condensing
-
Storage Humidity: 5% ~ 90% RH non-condensing
Warranty Information
The TP-Link TL-SG1006PP is backed by a limited manufacturer warranty. Customers in Australia and New Zealand benefit from local support and warranty services through authorised TP-Link channels, ensuring fast, reliable assistance and peace of mind.
Brand Description
TP-Link is a globally trusted name in networking products, known for delivering reliable and high-performance solutions for businesses and home users alike. The Easy Smart and PoE switch series reflects TP-Link’s commitment to combining advanced technology with simple, practical designs for modern networks.
SKU
TL-SG1006PP
Practical Use Scenarios
-
Security Networks – Power and connect PTZ cameras or IP cameras in offices, warehouses, or retail stores using PoE++ and PoE+ ports.
-
Wi-Fi 6 Deployments – Provide power and connectivity to high-power Wi-Fi 6 access points with ample PoE++ capacity.
-
Retail & Hospitality – Simplify installations of IP phones, wireless APs, and cameras without additional power cabling.
-
Home Offices & Studios – Quiet, fanless design makes it ideal for professional home network environments.
-
Remote Installations – Extend Mode allows you to power and connect devices up to 250 meters away, perfect for large spaces or distant cameras.
Datasheets / Downloadable Resources
Download TP-Link TL-SG1006PP Datasheet
Excellence for the Australian and New Zealand Market
The TP-Link TL-SG1006PP fully complies with Australian and New Zealand regulatory standards, including FCC, CE, and RoHS certifications. Sourced exclusively through authorised channels, it ensures genuine hardware and complete warranty support locally. Engineered for reliable performance in diverse conditions, it’s the perfect solution for modern networking across Australia and New Zealand.
SEO-Optimized FAQs
Q1. What is the difference between PoE++ and PoE+ on the TL-SG1006PP? (TL-SG1006PP)
PoE++ delivers up to 60W per port for high-power devices like PTZ cameras, while PoE+ provides up to 30W per port for devices such as IP cameras and wireless access points.
Q2. Can the TL-SG1006PP extend PoE connections over long distances? (TL-SG1006PP)
Yes! Extend Mode on the TL-SG1006PP enables data and power transmission up to 250 meters, ideal for remote installations.
Q3. Is the TL-SG1006PP suitable for silent environments? (TL-SG1006PP)
Absolutely! Its fanless design ensures silent operation, making it perfect for offices, retail stores, or home networks.
Q4. Does the TL-SG1006PP support VLANs? (TL-SG1006PP)
While it supports IGMP Snooping and basic traffic management, VLAN-specific features are limited, making it ideal for plug-and-play PoE setups rather than complex VLAN segmentation.
Q5. Can the TL-SG1006PP automatically recover unresponsive devices? (TL-SG1006PP)
Yes. PoE Auto Recovery detects unresponsive PoE devices and automatically reboots them, ensuring uninterrupted network operation.
