Experience efficient and reliable networking with the TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch, the perfect solution for small office and home office (SOHO) environments seeking advanced functionality in a compact form factor. Equipped with five high-speed 10/100/1000Mbps RJ45 ports, this switch delivers blazing-fast wired connections, supporting bandwidth-intensive tasks like HD video streaming, large file transfers, and VoIP communications.
Its Plug and Play capability means effortless installation—simply connect your devices and power up, no configuration required. For those seeking deeper network control, the TL-SG105E provides an intuitive web user interface and downloadable utility, offering advanced features such as VLAN segmentation, QoS prioritization, and traffic monitoring to enhance network efficiency and security.
Built with a durable metal housing, the TL-SG105E ensures excellent heat dissipation and long-lasting reliability while maintaining a sleek, professional appearance. The fanless design guarantees silent operation, making it ideal for noise-sensitive environments like offices and home studios.
Eco-conscious users will appreciate TP-Link’s Green Ethernet technology, which reduces power consumption without sacrificing performance, helping lower energy costs and environmental impact.
Offering enterprise-grade features like IGMP Snooping, Static Link Aggregation, Port Mirroring, Cable Diagnostics, and Loop Prevention, the TL-SG105E is an affordable yet powerful choice for users demanding smarter, faster, and more efficient networking
.
What’s Included in the Box
Main Features

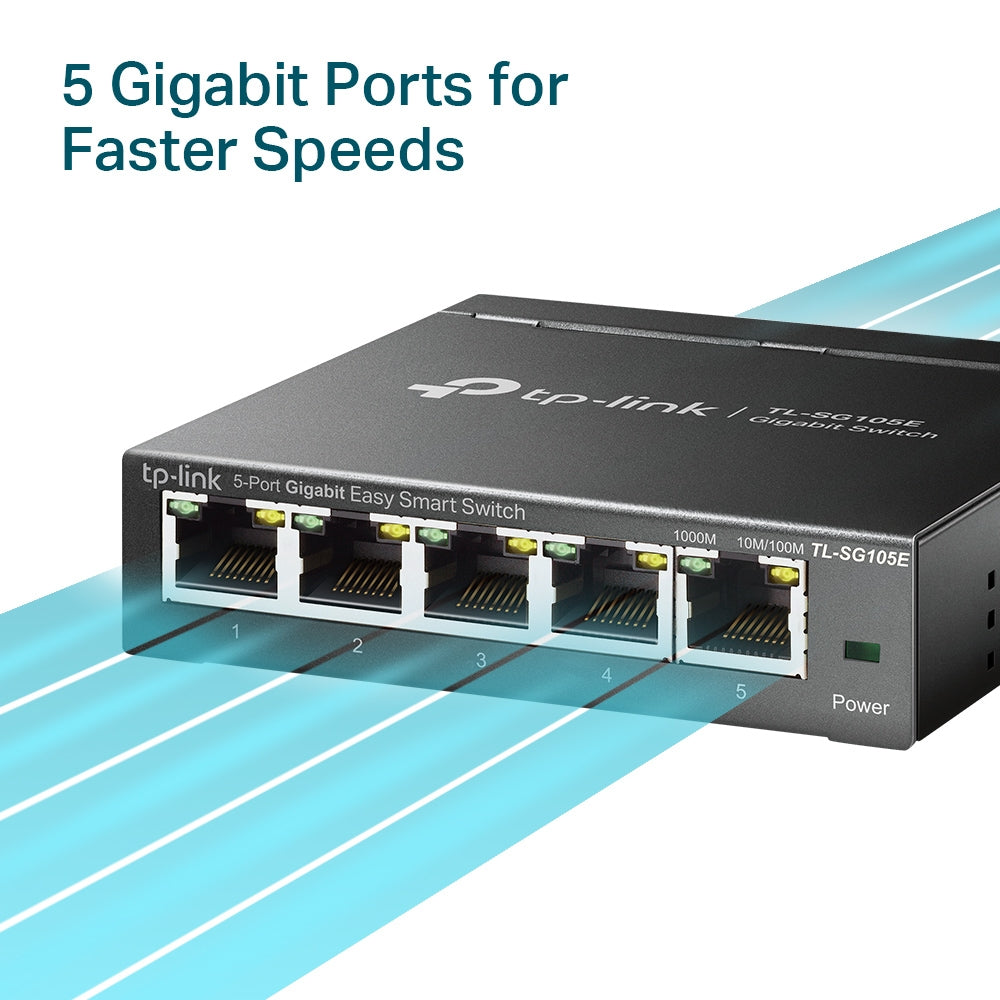

✅ 5 Gigabit Ports – Ensures high-speed, stable connections for all your wired devices.

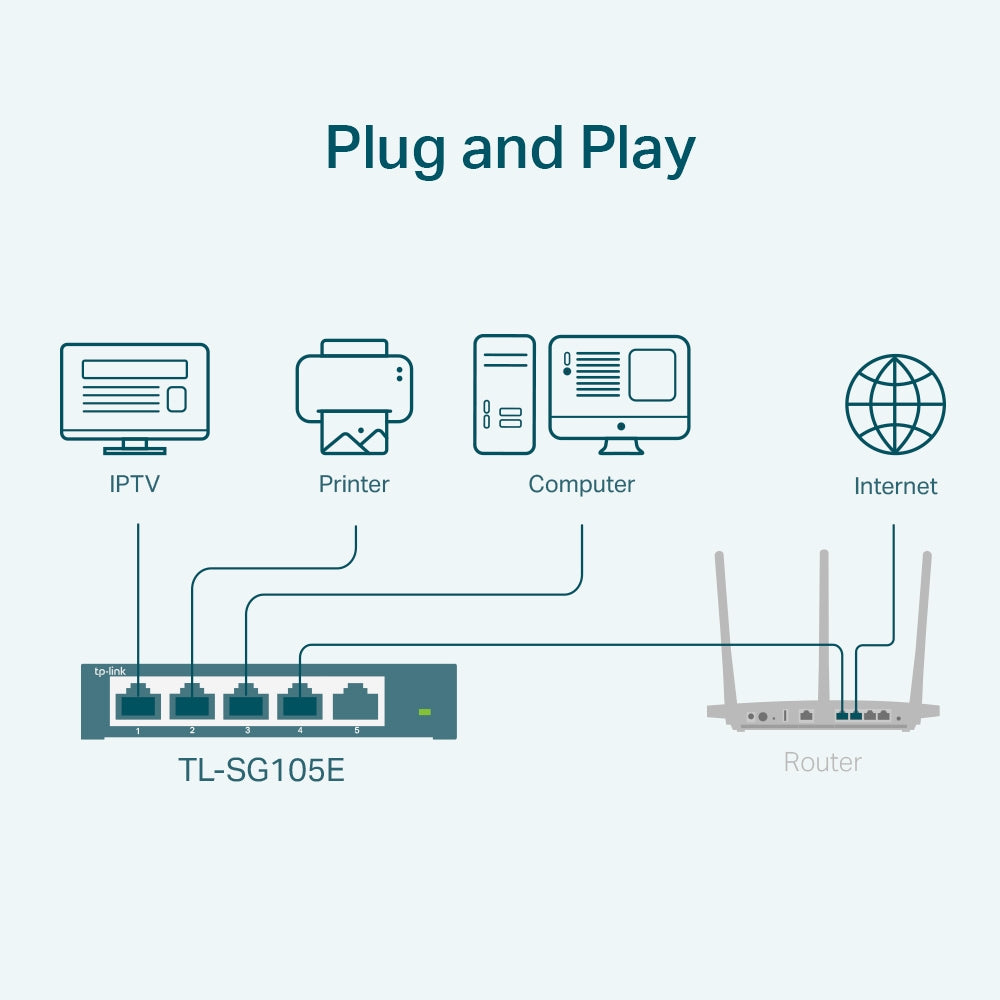

✅ Plug and Play Simplicity – No complex configuration needed; instant network expansion.

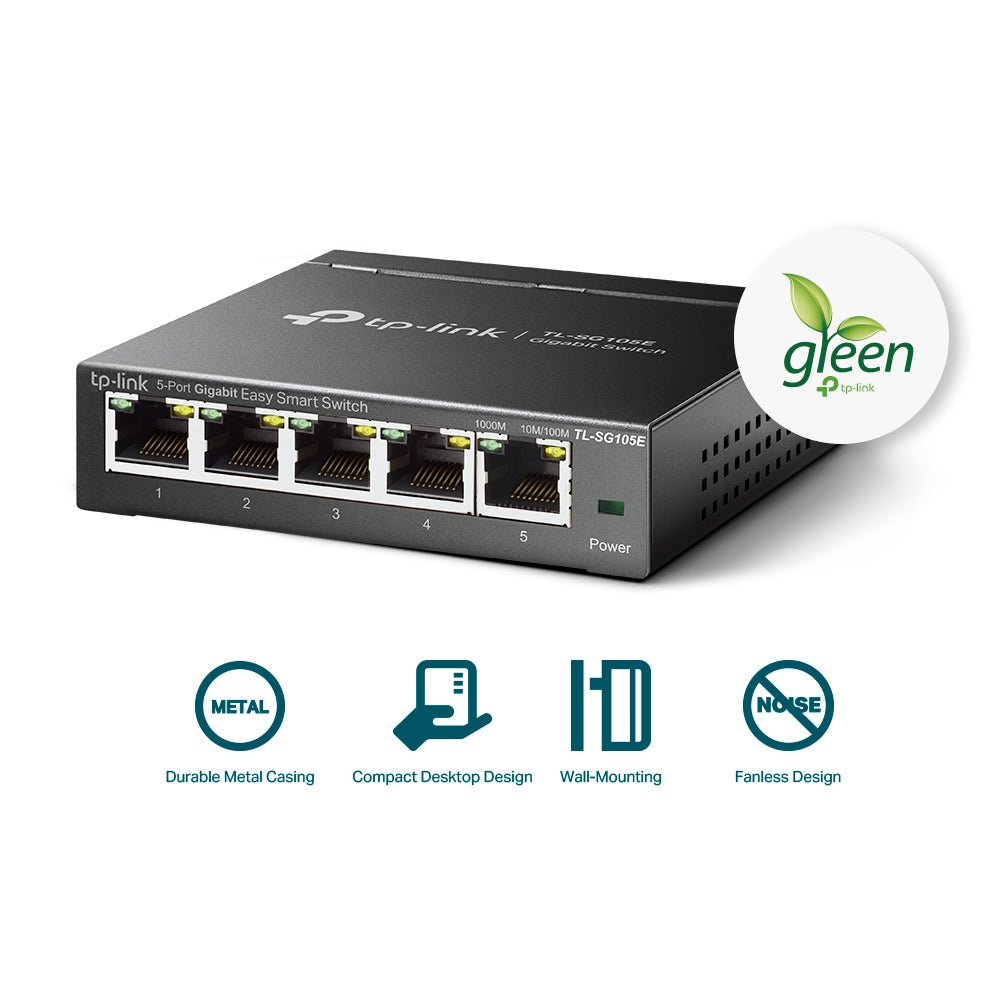

✅ Robust Metal Design – Enhances heat dissipation and durability for long-term use.
✅ Silent Operation – Fanless design ensures quiet performance in any environment.
✅ Smart Management – Control VLANs, prioritize traffic, and diagnose network issues via an easy web interface or utility.
✅ Energy Efficient – Green technology reduces power consumption without compromising performance.
✅ Compact Size – Perfect for desktop setups or tight spaces where every centimetre counts.
Detailed Specifications
-

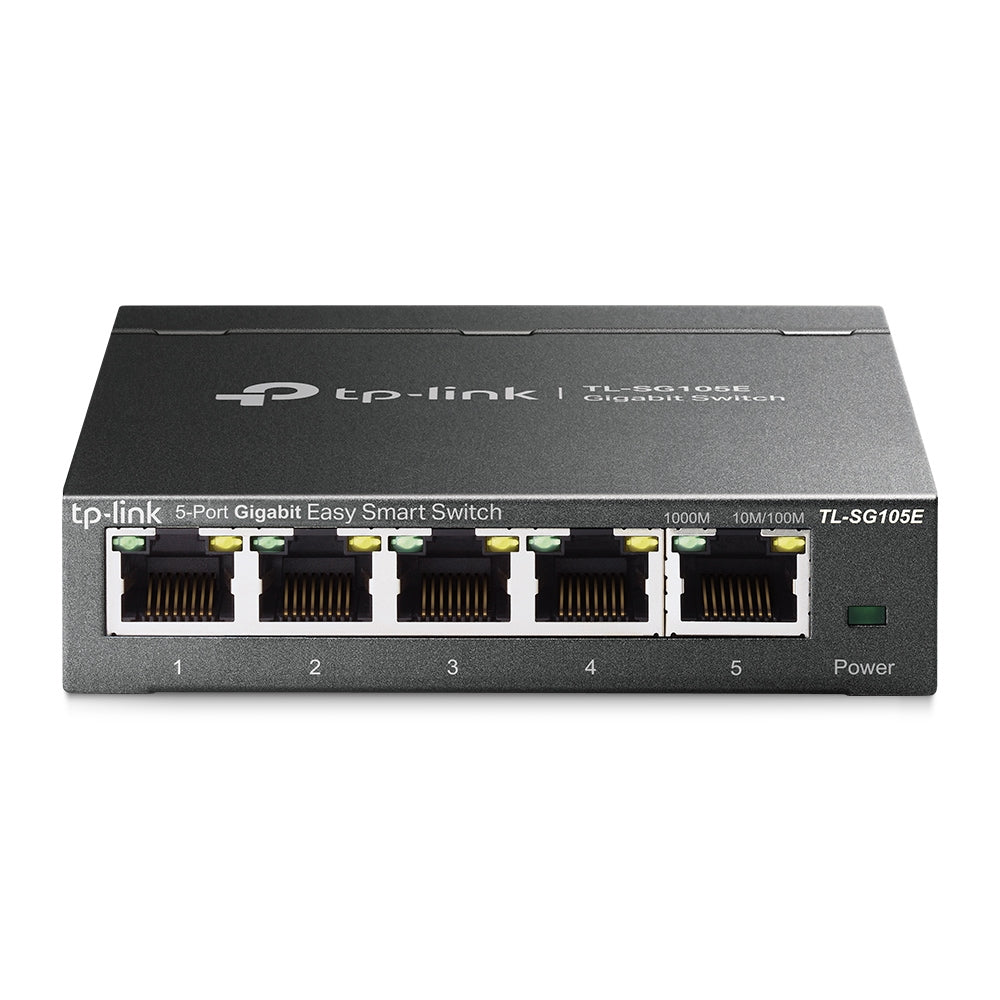

Model: TL-SG105E
-
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
-
Ports: 5 × 10/100/1000Mbps RJ45 ports (Auto-Negotiation, Auto MDI/MDIX)
-
Network Media:
-
10BASE-T: UTP Cat3, 4, 5 (max 100m)
-
100BASE-TX: UTP Cat5, 5e (max 100m)
-
1000BASE-T: UTP Cat5, 5e, 6 or above (max 100m)
-
Fan Quantity: Fanless
-

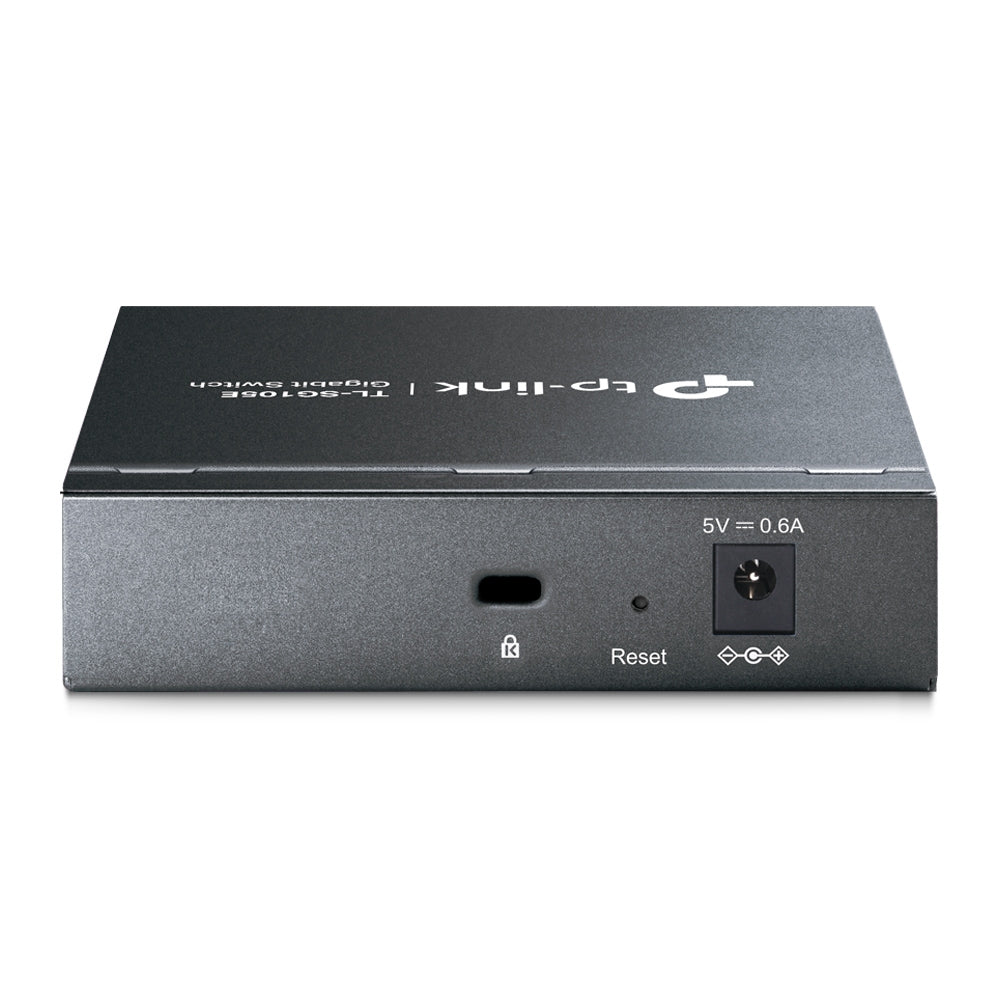

Power Supply: External Power Adapter (Output: 5VDC/0.6A)
-
Dimensions (W × D × H): 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in.)
-
Max. Power Consumption: 2.82W (220V/50Hz)
-
Max. Heat Dissipation: 9.62 BTU/h
-
Packet Forwarding Rate: 7.4 Mpps
-
MAC Address Table: 2K entries
-
Packet Buffer Memory: 1Mb
-
Jumbo Frame: 16KB
-
Software Features:
-
QoS (Port-based / 802.1p / DSCP priority, 4 priority queues, Rate Limiting, Storm Control)
-
L2 Features (IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention)
-
VLAN support for up to 32 VLANs simultaneously
-
Transmission Method: Store-And-Forward
-
Certifications: FCC, CE, RoHS
-
Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
-
Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
-
Operating Humidity: 10% ~ 90% non-condensing
-
Storage Humidity: 5% ~ 90% non-condensing
Warranty Information
The TL-SG105E is protected by TP-Link’s limited warranty, covering manufacturing defects and workmanship. Warranty claims and support are handled via authorized TP-Link service partners to ensure fast and professional assistance.
About TP-Link
Established in 1996, TP-Link is a global leader in networking solutions, known for producing innovative, high-performance products. Serving millions worldwide, TP-Link products combine quality and affordability, helping homes and businesses stay seamlessly connected.
SKU
TL-SG105E
Practical Use Scenarios
-
Home Networking: Connect smart TVs, game consoles, and PCs for high-speed streaming and gaming.
-
Small Offices: Expand network capacity for computers, VoIP phones, and printers with seamless connectivity.
-
Retail Shops: Support POS systems and security cameras with reliable wired networking.
-
Home Studios: Ensure stable connections for media editing and large file transfers.
-
Educational Environments: Equip classrooms or labs with robust networking for e-learning tools and online resources.
Datasheets / Downloadable Resources
Download TP-Link TL-SG105E Datasheet
Excellence for the Australian and New Zealand Market
The TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch meets all relevant Australian and New Zealand electrical and safety standards, with certifications like FCC, CE, and RoHS ensuring compliance and safety. Tailored for the region’s unique networking needs, the TL-SG105E is sourced exclusively from authorized TP-Link distributors to guarantee genuine products and local warranty support. All warranty claims and technical services are handled directly through TP-Link or authorized partners, delivering peace of mind and high-quality after-sales support across Australia and New Zealand.
FAQs
Q1: Does the TP-Link TL-SG105E (TL-SG105E) support VLAN configuration?
Yes, the TL-SG105E supports up to 32 VLANs simultaneously, allowing you to segment your network for improved security and performance.
Q2: Is the TP-Link TL-SG105E (TL-SG105E) fanless and silent?
Yes, the TL-SG105E operates without a fan, ensuring completely silent performance suitable for noise-sensitive environments.
Q3: What is the maximum switching capacity of the TP-Link TL-SG105E (TL-SG105E)?
While the exact switching capacity isn’t listed, the TL-SG105E offers a forwarding rate of 7.4 Mpps, supporting efficient data transfer across all five ports.
Q4: Can the TP-Link TL-SG105E (TL-SG105E) handle high-definition video streaming?
Absolutely. With Gigabit speeds and support for jumbo frames, the TL-SG105E can handle HD video streaming and large data transfers smoothly.
Q5: Is the TP-Link TL-SG105E (TL-SG105E) suitable for Australian and New Zealand networks?
Yes, the TL-SG105E complies with Australian and New Zealand standards and is distributed through authorized channels, ensuring reliable local support and warranty coverage.
