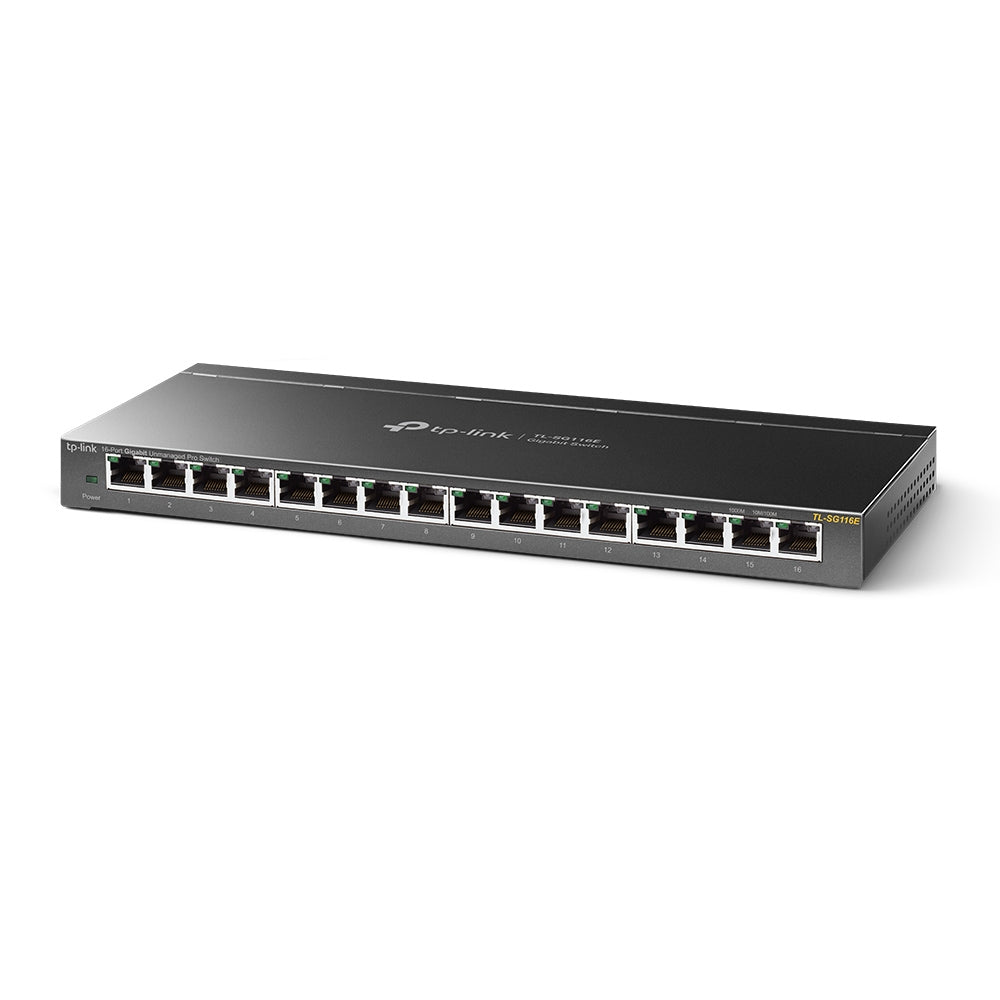

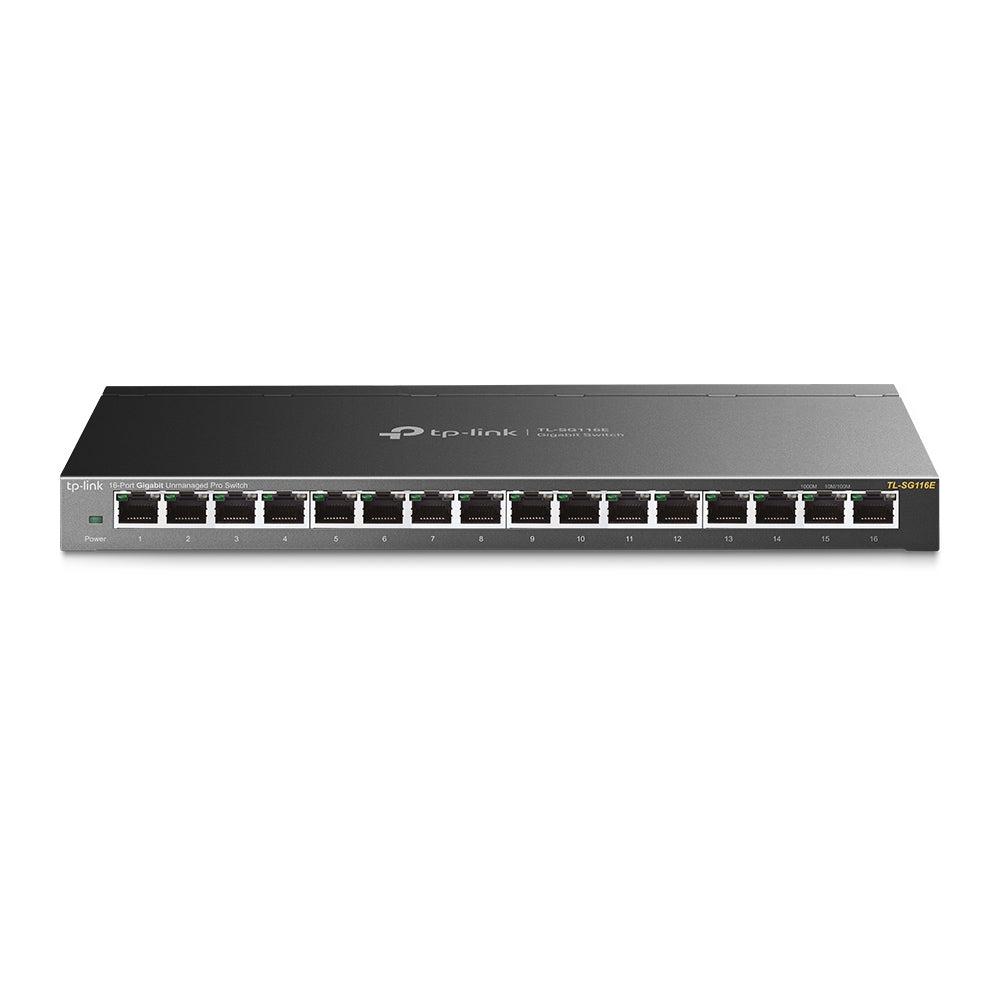

Upgrade your network infrastructure with the TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch, the ideal solution for small businesses, home offices, and demanding SOHO environments seeking superior performance and effortless management. Featuring 16 high-speed 10/100/1000Mbps RJ45 ports, this switch ensures lightning-fast data transfers and reliable connectivity across all connected devices.

Thanks to its Plug and Play functionality, the TL-SG116E eliminates the complexity of network deployment, requiring no configuration out of the box. For those who need advanced control, its intuitive web user interface and downloadable utility enable intelligent network management, including VLAN segmentation, QoS prioritization, and traffic monitoring.

Housed in a robust durable metal casing, the TL-SG116E is engineered for long-term reliability while maintaining a professional appearance that seamlessly fits into any business or office environment. As part of TP-Link’s green technology commitment, it also optimizes power consumption, helping reduce operational costs and environmental impact without compromising performance.

With features like IGMP Snooping, Static Link Aggregation, Port Mirroring, Cable Diagnostics, and Loop Prevention, the TL-SG116E delivers enterprise-class capabilities at an affordable price point, making it a smart investment for networks demanding speed, stability, and flexibility.

What’s Included in the Box

• TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch

• Power Cord

• Installation Guide

• Rubber Feet

Main Features

✅ 16 Gigabit Ports – Connect multiple devices with 10/100/1000Mbps auto-negotiation for maximum flexibility and high-speed performance.

✅ Plug and Play – No complex configuration needed; simply power up and connect your devices.

✅ Durable Metal Housing – Robust and professional design ensures heat dissipation and long-term reliability.

✅ Fanless Design – Silent operation makes it perfect for noise-sensitive environments like offices and meeting rooms.

✅ Advanced Management Features – Includes VLAN, QoS, Port Mirroring, and more, accessible via intuitive web interface and utility software.

✅ Energy-Efficient Technology – Reduces power consumption without sacrificing performance.

✅ High Switching Capacity – 32Gbps switching capacity for seamless data transfers even under heavy load.

Detailed Specifications

• Model: TL-SG116E

• Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p

• Ports: 16 × 10/100/1000Mbps RJ45 ports (Auto-Negotiation, Auto MDI/MDIX)

• Network Media:

  • 10BASE-T: UTP Cat3, 4, 5 (max 100m)

  • 100BASE-TX: UTP Cat5, 5e (max 100m)

  • 1000BASE-T: UTP Cat5, 5e, 6 or above (max 100m)

• Fan Quantity: Fanless

• Power Supply: External Power Adapter (Output: 9VDC/0.6A)

• Dimensions (W × D × H): 286 × 111.7 × 25.4 mm (11.3 × 4.4 × 1.0 in.)

• Max. Power Consumption: 9.19W (220V/50Hz)

• Max. Heat Dissipation: 31.36 BTU/h

• Switching Capacity: 32Gbps

• Packet Forwarding Rate: 23.81Mpps

• MAC Address Table: 8K entries

• Packet Buffer Memory: 4.1Mb

• Jumbo Frame: 9KB

• Software Features:

  • QoS (Port-based / 802.1p / DSCP priority, 4 priority queues, Rate Limiting, Storm Control)

  • L2 Features (IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention)

  • VLAN support for up to 32 VLANs simultaneously

  • Transmission Method: Store-And-Forward

• Certifications: FCC, CE, RoHS

• Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)

• Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)

• Operating Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5% ~ 90% non-condensing

Warranty Information

This product comes with TP-Link’s standard limited warranty, covering defects in materials and workmanship. Warranty handling is managed through authorized TP-Link channels, ensuring peace of mind and prompt support.

About TP-Link

Founded in 1996, TP-Link is a global leader in networking solutions, recognized for delivering high-quality, reliable, and innovative products. From home Wi-Fi to enterprise-grade networking hardware, TP-Link products empower users worldwide to stay connected securely and efficiently.

SKU

TL-SG116E

Practical Use Scenarios

• Small Business Networks: Connect workstations, printers, and IP phones for seamless communication and data sharing.

• Home Offices: Achieve lag-free performance for video conferencing, cloud services, and large file transfers.

• Retail Stores: Support POS systems, surveillance cameras, and digital signage without network congestion.

• Multimedia Environments: Ensure smooth streaming of high-definition video and audio in studio or media setups.

• Laboratories & Education: Provide stable, high-speed connectivity for research, online learning, and collaborative projects.

Datasheets / Downloadable Resources

Download TP-Link TL-SG116E Datasheet

tExcellence for the Australian and New Zealand Market

The TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch is fully compliant with Australian and New Zealand standards, holding certifications like FCC, CE, and RoHS to guarantee safety and quality. Optimized for the unique network environments of Australia and New Zealand, this model is exclusively sourced through authorized TP-Link distributors to ensure genuine products and local support. All warranty claims and technical assistance are handled directly with TP-Link or authorized partners, providing confidence and convenience to businesses and consumers across the region.

 FAQs

Q1: Can I use the TP-Link TL-SG116E (TL-SG116E) to create VLANs for network segmentation?

Yes, the TL-SG116E supports up to 32 VLANs simultaneously, allowing you to segment and secure your network traffic for improved performance and security.

Q2: Does the TP-Link TL-SG116E (TL-SG116E) require a fan for cooling?

No, the TL-SG116E features a fanless design, ensuring silent operation and reduced power consumption while maintaining optimal performance.

Q3: What is the maximum switching capacity of the TP-Link TL-SG116E (TL-SG116E)?

The TL-SG116E boasts a high switching capacity of 32Gbps, allowing it to handle heavy network traffic with ease.

Q4: Can the TP-Link TL-SG116E (TL-SG116E) be mounted in a rack?

While the TL-SG116E has a durable metal desktop casing, it is primarily designed for desktop use. For rack-mounted solutions, consider TP-Link’s rackmount switch models.

Q5: Is the TP-Link TL-SG116E (TL-SG116E) suitable for NDSS-approved medical or diabetes network devices in Australia?

While the TL-SG116E is compliant with Australian standards, NDSS approval typically applies to specific medical devices rather than network switches. However, its reliable performance makes it suitable for supporting networks in medical facilities using NDSS-approved equipment.
