Streamline your network with the TP-Link TL-SG1210MP, a compact and powerful 10-Port Gigabit Desktop Switch designed to deliver both power and high-speed connectivity where you need it most. Equipped with 8 PoE+ ports, 1 gigabit RJ45 uplink port, and 1 combo gigabit SFP/RJ45 port, the TL-SG1210MP combines flexibility and reliability for small-to-medium business networks, surveillance systems, and demanding IoT deployments.
With a total PoE power budget of 123W and up to 30W available per port, this switch powers devices like IP cameras, wireless access points, and VoIP phones without the need for separate power supplies. Advanced features such as Extend Mode provide data and power transmission up to 250 meters—ideal for distant devices. Priority Mode ensures stable operation for critical applications on ports 1–2, while Isolation Mode enhances security by segmenting network traffic with a single click.
Thanks to PoE Auto Recovery, the TL-SG1210MP automatically reboots unresponsive PoE-powered devices, maintaining consistent network performance and reducing downtime. Its fanless design ensures completely silent operation, making it perfect for offices, retail stores, and other noise-sensitive environments.
Engineered with robust hardware and versatile functionality, the TL-SG1210MP offers professional-grade networking without complexity—simply plug and play for seamless installation.
What’s Included in the Box
Main Features
-
8× Gigabit PoE+ ports delivering up to 30W per port
-
Total PoE power budget of 123W for versatile device connectivity
-
1× Gigabit RJ45 uplink port plus 1× Combo Gigabit SFP/RJ45 port for flexible network expansion
-

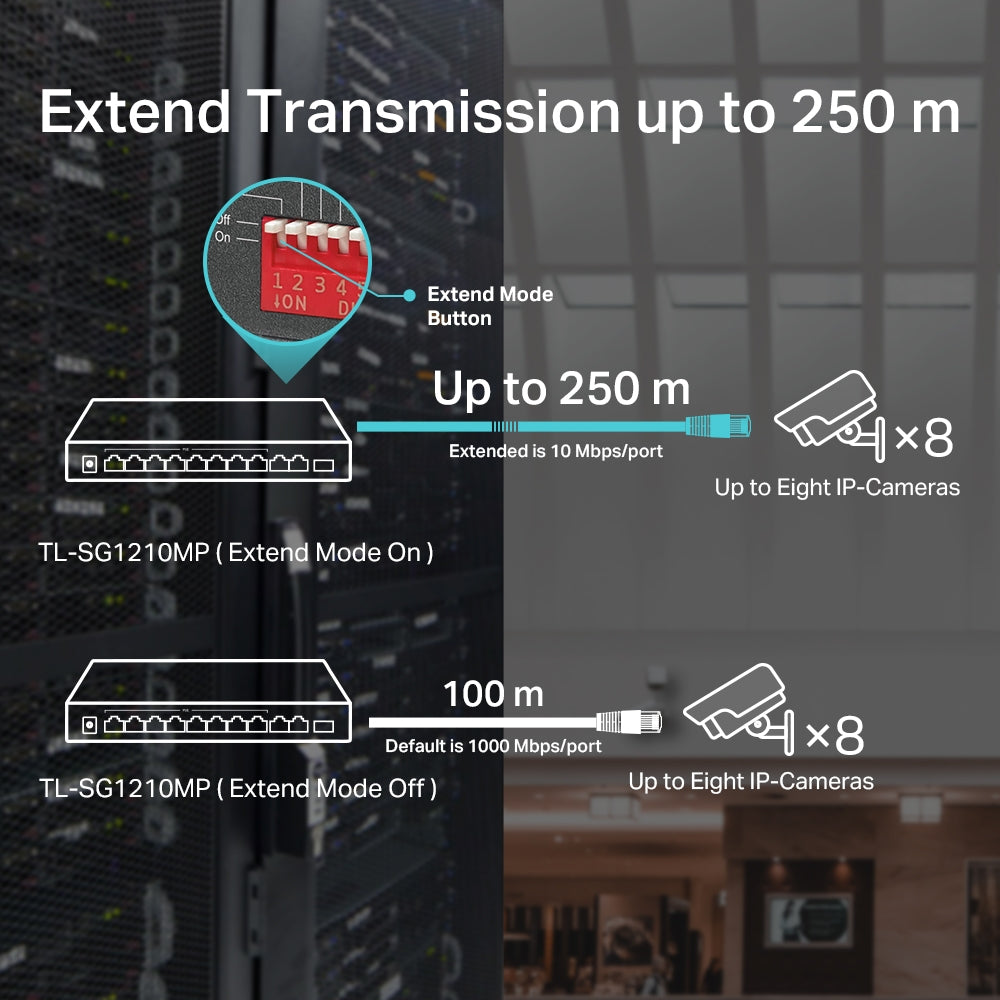

Extend Mode extends PoE and data transmission up to 250 meters (ports 1–4)
-

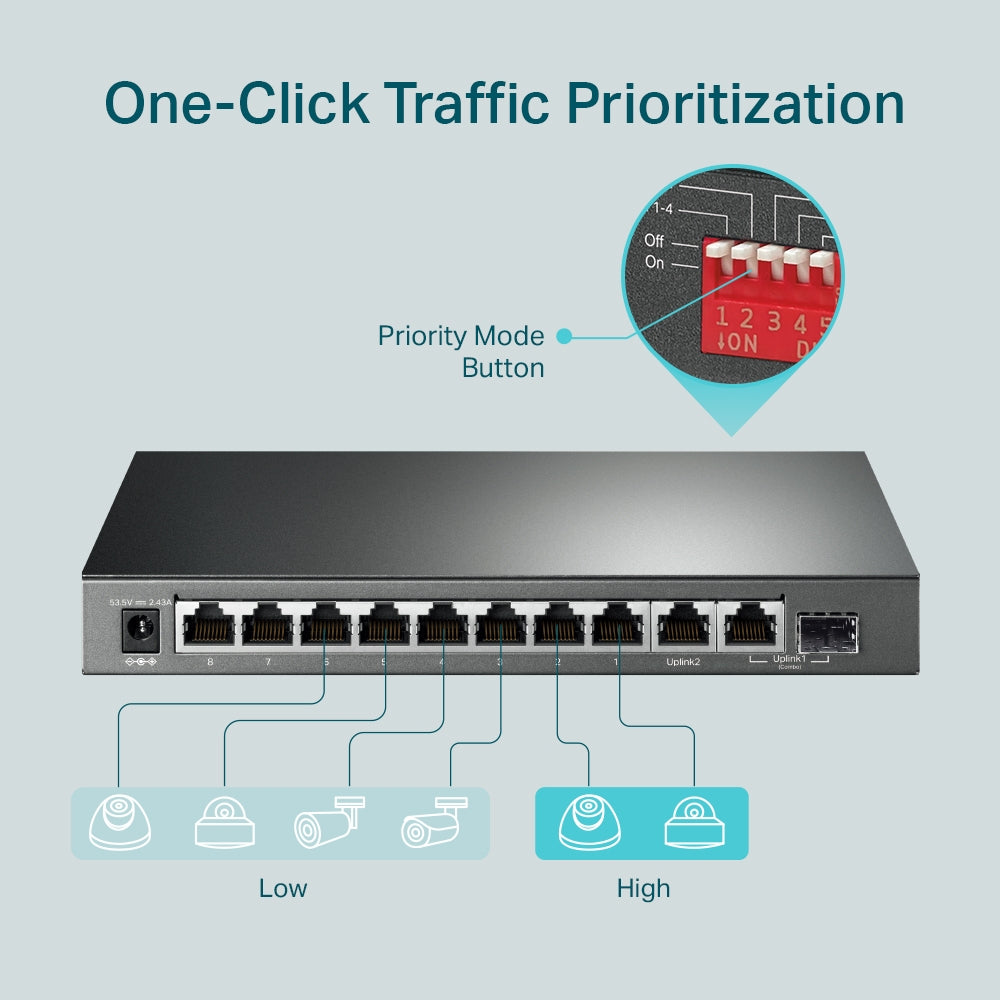

Priority Mode ensures bandwidth for critical devices on ports 1–2
-

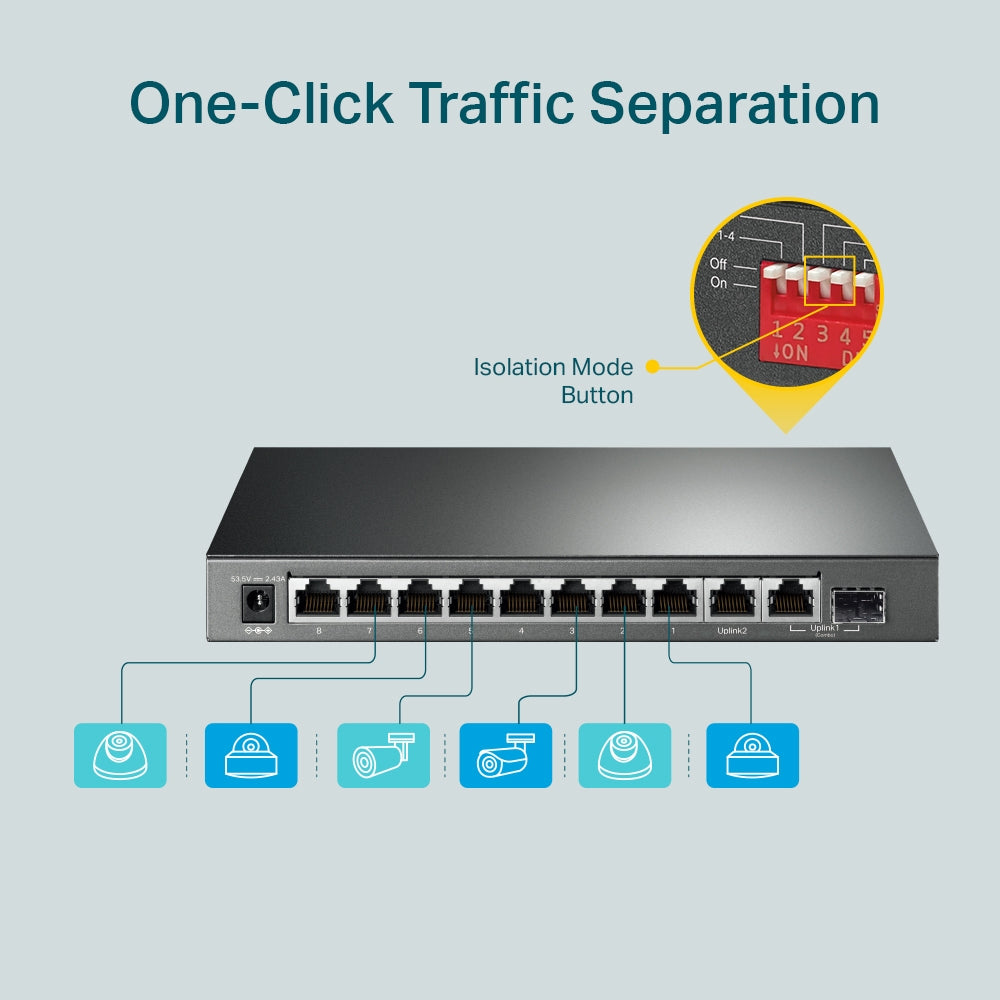

Isolation Mode enables traffic separation for improved security and performance
-
PoE Auto Recovery automatically restarts unresponsive PoE devices
-
Fanless design for silent operation, ideal for quiet environments
-
Supports jumbo frames up to 16KB for efficient data transfers
-
IEEE 802.1p/DSCP QoS ensures smooth performance for latency-sensitive traffic
-
Plug and play installation with no configuration required
Detailed Specifications
| Specification |
Details |
| Interface |
9× 10/100/1000 Mbps RJ45 ports, 1× Gigabit combo SFP/RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| PoE Standard |
IEEE 802.3af/at |
| PoE Ports |
Ports 1–8 |
| Total PoE Power Budget |
123 W |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| MAC Address Table |
4K entries, Auto-learning, Auto-aging |
| Jumbo Frame Support |
Up to 16 KB |
| Fan Quantity |
Fanless |
| External Power Adapter |
Output: 53.5 VDC / 2.43 A |
| Max Power Consumption |
7.93 W (no PD connected, 220V) / 141.40 W (with 123W PD connected, 220V) |
| Max Heat Dissipation |
27.04 BTU/h (no PD connected, 220V) / 482.17 BTU/h (with 123W PD connected, 220V) |
| Dimensions (W × D × H) |
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temp: 0–40°C, Storage Temp: -40–70°C, Humidity: 10–90% RH non-condensing |
Warranty Information
Covered by TP-Link’s limited lifetime warranty, the TL-SG1210MP ensures reliable operation and peace of mind for your network investment.
Brand Description
TP-Link is a global leader in networking technology, renowned for delivering reliable, high-performance products to businesses and consumers worldwide. Trusted for innovation and quality, TP-Link offers solutions that keep your network connected and secure.
SKU
TL-SG1210MP
Practical Use Scenarios
-
IP Surveillance Systems: Connect and power up to 8 PoE-enabled IP cameras, ensuring seamless video streaming and security monitoring.
-
Small Business Networks: Ideal for connecting VoIP phones, access points, and other devices in compact office environments.
-
Retail Environments: Perfect for powering security cameras, POS systems, and digital signage without additional cabling.
-
Hospitality Venues: Power Wi-Fi access points and IP phones discreetly throughout hotels and conference centers.
-
Home Offices: Create a powerful, silent network for workstations, IP cameras, and smart home devices.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link TL-SG1210MP is meticulously crafted to meet the rigorous standards of the Australian and New Zealand markets, boasting certifications such as FCC, CE, and RoHS for safety and environmental compliance. Sourced exclusively through authorized TP-Link partners, this switch ensures genuine performance and reliability.
Australian and New Zealand customers enjoy dedicated local support and direct warranty handling with TP-Link, ensuring peace of mind and rapid assistance. Its robust design and efficient thermal management make it perfectly suited for diverse climates and installation scenarios common across both regions.
Invest with confidence in a switch built for excellence in Australia and New Zealand with the TL-SG1210MP.
FAQs
Q1: Can the TP-Link TL-SG1210MP power high-consumption devices like PTZ cameras? (SKU: TL-SG1210MP)
Yes. Each PoE+ port on the TL-SG1210MP supports up to 30W, suitable for power-intensive devices like PTZ cameras, wireless access points, and VoIP phones.
Q2: Is configuration required to use the TP-Link TL-SG1210MP? (SKU: TL-SG1210MP)
No. The TL-SG1210MP offers plug-and-play functionality, requiring no configuration for basic operation.
Q3: What is the function of Extend Mode on the TP-Link TL-SG1210MP? (SKU: TL-SG1210MP)
Extend Mode increases PoE power and data transmission distance up to 250 meters on ports 1–4, perfect for distant devices like remote cameras.
Q4: Is the TP-Link TL-SG1210MP suitable for quiet environments? (SKU: TL-SG1210MP)
Yes. The TL-SG1210MP uses a fanless design for completely silent operation, ideal for offices, retail spaces, and other noise-sensitive areas.
Q5: How does the Isolation Mode work on the TP-Link TL-SG1210MP? (SKU: TL-SG1210MP)
Isolation Mode enables one-click traffic separation, improving network security by preventing communication between device groups connected to specific ports.
