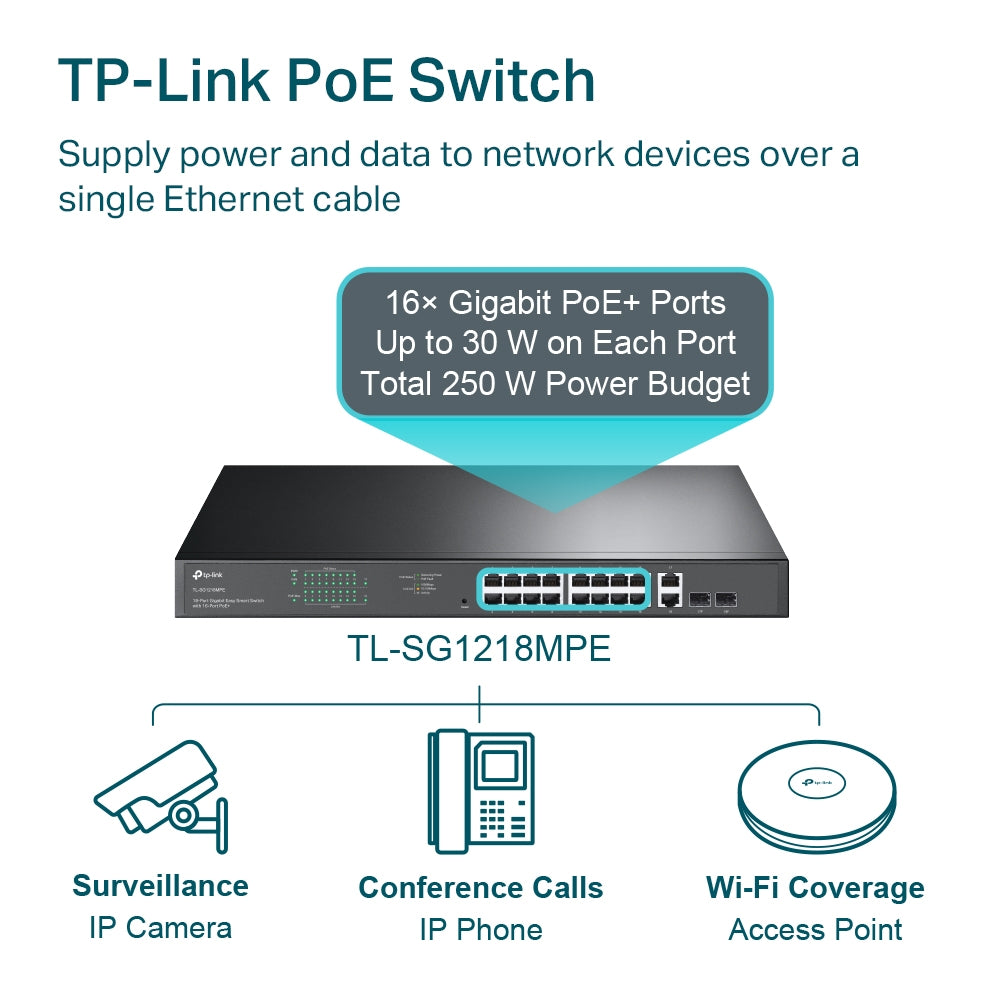

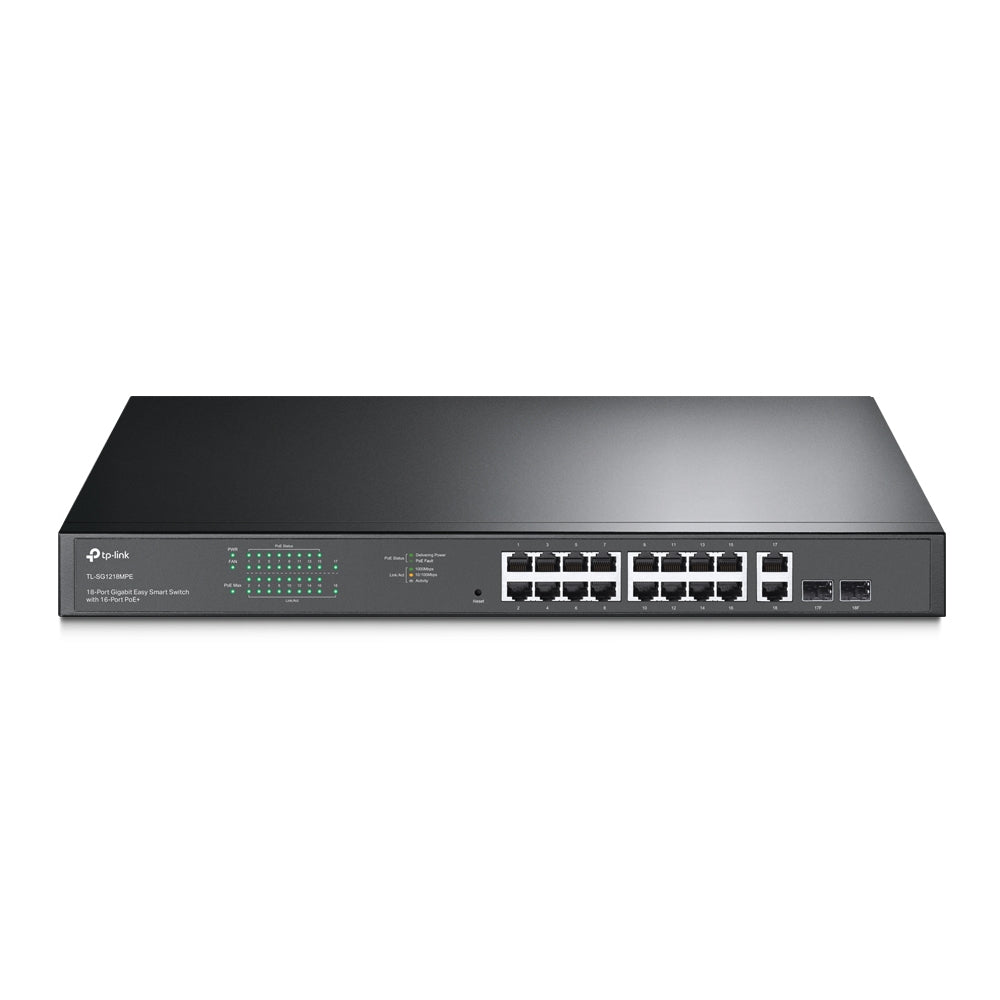

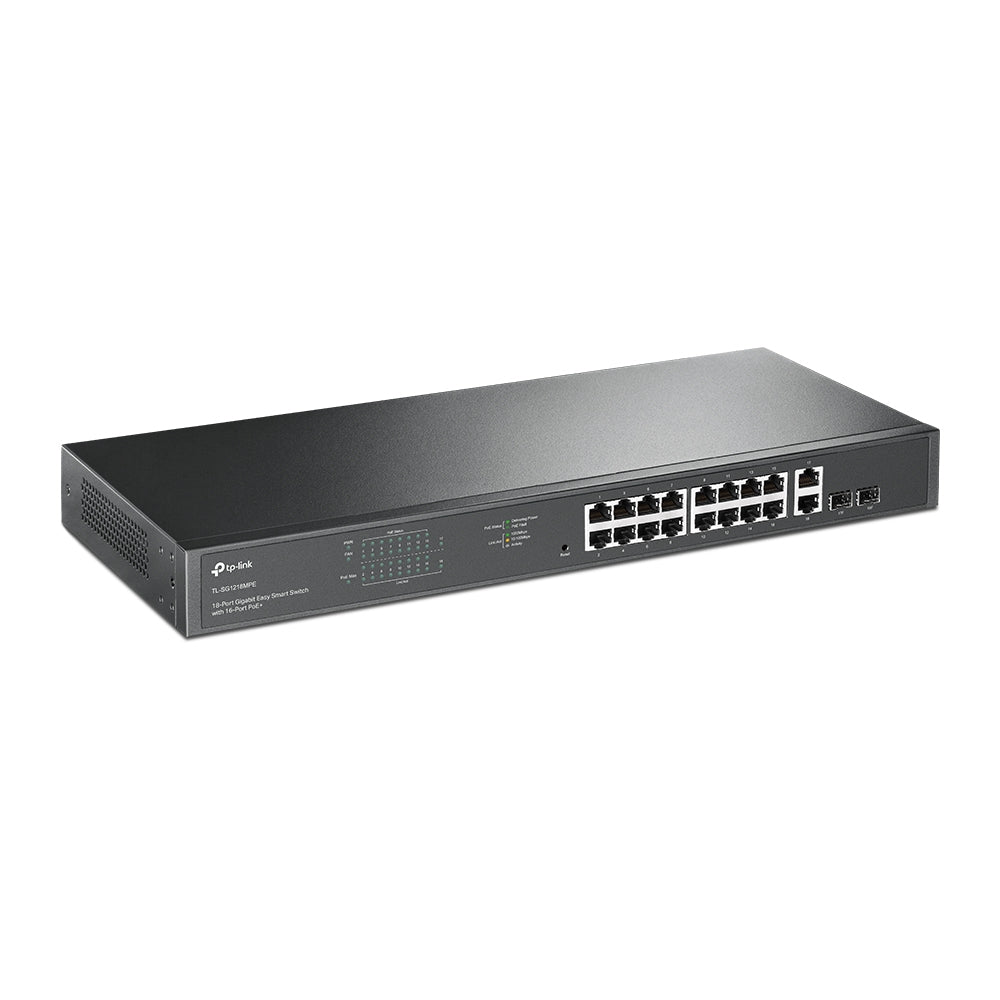

Bring high-performance networking and reliable PoE capability to your business with the TP-Link TL-SG1218MPE, an 18-Port Gigabit Easy Smart Switch designed for small to medium business environments. Featuring 16 PoE+ ports delivering up to 250W of total PoE power, this versatile switch powers IP cameras, wireless access points, VoIP phones, and other PoE devices—all through a single Ethernet cable for simplified deployment.
Equipped with two additional gigabit non-PoE RJ45 ports and two combo gigabit SFP slots, the TL-SG1218MPE offers flexible uplink connectivity options for scalable network expansion. Advanced features like PoE Auto Recovery, VLAN segmentation, QoS prioritisation, and IGMP Snooping ensure stable, efficient traffic management, making this switch an ideal choice for surveillance systems, office networks, and multi-service business environments.
Centralised management is easy through the web-based GUI or TP-Link’s Easy Smart Configuration Utility, providing intuitive controls for network administrators to monitor, configure, and secure the network. Built in a robust rack-mountable metal chassis with dual cooling fans, the TL-SG1218MPE is engineered for reliability and professional deployment.
What's in the Box
Main Features
✅ 16 PoE+ Ports with 250W Budget – Power up to 16 PoE devices like cameras, APs, and VoIP phones with a total budget of 250W and up to 30W per port.
✅ Flexible Connectivity – Includes 2 non-PoE gigabit ports and 2 combo SFP slots for versatile uplinks and network expansion.
✅ PoE Auto Recovery – Automatically reboots unresponsive PoE devices, ensuring network stability without manual intervention.
✅ Intelligent Power Management – Prevents power overload by cutting off lower-priority ports if power budget is exceeded.

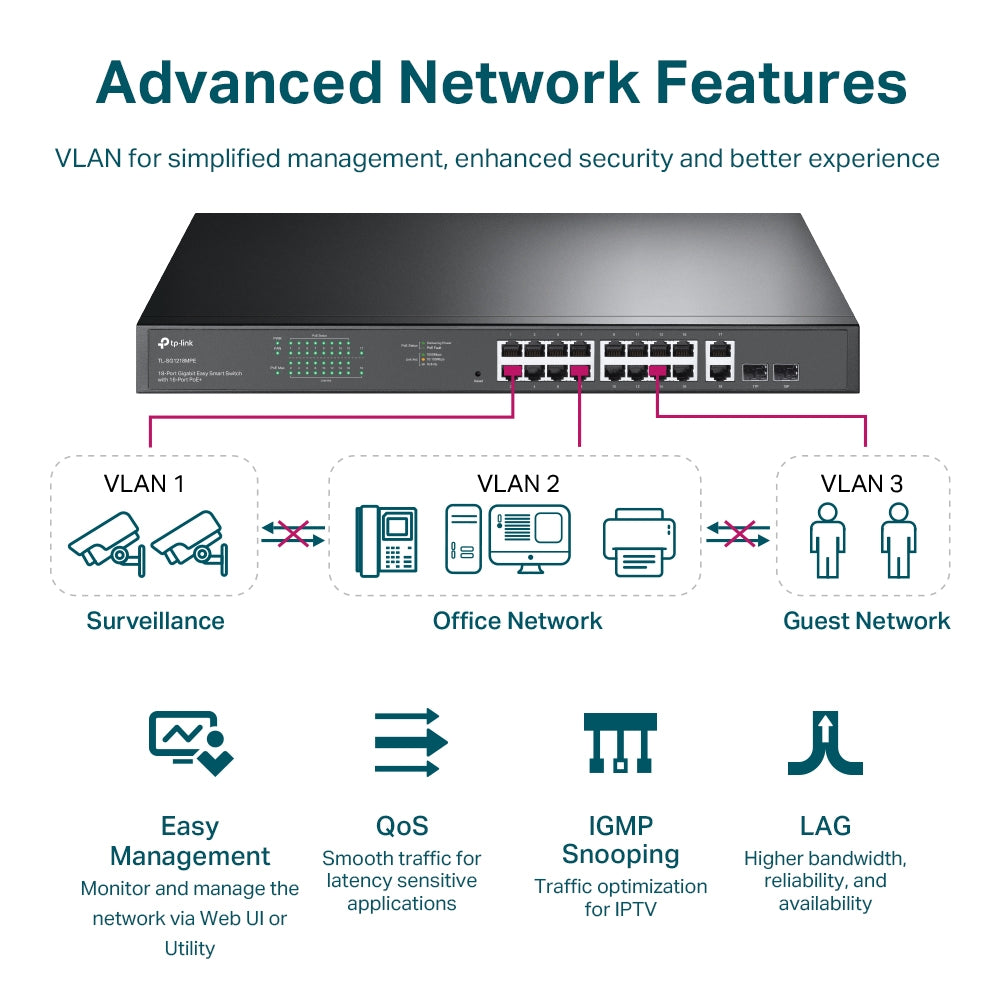

✅ Advanced L2 Features – VLAN segmentation, loop prevention, IGMP Snooping, and QoS for optimised performance and security.

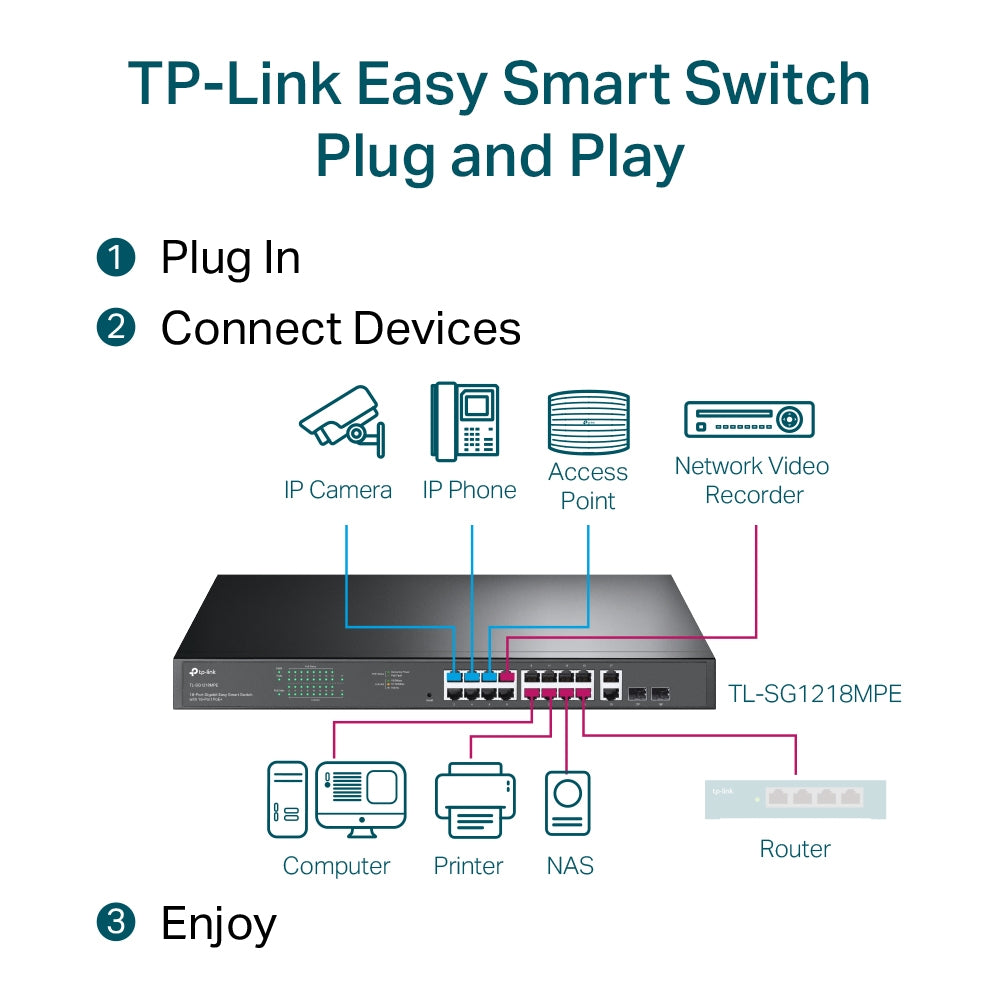

✅ Easy Management – Configure and monitor the switch via a web-based GUI or Easy Smart Configuration Utility for simplified network administration.

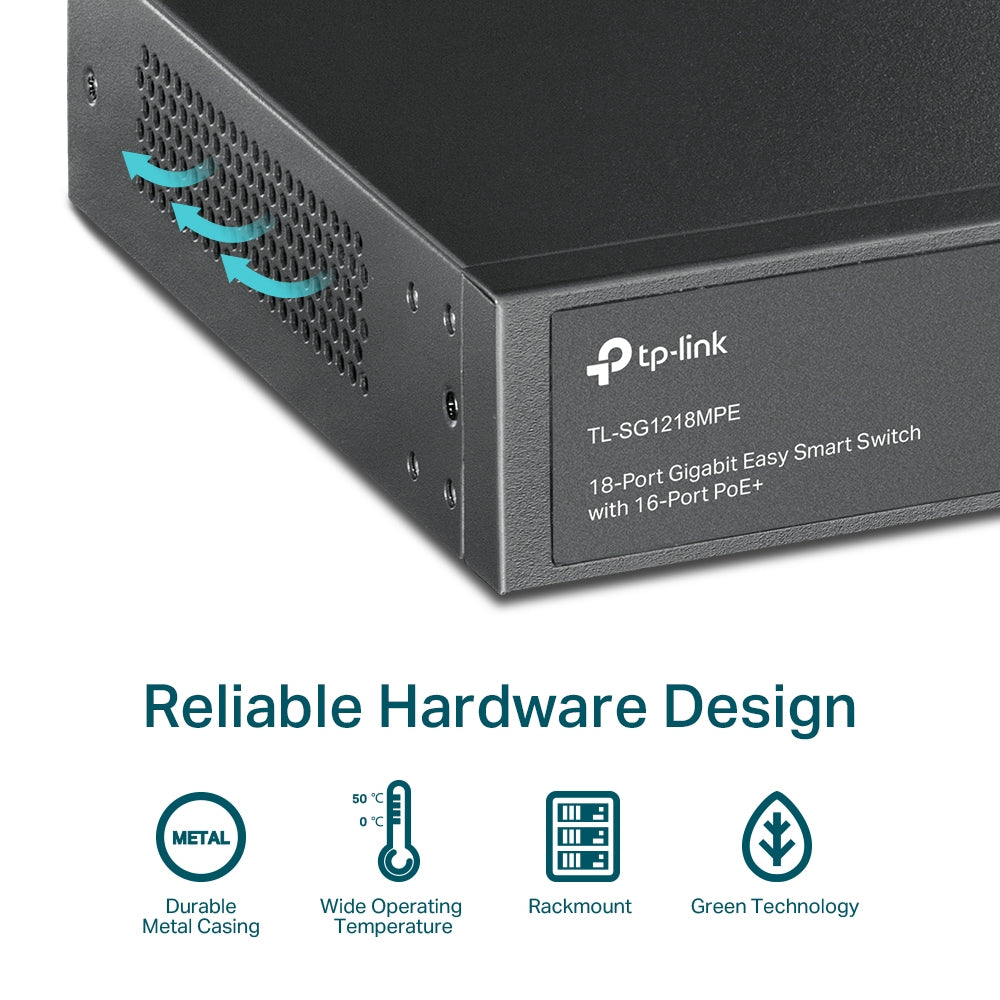

✅ Robust Rackmount Design – Metal chassis with two fans ensures reliable operation in business environments.
Detailed Specifications
Interfaces:
-
16 × 10/100/1000 Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
-
2 × 10/100/1000 Mbps non-PoE RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
-
2 × Combo Gigabit SFP Ports
PoE Ports:
Performance:
-
Switching Capacity: 36 Gbps
-
Packet Forwarding Rate: 26.78 Mpps
-
MAC Address Table: 8K entries
-
Packet Buffer Memory: 4.1 Mbit
-
Jumbo Frame: 10 KB
Quality of Service (QoS):
Layer 2 Features:
-
IGMP Snooping v1/v2/v3
-
Static link aggregation
-
Port mirroring
-
Cable diagnostics
-
Loop prevention
VLAN:
-
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
-
MTU, Port-based, and 802.1Q Tag VLAN
Management Features:
Transmission Method: Store-and-Forward
Physical:
Power Supply: 100–240V AC, 50/60 Hz
Max Power Consumption:
Heat Dissipation:
Certifications: CE, FCC, RoHS
Environmental Specifications:
-
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
-
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
-
Operating Humidity: 10% ~ 90% RH non-condensing
-
Storage Humidity: 5% ~ 90% RH non-condensing
System Requirements: Compatible with Windows®, macOS®, Linux®, NetWare®, UNIX®
Warranty Information
The TP-Link TL-SG1218MPE comes with a limited manufacturer warranty. Customers in Australia and New Zealand benefit from local support and warranty handling through authorised TP-Link channels, ensuring reliable assistance and peace of mind.
Brand Description
TP-Link is a global leader in networking solutions, trusted for delivering high-quality, high-performance networking hardware for both consumer and business applications. The Easy Smart series exemplifies TP-Link’s mission to offer enterprise-level capabilities with simplified management tools, enabling businesses of all sizes to deploy secure, reliable, and scalable networks.
SKU
TL-SG1218MPE
Practical Use Scenarios
-
Business Surveillance Networks – Connect and power high-resolution IP cameras while benefiting from PoE Auto Recovery for network stability.
-
Office Networks – Provide reliable connectivity for workstations, printers, VoIP phones, and wireless APs in business environments.
-
Retail & Hospitality – Simplify network deployments for customer Wi-Fi, POS systems, and security cameras with PoE support.
-
Education Facilities – Equip classrooms, labs, and administrative networks with scalable, centrally managed networking.
-
Industrial or Warehouse Environments – Power and manage IP cameras and IoT devices across larger spaces with robust PoE capabilities.
Datasheets / Downloadable Resources
Download TP-Link TL-SG1218MPE Datasheet
Excellence for the Australian and New Zealand Market
The TP-Link TL-SG1218MPE fully complies with Australian and New Zealand regulatory standards, including certifications like CE, FCC, and RoHS. Sourced exclusively through authorised distribution channels, this model guarantees genuine hardware and full warranty coverage. Engineered for dependable operation under diverse conditions, the TL-SG1218MPE is a perfect choice for professional networking applications across Australia and New Zealand.
FAQs
Q1. How many PoE devices can the TL-SG1218MPE power at once? (TL-SG1218MPE)
The TL-SG1218MPE can power up to 16 PoE or PoE+ devices simultaneously with a total PoE power budget of 250W.
Q2. Does the TL-SG1218MPE support VLANs for network segmentation? (TL-SG1218MPE)
Yes! The TL-SG1218MPE supports MTU, port-based, and 802.1Q tag VLANs, enabling flexible and secure network segmentation.
Q3. Can the TL-SG1218MPE be managed remotely via the cloud? (TL-SG1218MPE)
While the TL-SG1218MPE offers advanced smart features and web-based management, it is not integrated into the Omada SDN platform for cloud-based management.
Q4. Is the TL-SG1218MPE suitable for silent operation? (TL-SG1218MPE)
The TL-SG1218MPE includes two cooling fans, which may produce some noise, making it more suitable for server rooms or network closets rather than silent office environments.
Q5. Is the TL-SG1218MPE rack-mountable? (TL-SG1218MPE)
Yes! The TL-SG1218MPE comes with rackmount hardware and is designed for professional installations in standard 19” network racks.
