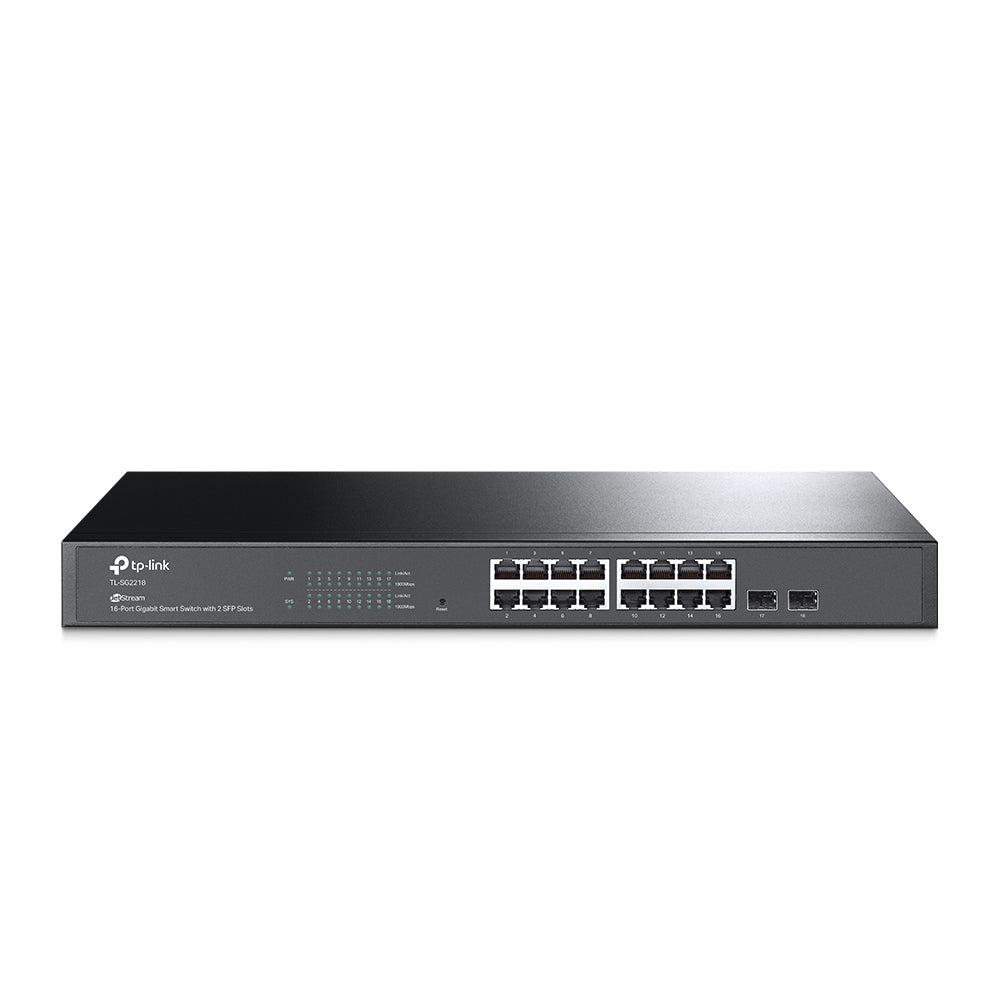

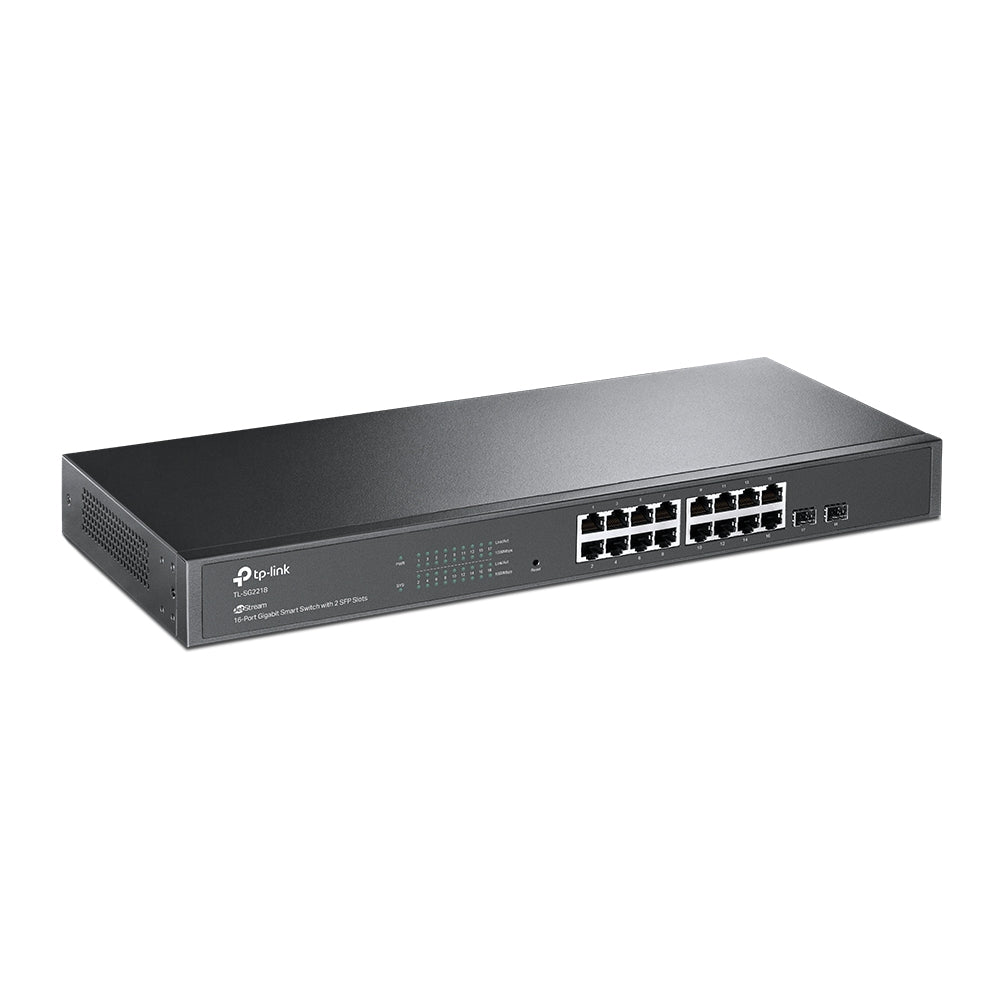

The TP-Link TL-SG2218 JetStream Smart Managed Switch remains a cost-effective choice for small to medium-sized business networks seeking robust performance and intelligent management features. Equipped with 16 Gigabit RJ45 ports and 2 Gigabit SFP slots, this versatile switch delivers non-blocking, high-speed connectivity, essential for growing networks.

Although TL-SG2218 is End-of-Life (EOL) and no longer in production, it continues to serve as a capable and reliable switch for existing deployments. The device integrates seamlessly into TP-Link’s Omada SDN architecture, supporting cloud-based management, Zero-Touch Provisioning (ZTP), and intelligent network monitoring.

With a fanless design for silent operation and comprehensive security features—including ACLs, 802.1X, DoS Defense, DHCP Snooping, and advanced QoS—the TL-SG2218 ensures stable and secure network performance.

Businesses currently operating TL-SG2218 can continue to leverage its robust feature set, though it’s recommended to consider newer Omada models for future upgrades and ongoing support.

What's Included in the Box

• TL-SG2218 Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Full Gigabit Ports for High-Speed Connectivity

• 16× Gigabit RJ45 ports + 2× Gigabit SFP slots ensure fast connections and uplinks for core and access layers.

✅ Omada SDN Integration

• Centralized management, zero-touch provisioning (ZTP)*, and cloud monitoring simplify large-scale network deployments.

✅ Fanless Silent Operation

• Operates quietly, perfect for office environments and noise-sensitive installations.

✅ Advanced Security

• Includes robust protections such as IP-MAC-Port Binding, ACLs, storm control, 802.1X, and AAA for enterprise-grade security.

✅ L2/L3/L4 QoS and IGMP Snooping

• Optimize voice and video traffic, ensuring smooth multimedia and real-time applications.

✅ Extensive VLAN Support

• Up to 4,000 VLANs for comprehensive traffic segmentation and network efficiency.

Detailed Specifications

• Interfaces:

  • 16× 10/100/1000 Mbps RJ45 Ports

  • 2× Gigabit SFP Slots

• Performance:

  • Switching Capacity: 36 Gbps

  • Packet Forwarding Rate: 26.8 Mpps

  • MAC Address Table: 8 K

  • Jumbo Frame: 9 KB

• Power & Physical:

  • Power Supply: 100-240 V AC ~50/60 Hz

  • Max Power Consumption: 12.3 W

  • Max Heat Dissipation: 42.0 BTU/hr

  • Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

  • Mounting: Rack Mountable

  • Fanless Design

• Layer 2 & L2+ Features:

  • Static Routing (48 IPv4/IPv6 static routes)

  • Link Aggregation (Static and LACP)

  • Spanning Tree Protocols (STP/RSTP/MSTP)

  • Loopback Detection

  • 802.3x Flow Control

  • Port Mirroring

• L2 Multicast:

  • IGMP Snooping v1/v2/v3

  • IGMP Fast Leave

  • MLD Snooping

  • Multicast VLAN Registration (MVR)

  • Limited IP Multicast

• Quality of Service (QoS):

  • 8 Priority Queues

  • SP, WRR, and SP+WRR scheduling

  • Bandwidth Control (Port/Flow-based)

  • Storm Control

• Security:

  • IP-MAC-Port Binding

  • DHCP Snooping

  • ARP Inspection

  • IPv4/IPv6 Source Guard

  • DoS Defend

  • 802.1X Authentication

  • AAA with RADIUS and TACACS+

  • Port Isolation

  • Access Control Lists (MAC, IP, IPv6)

• VLAN Features:

  • Up to 4,000 VLAN Groups

  • 802.1Q Tag VLAN

  • MAC VLAN (12 entries)

  • Protocol VLAN

  • Voice VLAN

  • VLAN VPN (QinQ)

• Management:

  • Omada SDN Integration

  • Web-based GUI

  • CLI via Console/Telnet

  • SNMP v1/v2c/v3

  • RMON (1,2,3,9)

  • Dual Image, Dual Configuration

  • Intelligent Monitoring

  • Batch Configuration

  • Cable Diagnostics

• IPv6 Support:

  • IPv6 Dual Stack

  • IPv6 ACL

  • Neighbor Discovery

  • Static IPv6 Routing

  • IPv6 Applications (SNMP, SSH, SSL, HTTP/S, TFTP)

• Certifications: CE, FCC, RoHS

Warranty Information

TL-SG2218 is officially End-of-Life (EOL).

• Warranty coverage depends on purchase date and local distributor policies.

• Future firmware updates and new feature development are discontinued.

• Consider upgrading to current Omada models for future-proof deployments.

About TP-Link Omada

TP-Link Omada provides a unified networking solution integrating switches, gateways, and access points under a single, cloud-managed platform for scalable, secure, and efficient business networks.

SKU

TL-SG2218

Practical Use Scenarios

• Branch Offices: Deploy high-speed uplinks and segment networks securely.

• Retail Networks: Enable silent PoE deployments for IP cameras and POS systems.

• SMBs: Maintain stable, secure networks with cloud management integration.

• Legacy System Support: Continue using the TL-SG2218 in existing installations where replacement is not immediately required.

Datasheets or Downloadable Resources

Download TL-SG2218 Datasheet

Excellence for the Australian and New Zealand Market

The TL-SG2218 complies with CE, FCC, and RoHS standards, ensuring safety and reliability. Though EOL, units already deployed in Australia and New Zealand benefit from authorized distribution, ensuring legitimate warranty claims and local support. Businesses considering upgrades should transition to the latest Omada switches for ongoing compliance, support, and advanced features tailored for the ANZ market.

FAQs (TL-SG2218)

Q1: Is the TL-SG2218 still supported with firmware updates?
A1: No. The TL-SG2218 is officially End-of-Life (EOL), and no new firmware updates are released. (TL-SG2218)

Q2: Can the TL-SG2218 integrate with Omada Cloud Management?
A2: Yes. The TL-SG2218 integrates with Omada SDN controllers, enabling centralized cloud management and zero-touch provisioning. (TL-SG2218)

Q3: Does the TL-SG2218 have PoE ports?
A3: No. The TL-SG2218 is a non-PoE smart switch with 16 Gigabit ports and 2 SFP slots. (TL-SG2218)

Q4: Is the TL-SG2218 fanless?
A4: Yes! The TL-SG2218 features a fanless design for silent operation, ideal for office environments. (TL-SG2218)

Q5: What’s the replacement model for TL-SG2218?
A5: TP-Link recommends newer models in the Omada JetStream series, such as the SG2218P, for continued support and advanced features. (TL-SG2218)
