Upgrade your business network with the TP-Link TL-SL1218MP, a powerful 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ designed for seamless integration into demanding environments such as surveillance systems, offices, retail, and hospitality setups.

Delivering robust performance, the TL-SL1218MP features 16 PoE+ ports, each supporting up to 30W, with a total power budget of 250W—perfect for powering numerous high-power devices like IP cameras, wireless access points, and VoIP phones without the hassle of additional power wiring.

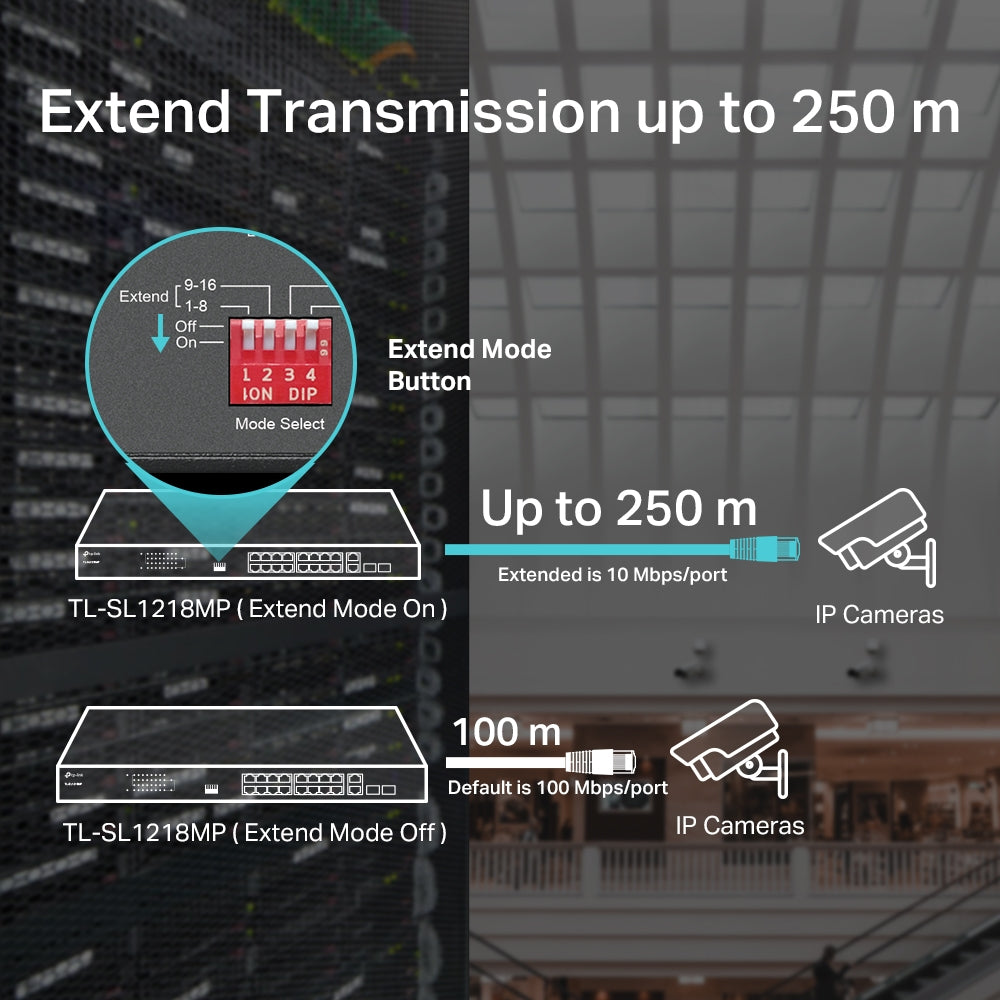

Thanks to Extend Mode, this switch transmits power and data up to 250 meters, enabling installations in large areas like warehouses, campuses, and parking lots without the need for repeaters or additional network devices.

Engineered for smarter network performance, the TL-SL1218MP offers Priority Mode, ensuring stable operation for critical applications connected to ports 1–8, like video monitoring. Isolation Mode provides instant network segmentation for improved security and performance—all activated with a single switch.

Its plug-and-play design ensures easy deployment, while the rugged rackmount metal case and dual fans guarantee reliable performance and longevity, even under high network loads.

What's in the Box

• TP-Link TL-SL1218MP Switch

• Power Cable

• Installation Guide

• Two mounting brackets and fittings

Main Features

✅ 16 PoE+ Ports for Flexible Deployments – Power IP cameras, APs, and VoIP phones via Ethernet with no separate power adapters needed.

✅ 250W Total PoE Budget – Robust power delivery for high-density PoE deployments without interruptions.

✅ Long-Range PoE – Extend Mode enables data and power transmission up to 250 meters, perfect for expansive installations.

✅ Priority Mode for Ports 1–8 – Guarantees bandwidth and power priority for sensitive applications like surveillance video streams.

✅ One-Click Isolation Mode – Instantly separates network traffic to improve security and reduce broadcast storms.

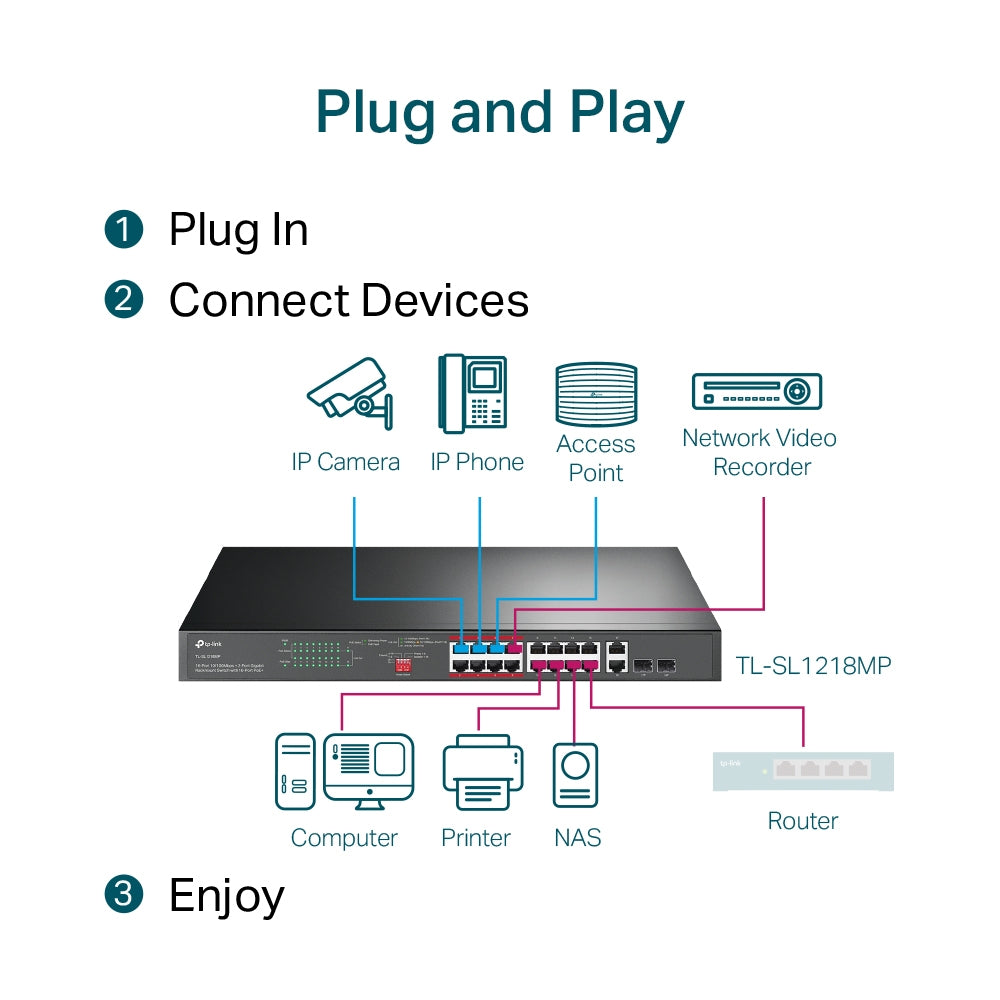

✅ Plug-and-Play Simplicity – No configuration required for basic deployment.

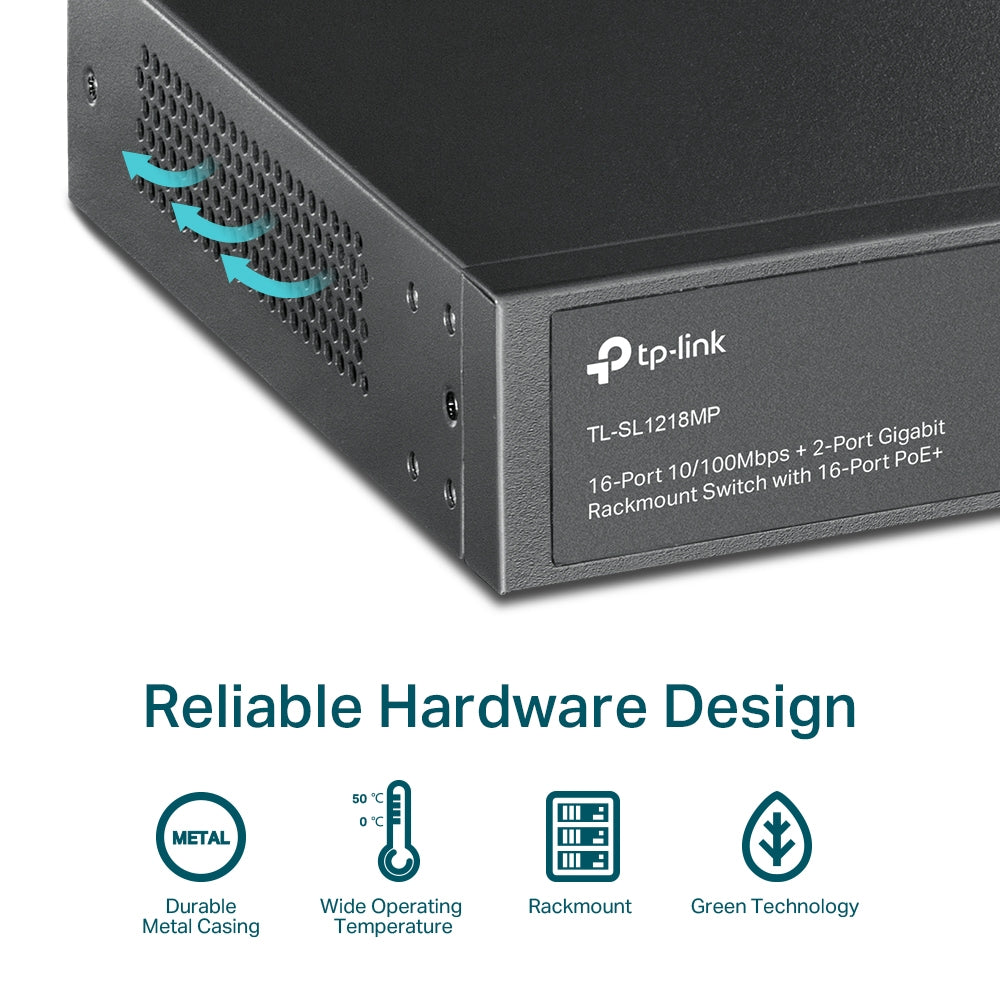

✅ Rugged & Reliable – Rackmount metal casing and dual fans ensure stable operation in demanding business environments.

Detailed Specifications

Interfaces:

• 16 × 10/100 Mbps PoE+ RJ45 Ports

• 2 × 10/100/1000 Mbps RJ45 Ports

• 2 × Combo Gigabit SFP Slots

• Auto-Negotiation / Auto MDI/MDIX

PoE Ports:

• Ports 1–16 support IEEE 802.3af/at

• Max PoE power per port: 30W

• Total PoE power budget: 250W

• Extend Mode: Up to 250 meters

Performance:

• Switching Capacity: 7.2 Gbps

• Packet Forwarding Rate: 5.36 Mpps

• MAC Address Table: 8K entries

• Jumbo Frame: 10 KB

Advanced Features:

• Extend Mode for long-distance PoE transmission

• Priority Mode for critical traffic prioritisation

• Isolation Mode for enhanced security

• IEEE 802.3x Flow Control

• MAC address auto-learning and auto-aging

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)

• Fan Quantity: 2 Fans

• Physical Security Lock: Yes

Power:

• Power Supply: 100–240V AC, 50/60 Hz

• Max Power Consumption:

  • 15.0W (no PD connected)

  • 285.8W (with 250W PD connected)

• Max Heat Dissipation:

  • 51.1 BTU/h (no PD connected)

  • 974.6 BTU/h (with 250W PD connected)

Certifications: CE, FCC, RoHS

Environment:

• Operating Temperature: 0–50°C (32–122°F)

• Storage Temperature: -40–70°C (-40–158°F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

The TL-SL1218MP is backed by TP-Link’s limited warranty and is supported locally in Australia and New Zealand through authorised distributors, ensuring peace of mind and genuine product reliability.

Brand Description

TP-Link is a globally recognised leader in networking solutions, delivering reliable, innovative products for homes and businesses. From switches to routers, TP-Link ensures seamless connectivity and exceptional value.

SKU

TL-SL1218MP

Practical Use Scenarios

• Business Networks – Simplify installations in offices by powering phones, cameras, and APs through a single switch.

• Large Surveillance Systems – Deploy cameras across expansive areas like parking lots or warehouses with extended PoE reach.

• Retail & Hospitality – Connect security cameras, digital signage, and APs without cluttered cabling.

• Industrial Environments – Centralise network devices while supporting long cable runs for large facilities.

• Event Venues – Quick deployments for temporary surveillance or network connectivity at concerts or exhibitions.

Datasheets / Downloadable Resources

Download TP-Link TL-SL1218MP Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link TL-SL1218MP complies fully with Australian and New Zealand standards, including CE, FCC, and RoHS certifications. Distributed via authorised channels, it ensures genuine quality, local warranty support, and optimised performance for professional environments throughout Australia and New Zealand.

 FAQs

Q1. What is the PoE power budget for the TL-SL1218MP? (TL-SL1218MP)
The switch provides up to 250W total PoE power, supporting high-demand devices like PTZ cameras and high-powered wireless APs.

Q2. Can I run PoE devices beyond 100 meters with the TL-SL1218MP? (TL-SL1218MP)
Yes! With Extend Mode activated, the TL-SL1218MP can transmit power and data up to 250 meters for longer cable runs.

Q3. Does the TL-SL1218MP require any configuration? (TL-SL1218MP)
No configuration is necessary for basic operation—it’s plug-and-play for instant network expansion.

Q4. What are Priority and Isolation Modes on the TL-SL1218MP? (TL-SL1218MP)
Priority Mode ensures critical devices on ports 1–8 get bandwidth and power first, while Isolation Mode separates traffic for security and reduced broadcast storms.

Q5. Is the TL-SL1218MP suitable for commercial use? (TL-SL1218MP)
Absolutely. Its robust construction, PoE capabilities, and advanced features make it perfect for commercial and industrial environments.
