Deliver blazing-fast 10G connectivity and powerful PoE++ capabilities with the TP-Link TL-SX3206HPP JetStream L2+ Managed Switch. Perfectly engineered for high-performance enterprise networks, this innovative switch packs 4× 10G multigigabit PoE++ ports and 2× 10G SFP+ slots, ensuring versatile deployment options for bandwidth-intensive devices like WiFi 6/6E access points, IP cameras, or high-performance servers.

The TL-SX3206HPP provides an impressive 200W PoE budget, with each PoE++ port delivering up to 60W—ideal for powering modern devices without separate power infrastructure. Its advanced L2 and L2+ features like static routing, VLANs, advanced QoS, and IGMP Snooping help streamline traffic, improve security, and enhance network efficiency.

Built for the demands of modern business, this switch supports both centralized cloud management via Omada SDN and standalone operation through a rich web GUI, CLI, SNMP, or RMON. Integrated robust security strategies—including ACLs, IP-MAC-Port Binding, port security, and AAA—keep your network safe from evolving threats.

Compact and rack-mountable, the TL-SX3206HPP is the ideal solution for next-generation network upgrades requiring top-tier speed, power delivery, and enterprise-grade reliability.

What's Included in the Box

• TL-SX3206HPP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Full 10G Connectivity

• 4× 10G RJ45 ports supporting 100M/1G/2.5G/5G/10G speeds for ultimate flexibility

• 2× 10G SFP+ slots for high-speed fiber uplinks or extended networking

✅ High-Power PoE++ Capability

• 4× 10G PoE++ ports, each delivering up to 60W

• Total PoE budget of 200W to support power-hungry devices like WiFi 6/6E access points

✅ Advanced L2 and L2+ Features

• Static routing for optimized traffic flows

• VLAN segmentation, IGMP/MLD snooping, QoS, and multicast control

✅ Enterprise-Grade Security

• IP-MAC-Port Binding, ACLs, DoS defend, 802.1X, Radius, and more

✅ Omada SDN Integration

• Centralized cloud management, zero-touch provisioning, and unified monitoring

✅ High Reliability and Performance

• Switching capacity of 120 Gbps and 89.28 Mpps forwarding rate

• Dual image and configuration for network resilience

✅ Quiet Operation

• Compact form factor with 2 efficient fans for cooling

Detailed Specifications

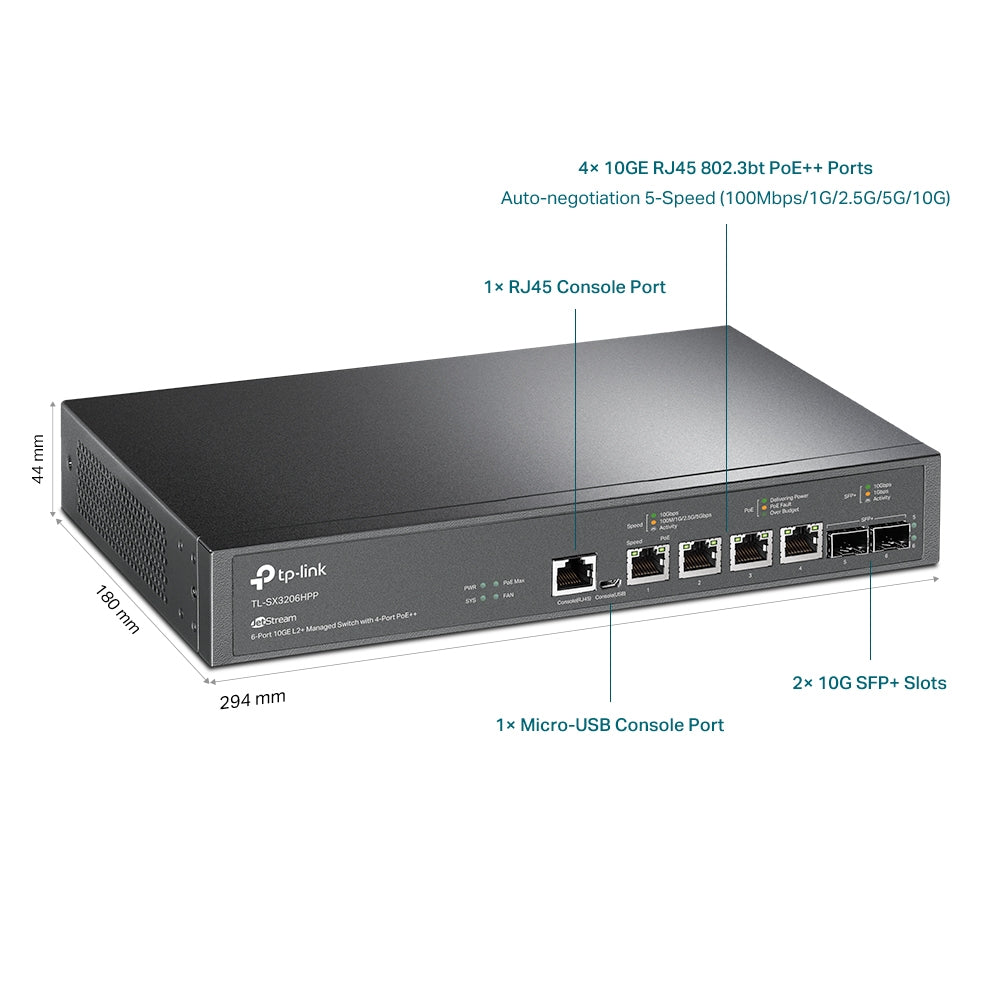

• Ports:

  • 4× 100/1000/2500/5000/10000 Mbps RJ45 ports

  • 2× 10G SFP+ slots

  • 1× RJ45 console port

  • 1× Micro-USB console port

• PoE:

  • Standards: 802.3af/at/bt compliant

  • PoE++ ports: 4 ports up to 60W per port

  • Total power budget: 200W

• Performance:

  • Switching capacity: 120 Gbps

  • Packet forwarding rate: 89.28 Mpps

  • MAC address table: 32 K

  • Jumbo frame support: 9 KB

• Layer 3 Features:

  • Static routing (up to 48 static routes)

  • DHCP server and relay

  • Proxy ARP, gratuitous ARP

• Layer 2 Features:

  • Link aggregation (Static, LACP)

  • Spanning Tree Protocol (STP/RSTP/MSTP)

  • Loopback detection

  • 802.3x flow control

  • Port mirroring

• Multicast:

  • IGMP v1/v2/v3 Snooping

  • MLD v1/v2 Snooping

  • Multicast VLAN Registration (MVR)

  • Multicast filtering

• Quality of Service (QoS):

  • 8 priority queues

  • 802.1p CoS/DSCP priority

  • Bandwidth control per port/flow

  • QoS remarking

• Security:

  • IP-MAC-Port Binding

  • DHCP snooping

  • ARP inspection

  • DoS defense

  • Port security

  • ACLs (MAC/IP/IPv6/Time-based)

  • AAA (RADIUS, TACACS+)

  • Secure HTTPS/SSH management

• VLAN Support:

  • Up to 4,000 VLANs

  • MAC VLAN

  • Protocol VLAN

  • Private VLAN

  • QinQ

• Management:

  • Web-based GUI

  • CLI via console, Telnet, SSH

  • SNMP v1/v2c/v3

  • RMON

  • Dual image/config support

  • Omada SDN centralized cloud management

  • Zero-Touch Provisioning

  • LLDP/LLDP-MED

  • Cable diagnostics

  • Energy Efficient Ethernet (EEE)

• Physical & Environmental:

  • Dimensions: 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

  • Max power consumption: 244.90 W (with full PoE load)

  • Max heat dissipation: 835.67 BTU/hr

  • Operating temperature: 0–50 °C

  • Operating humidity: 10–90% RH non-condensing

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty:

About TP-Link JetStream and Omada

The TP-Link JetStream series offers high-performance switches designed for modern enterprise demands, while the Omada SDN platform provides unified cloud-managed networking for easy scalability, remote management, and enhanced security.

SKU

TL-SX3206HPP

Practical Use Scenarios

• WiFi 6/6E Deployments: Delivers high-bandwidth connectivity and PoE++ power for cutting-edge access points

• Small to Medium Core Switching: Perfect for aggregation layers requiring high-speed and high power output

• Branch Office Networks: Ideal for connecting PoE-powered cameras, phones, and APs in a secure, cloud-managed environment

• Managed Service Providers: Seamless integration with Omada SDN for multi-site management and zero-touch deployment

Datasheets or Downloadable Resources

Download TL-SX3206HPP Datasheet

Excellence for the Australian and New Zealand Market

Optimized for Australia and New Zealand, the TL-SX3206HPP meets regional compliance and quality standards. All units are sourced through official TP-Link channels, ensuring genuine products, local warranty support, and reliable operation tailored for local enterprise networks.

FAQs (TL-SX3206HPP)

Q1: What PoE standard does the TL-SX3206HPP support?
A1: It supports 802.3af, 802.3at, and 802.3bt (PoE++) standards, delivering up to 60W per port. (TL-SX3206HPP)

Q2: Can the TL-SX3206HPP be integrated with the Omada SDN platform?
A2: Yes! It integrates seamlessly into the Omada SDN for cloud-based management, monitoring, and zero-touch provisioning. (TL-SX3206HPP)

Q3: How many total PoE devices can I power simultaneously?
A3: You can power up to 4 devices, each up to 60W, provided the total draw stays within the 200W PoE budget. (TL-SX3206HPP)

Q4: Is the TL-SX3206HPP fanless?
A4: No, it has 2 fans for cooling to handle the power demands of PoE++ and 10G operations. (TL-SX3206HPP)

Q5: Does the TL-SX3206HPP support Layer 3 routing?
A5: Yes, it supports static routing for IPv4 and IPv6 networks, improving internal traffic efficiency. (TL-SX3206HPP)
