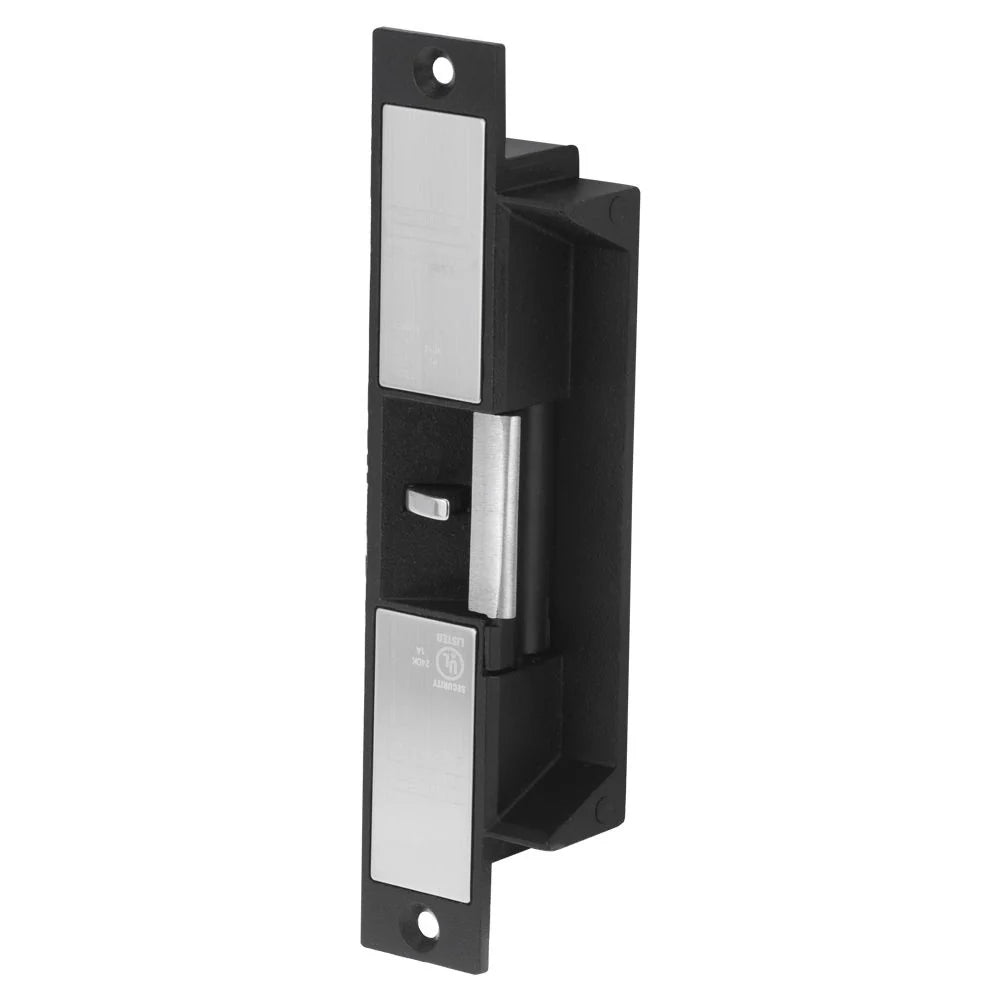

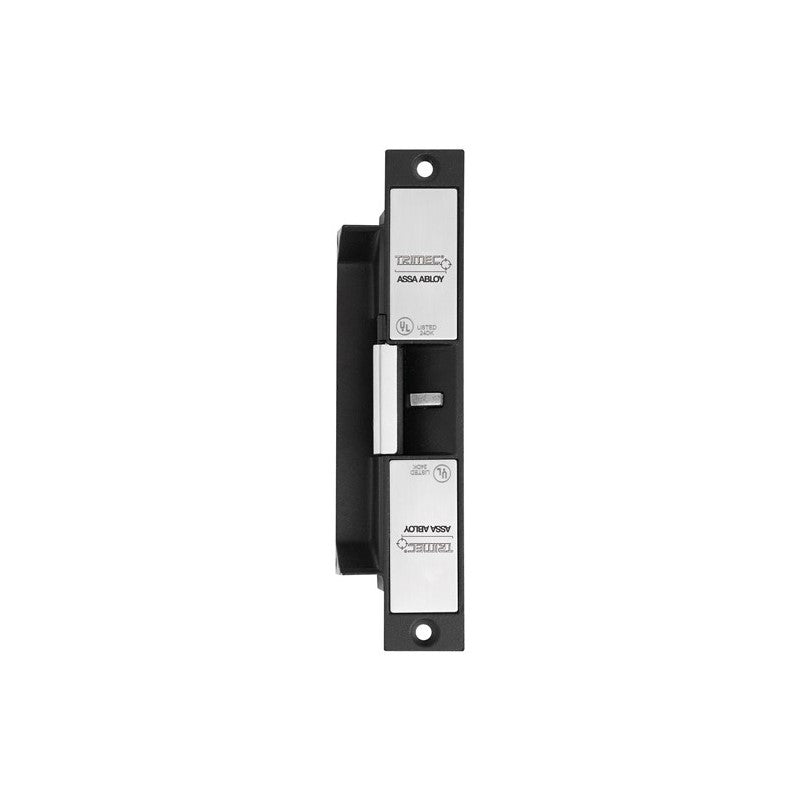

The TRIMEC ES2001 (112001-000) Electric Strike exemplifies high-security innovation and exceptional durability, designed for demanding access control environments. Part of the renowned ES2000 series, the ES2001 combines advanced monitoring capabilities with robust stainless steel construction, delivering unparalleled performance and compliance with stringent security standards.

Engineered for use with hinged doors in high-security or fire-rated installations, the ES2001 provides complete peace of mind with independent monitoring for strike locked status and door latch position. It offers a formidable static holding force of 850kg and an endurance rating of one million operations, ensuring long-lasting reliability in high-traffic settings.

This electric strike operates on 12VDC, is rated for continuous use, and provides the flexibility to switch between fail safe and fail secure operation on-site, accommodating diverse security requirements. Additionally, the ES2001 is SCEC endorsed, making it suitable for secure government and critical infrastructure applications in Australia.

The TRIMEC ES2001 (112001-000) is the ultimate choice for professionals seeking a fully monitored, high-security electric strike that meets fire rating, durability, and advanced monitoring standards.

What’s Included in the Box

• TRIMEC ES2001 (112001-000) Electric Strike

• Mounting Kit (standard)

• Installation Template

• Fixing Screws and Hardware

• User and Installation Guide

Main Features

✅ Fully Monitored Operation – Includes independent monitoring for strike locked status and door latched state, ensuring precise access control and security oversight.

✅ Fail Safe / Fail Secure Changeable On-Site – Easily configure the ES2001 for either Power to Open (fail secure) or Power to Lock (fail safe) as security requirements evolve.

✅ High Security Performance – Constructed from solid stainless steel, offering superior resistance to forced entry and tampering.

✅ 850kg Static Holding Force – Guarantees exceptional strength for high-security environments.

✅ 4-Hour Fire Rating – Certified fire-resistant for up to 4 hours under AS1905.1:2005 Part 1 standards.

✅ Low Power Consumption – Efficient operation at only 175mA maximum at 12VDC.

✅ Endurance Tested to 1 Million Cycles – Designed for high-traffic applications requiring long-term reliability.

✅ SCEC Endorsed – Approved for use in secure government and critical infrastructure facilities across Australia.

✅ Australian Designed and Certified – Built to meet local standards for security, fire safety, and durability.

✅ Tricare 5-Year Warranty – Offers confidence and long-term peace of mind for installers and end-users.

Detailed Specifications

• Voltage: 12VDC

• Current Draw: Max 175mA @ 12VDC

• Operation: Power to Open (Fail Secure), field-configurable to Power to Lock (Fail Safe)

• Monitoring:

  • Solenoid Monitor – 1A NO/NC microswitch

  • Door/Latch Monitor – 1A NO/NC microswitch

• Holding Force: 850kg Static Strength Rating

• Endurance: Tested to 1,000,000 operations

• Latch Compatibility: Suitable for 15mm latch bolt with 3mm door gap

• Environmental Range: -20°C to +60°C

• Body Material: Solid stainless steel construction

• Keeper Material: Stainless steel

• Certifications:

  • S3 Security Rating (AS4145.2.1993)

  • D3 Durability Rating (AS4145.2.1993)

  • BS 5872 Approved

  • Fire rated to 4 hours (AS1905.1:2005 Part 1)

  • UL1034 Approved (highest level)

  • CE Approved

  • C-Tick Certified

  • SCEC Endorsed

• Warranty: Tricare 5-Year Manufacturer’s Warranty

Warranty Information

manufactures warranty applied

About Trimec

Trimec, a leading name in electric locking technology, has earned global trust through innovation, quality, and reliability. As part of the ASSA ABLOY Group, Trimec continues to deliver robust solutions for secure facilities worldwide, from commercial buildings to government installations, with products designed to withstand the most demanding applications.

SKU

TES-2001

Practical Use Scenarios

• Securing high-security government or critical infrastructure facilities requiring SCEC-endorsed products

• Fire-rated door installations in commercial and institutional buildings

• High-traffic commercial entrances where advanced monitoring is essential

• Facilities integrating electric strikes into building management or access control systems

• Retrofitting existing security systems for improved monitoring and compliance with stringent standards

Datasheets & Resources

• Download ES2000 Series Datasheet (PDF)


Excellence for the Australian and New Zealand Market

The TRIMEC ES2001 (112001-000) is designed and certified to meet the demanding requirements of the Australian and New Zealand markets. With SCEC endorsement, it is suitable for use in secure government and critical infrastructure applications. The strike complies with stringent fire and security standards, including AS1905.1 and AS4145.2, ensuring complete peace of mind for installations across diverse building types. Products are sourced exclusively through authorized distributors, guaranteeing authenticity, local compliance, and full warranty support. Local expertise ensures prompt assistance for warranty claims, technical inquiries, and integration into regional building codes.

FAQs – TRIMEC ES2001 (112001-000)

Q1: Is the TRIMEC ES2001 (112001-000) suitable for high-security applications?
A1: Absolutely. The TRIMEC ES2001 (112001-000) is SCEC endorsed and offers robust monitoring, an 850kg holding force, and solid stainless steel construction, making it perfect for high-security installations.

Q2: Does the TRIMEC ES2001 (112001-000) offer monitoring functionality?
A2: Yes, the TRIMEC ES2001 (112001-000) is fully monitored, providing independent monitoring of the strike locked status and door latch position for precise access control management.

Q3: Can the TRIMEC ES2001 (112001-000) be configured for fail safe operation?
A3: Yes, the TRIMEC ES2001 (112001-000) is field-configurable and can be switched between fail secure (Power to Open) and fail safe (Power to Lock) modes as required.

Q4: What is the maximum holding force of the TRIMEC ES2001 (112001-000)?
A4: The TRIMEC ES2001 (112001-000) delivers a static holding force of 850kg, ensuring exceptional security and resistance to forced entry.

Q5: Is the TRIMEC ES2001 (112001-000) fire rated?
A5: Yes, the TRIMEC ES2001 (112001-000) is fire rated for up to 4 hours in accordance with AS1905.1:2005 Part 1 for fire-resistant door sets.
