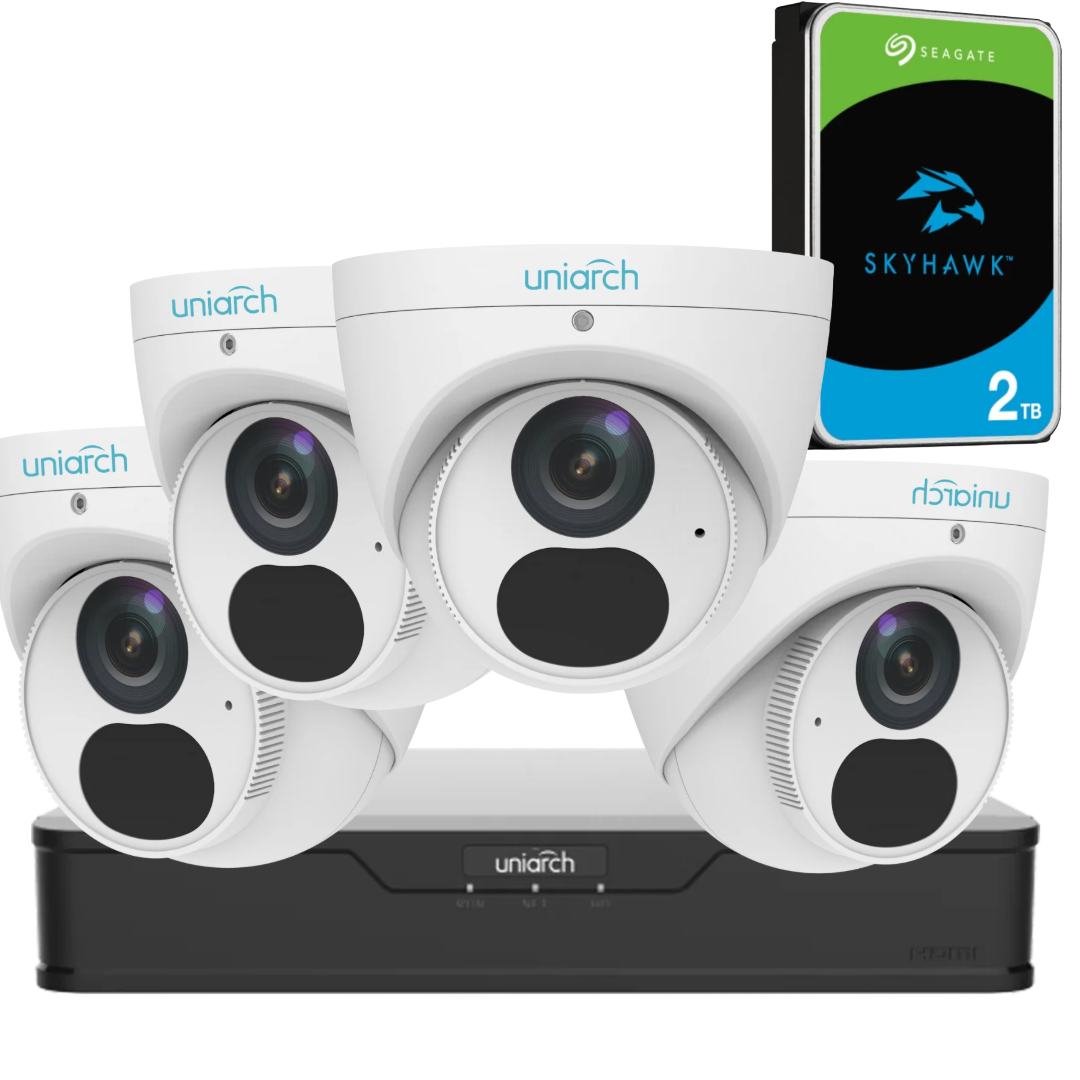

Upgrade your property security with this Uniarch 6MP CCTV Security Camera Kit, featuring 4 x IPC-T1E6-AF28K 6MP IP turret cameras, an 8-channel PoE NVR and a 2TB surveillance hard drive. Designed for sharp day and night monitoring, the system combines 6MP high-definition video, 30m Smart IR night vision, built-in microphones, 120dB True WDR, human-based intrusion detection and simple PoE connectivity for homes, offices, warehouses, retail stores and other commercial premises.

The four IPC-T1E6-AF28K cameras use 1/2.7-inch 6MP progressive-scan CMOS sensors and wide-angle 2.8mm fixed lenses. Each camera captures up to 3072 × 2048 resolution at 20fps, while lower resolutions support frame rates up to 30fps.

Easystar low-light technology helps maintain image quality in low illumination, while 120dB True WDR improves visibility where bright and dark areas appear in the same scene. At night, integrated Smart IR provides infrared illumination at distances of up to 30 metres.

What's Included in the Box

• 4 × Uniarch IPC-T1E6-AF28K 6MP Fixed Turret Network Cameras

• 1 × Uniarch NVR-108B-P8 8-Channel PoE Network Video Recorder

• 1 × 2TB HDD supplied with the CCTV kit

• Camera/NVR standard supplied accessories as applicable

Note: Network cables, monitor/display and installation accessories are not included.

Main Features

• 4 × 6MP Uniarch turret IP security cameras

• 8-channel NVR with 8 independent PoE camera interfaces

• 2TB HDD storage

• Maximum camera resolution of 3072 × 2048 at 20fps

• 2.8mm F1.6 fixed-focal lens

• Wide 112.9° horizontal field of view

• Easystar low-light imaging technology

• 120dB True WDR

• Smart IR night vision up to 30m

• Built-in microphone on each camera

• Human-based intrusion detection

• Motion, tampering and audio detection

• Ultra 265, H.265, H.264 and MJPEG camera compression

• 9:16 Corridor Mode

• MicroSD edge storage support up to 256GB per camera

• IP67 weather-resistant camera housing

• Metal camera construction

• IEEE 802.3af PoE camera power

• ONVIF Profile S, G and T integration support

• NVR HDMI and VGA simultaneous output

• Up to 4K HDMI display output

• NVR recording resolution support up to 16MP

• ANR technology for enhanced recording reliability during network interruptions

• Expandable to a total of 8 compatible IP cameras

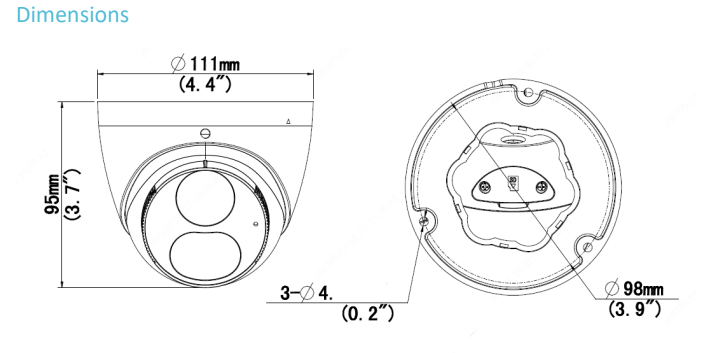

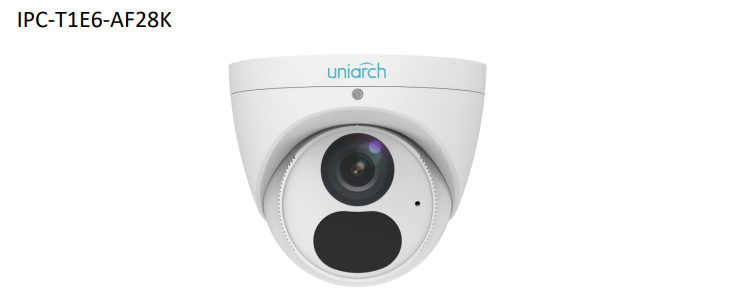

Camera Specifications – IPC-T1E6-AF28K

Camera DORI Distances

With the supplied 2.8mm lens, specified DORI distances are:

Detect: 63.0m
Observe: 25.2m
Recognise: 12.6m
Identify: 6.3m

DORI figures are reference values describing image-detail capability under defined conditions and should not be interpreted as guaranteed identification distances in every installation.

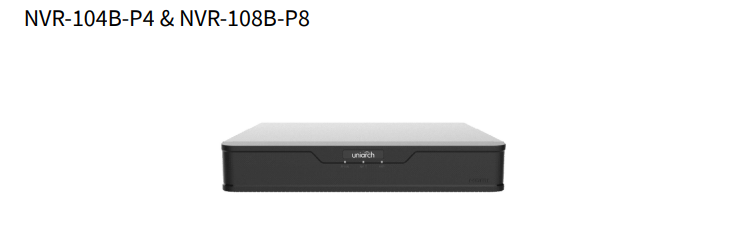

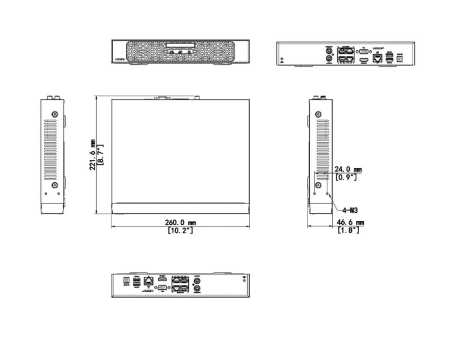

NVR Specifications – NVR-108B-P8

Smart Security & Detection

The IPC-T1E6-AF28K supports human-based intrusion detection, helping the system provide more targeted event detection than basic pixel-change monitoring alone.

Standard camera events also include motion detection, tampering alarms and audio detection. The NVR supports compatible IPC-side intelligent functions including intrusion detection, cross-line detection, enter/leave-area detection, Ultra Motion Detection, face detection and people-counting functions where those features are provided by the connected camera.

Feature availability therefore depends on the capabilities of the individual camera being used; this kit should not be interpreted as providing every NVR-supported analytic function through the IPC-T1E6-AF28K cameras.

Practical Use Scenarios

This Uniarch 4-camera CCTV package is well suited to residential security, providing coverage around entrances, driveways, garages, side access points and outdoor areas. The 2.8mm wide-angle lens is particularly useful where broad scene coverage is preferred.

For retail stores and offices, 6MP imaging can provide detailed surveillance of entrances, counters, work areas and corridors. Built-in microphones can capture audio where recording audio is lawful and appropriate.

For warehouses, workshops and commercial premises, the IP67 metal cameras, PoE connectivity and -30°C to +60°C camera operating range provide a practical solution for mixed indoor and outdoor installations.

The 8-channel NVR also provides useful future expansion capacity. Four cameras are supplied with this package, leaving four NVR channels available for compatible additional IP cameras.

Storage & Efficient Video Compression

The included 2TB HDD provides local recording storage, while Ultra 265/H.265 compression is designed to reduce video bandwidth and storage requirements compared with less efficient compression methods.

Actual recording retention depends on camera count, resolution, frame rate, bitrate, compression settings, recording schedule, scene complexity and whether continuous or event-based recording is selected. For this reason, a fixed number of recording days cannot be guaranteed from HDD capacity alone.

Each IPC-T1E6-AF28K also supports a MicroSD card of up to 256GB for compatible edge-storage applications. MicroSD cards are not listed as included with this kit.

Warranty Information

2 year Warranty

About Uniarch

Uniarch is a product range from Zhejiang Uniview Technologies Co., Ltd. (Uniview), offering video surveillance products including network cameras, NVRs, displays, networking products and surveillance software. The Uniarch ecosystem is designed to provide practical IP surveillance solutions for residential and commercial security applications.

Datasheets & Downloadable Resources

Official Uniarch/Uniview product datasheets and support resources should be used for firmware, compatibility and specification verification.

Camera: IPC-T1E6-AF28K 6MP HD Fixed Turret Network Camera Datasheet
Recorder: NVR-108B-P8 Network Video Recorder Datasheet

Excellence for the Australian and New Zealand Market

This Uniarch CCTV kit combines PoE installation, high-resolution surveillance, outdoor-rated cameras and expandable recording capacity for Australian and New Zealand residential and commercial security applications.

The NVR documentation supplied for this product lists certifications including CE, FCC, UL, RoHS and WEEE. No claim of NDSS approval or specific Australian certification has been made because such approval was not established by the supplied product documentation.

For Australian and New Zealand installations, system design, placement, electrical work, audio recording and surveillance use should comply with applicable local requirements. Product sourcing, warranty handling and authorised-distributor status should be confirmed against the seller's actual supply arrangements rather than assumed.

FAQs

What is included with the Uniarch IPC-T1E6-AF28K / NVR-108B-P8 2TB CCTV kit?

The kit includes four IPC-T1E6-AF28K 6MP turret network cameras, one NVR-108B-P8 8-channel PoE NVR and a 2TB HDD, together with applicable standard supplied accessories.

What resolution does the IPC-T1E6-AF28K / NVR-108B-P8 CCTV kit provide?

Each IPC-T1E6-AF28K camera uses a 6MP CMOS sensor and supports a maximum resolution of 3072 × 2048 at up to 20fps.

Does the IPC-T1E6-AF28K / NVR-108B-P8 2TB kit have night vision?

Yes. Each IPC-T1E6-AF28K camera incorporates Smart IR illumination with a specified infrared range of up to 30 metres.

Does the IPC-T1E6-AF28K / NVR-108B-P8 CCTV kit record audio?

The IPC-T1E6-AF28K includes a built-in microphone and supports G.711 audio compression. Audio recording should only be enabled where permitted by applicable laws and regulations.

Are the IPC-T1E6-AF28K cameras in the NVR-108B-P8 kit weather resistant?

Yes. The IPC-T1E6-AF28K has an IP67 ingress-protection rating and metal construction, making it suitable for appropriately installed indoor and outdoor surveillance applications.

Does the IPC-T1E6-AF28K / NVR-108B-P8 kit use PoE?

Yes. The IPC-T1E6-AF28K supports IEEE 802.3af PoE, while the NVR-108B-P8 provides eight independent PoE interfaces supporting IEEE 802.3af/at.

Can I add more cameras to the IPC-T1E6-AF28K / NVR-108B-P8 2TB security system?

Yes. The NVR-108B-P8 supports eight IP camera channels. Because this package contains four cameras, up to four additional compatible IP cameras can be added, subject to NVR bandwidth, PoE and compatibility limits.

How much footage can the IPC-T1E6-AF28K / NVR-108B-P8 2TB CCTV kit store?

Recording duration varies according to resolution, bitrate, frame rate, compression, recording mode, scene activity and other configuration settings. The supplied 2TB HDD therefore does not correspond to one guaranteed retention period.

Does the IPC-T1E6-AF28K / NVR-108B-P8 system support 4K monitor output?

Yes. According to the supplied NVR-108B-P8 specification, its HDMI output supports up to 3840 × 2160 at 30Hz.

Does the IPC-T1E6-AF28K / NVR-108B-P8 CCTV kit support smart human detection?

The IPC-T1E6-AF28K supports human-based intrusion detection. It also supports basic motion detection, tampering alarms and audio detection.

What lens is fitted to the IPC-T1E6-AF28K / NVR-108B-P8 camera kit?

Each IPC-T1E6-AF28K camera has a 2.8mm F1.6 fixed-focal lens with a specified 112.9° horizontal field of view.

Is the IPC-T1E6-AF28K / NVR-108B-P8 2TB CCTV kit suitable for Australian homes and businesses?

Its IP67 cameras, PoE connectivity, wide-angle imaging, 6MP resolution and expandable 8-channel recorder make it suitable for many Australian residential and commercial surveillance applications when installed and operated in accordance with applicable local requirements.
