Optimize your surveillance coverage with the Uniview IPC2B16SS-ADF28K-I1, a high-performance 6MP LightHunter fixed bullet network camera designed for professional-grade outdoor and perimeter monitoring. Combining 130dB WDR, 80m Smart IR, and intelligent intrusion detection, this camera delivers crystal-clear imaging and advanced security analytics for critical environments and challenging lighting conditions.
Product Description

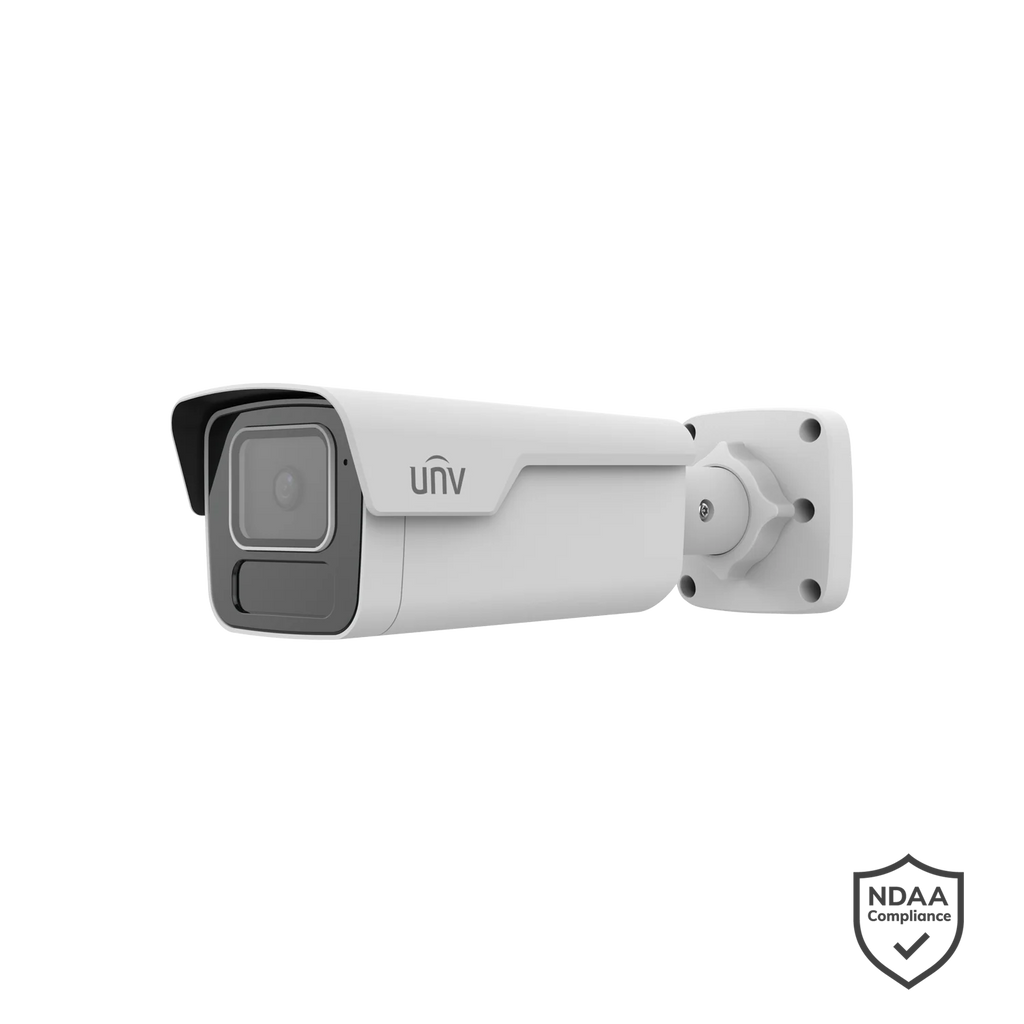

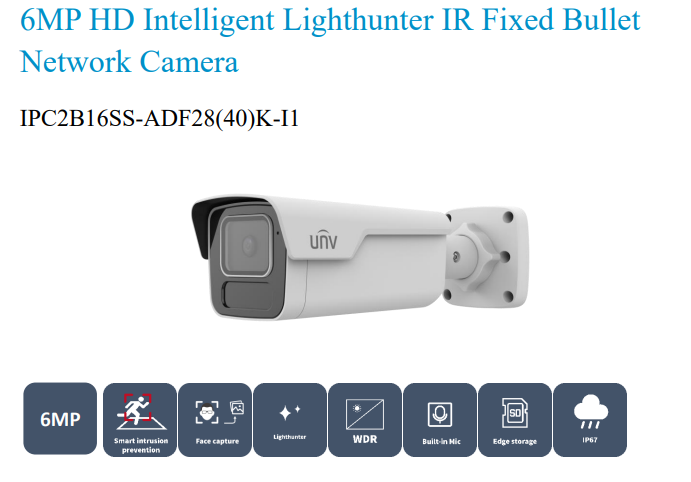

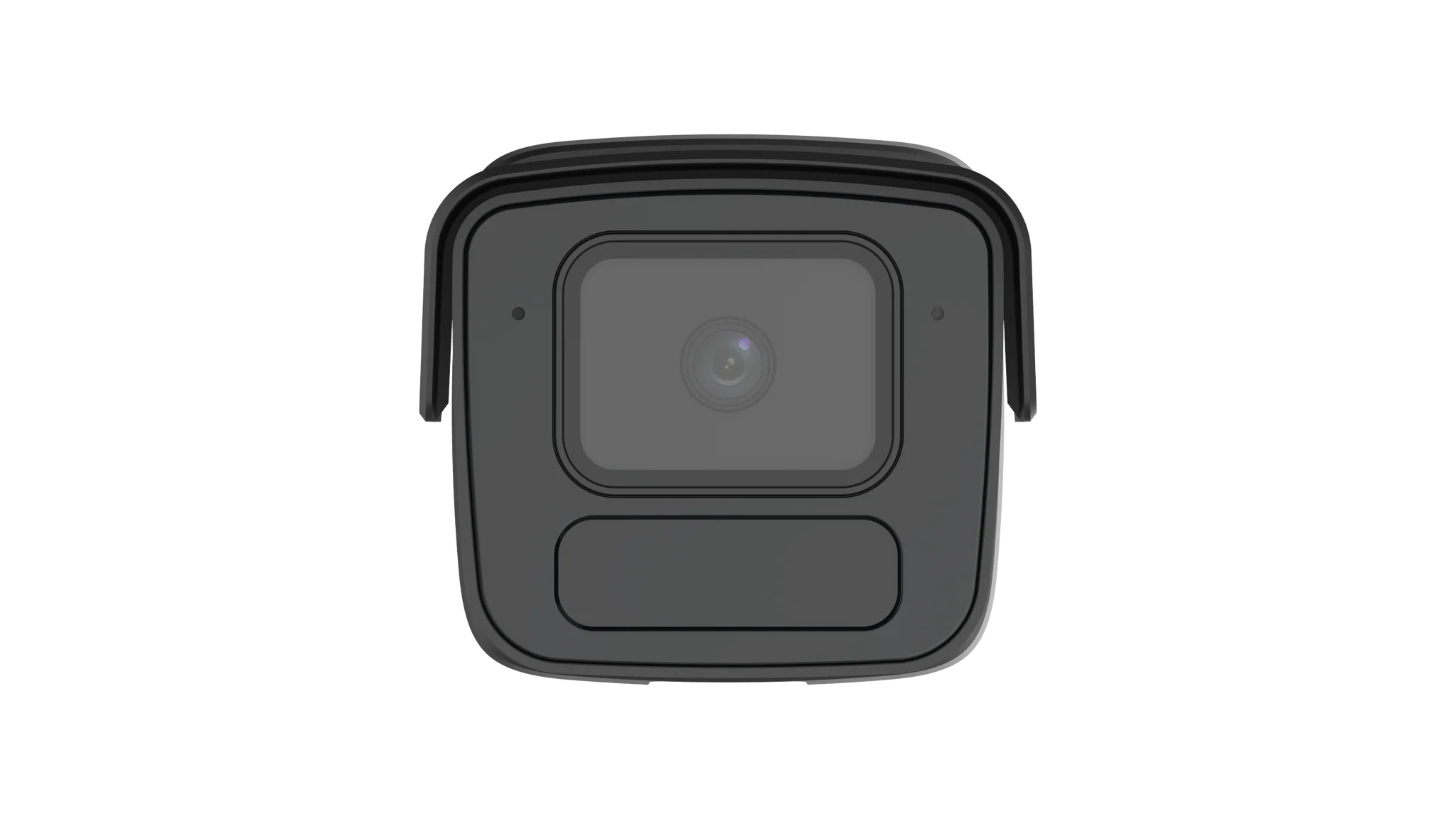

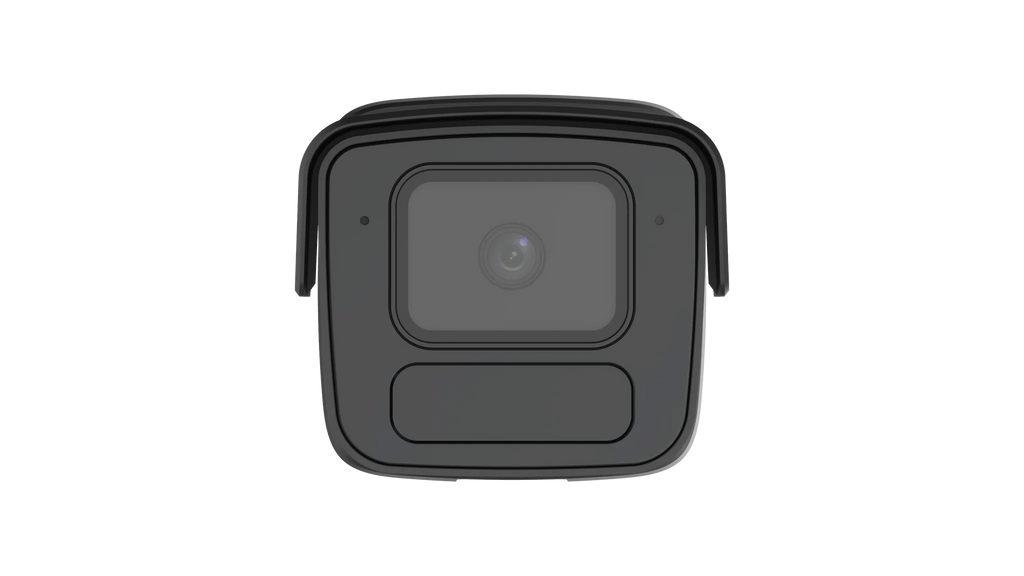

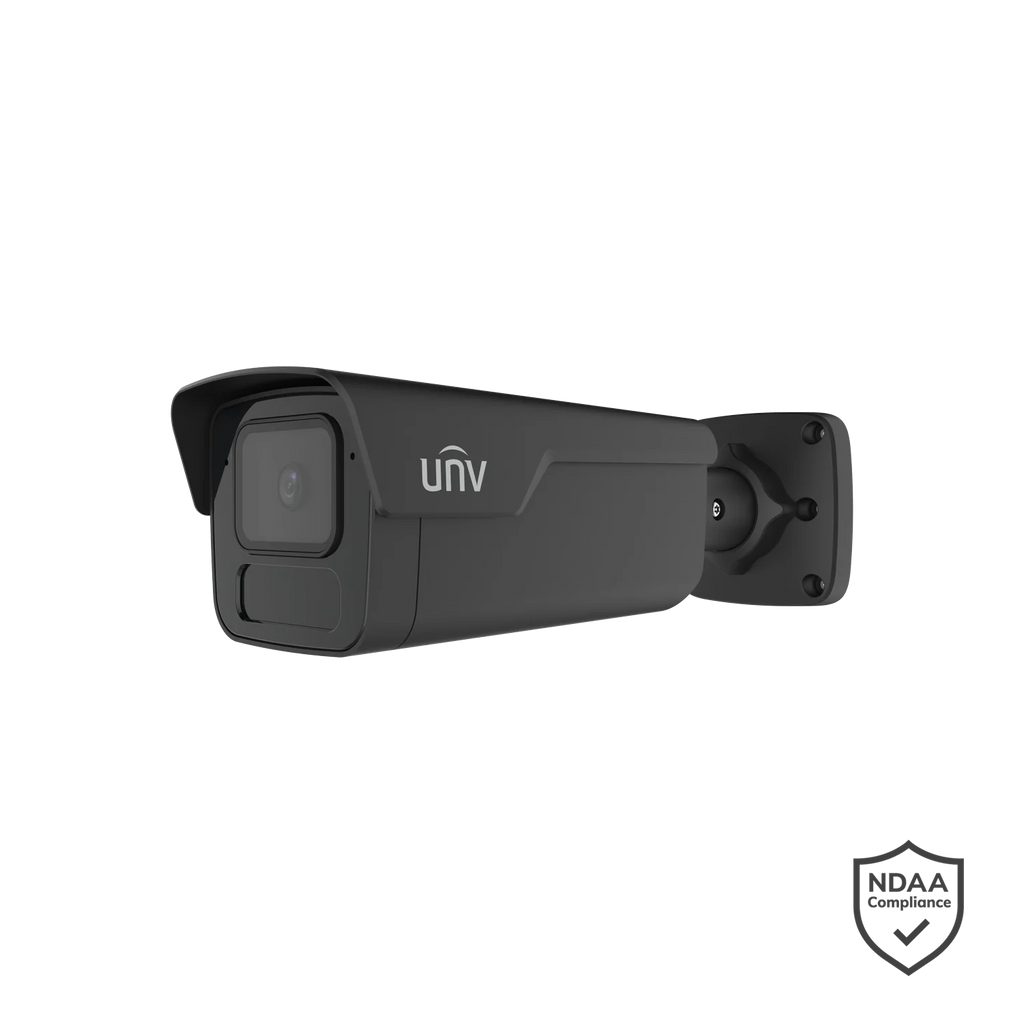

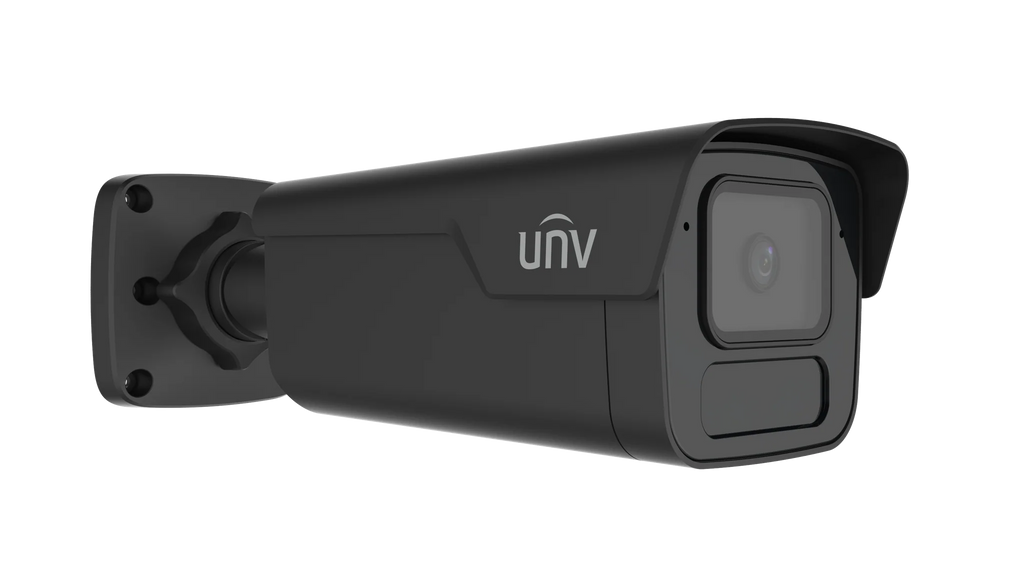

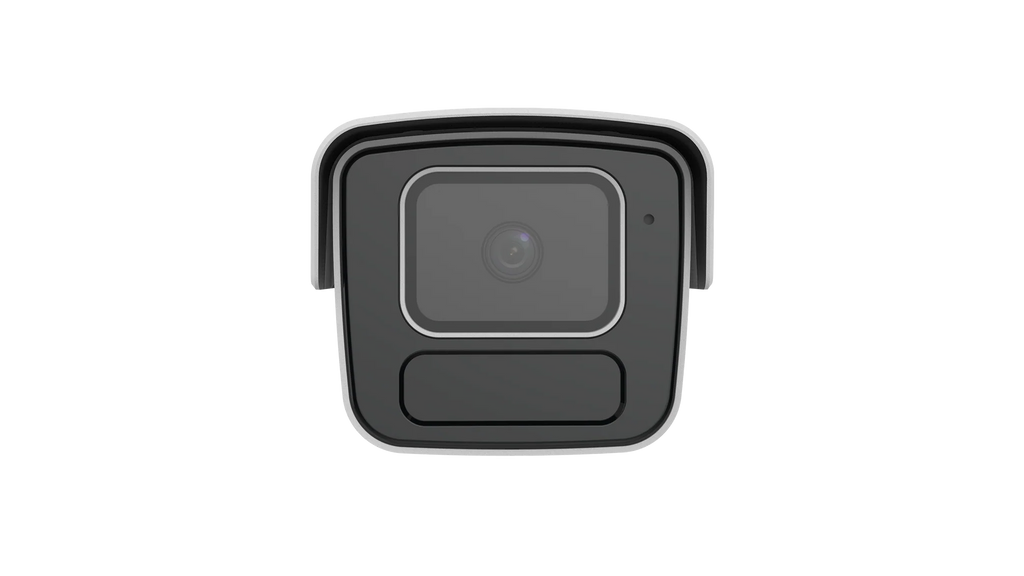

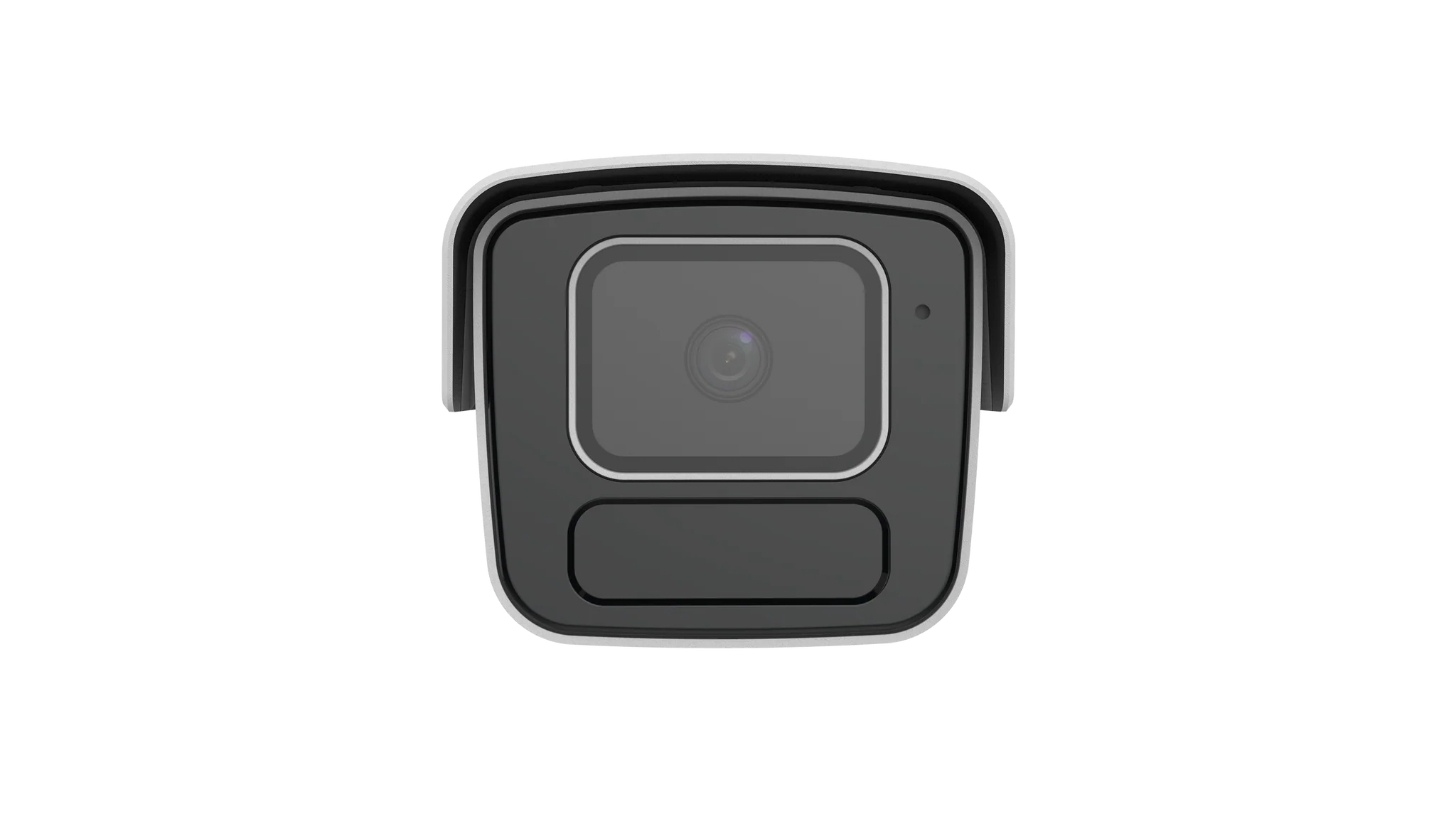

The IPC2B16SS-ADF28K-I1 is a ruggedized, intelligent fixed bullet camera equipped with a 6MP 1/2.7” CMOS sensor, LightHunter technology, and a wide 110° horizontal viewing angle. Its powerful IR illumination reaches up to 80 metres, ensuring clear vision in pitch-black environments. Built-in smart features include people counting, crowd monitoring, and vehicle/human classification—significantly reducing false alarms caused by motion such as leaves or animals.
With IP67 weatherproof protection, triple video streams, and edge storage up to 512GB, the IPC2B16SS-ADF28K-I1 is engineered for 24/7 surveillance in demanding commercial, industrial, and public security installations.
What's in the Box
-
1 × Uniview IPC2B16SS-ADF28K-I1 Camera
-
1 × Mounting template and screws
-
1 × Waterproof cable gland
-
1 × Quick Start Guide
Main Features
-
6MP (3072 × 2048) high-resolution imaging at 30fps
-
2.8mm fixed lens (H: 110°, V: 58.7°, D: 130°)
-
Smart IR up to 80 metres (262 ft) night vision range
-
LightHunter technology for ultra-low light clarity
-
130dB True WDR for complex lighting conditions
-
Intelligent Intrusion Prevention (line crossing, intrusion, area detection)
-
Target classification: human, motor vehicle, non-motor vehicle
-
Built-in microphone and audio I/O
-
IP67-rated weatherproof protection
-
MicroSD card support up to 512GB
-
Supports Ultra 265/H.265/H.264/MJPEG compression
-
Compatible with ONVIF, API, and SDK integrations
-
PoE and DC 12V ±25% power options
Detailed Specifications
| Specification | Detail |
|---|---|
| Model | IPC2B16SS-ADF28K-I1 |
| Sensor | 1/2.7" CMOS, 6MP |
| Lens | 2.8mm Fixed, F1.6 |
| Field of View (H/V/D) | 110° / 58.7° / 130° |
| IR Range | 80m Smart IR |
| WDR | 130 dB |
| Min. Illumination | 0.002 lux (Color), 0 lux (IR On) |
| Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Frame Rate | 6MP @ 30fps; multiple lower resolutions supported |
| Audio | Built-in Mic, 1 Audio In/Out |
| Storage | Up to 512GB Micro SD |
| Protection | IP67 |
| Power | PoE (802.3af), DC 12V ±25% |
| Power Consumption | Max 10.0W |

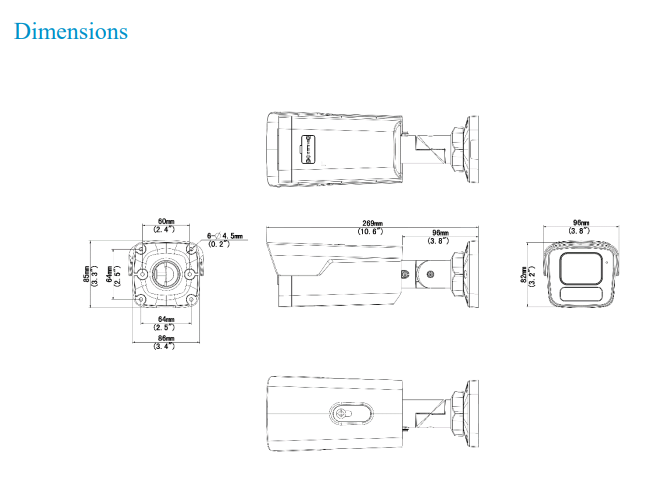

| Dimensions | 269 × 96 × 82 mm |
| Weight | 0.84 kg |
Warranty Information
This Uniview camera is covered by a 3-year standard warranty, ensuring hardware and manufacturing reliability. Warranty claims in Australia and New Zealand are handled directly via authorized Uniview service providers.
Brand Description
Uniview is a pioneer in IP surveillance technology, renowned for its innovations in low-light imaging and intelligent video analytics. The LightHunter series is designed for superior visual performance in real-world conditions, trusted by governments, corporates, and integrators globally.
SKU
IPC2B16SS-ADF28K-I1
Practical Use Scenarios
-
Warehouse Exteriors: Monitor entryways, loading zones, and perimeters with long-range IR.
-
Parking Lots: Vehicle detection and intrusion alerts with reduced false positives.
-
School Grounds: 24/7 surveillance with crowd density monitoring during peak hours.
-
Construction Sites: Robust build, IP67 housing, and vandal resistance make it ideal for rugged conditions.
-
Commercial Retail Parks: Capture high-resolution video across broad outdoor areas.
Datasheets & Downloads
Excellence for the Australian and New Zealand Market
The IPC2B16SS-ADF28K-I1 meets strict Australian and New Zealand standards, including IP67 ingress protection and CE/FCC/UL certifications. Sourced exclusively via authorized ANZ distributors, it ensures seamless local support, warranty fulfillment, and NDSS-aligned performance, making it a secure investment for professional-grade security deployments across the region.
FAQs (Product Code: IPC2B16SS-ADF28K-I1)
Q1: Can IPC2B16SS-ADF28K-I1 function in complete darkness?
A1: Yes, it features Smart IR with a powerful 80m range for superior night visibility.
Q2: What distinguishes IPC2B16SS-ADF28K-I1 in low-light settings?
A2: Uniview’s LightHunter technology ensures vivid, detailed images even in extremely low illumination.
Q3: Does IPC2B16SS-ADF28K-I1 support intelligent detection?
A3: Yes, it supports smart perimeter protection and accurate classification of humans and vehicles to reduce false alarms.
Q4: What is the field of view for IPC2B16SS-ADF28K-I1?
A4: The horizontal view is 110°, offering wide-area coverage.
Q5: Is IPC2B16SS-ADF28K-I1 weather-resistant?
A5: Absolutely. With its IP67 rating, it withstands harsh weather, making it ideal for outdoor use.
Q6: How much local storage does IPC2B16SS-ADF28K-I1 support?
A6: The camera supports MicroSD cards up to 512GB for onboard recording.
