Capture sharp, high-definition surveillance footage with the Uniview IPC318SB-ADF28K-I0 8MP LightHunter Fixed Mini Dome Camera — a compact yet powerful solution designed for high-clarity indoor and outdoor security. Featuring LightHunter technology and 30m Smart IR, this mini dome provides consistent performance in challenging lighting environments while being ideal for installations requiring discreet design and robust protection.
Product Description
The IPC318SB-ADF28K-I0 is an ultra-compact 8MP fixed mini dome camera offering advanced imaging with its 1/3” CMOS sensor and LightHunter low-light performance. With 120 dB WDR and Smart IR up to 30 meters, it delivers crisp, balanced images in both bright and dark settings. This camera is perfect for retail shops, offices, lobbies, and compact outdoor installations thanks to its small form factor, IK10 vandal protection, and IP67-rated weather resistance.
Equipped with a wide 101.1° horizontal field of view, built-in mic, triple streaming, and edge storage up to 512GB, the IPC318SB-ADF28K-I0 provides professional surveillance features in a space-saving design — all while supporting PoE for easy installation.
What's in the Box
-
1 × Uniview IPC318SB-ADF28K-I0 Camera
-
1 × Mounting hardware and accessories
-
1 × Installation drill template
-
1 × Waterproof cable gland
-
1 × Quick start guide
Main Features
-
8MP (3840×2160) resolution at 20fps
-
2.8mm wide-angle fixed lens (H: 101.1°)
-
LightHunter technology for superior low-light performance
-
Smart IR up to 30 meters (98 ft)
-
120 dB True WDR for challenging lighting scenes
-
Compact mini dome form factor for discreet surveillance
-
Built-in microphone with audio in/out
-
Edge storage support up to 512GB MicroSD
-
Triple-streaming (Ultra 265/H.265/H.264/MJPEG)
-
IP67 waterproof and IK10 vandal-resistant
-
3-axis camera adjustment
-
Corridor Mode (9:16) supported
-
PoE and 12V DC power supply options
Detailed Specifications
| Specification | Detail |
|---|---|
| Model | IPC318SB-ADF28K-I0 |
| Sensor | 1/3” CMOS, 8MP |
| Lens | 2.8mm Fixed, F1.6 |
| Field of View (H/V/D) | 101.1° / 55.3° / 111.1° |
| IR Range | 30m Smart IR |
| WDR | 120 dB |
| Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Frame Rate | 8MP @ 20fps; 5MP/4MP/2MP @ 30fps |
| Audio | Built-in mic, 1-in / 1-out |
| Storage | Up to 512GB MicroSD |
| Protection | IP67 / IK10 |
| Power | PoE (802.3af), DC 12V ±25% |
| Power Consumption | Max 6.0W |

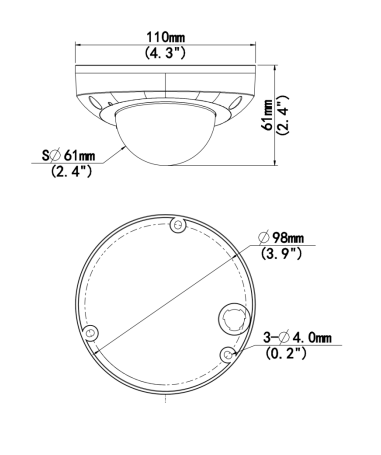

| Dimensions | Ø110 × 61 mm |
| Weight | 0.37 kg |
| Operating Temp | -30°C to 60°C |
Warranty Information
The Uniview IPC318SB-ADF28K-I0 is backed by a 3-year manufacturer warranty, covering hardware failures under standard use. Warranty and support services are locally managed by authorized Uniview partners in Australia and New Zealand.
Brand Description
Uniview is a global leader in smart surveillance technologies. With a focus on reliability, low-light imaging, and intelligent integration, Uniview cameras are trusted for commercial, retail, and public security. The LightHunter series exemplifies excellence in image clarity and dependable performance in real-world lighting conditions.
SKU
IPC318SB-ADF28K-I0
Practical Use Scenarios
-
Retail Stores: Low-profile installation in entryways and aisles for wide-view, high-resolution coverage.
-
Hospital Corridors: Clear audio and 9:16 corridor mode for hallway monitoring.
-
Office Spaces: Mounted above entrances or meeting rooms for discreet, secure surveillance.
-
Elevator Lobbies: Durable mini dome design resists tampering and environmental exposure.
-
Residential Entrances: Easy PoE-powered installation with robust night vision and edge recording.
Datasheets & Resources
Excellence for the Australian and New Zealand Market
Designed with regional needs in mind, the IPC318SB-ADF28K-I0 complies with CE, FCC, UL, IK10, IP67 standards, offering durable performance in both urban and coastal Australian or New Zealand climates. It is exclusively distributed via authorized channels to ensure reliable after-sales support and warranty handling across ANZ.
FAQs (Product Code: IPC318SB-ADF28K-I0)
Q1: Can the IPC318SB-ADF28K-I0 camera be used outdoors?
A1: Yes, it is IP67 weatherproof and IK10 vandal-resistant, ideal for both indoor and outdoor use.
Q2: What is the max resolution and frame rate of IPC318SB-ADF28K-I0?
A2: It delivers 8MP (3840×2160) resolution at 20fps, and up to 30fps at lower resolutions like 5MP and 4MP.
Q3: Does the IPC318SB-ADF28K-I0 have built-in audio capabilities?
A3: Yes, it has a built-in mic and supports audio input/output for two-way communication.
Q4: How far can IPC318SB-ADF28K-I0’s IR vision reach at night?
A4: Its Smart IR provides clear imaging up to 30 meters (98 feet) in complete darkness.
Q5: Does this camera support local storage?
A5: Yes, it supports MicroSD cards up to 512GB for edge recording.
Q6: Is IPC318SB-ADF28K-I0 compatible with third-party systems?
A6: Absolutely. It supports ONVIF Profiles S, G, and T, as well as API and SDK for seamless integration.
