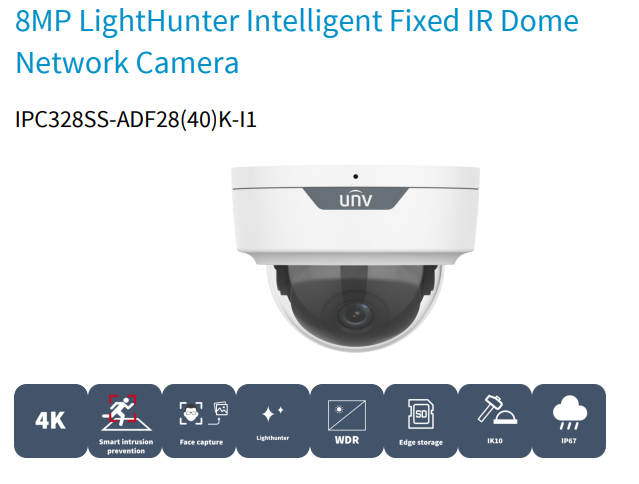

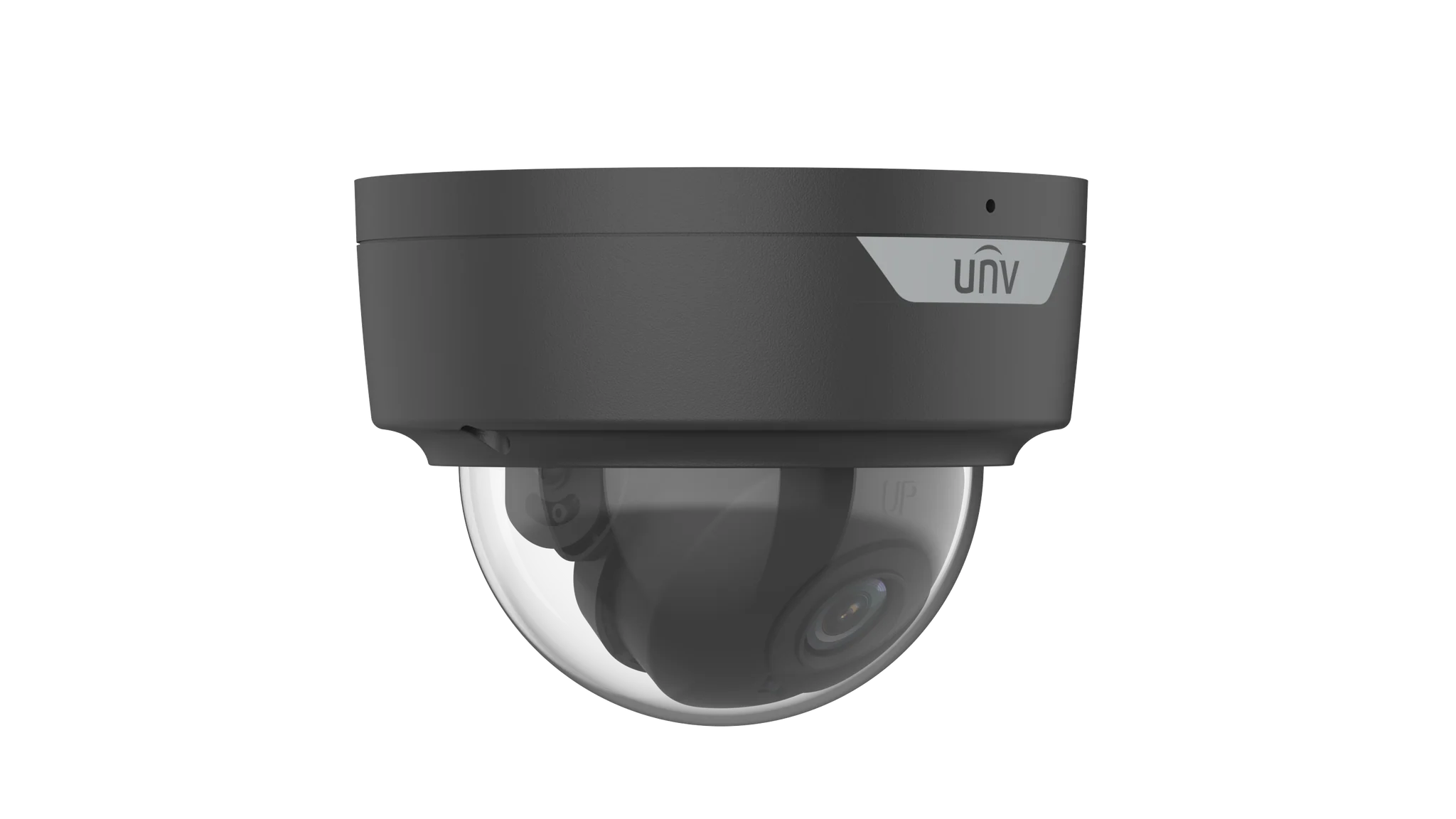

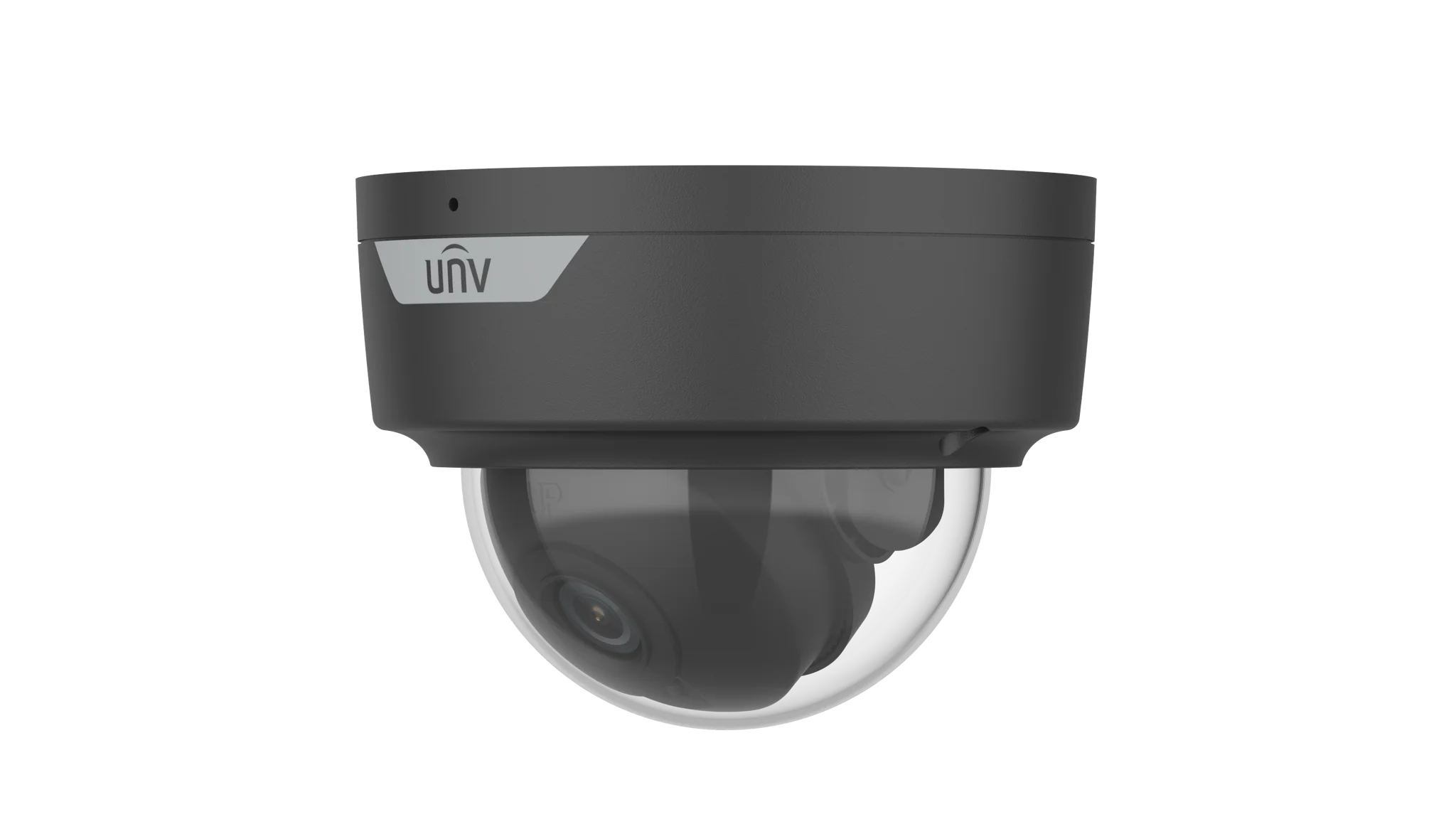

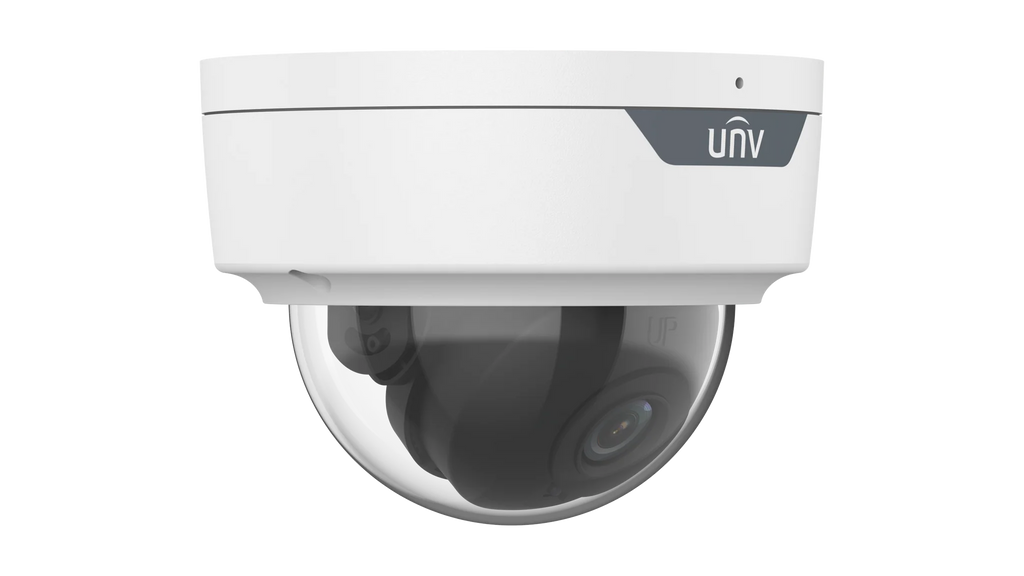

Secure high-definition video surveillance with precision and reliability using the Uniview IPC328SS-ADF28K-I1 8MP LightHunter Fixed IR Dome Camera. Featuring AI-driven perimeter protection, a wide-angle fixed lens, and up to 40m of IR visibility, this model offers cutting-edge performance for professional security systems across the Australian and New Zealand market.
Product Description
The Uniview IPC328SS-ADF28K-I1 delivers 8MP resolution at 30fps, powered by a 1/2.8” CMOS sensor and Uniview’s proprietary LightHunter technology, ensuring vibrant imaging even in extremely low-light conditions. Available with 2.8mm or 4.0mm fixed lens options, the camera provides adaptable field coverage with a horizontal FOV of up to 97.49°.
Built for commercial-grade surveillance, it includes intelligent intrusion detection with advanced classification to focus only on relevant human and vehicle movements. Smart functions like People Counting, Crowd Density Monitoring, and Color Retrieval elevate its utility for retail, transport hubs, and public safety. The IK10-rated dome housing and IP67 weatherproofing make it an ideal choice for both indoor and outdoor deployments.
What's in the Box
-
1 × Uniview IPC328SS-ADF28K-I1
-
1 × Waterproof cable gland
-
1 × Mounting screws and installation template
-
1 × Quick start guide
Main Features
-
8MP (3840×2160) resolution at up to 30fps
-
Available in 2.8mm (wide) or 4.0mm (longer range) fixed lens
-
Smart IR with 40m night vision
-
LightHunter for high-quality low-light performance
-
130 dB True WDR for backlight handling
-
Intelligent Perimeter Protection with human/vehicle classification
-
People Flow Counting and Crowd Density Monitoring
-
Corridor Mode (9:16)
-
Built-in microphone, audio in/out, and alarm in/out
-
Triple-streaming support
-
Edge storage: up to 512GB MicroSD
-
Vandal-resistant (IK10), weatherproof (IP67)
Detailed Specifications
| Specification | IPC328SS-ADF28K-I1 / IPC328SS-ADF40K-I1 |
|---|---|
| Image Sensor | 1/2.8” CMOS, 8MP |
| Lens | 2.8mm (97.49° H FOV) / 4.0mm (88.35° H FOV) |
| IR Range | 40m (131 ft) |
| WDR | 130 dB True WDR |
| Audio | Built-in mic, 1-in / 1-out |
| Alarm I/O | 1 input / 1 output |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Up to 30fps @ 8MP |
| Smart Analytics | Intrusion detection, color retrieval, people counting |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Storage | MicroSD, up to 512GB |
| Power Supply | DC12V ±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 7.0W |

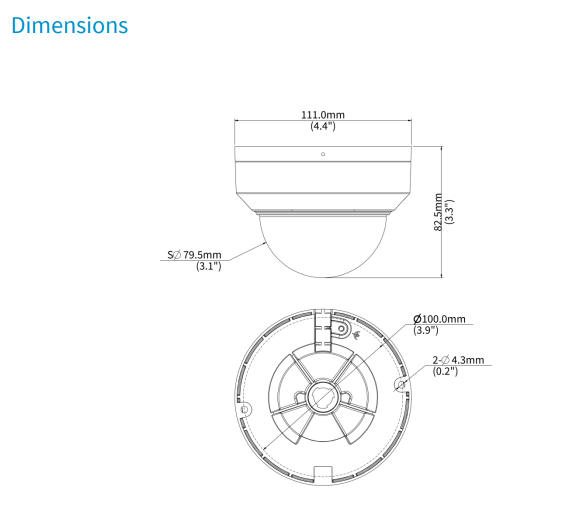

| Dimensions | Ø111 x 83 mm |
| Weight | 0.43 kg |
| Operating Temperature | -30°C to 60°C |
Warranty Information
The Uniview IPC328SS-ADF28(40)K-I1 camera includes a 3-year manufacturer's warranty, valid across Australia and New Zealand through official distributors. Warranty covers factory defects and performance under standard operating conditions.
Brand Description
Uniview, a global leader in surveillance solutions, is renowned for its focus on intelligent analytics, reliability, and camera innovation. Uniview’s LightHunter technology and AI capabilities set industry standards in clarity, performance, and smart detection.
SKU
IPC328SS-ADF28K-I1 / IPC328SS-ADF40K-I1
Practical Use Scenarios
-
Retail Chains: Monitor foot traffic and identify threats with intelligent human detection and people counting.
-
Public Facilities: Secure entry points and open spaces using 8MP resolution with wide IR coverage.
-
Corporate Buildings: Install in indoor lobbies or outdoor perimeters with vandal and weather protection.
-
Parking Structures: Monitor vehicle activity day or night with AI classification and Smart IR.
-
Warehouses: Protect assets with intelligent alerts, WDR support, and reliable image quality.
Datasheets & Resources
Excellence for the Australian and New Zealand Market
Built for compliance and resilience, the IPC328SS-ADF28(40)K-I1 meets Australian and New Zealand electrical and safety standards, including CE, FCC, UL, IK10, and IP67 ratings. Fully optimized for local conditions with support from authorized Uniview distributors, the product includes local warranty processing and certified after-sales support to ensure uninterrupted security system performance.
FAQs (Product Code: IPC328SS-ADF28K-I1 / IPC328SS-ADF40K-I1)
Q1: What’s the main difference between IPC328SS-ADF28K-I1 and IPC328SS-ADF40K-I1?
A1: The difference is in the lens. The 2.8mm lens offers a wider field of view, while the 4.0mm provides a narrower, longer-range view.
Q2: Does the IPC328SS-ADF28K-I1 support audio recording?
A2: Yes, it includes a built-in microphone and also supports external audio input/output.
Q3: Can IPC328SS-ADF28K-I1 be used outdoors?
A3: Absolutely. It is IP67 weatherproof and IK10 vandal-resistant, making it perfect for outdoor applications.
Q4: Is Smart IR available in the IPC328SS-ADF28K-I1 model?
A4: Yes, it includes Smart IR with a 40m effective night vision range.
Q5: What edge storage capacity is supported by IPC328SS-ADF28K-I1?
A5: It supports up to 512GB MicroSD card for onboard video storage.
Q6: Is the IPC328SS-ADF28K-I1 camera compatible with third-party systems?
A6: Yes, it is fully ONVIF compliant (Profiles S, G, T), ensuring integration with most NVRs and VMS platforms.
