Experience top-tier surveillance performance with the Uniview IPC6424SR-X25-VF-B, a 4MP PTZ dome camera featuring 25x optical zoom, smart IR up to 100m, and LightHunter low-light technology. Designed for demanding outdoor environments, this PTZ solution delivers intelligent monitoring, rapid responsiveness, and crystal-clear imagery day or night.
Product Description

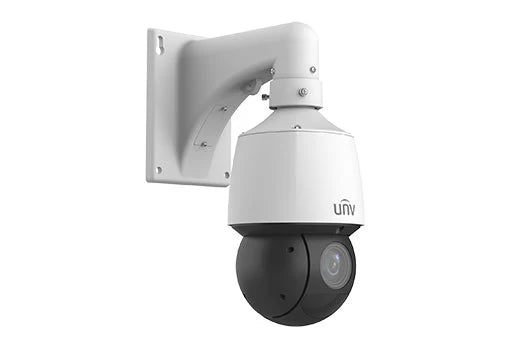

The IPC6424SR-X25-VF-B is a premium 4MP PTZ dome network camera engineered for expansive area coverage and accurate target tracking. Powered by a 1/2.8" CMOS sensor, the camera offers 2688×1520 resolution at 30fps, with support for Ultra 265 compression, reducing bandwidth and storage needs without sacrificing clarity.
With 25x optical zoom and Auto Tracking, this camera is ideal for monitoring large open areas like parking lots, campuses, industrial sites, and stadiums. LightHunter technology enhances low-light performance, and IP67/IK10-rated construction ensures durability against harsh weather and vandalism.
What's in the Box
-
1 × Uniview IPC6424SR-X25-VF-B PTZ Camera
-
Wall Mount Bracket (TR-WE45-IN)
-
Power Cable & Mounting Hardware
-
Quick Installation Guide
-
Optional accessories sold separately
Main Features
-
4MP resolution (2688×1520) at 30fps
-
25x optical zoom (4.8–120mm) + 16x digital zoom
-
Smart IR up to 100 metres
-
LightHunter technology for ultra-low-light clarity
-
Intelligent auto tracking and motion detection
-
Supports Micro SD storage up to 256GB
-
IP67 weatherproof & IK10 vandal resistant
-
Alarm: 2 inputs / 1 output; Audio: 1 in / 1 out
-
Triple-stream video output (Ultra 265, H.265, H.264, MJPEG)
-
Advanced patrol, preset, and tracking functionality
Detailed Specifications
| Specification | Detail |
|---|---|
| Model | IPC6424SR-X25-VF-B |
| Resolution | 4MP (2688×1520) |
| Zoom | 25x optical, 16x digital |
| Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | 0.003 Lux (color), 0 Lux with IR |
| IR Range | 100m |
| Lens | 4.8–120mm motorized |
| WDR | 120dB |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| DORI (Max Zoom) | Detect: 2475m, Identify: 247.5m |
| Onboard Storage | Up to 256GB MicroSD |
| Protection Rating | IP67, IK10 |
| Pan/Tilt Range | Pan: 360° endless / Tilt: –15° ~ 90° |
| Pan Speed | Up to 240°/s |
| Tilt Speed | Up to 200°/s |
| Presets | 1024 |
| Power | DC12V ±25%, PoE+ (IEEE 802.3at) |
| Operating Temp | -40°C to 70°C |

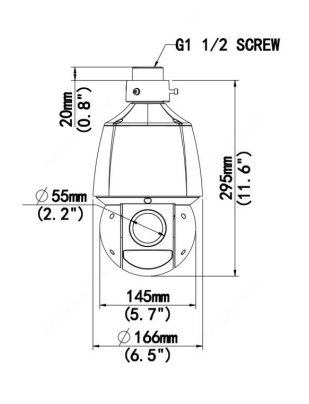

| Dimensions | Ø166 × 295mm |
| Weight | 3.05kg |
Warranty Information
The IPC6424SR-X25-VF-B comes with a 3-year limited warranty, including full support and service via certified Australian and New Zealand distributors. Warranty claims are managed through authorized local channels for fast and hassle-free support.
Brand Description
Uniview, a leader in surveillance innovation, delivers intelligent video solutions with superior quality and cutting-edge technology. Known for reliability and enterprise-grade security systems, Uniview offers advanced features like LightHunter, Ultra 265 compression, and auto-tracking across their product range.
SKU
IPC6424SR-X25-VF-B
Practical Use Scenarios
-
Public Spaces: Track people across parks, train stations, and plazas
-
Retail Car Parks: Zoom in on license plates and suspicious activity
-
Logistics & Ports: Monitor wide zones with precision and detail
-
Campus & School Grounds: Auto-track intruders or monitor perimeter breaches
-
Warehouses: View large aisles and storage yards with a single camera
Datasheets & Downloads
Excellence for the Australian and New Zealand Market
The Uniview IPC6424SR-X25-VF-B is optimized for Australia and New Zealand, delivering rugged weather protection (IP67), full ONVIF compatibility, and advanced thermal protection for extreme climates. All stock is sourced through authorized regional distributors, ensuring genuine products and local warranty coverage. Support is directly available through Uniview’s regional technical teams, ensuring fast assistance and updates.
FAQs (Product Code: IPC6424SR-X25-VF-B)
Q1: How far can IPC6424SR-X25-VF-B zoom in and still recognize a person?
A1: At max zoom (120mm), it can identify a person at up to 247.5m (812ft).
Q2: Is IPC6424SR-X25-VF-B suitable for use in coastal or rainy areas?
A2: Yes, it's IP67-rated for dust and water ingress protection, making it ideal for harsh outdoor environments.

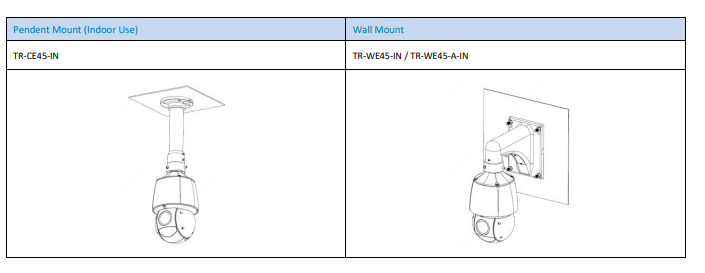

Q3: What mounting accessories are compatible with IPC6424SR-X25-VF-B?
A3: It supports wall, pole, pendant, and corner mounts. The wall mount (TR-WE45-IN) is included.
Q4: Can IPC6424SR-X25-VF-B track people or vehicles automatically?
A4: Yes, it supports intelligent auto-tracking of moving targets based on detection.
Q5: How much local recording does IPC6424SR-X25-VF-B support?
A5: The camera supports up to 256GB Micro SD card storage for edge recording.
Q6: Does IPC6424SR-X25-VF-B support PoE+?
A6: Yes, it supports PoE+ (IEEE 802.3at), simplifying installation by combining power and data over one cable.
