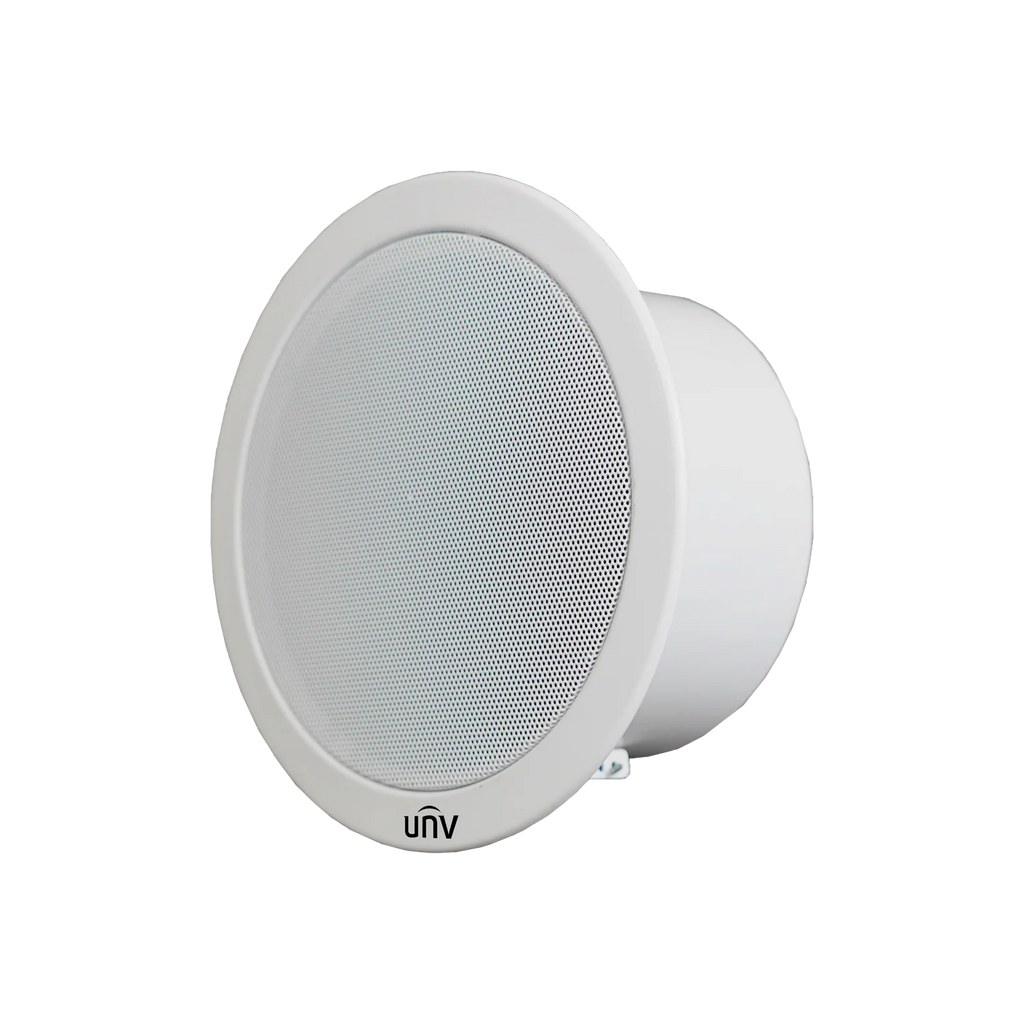

The Uniview IPS301015-S 15W Ceiling IP Speaker is a professional-grade network audio broadcasting solution designed for modern surveillance and public address systems. Engineered for seamless integration with Uniview NVRs and IP security systems, this PoE-powered ceiling speaker delivers clear, high-penetration sound up to 100 dB SPL, making it ideal for alarm broadcasting, live announcements, and audio-video linkage in security environments. With built-in storage for custom audio files, two-way audio communication, and ONVIF compatibility, the IPS301015-S provides a reliable and scalable IP audio solution for commercial buildings, retail environments, offices, schools, and security installations.
Designed with a durable metal housing and discreet ceiling-mounted form factor, this network speaker integrates easily into modern infrastructures while offering flexible broadcasting capabilities, secure network protocols, and remote management via standard web browsers.
What's Included
-
1 × Uniview IPS301015-S Ceiling IP Speaker
-
Mounting hardware
-
Installation guide
-
Network interface connection
Main Features
-
15W High-Quality Ceiling Speaker delivering loud and clear audio output
-
100 dB Maximum Acoustic Pressure for effective announcements in large areas
-
Seamless Integration with Uniview NVR Systems for alarm broadcasting and event-triggered audio
-
Two-Way Audio Communication with built-in microphone
-
Built-in Storage (64MB) supporting up to 100 audio files
-
Custom Audio Upload Support (MP3 / WAV formats)
-
PoE Powered (IEEE 802.3af) for simplified installation
-
ONVIF, RTSP & RTP Protocol Support for flexible integration with IP systems
-
Web Browser Management via Chrome, Firefox, Edge, and Safari
-
Durable Metal Construction suitable for commercial environments
Detailed Specifications
Speaker Performance
-
Rated Power: 15 W
-
Max Acoustic Pressure: 100 dB SPL
-
Frequency Response: 100 Hz – 15 kHz
-
Impedance: 8 Ω
Microphone
-
Built-in Microphones: 1
-
Frequency Response: 100 Hz – 8 kHz
-
Sensitivity: -37 dBV/Pa
-
Sampling Rate: 8 kHz
-
Quantization Bits: 16-bit
Audio System
-
Broadcast Modes: Regular Broadcast, Live Broadcast, Alarm Broadcast
-
Two-Way Audio: Supported
-
Audio Compression: G.711U
-
Supported Audio Formats: MP3, WAV
-
Audio File Size: 2 KB – 10 MB
-
Audio Storage Capacity: 64 MB
-
Maximum Audio Files: 100 files (including system files)
Network
-
Network Interface: 1 × RJ45 10/100 Mbps Ethernet
-
Supported Protocols: IPv4, HTTP, HTTPS, SSL/TLS, DNS, TCP, UDP, DHCP, UPnP, ARP, SSH
-
API Interface: ONVIF, RTSP, RTP, LAPI

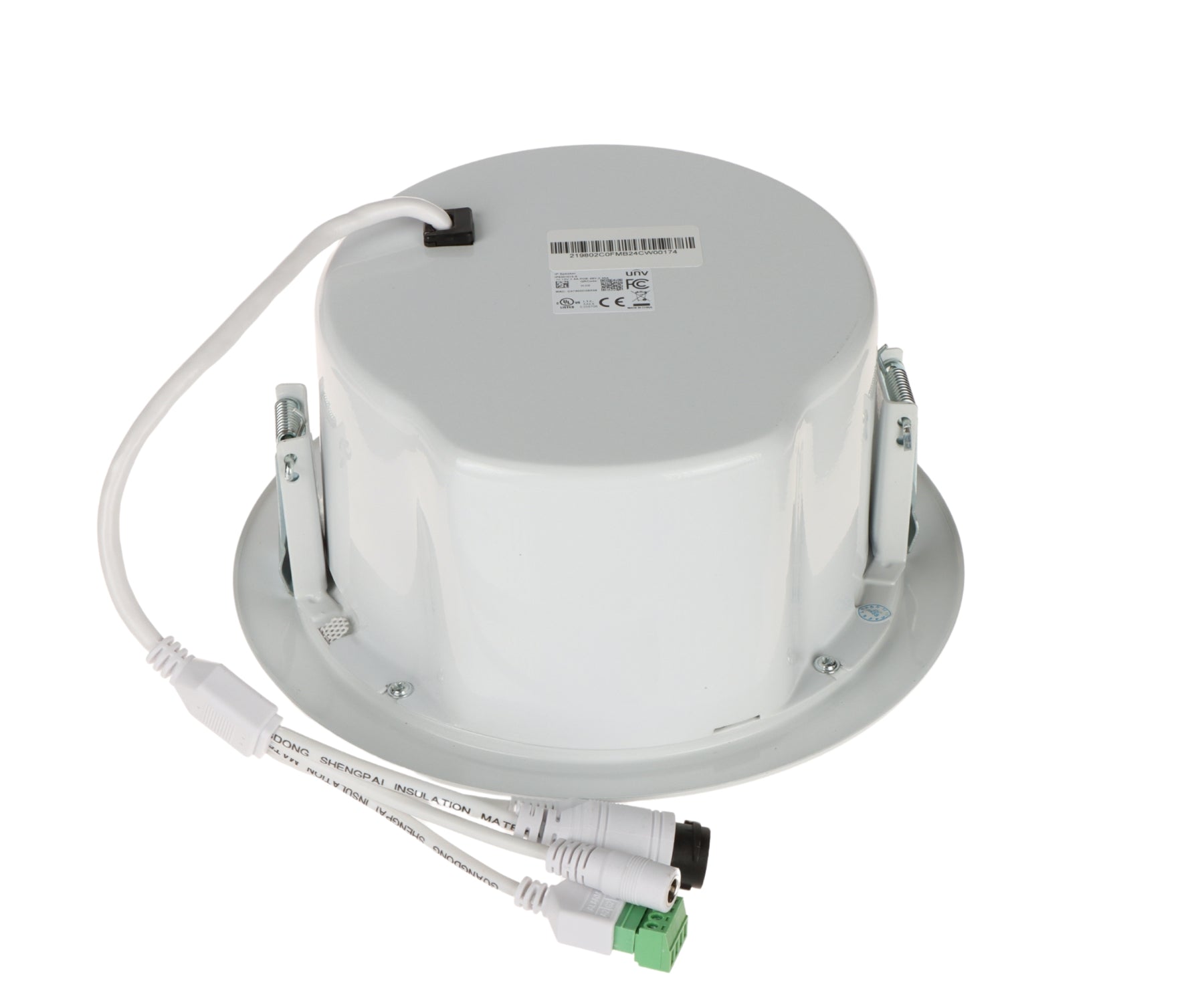

Interface Ports
-
Audio Input: RCA (sound amplification only)
-
Alarm Input: 2
Power
-
PoE: IEEE 802.3af
-
Alternative Power: DC 12V / 1.4A

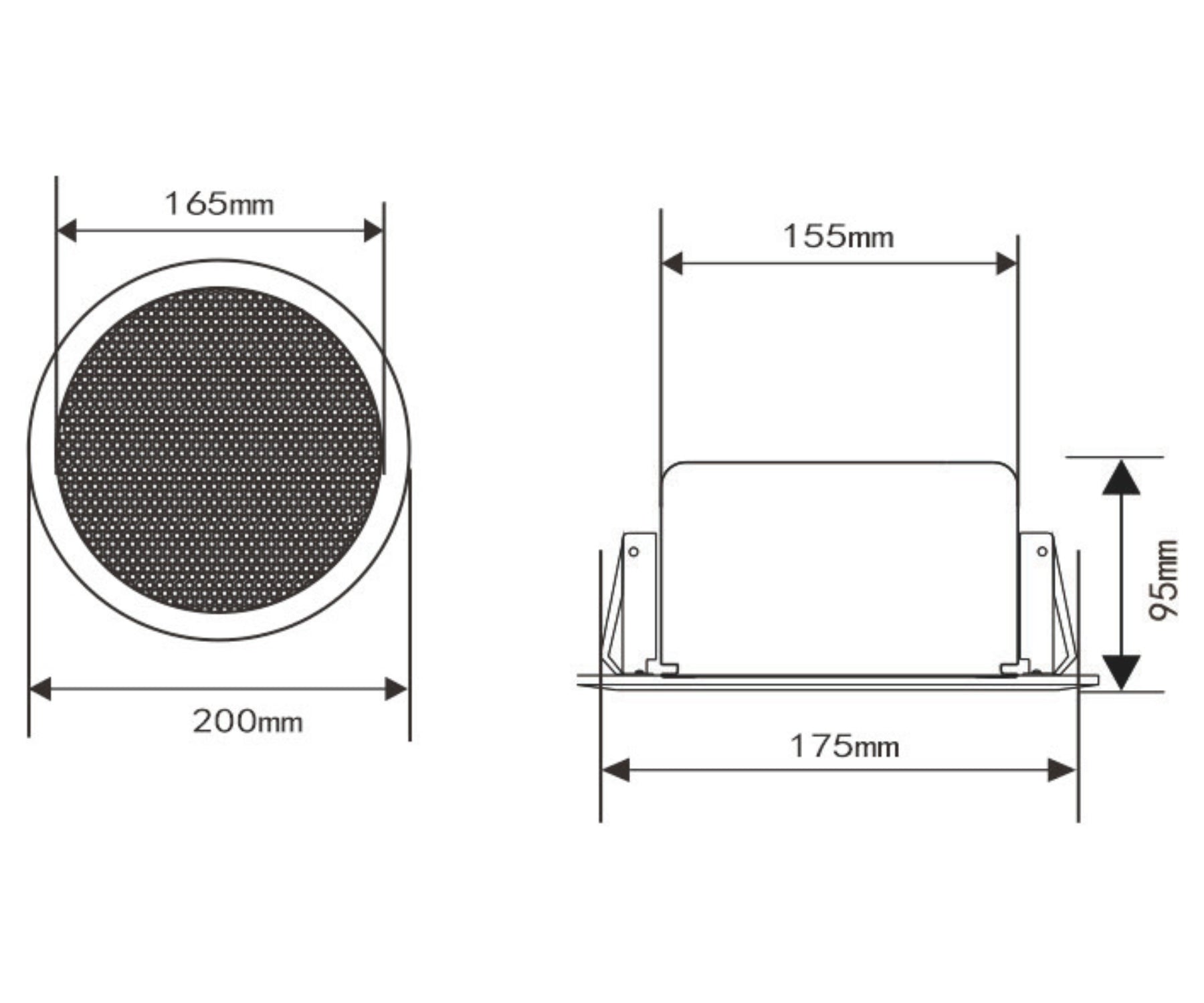

Physical Specifications
-
Material: Metal
-
Dimensions: Ø200 mm × 95 mm
-
Cut-out Size: 180 mm ceiling hole
Environmental
-
Operating Temperature: -10°C to 50°C
-
Operating Humidity: ≤90% RH (non-condensing)
Warranty Information
The Uniview IPS301015-S Ceiling IP Speaker is backed by a manufacturer warranty, with support and warranty claims handled directly through authorized Uniview distribution channels to ensure genuine service and product authenticity.
About the Brand – Uniview
Uniview (UNV) is a global leader in IP video surveillance and AI-powered security solutions. Known for high-performance networking technologies and reliable hardware, Uniview products are widely used in commercial security, smart cities, transportation, and enterprise infrastructure worldwide.
Practical Use Scenarios
-
Security Alarm Broadcasting in CCTV surveillance systems
-
Retail Stores for announcements and emergency alerts
-
Warehouses & Industrial Facilities for operational notifications
-
Schools & Universities for paging and safety alerts
-
Office Buildings for automated announcements
-
Hospitals & Healthcare Facilities for communication and alerts
Datasheets & Resources
Excellence for the Australian and New Zealand Market
This product has been sourced with the Australian and New Zealand professional security market in mind. The Uniview IPS301015-S is supplied through authorized distribution channels, ensuring authentic hardware, reliable firmware updates, and full manufacturer support. It integrates seamlessly with Uniview security infrastructure commonly deployed across commercial, industrial, and government projects in Australia and New Zealand. Warranty and technical support are handled through direct communication with the brand and official partners, guaranteeing long-term reliability and compliance with professional installation standards.
Uniview IPS301015-S
What is the Uniview IPS301015-S ceiling IP speaker used for?
The Uniview IPS301015-S is used for network audio broadcasting, alarm announcements, and two-way communication in security systems, retail environments, offices, and public facilities.
Does the Uniview IPS301015-S support PoE?
Yes, the Uniview IPS301015-S supports PoE (IEEE 802.3af), allowing both power and data transmission through a single Ethernet cable for easier installation.
Can the Uniview IPS301015-S integrate with a Uniview NVR?
Yes, the Uniview IPS301015-S integrates with Uniview NVR systems and can perform alarm-triggered audio broadcasting and video-audio linkage.
Does the Uniview IPS301015-S support two-way audio communication?
Yes, the Uniview IPS301015-S features a built-in microphone and speaker, enabling real-time two-way audio communication.
What audio formats are supported by the Uniview IPS301015-S?
The Uniview IPS301015-S supports MP3 and WAV audio files, allowing custom audio announcements to be uploaded and broadcast.
How many audio files can be stored on the Uniview IPS301015-S?
The Uniview IPS301015-S includes 64MB of storage, supporting up to 100 audio files, including built-in system audio files.
Is the Uniview IPS301015-S compatible with ONVIF systems?
Yes, the Uniview IPS301015-S supports ONVIF, RTSP, and RTP protocols, enabling compatibility with a wide range of IP surveillance platforms.
