The Uniview IPS302030-S 30W Horn IP Speaker is a powerful outdoor network broadcasting solution designed for security, public address, and emergency alert systems. Delivering up to 130 dB SPL acoustic output, this high-performance horn speaker provides long-distance sound projection and crystal-clear audio, making it ideal for large outdoor areas such as car parks, warehouses, industrial sites, campuses, and perimeter security zones. Integrated with Uniview NVR systems, the IPS302030-S supports alarm-triggered audio broadcasting and video-audio linkage, allowing security events to trigger automated warnings or announcements.
Built with IP66 weatherproof protection and durable ABS housing, the speaker is engineered for reliable operation in harsh outdoor environments. With PoE+ support, built-in microphone for two-way communication, custom audio uploads, and ONVIF compatibility, this network horn speaker provides flexible and scalable IP audio integration for modern surveillance infrastructures.
What's Included
-
1 × Uniview IPS302030-S Horn IP Speaker
-
Mounting bracket
-
Installation hardware
-
Quick installation guide
Main Features
-
High-Power 30W Horn Speaker designed for long-distance outdoor audio broadcasting
-
130 dB Maximum Acoustic Pressure for wide-area coverage
-
Integrated with Uniview NVR Systems for alarm-triggered audio broadcasting
-
Two-Way Audio Communication via built-in microphone
-
Built-in Audio Storage (64MB) supporting custom announcements
-
Upload Custom Audio Files in MP3 or WAV formats
-
PoE+ Power Support (IEEE 802.3at) for simplified installation
-
IP66 Weatherproof Rating for outdoor environments
-
ONVIF, RTSP & RTP Protocol Support for flexible system integration
-
Web Browser Configuration and Management
Detailed Specifications
Speaker Performance
-
Rated Power: 30 W
-
Maximum Acoustic Pressure: 130 dB SPL
-
Frequency Response: 300 Hz – 12.5 kHz
-
Impedance: 8 Ω
Microphone
-
Built-in Microphone: 1
-
Frequency Response: 100 Hz – 8 kHz
-
Sensitivity: -37 dBV/Pa
-
Sampling Rate: 8 kHz
-
Quantization Bits: 16-bit
Audio System
-
Broadcast Modes: Regular Broadcast, Live Broadcast, Alarm Broadcast
-
Two-Way Audio: Supported
-
Audio Compression: G.711U
-
Supported Audio Formats: MP3, WAV
-
Audio File Size: 2 KB – 10 MB
-
Audio Storage Capacity: 64 MB
-
Maximum Audio Files: 100 files (including system files)
Network
-
Network Interface: 1 × RJ45 10/100 Mbps Ethernet
-
Supported Network Protocols: IPv4, HTTP, HTTPS, SSL/TLS, DNS, TCP, UDP, DHCP, UPnP, ARP, SSH
-
API Protocols: ONVIF, RTSP, RTP, LAPI
Interface Ports
-
Audio Input: RCA (for sound amplification only)
-
Alarm Input: 2
Power
-
PoE: IEEE 802.3at (PoE+)
-
Alternative Power Options:
-
DC 24V / 1.4A
-
DC 12V / 2.5A
-
Physical Specifications
-
Material: ABS Plastic
-

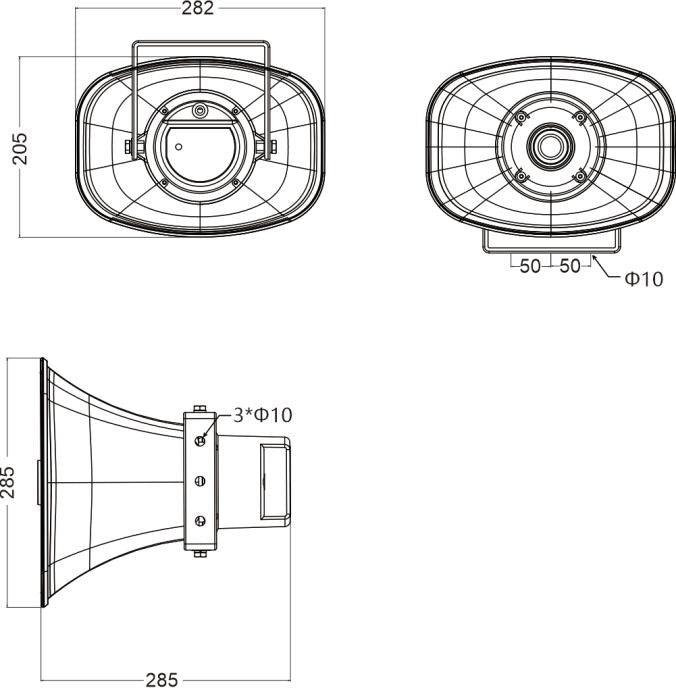

Dimensions: 282 × 205 × 285 mm
Environmental
-
Protection Rating: IP66 weatherproof
-
Operating Temperature: -30°C to 55°C
-
Operating Humidity: ≤90% RH (non-condensing)
Warranty Information
The Uniview IPS302030-S Outdoor Horn IP Speaker includes a manufacturer-backed warranty, ensuring dependable performance and long-term support when purchased through authorized distributors.
About the Brand – Uniview
Uniview (UNV) is a leading global manufacturer of IP video surveillance and security technology. Known for innovative solutions, high-performance hardware, and reliable system integration, Uniview products are widely deployed across commercial security, transportation infrastructure, industrial facilities, and smart city projects worldwide.
Practical Use Scenarios
-
Perimeter security audio warnings integrated with CCTV systems
-
Industrial sites and warehouses for emergency announcements
-
Car parks and transport hubs for safety alerts
-
Construction sites for operational communication
-
Schools and campuses for outdoor paging systems
-
Retail complexes and shopping centres for public announcements
Datasheets & Resources
Excellence for the Australian and New Zealand Market
The Uniview IPS302030-S Horn IP Speaker is supplied through authorized distribution channels specifically serving the Australian and New Zealand security market. This ensures genuine products, firmware authenticity, and full manufacturer support. Designed to integrate with professional security installations across Australia and New Zealand, the device offers reliable performance in demanding outdoor environments. Warranty claims and technical support are handled through direct communication with authorized Uniview representatives, ensuring dependable service and long-term operational reliability.
Uniview IPS302030-S
What is the Uniview IPS302030-S horn IP speaker used for?
The Uniview IPS302030-S is designed for outdoor audio broadcasting, alarm announcements, and security warnings integrated with IP surveillance systems.
Does the Uniview IPS302030-S support PoE power?
Yes, the Uniview IPS302030-S supports PoE+ (IEEE 802.3at), allowing both power and data transmission through a single Ethernet cable.
Can the Uniview IPS302030-S integrate with Uniview NVR systems?
Yes, the Uniview IPS302030-S can integrate with Uniview NVR systems to trigger automated alarm broadcasts and audio-video linkage during security events.
Is the Uniview IPS302030-S suitable for outdoor installations?
Yes, the Uniview IPS302030-S features an IP66 weatherproof rating, making it suitable for harsh outdoor environments such as industrial sites and parking areas.
Does the Uniview IPS302030-S support two-way audio communication?
Yes, the Uniview IPS302030-S includes a built-in microphone and speaker, enabling two-way audio communication.
What audio formats can be uploaded to the Uniview IPS302030-S?
The Uniview IPS302030-S supports MP3 and WAV audio formats for custom announcements and pre-recorded messages.
How loud is the Uniview IPS302030-S horn speaker?
The Uniview IPS302030-S delivers up to 130 dB SPL, making it suitable for large outdoor spaces and long-distance sound projection.
