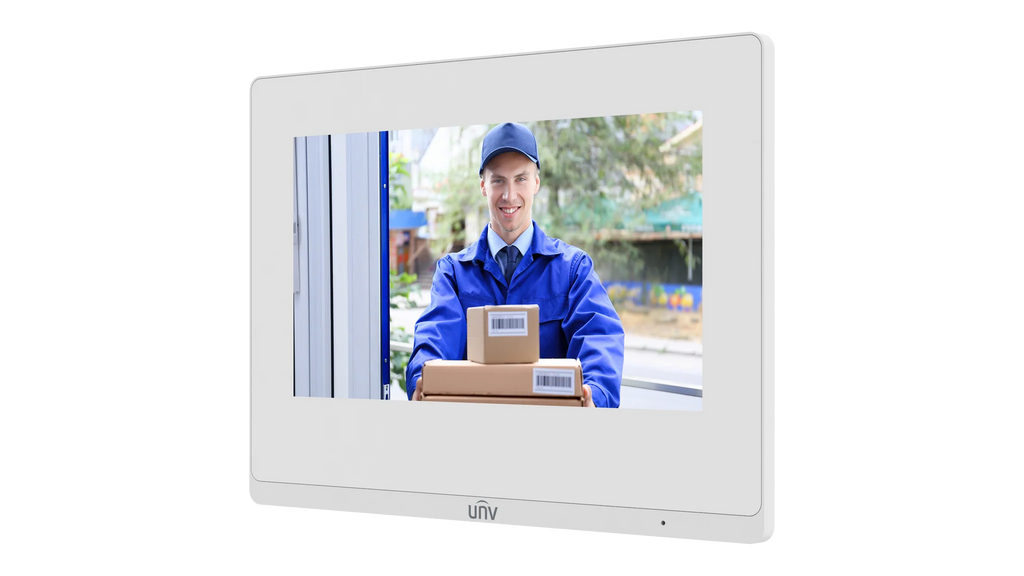

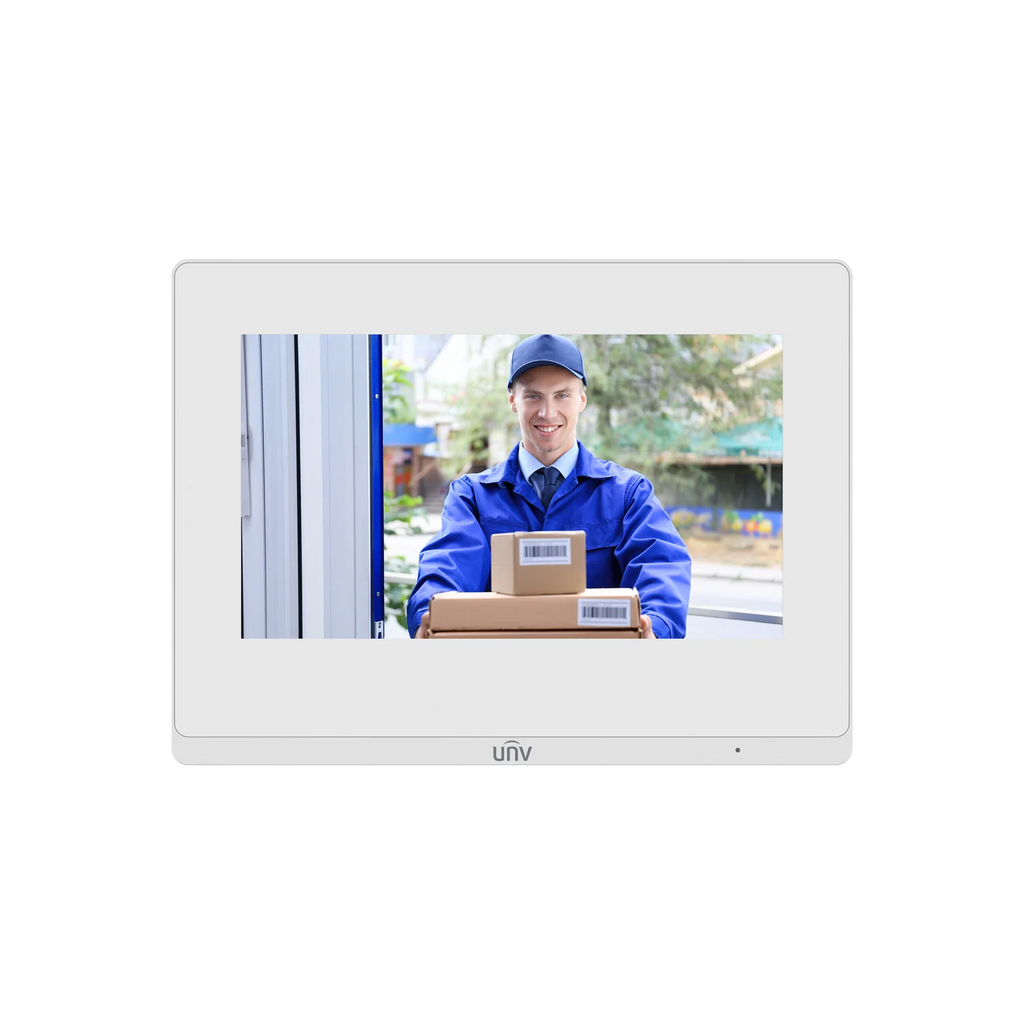

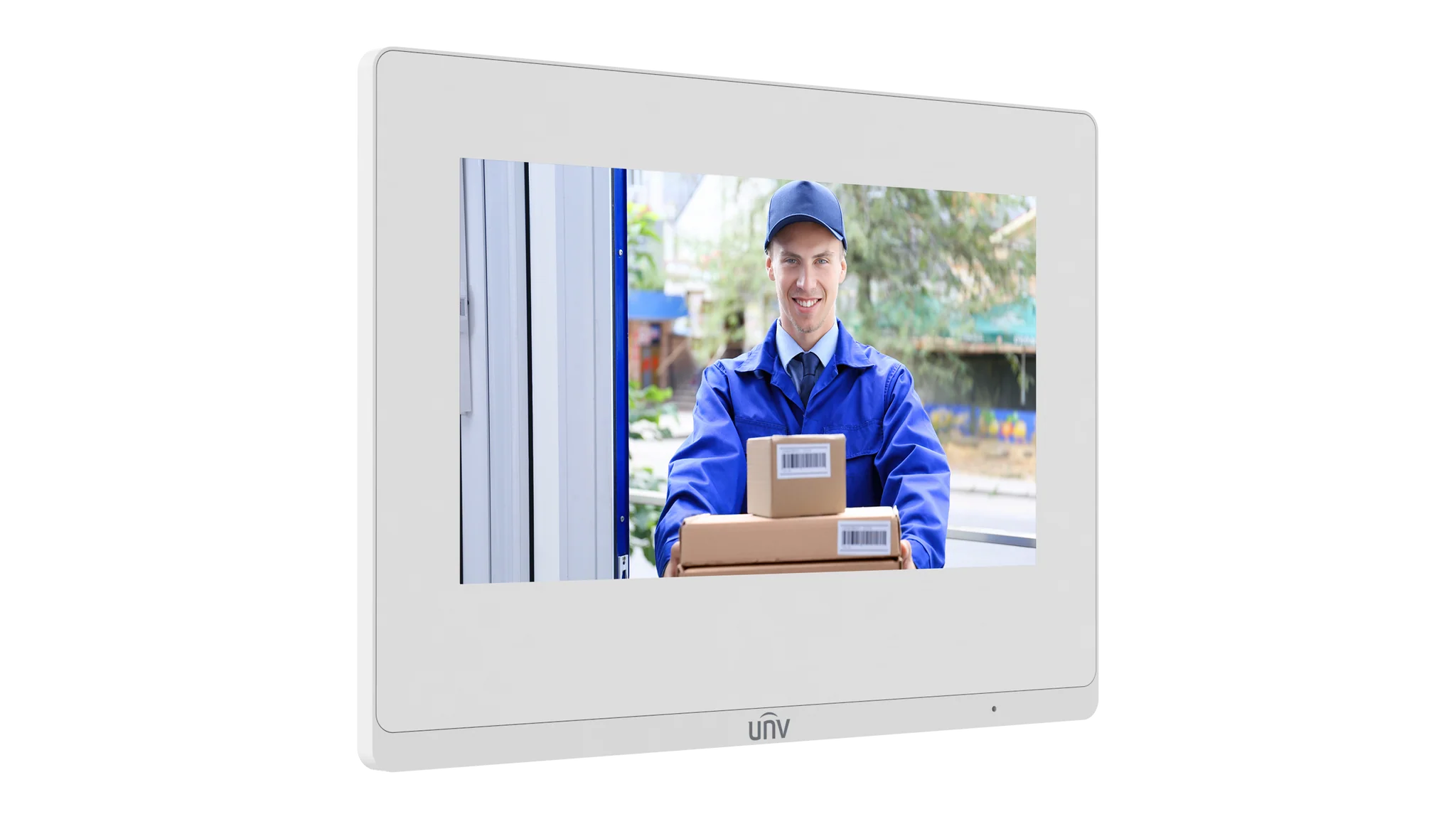

The Uniview OEI‑372S‑H‑W Indoor Station is a high‑quality 7″ touchscreen intercom monitor designed for effortless video intercom, security alarm display, and network camera monitoring in smart homes, villas, and residential complexes. With PoE and Wi‑Fi support, built‑in audio, and expandable connectivity, this indoor station delivers seamless, modern access control and communication.
Product Description
The Uniview OEI‑372S‑H‑W is a wall‑mounted, touchscreen indoor intercom station engineered for secure, intuitive video communication and smart access control. It integrates clearly into digital intercom systems, enabling residents to receive calls, view live video from connected cameras or door stations, trigger remote door unlocking, and monitor zone alarms — all from the convenience of a sleek 7‑inch HD display.
What’s Included
Main Features
✔ 7″ HD Capacitive Touchscreen Display – Clear 1024×600 resolution for easy interaction
✔ Video Intercom & Live Monitor – View calls from outdoor door stations and connected network cameras
✔ Two‑Way Audio Communication – Built‑in microphone and speaker with echo cancellation and noise suppression
✔ Remote & One‑Touch Door Unlocking – Activate linked door stations with a single touch
✔ Network Camera Monitoring & Alarm Integration – Monitor zone alarms and connected IPCs
✔ Batch Configuration & Transfer – Ideal for multi‑unit installations in smart communities and offices
✔ Connectivity Flexibility – IEEE802.3af PoE or 12V DC power, plus Wi‑Fi and RS‑485 support
✔ Expandable System Capacity – Supports up to 20 devices and 19 linked indoor extensions
Detailed Specifications
| Specification |
Detail |
| Model |
OEI‑372S‑H‑W |
| Display |
7″ ultra‑thin TFT LCD touchscreen |
| Resolution |
1024 × 600 |
| Operating System |
Linux |
| Audio |
Two‑way with noise suppression & echo cancellation |
| Audio Codec |
MP3 & G.711 (128 Kbps) |
| Network |
100 Mbps Ethernet + Wi‑Fi (2.4 GHz Wi‑Fi4) |
| Interfaces |
Power ×1, Network ×1, RS‑485 ×1, IO outputs ×2, IO inputs ×8, TF Card slot ×1 |
| Power |
IEEE802.3af PoE or 12 V DC ±25% |
| Power Consumption |
<10 W |
| Protocol Support |
UNV Private, TCP/IP, IPv4, HTTP, RTSP, RTP, NTP |
| Capacity |
Up to 20 devices (incl. cameras/door stations/NVRs) |
| Linked Extensions |
19 maximum |
| Weight |
360 g |
| Dimensions (L×W×H) |
193 × 143 × 25 mm |
| Operating Conditions |
-10 °C to +55 °C, 10–90% RH non‑condensing |
| Mounting |
Wall mount |
| Use |
Indoor only |
Datasheets
Warranty Information
Standard manufacturer warranty applies. Local warranty support is available through authorized Uniview resellers and distributors. Duration and service process may vary based on region and distributor.
Brand Overview
Uniview is a global leader in AIoT and IP video surveillance, offering robust and scalable solutions for security, smart access, and communication. Their indoor intercom stations are known for innovation, ease of use, and seamless integration into smart building ecosystems.
Practical Use Scenarios
-
Residential Complexes: Communicate securely with visitors and manage multi‑unit door stations
-
Villas & Homes: Monitor entrances and indoor cameras with smart unlock features
-
Office Parks: Integrate with networked security cameras and alarms for streamlined access control
-
Smart Community Systems: Central touchscreen hubs for multiple connected devices
Excellence for the Australian & New Zealand Market
The Uniview OEI‑372S‑H‑W Indoor Station is well‑suited for the Australian and New Zealand markets, offering compatibility with PoE-based infrastructure commonly used in local smart building and security installations. Sourced exclusively through authorized distributors, this model ensures compliance with quality expectations. Warranty claims and technical support are processed directly via certified Uniview partners in the region, offering peace of mind and seamless after-sales service.
Product Code OEI‑372S‑H‑W
1. What power options are supported by the Uniview OEI‑372S‑H‑W?
The OEI‑372S‑H‑W supports both 12 V DC power input and Power over Ethernet (PoE) via IEEE802.3af.
2. Does the Uniview OEI‑372S‑H‑W support wireless connectivity?
Yes, the OEI‑372S‑H‑W includes 2.4 GHz Wi‑Fi connectivity in addition to a wired Ethernet port.
3. Can the Uniview OEI‑372S‑H‑W monitor multiple connected devices?
Absolutely. The OEI‑372S‑H‑W supports up to 20 connected devices including IP cameras, entrance stations, NVRs, and doorbells.
4. Is the Uniview OEI‑372S‑H‑W suitable for homes and apartments?
Yes, the OEI‑372S‑H‑W is ideal for use in residential properties such as apartments, villas, and gated communities.
5. Does the Uniview OEI‑372S‑H‑W allow remote door unlocking?
Yes, the OEI‑372S‑H‑W offers one-touch and remote unlocking functionality when integrated with compatible door stations.
6. What audio capabilities does the Uniview OEI‑372S‑H‑W include?
The OEI‑372S‑H‑W features high‑quality two-way audio with built‑in speaker and microphone, echo cancellation, and noise suppression.
7. Can the Uniview OEI‑372S‑H‑W display video from network cameras?
Yes, the OEI‑372S‑H‑W supports real-time video monitoring from compatible network IP cameras and door stations.
