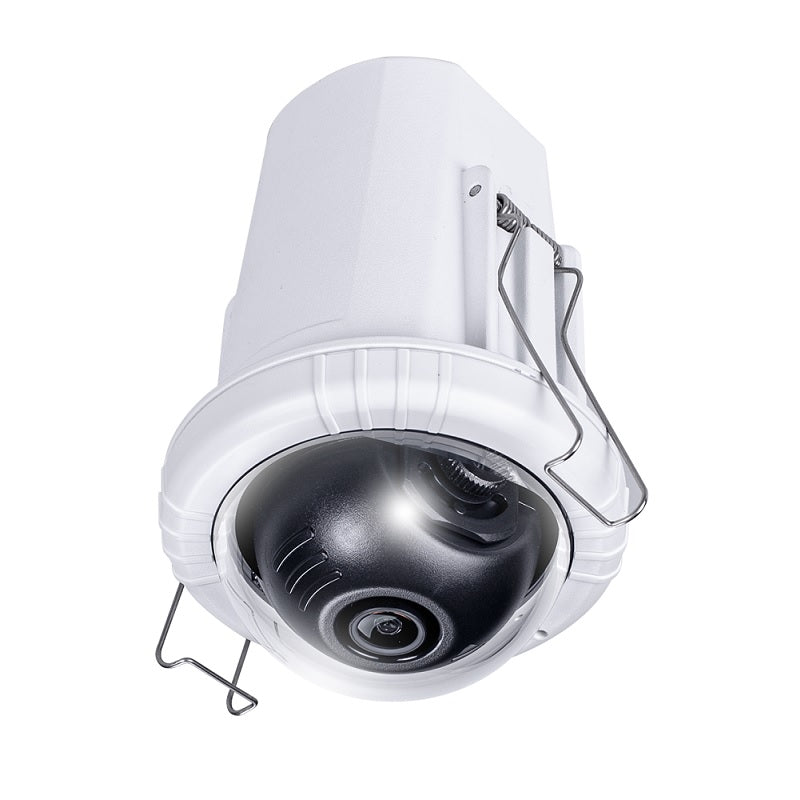

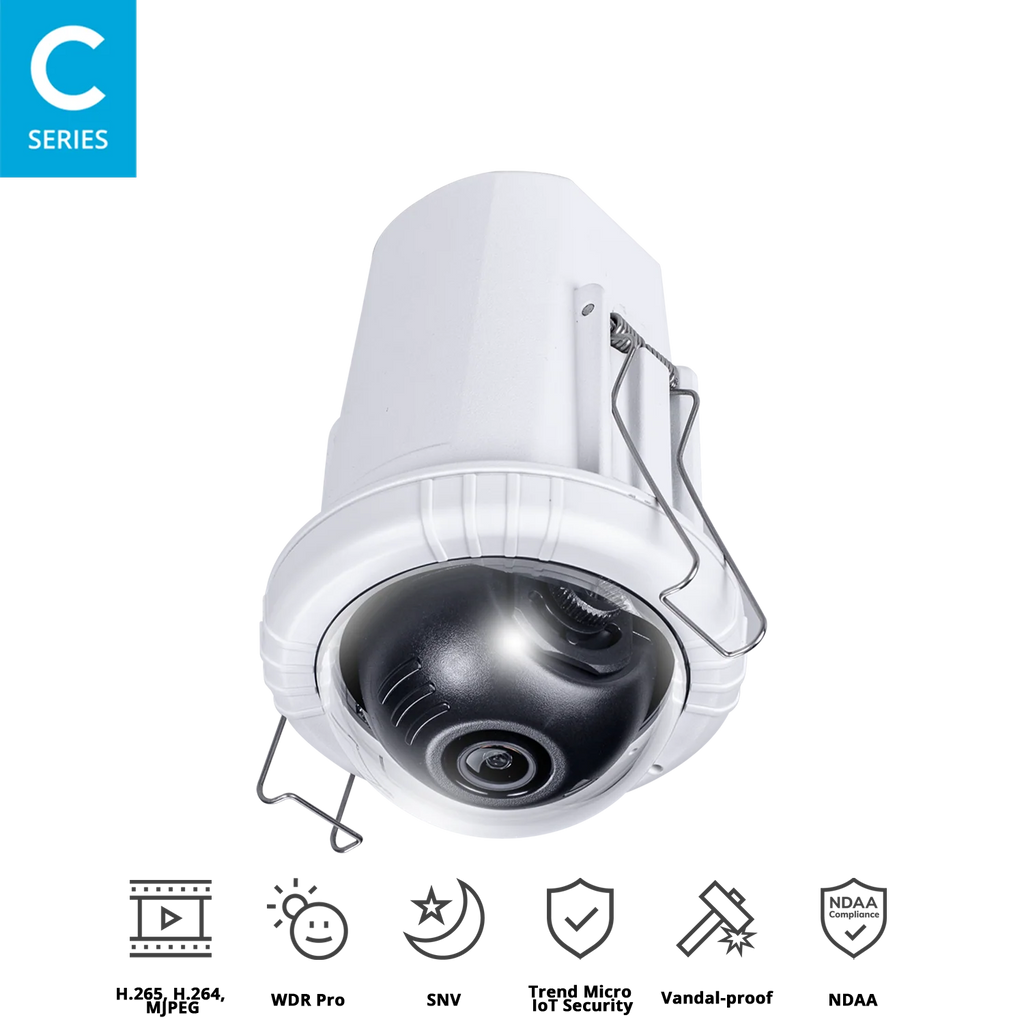

The VIVOTEK FD9182-H is a high-performance 5MP fixed dome network camera designed for recessed indoor and semi-outdoor installations where subtle and secure surveillance is required. With a compact form factor and recessed mount design, it blends seamlessly into ceilings while providing robust video coverage with 103° horizontal field of view.
Powered by a 1/2.7" progressive CMOS sensor, the FD9182-H supports 20 fps at full 5MP resolution (2560x1920), enhanced with WDR Pro (120 dB) for excellent visibility in high-contrast environments, and SNV (Supreme Night Visibility) for low-light performance.
This model also includes Smart Stream III technology and H.265 compression, which significantly reduces bandwidth and storage needs. The built-in microphone allows for one-way audio monitoring, and advanced security is provided by Trend Micro IoT Security integration.
What’s in the Box
Main Features
-
5MP resolution (2560x1920) at 20 fps
-
2.8 mm fixed-focal lens with 134° diagonal view
-
WDR Pro for high dynamic range imaging (120 dB)
-
Supreme Night Visibility for enhanced low-light performance
-
Smart Stream III and H.265/H.264/MJPEG compression
-
Built-in Microphone for one-way audio
-
MicroSD/SDHC/SDXC card slot for on-board storage
-
Compact recessed mount design for discreet installation
-
PoE powered (IEEE 802.3af Class 2)
-
Trend Micro IoT Security integration
-
ONVIF Profiles G, S, T supported
Detailed Specifications
| Specification |
Details |
| Model |
FD9182-H |
| Sensor |
1/2.7″ Progressive CMOS |
| Resolution |
2560×1920 (5MP) |
| Lens |
2.8 mm fixed focal, F2.0 |
| Field of View |
H: 103°, V: 76°, D: 134° |
| Shutter Speed |
1/5 sec – 1/32,000 sec |
| Minimum Illumination |
0.03 lux (Color), <0.005 lux (B/W), 0 lux with IR |
| WDR |
WDR Pro (120 dB) |
| Zoom |
ePTZ, 48× digital (12× built-in) |
| Compression |
H.265, H.264, MJPEG |
| Streams |
3 streams, up to 8 profiles |
| S/N Ratio |
65 dB |
| Audio |
One-way audio, built-in mic, G.711/G.726 |
| Storage |
MicroSD/SDHC/SDXC (up to 1TB), NAS supported |
| Security |
HTTPS, 802.1X, password protection, signed firmware, Trend Micro IoT Security |
| Power Input |
IEEE 802.3af PoE Class 2 |
| Power Consumption |
Max. 3.6 W |
| Dimensions |
Ø 82 × 122 mm |
| Weight |
353 g |
| Certifications |
CE, FCC, RCM (AS/NZS), VCCI, UL, CB, IK10 |
| Operating Temp. |
-10°C to 50°C |
| Humidity |
90% RH (non-condensing) |
Warranty Information
The FD9182-H is covered by a 36-month manufacturer's warranty, with full support available through authorized VIVOTEK service channels and distributors.
Datasheets
Brand Description
VIVOTEK Inc. is a leading global provider of IP surveillance solutions, offering robust, high-quality, and cyber-secure video technologies. With a focus on innovation, VIVOTEK products are widely used in commercial, industrial, and public sector security applications.
Practical Use Scenarios
-
Retail Ceiling Installations: Discreet coverage with built-in microphone and wide FOV
-
Offices and Corporate Facilities: Compact camera with high-resolution video and recessed mount
-
Education Buildings: Secure ceiling-mount for corridors, entries, and classrooms
-
Hospitals and Clinics: Quiet, unobtrusive design with reliable video clarity
-
Banks and ATMs: High-detail imaging and audio for transaction areas
Excellence for the Australian and New Zealand Market
-
Fully certified for local compliance with RCM (AS/NZS CISPR 32)
-
Reliable operation across -10°C to 50°C temperature range
-
IK10-rated housing for protection against tampering
-
Distributed exclusively through authorized ANZ partners, ensuring authenticity and warranty integrity
-
Warranty and technical support managed locally for Australian and New Zealand customers
FAQs (Product Code: FD9182-H)
Q1: What is the lens specification of the FD9182-H?
A1: The FD9182-H (product code FD9182-H) features a 2.8 mm fixed lens with a 134° diagonal field of view, ideal for wide indoor coverage.
Q2: Does the FD9182-H support on-board recording?
A2: Yes, the FD9182-H (product code FD9182-H) includes a MicroSD/SDHC/SDXC card slot supporting up to 1TB, along with NAS recording capabilities.
Q3: Is the FD9182-H suitable for low-light environments?
A3: Absolutely. The FD9182-H (product code FD9182-H) features SNV (Supreme Night Visibility) and WDR Pro for outstanding performance in challenging lighting.
Q4: What power input does the FD9182-H use?
A4: The FD9182-H (product code FD9182-H) is powered via PoE (IEEE 802.3af Class 2) with a maximum consumption of 3.6 watts.
Q5: Is the FD9182-H certified for Australian and New Zealand use?
A5: Yes, the FD9182-H (product code FD9182-H) is certified under RCM (AS/NZS CISPR 32) and is IK10-rated for impact resistance.
