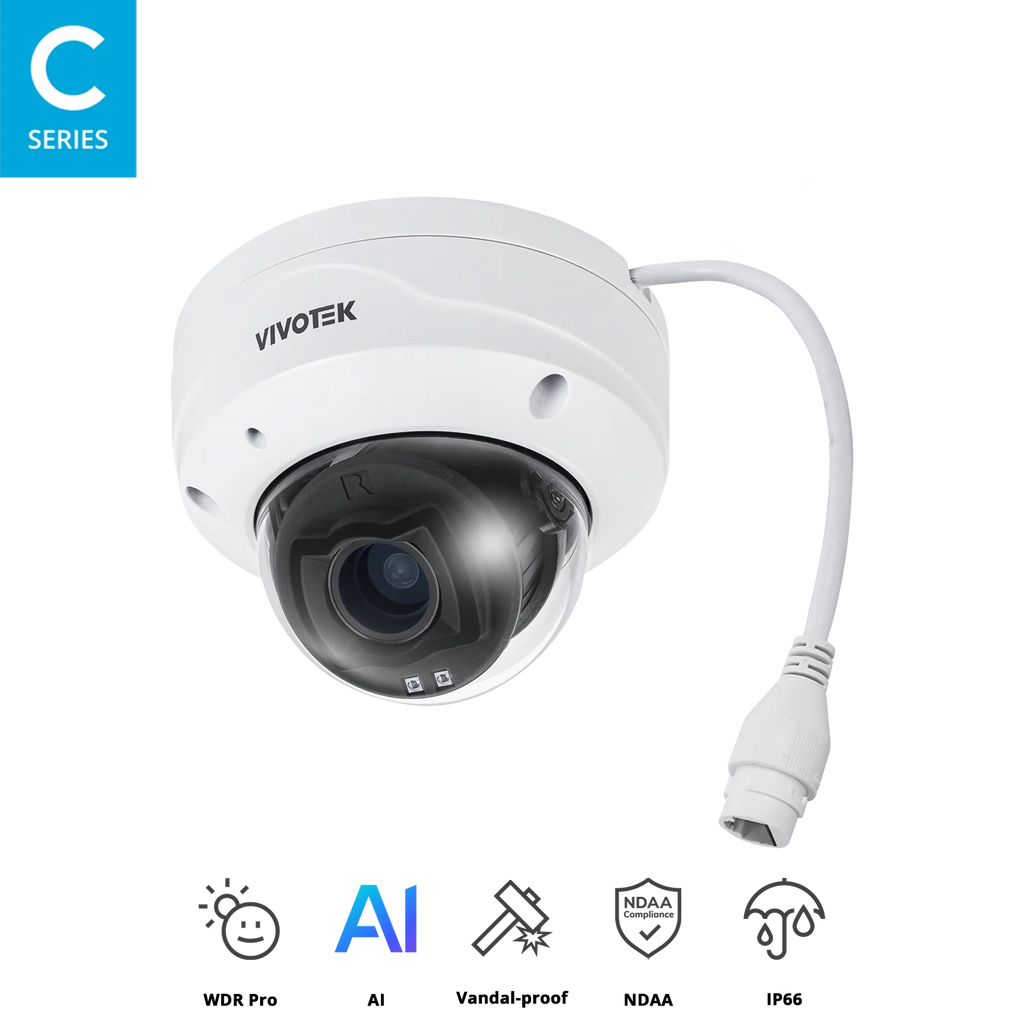

The VIVOTEK FD9383-HTV is a versatile 5MP dome network camera engineered for high-definition surveillance in both indoor and outdoor environments. Featuring a motorized varifocal lens (2.8 – 12mm), remote focus, and real-time 30fps at full 5MP resolution, this camera offers exceptional clarity, flexible field of view, and installation convenience. With WDR Pro (120 dB), Smart IR up to 30 meters, and advanced AI-powered video content analytics, the FD9383-HTV adapts to complex lighting and motion conditions for optimal security performance.

The robust IP66-rated waterproof and IK10-rated vandal-resistant housing makes it ideal for critical deployments such as government buildings, hospitals, schools, airports, retail centers, and infrastructure hubs. With onboard AI analytics, remote focus/zoom, and Trend Micro cybersecurity, it provides an intelligent and secure solution for modern video surveillance needs.

What's in the Box

• VIVOTEK FD9383-HTV Fixed Dome Camera

• Quick Installation Guide

• Alignment Sticker

• Screw Pack

• Cable Gland

Main Features

• 5MP Resolution at 30fps – Crisp video capture in real time

• Motorized Varifocal Lens (2.8–12mm) – Remote zoom and focus control

• WDR Pro (120 dB) – Excellent performance in high contrast environments

• Smart IR up to 30 Meters – Reliable night vision with anti-overexposure

• Deep Learning AI-Powered VCA – Face, intrusion, loitering, crowd, and object detection

• Smart Motion Detection – AI-classified events (people and vehicles)

• H.265 + Smart Stream III – Optimized compression and bandwidth savings

• Vandal & Weather Protection – IK10 and IP66 certified for harsh conditions

• Built-in Microphone – One-way audio capture

• Pixel Calculator + Remote Setup – Simplifies installation and targeting

Technical Specifications

Camera:

• Image Sensor: 1/2.8" Progressive CMOS

• Max. Resolution: 2560 x 1920 (5MP)

• Lens: Motorized varifocal, f = 2.8 ~ 12mm, F1.6 ~ F3.3, DC iris

• Field of View:

  • Horizontal: 95.4° ~ 28.7°

  • Vertical: 68.8° ~ 21.5°

  • Diagonal: 129.6° ~ 35.9°

• Minimum Illumination:

  • 0.04 lux (Color)

  • 0.005 lux (B/W)

  • 0 lux with IR on

• IR Range: 30 meters, Smart IR with 2 IR LEDs

• Pan/Tilt/Rotation: 353° / 75° / 350°

• WDR Pro: 120 dB

• ePTZ: 48x digital zoom

Video:

• Compression: H.265, H.264, MJPEG

• Frame Rate: 30fps @ 5MP, 60fps @ 1080p

• Streams: 3 simultaneous, up to 8 profiles

• Smart Stream III: Bandwidth optimization

• S/N Ratio: 59 dB

AI Analytics:

• Smart VCA: Intrusion, loitering, face, line crossing, crowd, running, and zone detection

• Smart Motion Detection: AI-based object classification

• Object Recognition: Person and vehicle (with attributes: clothing, color, vehicle type)

• Advanced VCA Available via License

• Free trial of VIVOTEK VCA suite available

Audio:

• Audio Input: Built-in microphone

• Audio Compression: MPEG-2 AAC-LC, G.711, G.726

• Effective Range: 5 meters

Network & Security:

• Live Viewing: Up to 10 clients

• Security:

  • Secure boot, signed firmware

  • IEEE 802.1x, HTTPS

  • Trend Micro IoT Security

• Protocols Supported: IPv4, IPv6, HTTPS, FTP/SFTP, SNMP, TLS 1.2/1.3, RTSP, UPnP, etc.

• ONVIF Profiles G, S, T

Interfaces & Storage:

• Ethernet: RJ-45 (10/100 Mbps), IEEE 802.3af PoE

• Local Storage: MicroSD/SDHC/SDXC (up to 1TB), NAS

Mechanical & Environmental:

• Power Consumption: Max. 9.7W (IR on), 7.2W (IR off)

• Operating Temperature:

  • Start: -10°C to 50°C

  • Operation: -30°C to 55°C (IR off) / -30°C to 50°C (IR on)

• Humidity: 90%

• Dimensions: Ø133.7mm x 103.8mm

• Weight: 850g

• Certifications:

  • EMC: CE, FCC, RCM, VCCI

  • Safety: UL, CB, LVD

  • Environment: IK10, IP66, BSMI, BIS

DORI Distance (Wide/Tele):

• Detect: 67.0m / 205.7m

• Observe: 26.7m / 81.6m

• Recognize: 13.3m / 41.0m

• Identify: 6.6m / 20.5m

Warranty Information

The VIVOTEK FD9383-HTV includes a full manufacturer-backed warranty, managed through official distribution partners or VIVOTEK-authorized service providers.

Brand Description

VIVOTEK Inc. is a globally recognized leader in surveillance technology, headquartered in Taiwan. Renowned for its focus on AI-powered analytics, video compression, and cybersecurity, VIVOTEK solutions are trusted by enterprises, governments, and integrators in over 100 countries.

SKU: FD9383-HTV

Practical Use Scenarios

• Government & Infrastructure – Reliable outdoor surveillance with AI intrusion alerts

• Hospital & Healthcare Security – Vandal-proof camera for patient safety zones

• Retail Storefronts & Entrances – Clean design with remote zoom for optimal coverage

• Parking Garages & Perimeters – Smart IR + vehicle detection up to 205m

• Education Facilities & Campuses – Monitor corridors and entries with flexible FOV

Downloadable Resources

• Datasheet – VIVOTEK FD9383-HTV (PDF)

Excellence for the Australian and New Zealand Market

The FD9383-HTV is engineered to exceed Australia and New Zealand compliance standards, featuring RCM certification (AS/NZS CISPR 32 Class A) and IK10/IP66 environmental resilience. This model is sourced exclusively through authorized local distributors, ensuring eligibility for local technical support, authorized servicing, and full warranty coverage. Its temperature resilience, rugged design, and feature-rich analytics make it ideal for use across Australia’s urban centers and remote regions alike.

FAQs – VIVOTEK FD9383-HTV

Q1: Can I remotely zoom and focus the FD9383-HTV lens during setup?
Yes, the FD9383-HTV features a motorized varifocal lens with remote focus and zoom capabilities. (Product Code: FD9383-HTV)

Q2: Does this camera support smart analytics for detecting people and vehicles?
Absolutely. The built-in Deep Learning VCA includes people and vehicle detection, along with advanced features like face and intrusion detection. (Product Code: FD9383-HTV)

Q3: Is this dome camera suitable for outdoor use?
Yes. It has an IP66-rated housing for weatherproofing and IK10 vandal resistance, ideal for demanding outdoor environments. (Product Code: FD9383-HTV)

Q4: What kind of storage does the FD9383-HTV support?
The camera supports MicroSD/SDHC/SDXC cards up to 1TB, and also integrates with network-attached storage (NAS) systems. (Product Code: FD9383-HTV)

Q5: What is the night vision range of this camera?
With Smart IR and dual LEDs, the FD9383-HTV can capture images in total darkness up to 30 meters. (Product Code: FD9383-HTV)
