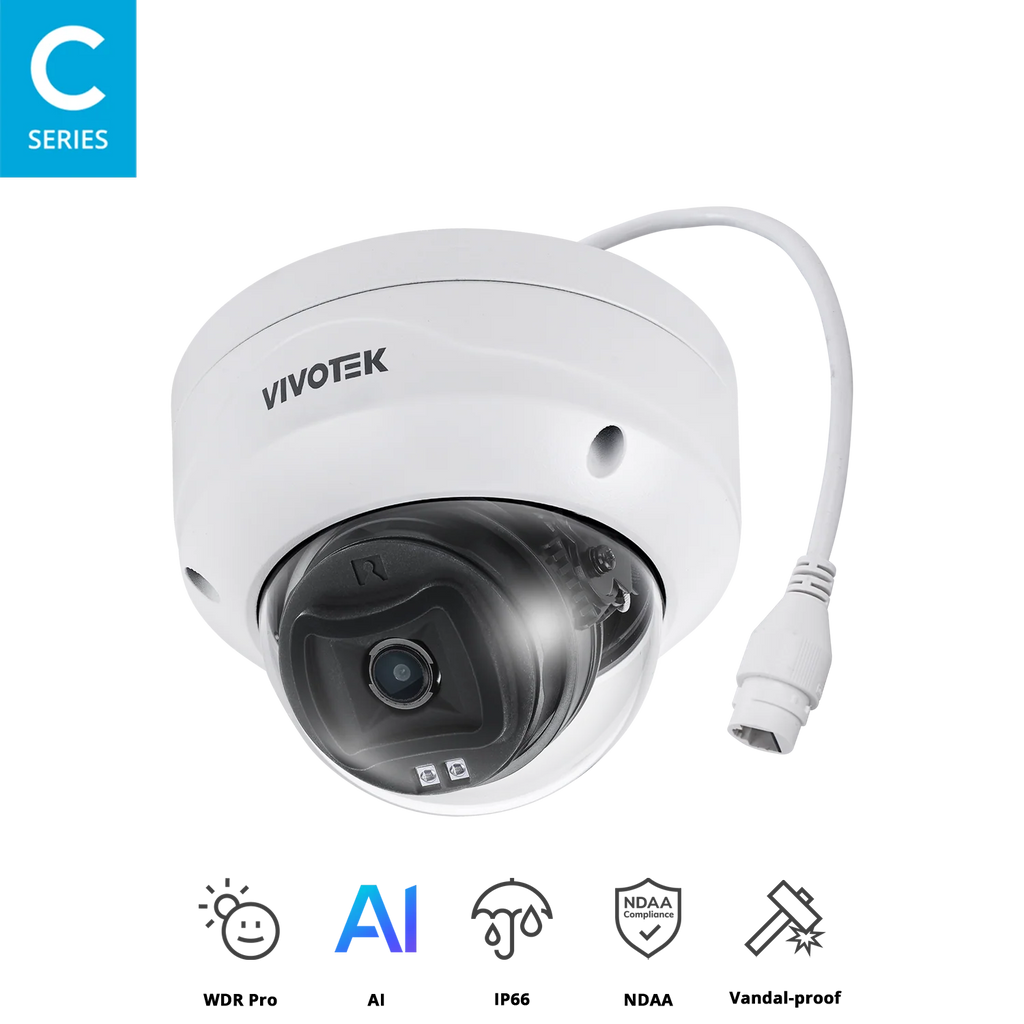

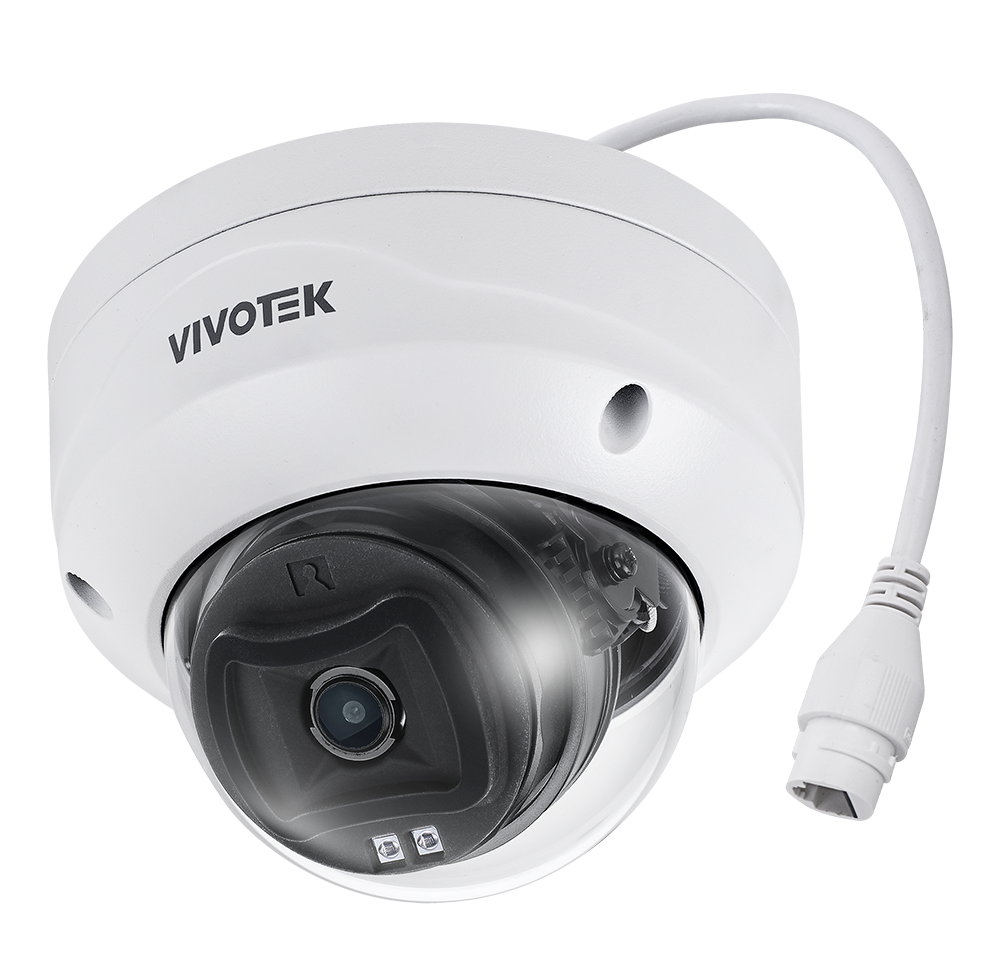

The VIVOTEK FD9383-HV is a compact yet powerful 5MP fixed dome network camera equipped with AI-powered Smart Video Content Analytics, WDR Pro (120 dB), and real-time 30fps at full resolution, making it an ideal choice for demanding surveillance environments. Available in both 2.8mm and 3.6mm lens variants, this camera offers flexibility in field of view without sacrificing detail or clarity.

Built with IP66-rated weatherproofing and IK10-rated vandal resistance, the FD9383-HV is optimized for outdoor or indoor deployments in high-risk zones such as transportation hubs, retail centers, hospitals, government buildings, and educational institutions. With built-in IR illuminators up to 30 meters, advanced H.265 compression, and Trend Micro cybersecurity, it delivers both intelligent functionality and dependable protection.

What's in the Box

• VIVOTEK FD9383-HV Dome Camera (2.8mm or 3.6mm)

• Quick Installation Guide

• Alignment Sticker

• Screw Pack

• Cable Gland

Main Features

• 5MP CMOS Sensor with 30fps Real-Time Video

• WDR Pro (120 dB) – Clear images in extreme lighting

• Choice of 2.8mm or 3.6mm Fixed-Focal Lens

  • 2.8mm: 103.4° (H) wide-angle

  • 3.6mm: 79.6° (H) balanced viewing

• IR Night Vision up to 30 Meters

• H.265 Compression with Smart Stream III

• AI-Powered Smart VCA – Intrusion, face detection, line crossing, and more

• Fixed Dome with ePTZ Digital Zoom (48x)

• IP66 and IK10 Certified – Weatherproof & vandal-proof

• Pixel Calculator for Installation Planning

Technical Specifications

Camera:

• Image Sensor: 1/2.8" Progressive CMOS

• Resolution: 2560 x 1920 (5MP)

• Lens Options:

  • 2.8mm: 103.4° H / 75.3° V / 135.2° D

  • 3.6mm: 79.6° H / 57.8° V / 105.8° D

• Min Illumination:

  • 0.055 lux @ F2.0 (Color)

  • 0.005 lux @ F2.0 (B/W)

  • 0 lux with IR

• IR Range: 30 meters, Smart IR

• WDR Pro: 120 dB

• Pan/Tilt/Rotation: 350° / 75° / 350°

• ePTZ Zoom: 48x digital

Video:

• Compression: H.265, H.264, MJPEG

• Frame Rate: 30fps @ 5MP; 60fps @ 1080p

• Streams: 3 simultaneous streams, 8 configurable profiles

• Smart Stream III: Bandwidth optimization

• S/N Ratio:

  • 2.8mm: 58 dB

  • 3.6mm: 56 dB

AI Analytics:

• Smart Motion Detection: Time-filtered people & vehicle detection

• Smart VCA: Face detection, intrusion, loitering, line crossing, object left/removed, crowd detection, running detection, parking violation, restricted zone detection

• Object Recognition: People (gender, clothing, bag, hat), Vehicles (bike, car, truck, color)

• Analytics Suite Expandable via License

Network & Security:

• Live Viewing: Up to 10 clients

• Cybersecurity:

  • Secure boot, signed firmware

  • Trend Micro IoT Security

  • HTTPS, IEEE 802.1x, CSRF protection

• Protocols: IPv4, IPv6, FTP/SFTP, HTTPS, SNMP, NTP, TLS 1.2/1.3, and more

• ONVIF Profiles G, S, T Supported

Storage:

• Local: MicroSD/SDHC/SDXC (up to 1TB)

• Remote: NAS

Power & Environment:

• PoE Input: IEEE 802.3af Class 3

• Consumption: Max. 8.5W (IR on), 6.0W (IR off)

• Operating Temp:

  • Start: -10°C to 50°C

  • Work: -30°C to 55°C (IR off), -30°C to 50°C (IR on)

• Humidity: 90%

• Certifications:

  • EMC: CE, FCC, RCM, VCCI

  • Safety: UL, CB, LVD

  • Environmental: IP66, IK10

• Dimensions: Ø117.2 x 89.6 mm

• Weight: 550 g

DORI Distance (EN 62676-4):

• Detect: 2.8mm: 60.4m | 3.6mm: 78.3m

• Observe: 2.8mm: 24.1m | 3.6mm: 31.3m

• Recognize: 2.8mm: 12.0m | 3.6mm: 15.6m

• Identify: 2.8mm: 6.0m | 3.6mm: 7.8m

Warranty Information

The FD9383-HV comes with full manufacturer warranty, serviced through VIVOTEK’s certified regional partners and support channels.

Brand Description

VIVOTEK Inc., based in Taiwan, is a leading surveillance solutions provider with a strong emphasis on AI video analytics, network security, and cutting-edge imaging technologies. Its global footprint and commitment to quality have made it a trusted name in security systems worldwide.

SKU: FD9383-HV

Practical Use Scenarios

• Retail Storefronts – Crisp facial details and object tracking

• Public Buildings & Schools – Wide FOV coverage and Smart VCA

• Outdoor Perimeters & Entrances – Weatherproof and vandal-proof design

• Parking Lots & Driveways – People/vehicle detection with license-free analytics

• Healthcare & Corporate Campuses – Advanced event detection and AI alerts

Downloadable Resources

• Datasheet – FD9383-HV (PDF)

Excellence for the Australian and New Zealand Market

The FD9383-HV is fully compliant with Australian and New Zealand regulations, including RCM certification (AS/NZS CISPR 32 Class A), and features IP66 and IK10 protection standards for extreme weather and impact resistance. Distributed exclusively via authorized ANZ partners, it includes full manufacturer-backed warranty support and is optimized for the region’s diverse environmental conditions. Its compatibility with local infrastructure and emphasis on cybersecurity make it a premier choice for Australian and New Zealand integrators.

FAQs – VIVOTEK FD9383-HV

Q1: What is the difference between the 2.8mm and 3.6mm models of the FD9383-HV?
The 2.8mm model provides a wider field of view (103.4°), ideal for broad coverage, while the 3.6mm offers more focused view (79.6°) for narrower monitoring. (Product Code: FD9383-HV)

Q2: Does the FD9383-HV support smart detection features?
Yes, it includes AI-based Smart VCA, supporting face detection, line crossing, crowd detection, and more. (Product Code: FD9383-HV)

Q3: How does the FD9383-HV perform at night?
With Smart IR LEDs up to 30 meters and 0 lux performance in B/W mode, it provides exceptional night visibility. (Product Code: FD9383-HV)

Q4: What are the video recording options?
It supports MicroSD/SDXC cards (up to 1TB) for local recording and integrates with NAS systems for network storage. (Product Code: FD9383-HV)

Q5: Is the FD9383-HV suitable for outdoor installations?
Yes, with IP66 weatherproof and IK10 vandal-resistant housing, it's ideal for outdoor environments. (Product Code: FD9383-HV)
